i know it gets old when new members post questions that has been covered over and over again but yall please bare with me. i have 700-4 and was wanting to add a decent size light bar across the front, some sort of rear light, and a smaller interior light. i already have a warn 4000# winch and radio pulling off the single battery.

can somebody break down what i need to do in regards to additional battery power (in a language that a non election can understand) ?

thx in advance

joeymt33

joeymt33

i4WD=imitated 4WD
Moderator
Lifetime Member
Supporting Member
Club Contributor
Mar 17, 2015
11,092
39,078
113
Guntersville, AL
Ownership

  1. 1000-3

  2. 1000-5
An optima yellow too under the driver seat will suit your needs. You'll have to get some remote terminals in place of the OEM and extend the battery cables to the new battery. Make sure you use a wire loom for the positive wire and a circuit breaker or fuse on the battery.

Here's a battery box under the seat. You can't buy them so you'll need to make your own
6dfca78d122ab76205bd0aa3d5539aa1

I used this fuse like these two pictures.
9dfce21b9489b9a742e9b485a8763778
This is a 175 amp. I can't remember what I used but I do know I carried a variety from 150 up to 300
45eff907f21e5934d4cd4cf138ef0cf3

You could use this circuit breaker instead of a fuse
0706fe8d3d9763267f940167cda28013

I used these remote battery terminals bolted down in place of my OEM battery
8ae2db2a1b82fbf4e99416147ba9f343

This should get you started



Sent from my iPhone 10s

Tflynn

Tflynn

Not a liberal
Lifetime Member
Club Contributor
Jan 12, 2015
2,502
3,844
113
Northern California
Ownership

  1. 700-2
An optima yellow too under the driver seat will suit your needs. You'll have to get some remote terminals in place of the OEM and extend the battery cables to the new battery. Make sure you use a wire loom for the positive wire and a circuit breaker or fuse on the battery.

Here's a battery box under the seat. You can't buy them so you'll need to make your own
View attachment 15769

I used this fuse like these two pictures.
View attachment 15770

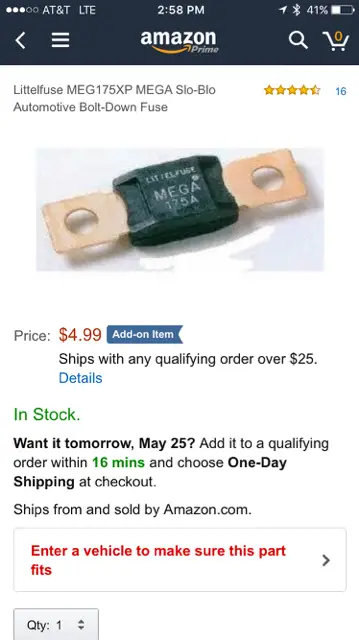

This is a 175 amp. I can't remember what I used but I do know I carried a variety from 150 up to 300
View attachment 15771

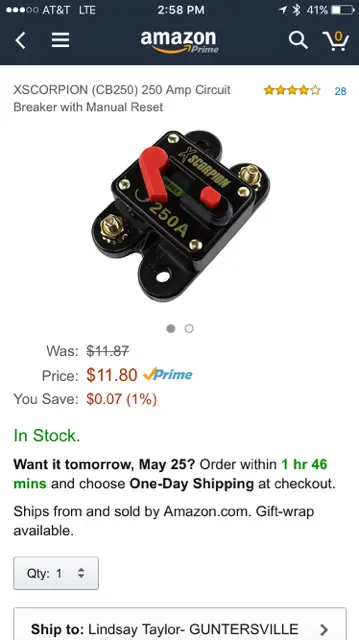

You could use this circuit breaker instead of a fuse
View attachment 15772

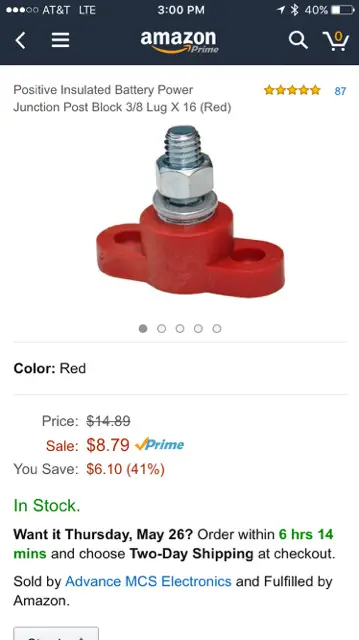

I used these remote battery terminals bolted down in place of my OEM battery
View attachment 15773

This should get you started



Sent from my iPhone 10s
To make sure I have this right, the remote terminals mentioned above would attach to the vehicle somewhere, say the frame or plastic. Then the stock battery cables as well as the corresponding extended cables attach to the remote terminals?

joeymt33

joeymt33

i4WD=imitated 4WD
Moderator
Lifetime Member
Supporting Member
Club Contributor
Mar 17, 2015
11,092
39,078
113
Guntersville, AL
Ownership

  1. 1000-3

  2. 1000-5
To make sure I have this right, the remote terminals mentioned above would attach to the vehicle somewhere, say the frame or plastic. Then the stock battery cables as well as the corresponding extended cables attach to the remote terminals?


That is correct.


Sent from my iPhone

joeymt33

joeymt33

i4WD=imitated 4WD
Moderator
Lifetime Member
Supporting Member
Club Contributor
Mar 17, 2015
11,092
39,078
113
Guntersville, AL
Ownership

  1. 1000-3

  2. 1000-5
You can put the remote terminals where the OEM battery was removed. That way you don't have to lengthen any wires.


Sent from my iPhone

  • Like
Reactions: Tflynn
V

vwprostock

Member
Apr 15, 2016
55
54
18
Flower Mound, TX
The above is one option I looked at and due to a variety of reasons, one being lazy, I added a large Duracell battery under the hood and it feeds all my accessories.

If your not real technical, may not be the task for you, but I made a simple U bracket that the battery sits in.

I then ran one wire from the original battery to it with a Blue Sea Mini ACR in between. It automatically disconnects the starting battery from the front battery /lights/stereo/winch winch if the voltage drops below about 12.6V. Once you start the rig, it stays disconnected until the starting battery is charged, then it closes and charges the front battery.

I also have a 4500lb winch, 32" light bar, MTX soundbar, two usb charging ports, LED strip for interior lights, and I have yet to remotely come close to working the amount of battery power I have. Its a bit overkill in hindsight.
