Blackwater Evolution 30x10-14 specs

[ohanacreek]

Spoke with ITP about the tires I planned on putting on my 1000

ATV / UTV
Tire Information

Inventory Code-6P0116

Size-30x10.00R14NHS

Tread Pattern-Blackwater Evolution

Ply Rating-8

Load Index-96

Speed Symbol-F


Dimensional Data

Mounted Diameter- 30.0 in.(762 mm)

Mounted Width-9.9 in.(251 mm)

Rim Width-8.0 in.(203 mm)

Rim Diameter-14 in.(356 mm)

Tire Weight-33.2 lbs(15.1 kg)

Tread Depth-31/32"(25 mm)



Inflation and Load Data

Rated Pressure-32 psi(221 kPa)

Rated Load-1570 lbs(712 kg)

Rated Speed-50 mph(80.5 km/h)



[Admin]



[JACKAL]

Spoke with ITP about the tires I planned on putting on my 1000

ATV / UTV
Tire Information

Inventory Code-6P0116

Size-30x10.00R14NHS

Tread Pattern-Blackwater Evolution

Ply Rating-8

Load Index-96

Speed Symbol-F


Dimensional Data

Mounted Diameter- 30.0 in.(762 mm)

Mounted Width-9.9 in.(251 mm)

Rim Width-8.0 in.(203 mm)

Rim Diameter-14 in.(356 mm)

Tire Weight-33.2 lbs(15.1 kg)

Tread Depth-31/32"(25 mm)



Inflation and Load Data

Rated Pressure-32 psi(221 kPa)

Rated Load-1570 lbs(712 kg)

Rated Speed-50 mph(80.5 km/h)

Those are some nice looking tires 8ply should be plenty tough.



[ohanacreek]

Worked well on the 700, here's hoping the 1000 gets here soon.



[sharky]

does anyone know what the total width-widest point- of 28x11x14 ipt rims and evol tires , shed door is only 64 7/8 wide already got tires and rims no machine yet pk1 3 seater, didnt think about the width.



[Hondasxs]

does anyone know what the total width-widest point- of 28x11x14 ipt rims and evol tires , shed door is only 64 7/8 wide already got tires and rims no machine yet pk1 3 seater, didnt think about the width.

Your going to be pushing it with ITP rims!
With only 2 inches to spare I would stick to factory rims.
What offset did you get?

Even if you went 1/2 inch wider on each side. You will end up scraping the door way!

BTY,
Welcome to the club!



[BigRiver]

These tires on stock rims, do you think they will clear adequately on compression of the suspension? How was the wear rate on the 700? I've always thought well of Maxxis Bighorns, but open to other brands.



[ohanacreek]

These tires on stock rims, do you think they will clear adequately on compression of the suspension? How was the wear rate on the 700? I've always thought well of Maxxis Bighorns, but open to other brands.

They will rub without a lift, wore GREAT, but I didn't ride on pavement. Ran SMOOTH radial made all the difference offer the bias ply HBCs I had before.



[BigRiver]

So I take it that you're installing a lift?



[ohanacreek]

So I take it that you're installing a lift?

I'll call an audible when it finally gets here.



[Smitty335]

Spoke with ITP about the tires I planned on putting on my 1000

ATV / UTV
Tire Information

Inventory Code-6P0116

Size-30x10.00R14NHS

Tread Pattern-Blackwater Evolution

Ply Rating-8

Load Index-96

Speed Symbol-F


Dimensional Data

Mounted Diameter- 30.0 in.(762 mm)

Mounted Width-9.9 in.(251 mm)

Rim Width-8.0 in.(203 mm)

Rim Diameter-14 in.(356 mm)

Tire Weight-33.2 lbs(15.1 kg)

Tread Depth-31/32"(25 mm)



Inflation and Load Data

Rated Pressure-32 psi(221 kPa)

Rated Load-1570 lbs(712 kg)

Rated Speed-50 mph(80.5 km/h)

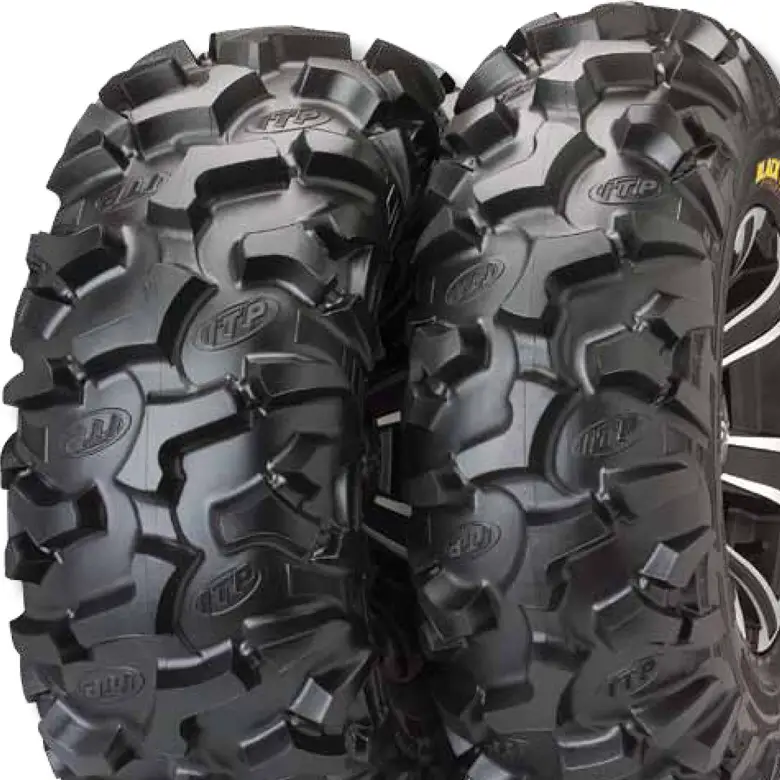

View attachment 34404

I've made two mutable day rides w/ the BW's now, no busted side walls, I have never finished a ride with out a busted side wall, even with 8 plys. And that's running 8 psi on the BW's. I'm becoming a BW fan and they really hook up in slimy conditions!
