P500 CV boot from back of the engine

mjager

mjager

Active Member
May 10, 2019
73
172
33
Central Ontario
Ownership

  1. 500
Has anyone had to replace this? I could use any tips or methods you have.

Thanks

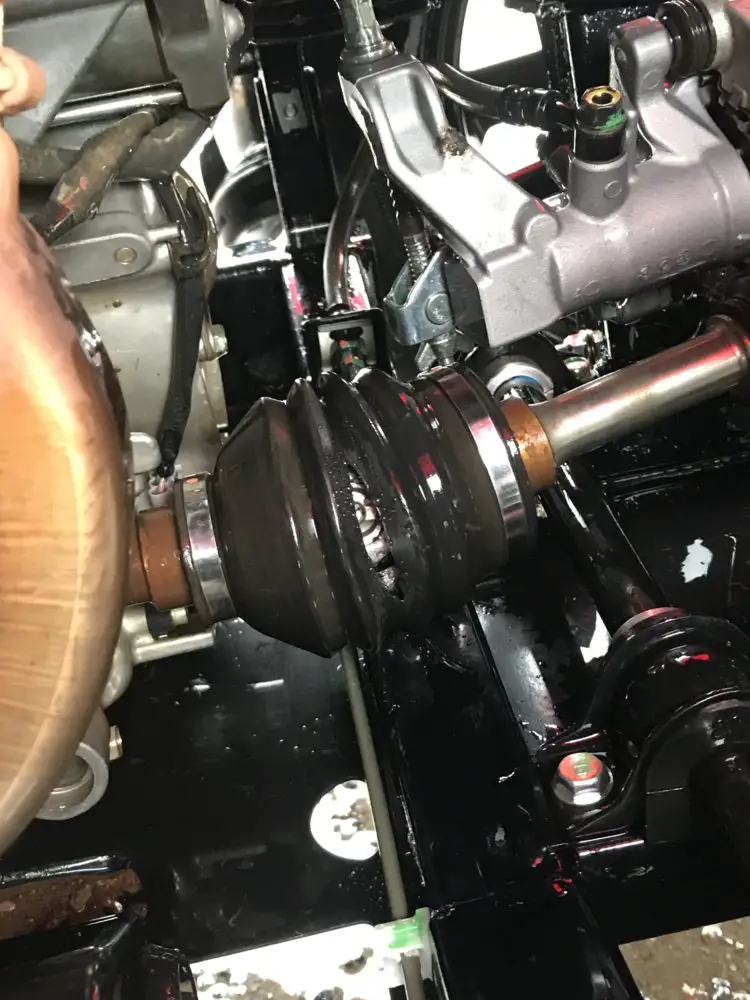

IMG 3464

  • Like
Reactions: rtn001 and DG Rider
Neohio

Neohio

Beast of the East
Lifetime Member
Supporting Member
Club Contributor
Dec 22, 2016
13,243
63,652
113
Painesville Ohio
Ownership

  1. 1000-5
I want to say most guys move the front diff forward on the machine to gain access to the front prop shaft.
Other than that, I am not much help.

  • Like
Reactions: rtn001
DG Rider

DG Rider

Member: Triple Clutch Club
Lifetime Member
Aug 14, 2013
9,174
41,533
113
Casa Grande, AZ
Ownership

  1. 700-2
Has anyone had to replace this? I could use any tips or methods you have.

Thanks

View attachment 128980
Did it a few months back. It was a b**** until I realized what I was doing wrong.

Remove the rear caliper and mounting bracket. They can be done as an assembly, and will slip right back on if you don't fettle with the brakes or knock the pads out.

Remove the mounting bolts for the diff. Once out, a couple of long screwdrivers or pry bars will help lift the diff up and back (remember, it's aluminum, so don't go crazy).
You do not have to remove the rear axles, but this is the area where I had issue...so you may want to after you read this...
After fighting with the rear diff for probably an hour, and using all types of profanity, I was getting ready to put the machine back together and start unbolting the engine. Then I realized what was going on: the rear axles were binding in their travel. The light bulb went on and I lowered the machine down off the Jack, and voila! The diff now went just far enough back to remove the shaft. I also have the brake disc loose in an attempt to try and get it out but I don't think you actually have to do this.

The end of the shaft nearest the brake rotor has a spring in it under that boot. The other end is just splined and goes into the u-joint, but it does have a o ring seal as does the other side going into the u-joint from the engine. These can be stuck in place a bit, but it all comes apart.

Personally I would regrease everything while it's out and maybe consider replacing the small boot and little rubber bands that hold it in place. Mine were good shape so I left them. Thise little rubber bands can be frustrating to try and get back on, especially with greasy hands...LOL!

The boot and clamps are pretty cheap. On first looking at the clamps, they looks like those band it type clamps that take a special tool, but this is not the case, installing with hand tools. The clamps just fold over. Pretty smart.

I forgot to install one of the clamps...duh! So while I fought with his for a couple hours of first Time around, once I realized the axles were binding and let it down on its own weight, I did it again in like 30 minutes.

Last edited:
mjager

mjager

Active Member
May 10, 2019
73
172
33
Central Ontario
Ownership

  1. 500
Did it a few months back. It was a b**** until I realized what I was doing wrong.

Remove the rear caliper and mounting bracket. They can be done as an assembly, and will slip right back on if you don't fettle with the brakes or knock the pads out.

Remove the mounting bolts for the diff. Once out, a couple of long screwdrivers or pry bars will help lift the diff up and back (remember, it's aluminum, so don't go crazy).
You do not have to remove the rear axles, but this is the area where I had issue...so you may want to after you read this...
After fighting with the rear diff for probably an hour, and using all types of profanity, I was getting ready to put the machine back together and start unbolting the engine. Then I realized what was going on: the rear axles were binding in their travel. The light bulb went on and I lowered the machine down off the Jack, and voila! The diff now went just far enough back to remove the shaft. I also have the brake disc loose in an attempt to try and get it out but I don't think you actually have to do this.

The end of the shaft nearest the brake rotor has a spring in it under that boot. The other end is just splined and goes into the u-joint, but it does have a o ring seal as does the other side going into the u-joint from the engine. These can be stuck in place a bit, but it all comes apart.

Personally I would regrease everything while it's out and maybe consider replacing the small boot and little rubber bands that hold it in place. Mine were good shape so I left them. Thise little rubber bands can be frustrating to try and get back on, especially with greasy hands...LOL!

The boot and clamps are pretty cheap. On first looking at the clamps, they looks like those band it type clamps that take a special tool, but this is not the case, installing with hand tools. The clamps just fold over. Pretty smart.

I forgot to install one of the clamps...duh! So while I fought with his for a couple hours of first Time around, once I realized the axles were binding and let it down on its own weight, I did it again in like 30 minutes.

Thanks, so your saying do the complete job with the wheels on the ground?

  • Like
Reactions: rtn001 and DG Rider
DG Rider

DG Rider

Member: Triple Clutch Club
Lifetime Member
Aug 14, 2013
9,174
41,533
113
Casa Grande, AZ
Ownership

  1. 700-2
Thanks, so your saying do the complete job with the wheels on the ground?

Just when you get ready to move the diff back to pull the shaft.
Or you can pull the axles and do it all in the air. They do get close to the frame uprights, so be careful with the boots.

  • Like
Reactions: rtn001
