P700 Honda 08Z02-HL3-A00 Accessory Sub Harness

[BillC]

Is this the correct harness for a 2020 Pioneer 700 Deluxe I've down a search some sites show that this will work some reviews say it it won't.Want to put some lights on and use a relay and have them thru the switch

Thanks



[Admin]



[KillYourTV]

bump



[QuadMan747]

Is this the correct harness for a 2020 Pioneer 700 Deluxe I've down a search some sites show that this will work some reviews say it it won't.Want to put some lights on and use a relay and have them thru the switch

Thanks

I'll see what I ordered. It was like 15 to 20 bucks



[QuadMan747]

wasn't on my Amazon or Rocky mountain history so I'm not sure. Looks like it though.



[Hondasxs]

I find that this one part #08Z02-HL3-A00 is for the installation of Honda Accessory Horn Kit and/or Back Up Alarm.



[KillYourTV]

So basically looks like plug and play whips for Ignition controlled power?



[Hondasxs]

So basically looks like plug and play whips for Ignition controlled power?

Power yes. Ground is only when in reverse.

We also sell cleaner options kn the store.

DIY Backup Light Harness for Honda Pioneer 1000 and Pioneer 700[2017+]

DIY Backup light harness for Honda Pioneer 1000 and Pioneer 700 [years 2017+].Great for small LED lights, cubes, or rock lights. Wire up your light and plug it in and you are done!Automatically comes on whenever the SxS is in reverse. Available in following lengths for your custom needs...

store.hondasxs.com



[KillYourTV]

Sounds good for winch ignition wire



[BHarris8753]

This is what I used, 2018 700-2, plugged into the red capped connector, has 12v at all 4 wires with key on. Much cheaper to buy at the dealer than amazon.



[KillYourTV]

Isnt the red one the diagnostic port? Not 100% sure I'd want to be messing with that…



[BHarris8753]

I went to my local dealer and compared the different harnesses, the one i posted is the only one i could find a plug and play with. The one that the 700 calls for i think is intended to be used with the oem switch panel and would not work for me. I just used it for key on power, it is not intended to carry a heavy load so i wouldn't think you'd have a problem



[KillYourTV]

Do you know how many maps that port is good for?



[BHarris8753]

I dont know about the amps, id say low just as a rule of thump. I used it to power the back lights on a switch panel which are led and my volt gauge and usb ports, the ports are 1-2 amps to charge you phone.



[BHarris8753]

If you could figure out which fuse powers that red capped wire that would tell you the amps by the fuse size



[dalis7393]

This is what I used, 2018 700-2, plugged into the red capped connector, has 12v at all 4 wires with key on. Much cheaper to buy at the dealer than amazon.

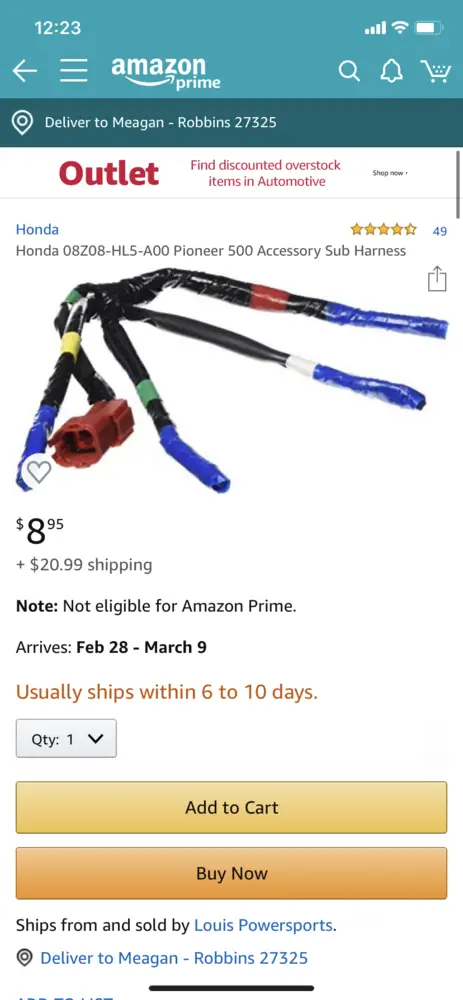

View attachment 185000

I tested the connector with key on i only have 1 wire that has power out of the 4. Is there another switch that needs to be on to have the other three powered up?
