P1000 HONDA PIONEER 1000 3P/5P, ACC OR BACKUP LIGHT WIRING HARNESS, 6 FT, PLUG & PLAY

[STRATOSMICRO]

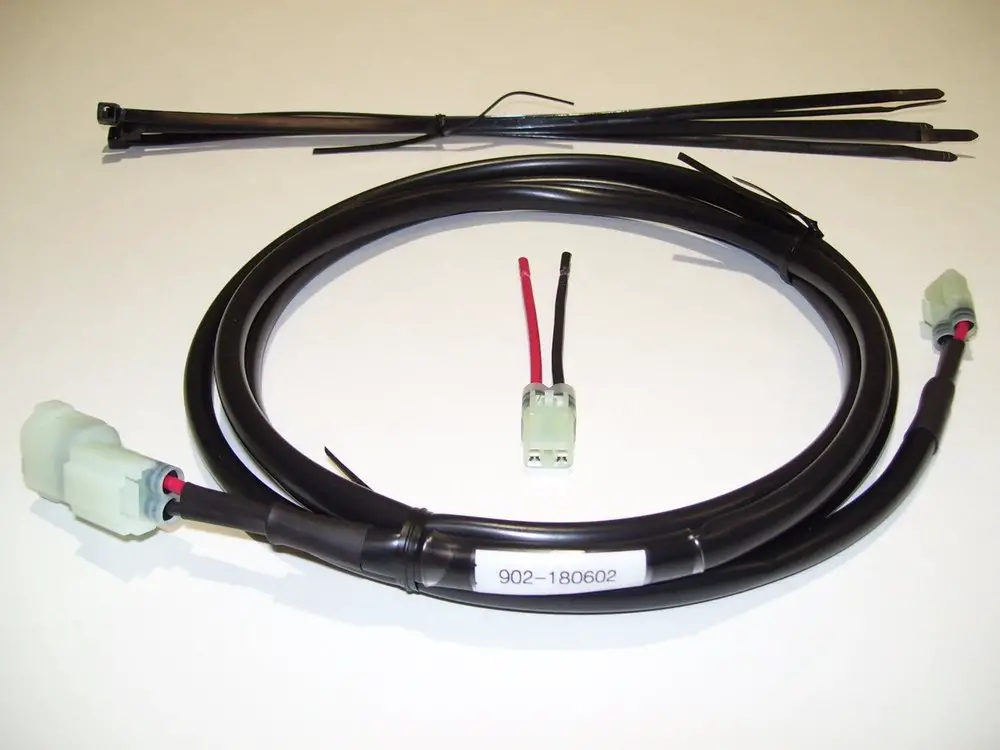

Backup Light Harness for the Pioneer 1000, no mods necessary.

Welcome to Honda Pioneer Tech

This harness will only provide power when vehicle is shifted in reverse, it functions off a triggered ground that is only present when vehicle is put into reverse gear.

• To install, simply remove factory filler plug (located on drivers side rear of engine) by gently lifting retaining tab to remove plug from connector, then install our custom harness.
• Harness is constructed with tough 18 AWG wire, approximately 6 foot in length, sheathed with flexible PVC tubing that is gas and oil resistant.
• Harness Plug is a 2 Position Plug that will only fit connector located at rear of engine near oil filter housings.
• Water resistant gaskets are installed on connections
• Pig tail for device is included
• This harness will support a 5 AMP, 60 Watt device
• Each harness is hand built and tested in the U.S.

eBay Store link: HONDA PIONEER 1000 3P/5P, ACC OR BACKUP LIGHT WIRING HARNESS, 6 FT, PLUG & PLAY | eBay



[Admin]



[Jamesgang]

I built my own out of the filler plug (it sucked)but worked. Would have got this if it would have been around back then.



[STRATOSMICRO]

Welcome to Honda Pioneer Tech



[b_king1]

Backup Light Harness for the Pioneer 1000, no mods necessary.

Welcome to Honda Pioneer Tech

This harness will only provide power when vehicle is shifted in reverse, it functions off a triggered ground that is only present when vehicle is put into reverse gear.

• To install, simply remove factory filler plug (located on drivers side rear of engine) by gently lifting retaining tab to remove plug from connector, then install our custom harness.
• Harness is constructed with tough 18 AWG wire, approximately 6 foot in length, sheathed with flexible PVC tubing that is gas and oil resistant.
• Harness Plug is a 2 Position Plug that will only fit connector located at rear of engine near oil filter housings.
• Water resistant gaskets are installed on connections
• Pig tail for device is included
• This harness will support a 5 AMP, 60 Watt device
• Each harness is hand built and tested in the U.S.

eBay Store link: HONDA PIONEER 1000 3P/5P, ACC OR BACKUP LIGHT WIRING HARNESS, 6 FT, PLUG & PLAY | eBay

View attachment 66663

I have a 18 P 1000-5 and I used my test light on the 2 prong black plug on the driver's side just at rear of the engine and it has no power. I tried with the switch on. switch on in reverse and even tried it with the switch on with the lights on anyone have an idea what's going on?



[STRATOSMICRO]

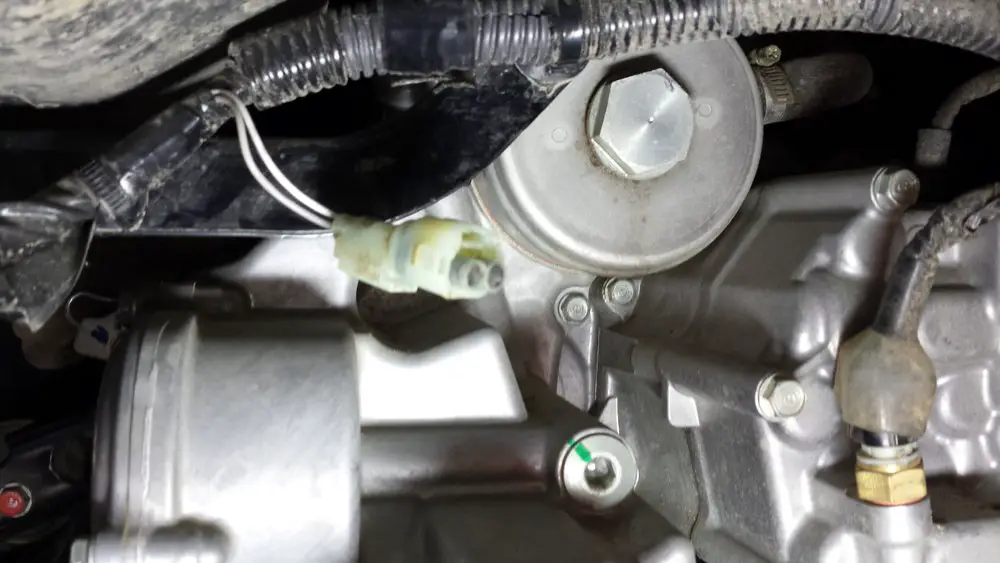

It sounds like you are on the wrong plug if you are trying for the backup 12v power. it should look like this I believe



[b_king1]

It sounds like you are on the wrong plug if you are trying for the backup 12v power. it should look like this I believe

View attachment 80110

I will look again. it's in the same place as the on you have in the photo but its Black instead of White?



[Swampmonkey]

Can you make these with two male ends? I have a Rigid srm Pro diffused back up light ordered and from what I can tell it has a prewired female plug. And can I get a harness thru PayPal? Not a fan of eBay.



[STRATOSMICRO]

Can you make these with two male ends? I have a Rigid srm Pro diffused back up light ordered and from what I can tell it has a prewired female plug. And can I get a harness thru PayPal? Not a fan of eBay.

We provide a male pigtail that will plug directly into the female end of the harness for serviceability, yes we can do Paypal, call our store @ 517-264-5101 for details and ask for Rob.

Thanks, Stratos



[Lorraine]

Backup Light Harness for the Pioneer 1000, no mods necessary.

Welcome to Honda Pioneer Tech

This harness will only provide power when vehicle is shifted in reverse, it functions off a triggered ground that is only present when vehicle is put into reverse gear.

• To install, simply remove factory filler plug (located on drivers side rear of engine) by gently lifting retaining tab to remove plug from connector, then install our custom harness.
• Harness is constructed with tough 18 AWG wire, approximately 6 foot in length, sheathed with flexible PVC tubing that is gas and oil resistant.
• Harness Plug is a 2 Position Plug that will only fit connector located at rear of engine near oil filter housings.
• Water resistant gaskets are installed on connections
• Pig tail for device is included
• This harness will support a 5 AMP, 60 Watt device
• Each harness is hand built and tested in the U.S.

eBay Store link: HONDA PIONEER 1000 3P/5P, ACC OR BACKUP LIGHT WIRING HARNESS, 6 FT, PLUG & PLAY | eBay

View attachment 66663

Welcome to Honda Pioneer Tech

Can you recommend a back up light that this harness will plug directly into?



[TripleB]

Can you recommend a back up light that this harness will plug directly into?

Plug-n-play Auto Backup Light High Mount Kit for Honda Pioneer 1000



[gborgstede]

Backup Light Harness for the Pioneer 1000, no mods necessary.

Welcome to Honda Pioneer Tech

This harness will only provide power when vehicle is shifted in reverse, it functions off a triggered ground that is only present when vehicle is put into reverse gear.

• To install, simply remove factory filler plug (located on drivers side rear of engine) by gently lifting retaining tab to remove plug from connector, then install our custom harness.
• Harness is constructed with tough 18 AWG wire, approximately 6 foot in length, sheathed with flexible PVC tubing that is gas and oil resistant.
• Harness Plug is a 2 Position Plug that will only fit connector located at rear of engine near oil filter housings.
• Water resistant gaskets are installed on connections
• Pig tail for device is included
• This harness will support a 5 AMP, 60 Watt device
• Each harness is hand built and tested in the U.S.

eBay Store link: HONDA PIONEER 1000 3P/5P, ACC OR BACKUP LIGHT WIRING HARNESS, 6 FT, PLUG & PLAY | eBay

View attachment 66663

Is the connector plug for the reverse light wire harness the same connector plug for a turn signal plug and play wire harness or is there two different connector plugs for each wire harness?
