P700 Rear Pod Light and Light Bar mounting Recommendations

Noob

Noob

Active Member
Oct 27, 2016
59
122
33
West slope of the Blue Ridge
Ownership

  1. 700-2
I am spending some $$ gentlemen. Just monted some new 26" Terrabites Ordering mirrors and hub covers now. Just bought 2 - 4" cube lights from my neighbor, and now am about to order a 12" or 18" bar for the front. Here is where I need some input from the upper crust..
I use my rig prinarily for some trail riding, use around the farm and yard and when the dogs let me, I pleasure ride.

1) Mounts for the rear light cubes. Mount to the factory top and secure inside with over size washers? OR use an offset ROPS mount to extend under the top?? Pictures if your set up if you have.
2) Mount for the 12" or 18" light bar. I am wanting to mount on the factory front push bar. This should be easy...I am guessing. I just dont want to drill into thebar.
3) Switch. 3 gang switch so I can add some "side" lights later. Have at it gentlemen and help me spend some of my stimilus $$.

(my rigs pic for attention)

Front yard Pioneer pasture

  • Like
Reactions: Mudwing
Alan_Vander

Alan_Vander

Well-Known Member
Mar 19, 2019
1,547
2,750
113
rosepine,la
Ownership

  1. 700-4
You can use the net holders to mount the rear lights.

Sent from my moto z4 using Tapatalk

  • Like
Reactions: Noob
ChrisM

ChrisM

Active Member
Feb 19, 2020
63
161
33
West Central Alabama
Ownership

  1. 700-2
12" bar is about all you'll get on the front bumper.

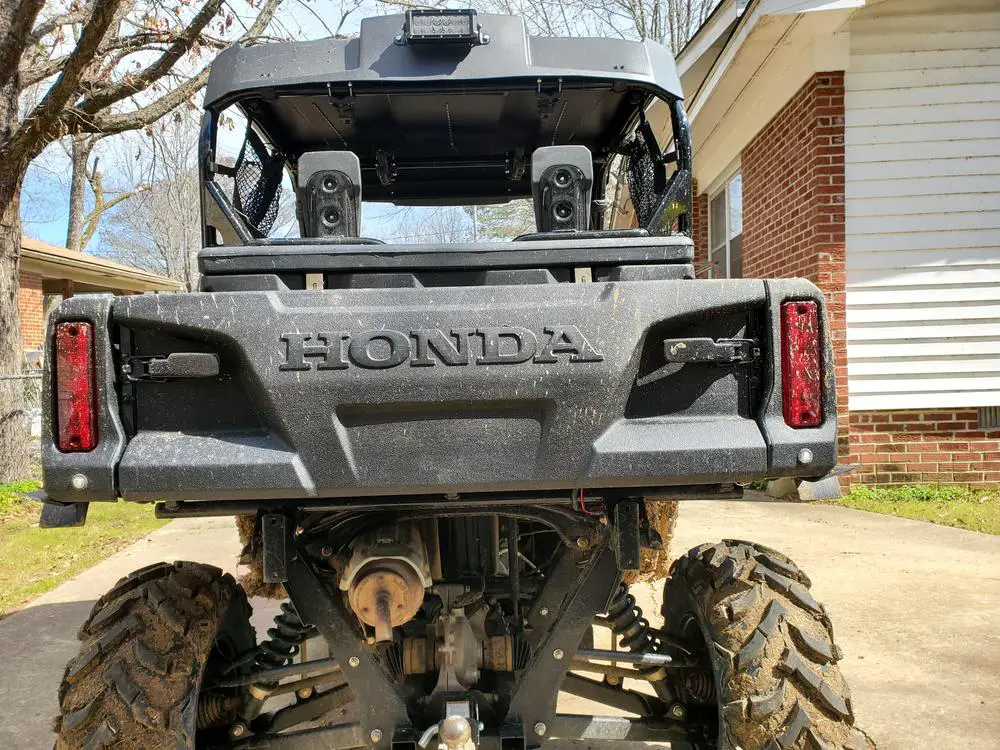

I have 2 pods on my front roll bar vertical post and 2 pods on my rear vert post. 9" light on rear of roof, drilled through roof and as you said oversized washers.

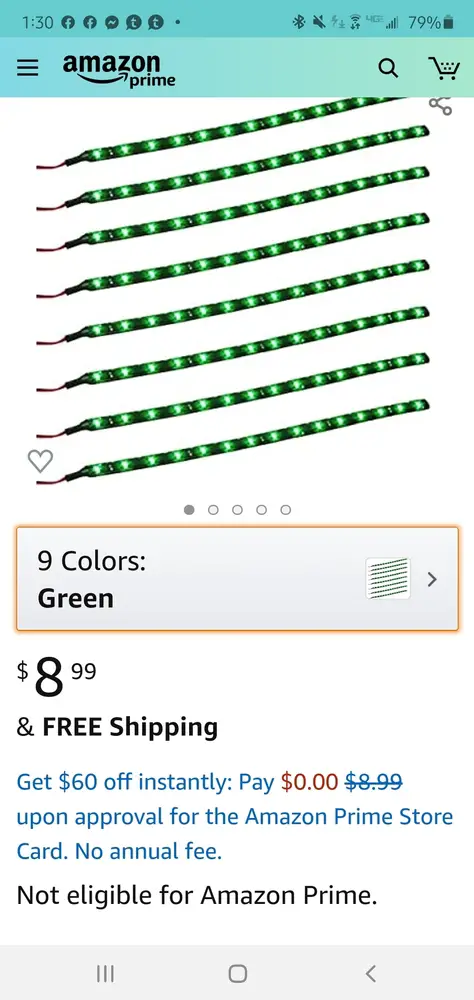

I also added interiors lights.Be58c3c395b602127f924ec0b7ed7898Dc1d5d8c0932210568edcb303fdbd7eb8726724530c5dc995a781b17a4f1269a7257eb5a71b8252a4e8f50de25a184a6

Sent from my SM-T580 using Tapatalk

  • Like
Reactions: Noob and Mudwing
Noob

Noob

Active Member
Oct 27, 2016
59
122
33
West slope of the Blue Ridge
Ownership

  1. 700-2
12" bar is about all you'll get on the front bumper.

I have 2 pods on my front roll bar vertical post and 2 pods on my rear vert post. 9" light on rear of roof, drilled through roof and as you said oversized washers.

I also added interiors lights.View attachment 197799View attachment 197800View attachment 197801View attachment 197802

Sent from my SM-T580 using Tapatalk
I really like your set up. I may put my 4" cubes on the front now and go with a 6" centered like yours! I have zero wiring skills, but luckily my neighbor is the maintenance manager for a large carpet mill here and he knows how to wire the harness; he has his Jeep set up almost identical to my plan except he has a 18" bar on the grill and a 30" bar across the windshield plus 4" pods as "rock lights." But if you have any advice about harnesses or switches and panels I am all ears. 6 switch panel? 4 switch panel? Main fuse panel or individual fuses? I am all ears

  • Like
Reactions: Mudwing
ChrisM

ChrisM

Active Member
Feb 19, 2020
63
161
33
West Central Alabama
Ownership

  1. 700-2

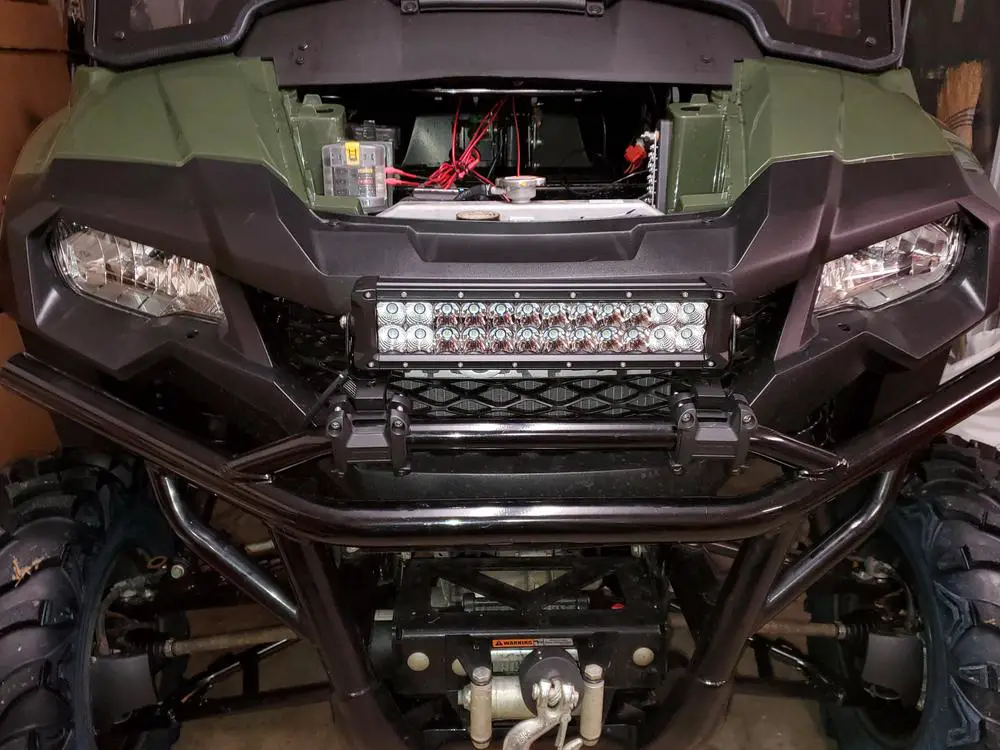

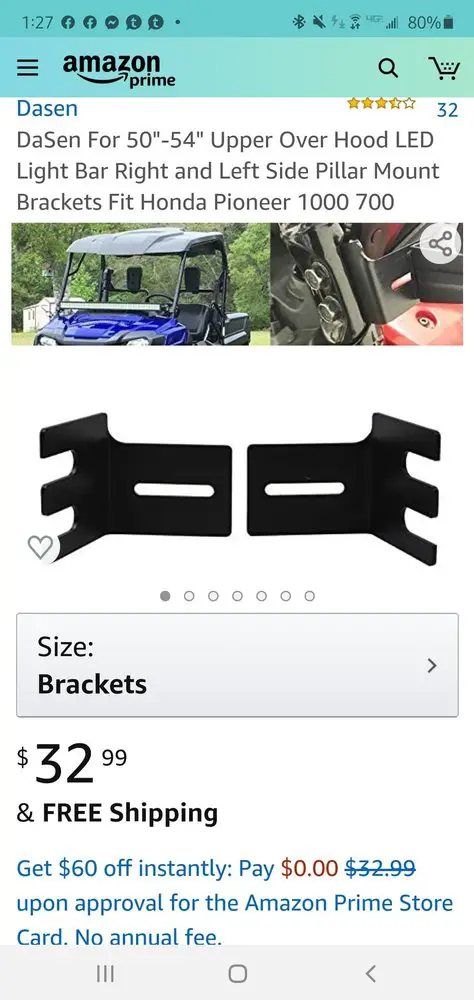

My front bar is 12". It gives plenty of flood and spot out to 300 yards easy.

This is my final set up on pods and they are wired up to these switches. F754ce9382fae68cae982413605850746a021dbd5a59248b951256723e28811d

Sent from my SM-N976V using Tapatalk

  • Like
Reactions: Mudwing and Noob
ChrisM

ChrisM

Active Member
Feb 19, 2020
63
161
33
West Central Alabama
Ownership

  1. 700-2
Oh you might think about adding an additional fuse block and bus bar under the hood to make wiring simpler and everything will be on a fuse so if you h ave a problem it won't fry your electrical system.

I put a 50 amp relay between the battery hot lead going to the new fuse block also. Just extra insurance.

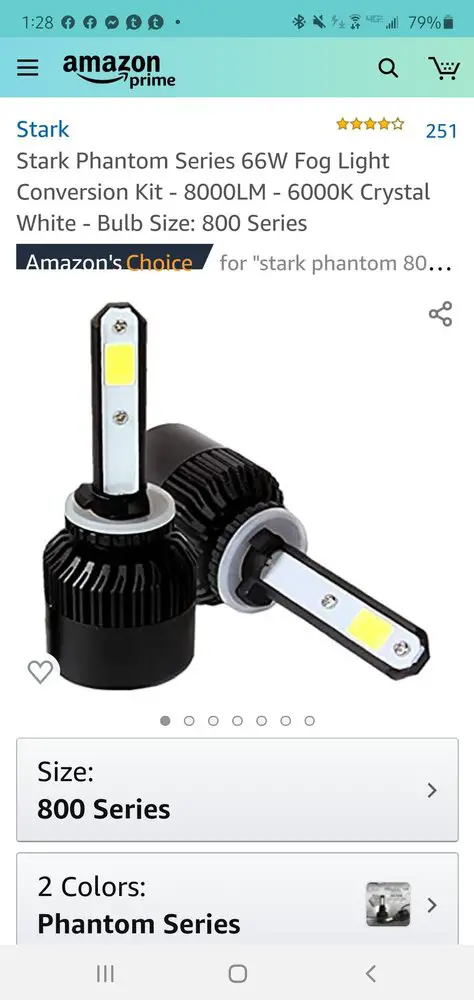

Also you can replace your head lamp bulbs with leds. I added photos of the ones I used, got them on Amazon, 29 bucks, plug and play install. Quite a difference from factory once you get them aimed right.43dc80e0734c3615069d54fec5bc9abaD492253b9f1fd61174c1fec52e1cad78Aa6c0583c7dd2f107ca22d7f367b947f044a2b018529d1992f3f5b0c9e983c5dBefa213f53c82163caa9733d488d5379

Sent from my SM-N976V using Tapatalk

  • Like
Reactions: Noob
ChrisM

ChrisM

Active Member
Feb 19, 2020
63
161
33
West Central Alabama
Ownership

  1. 700-2

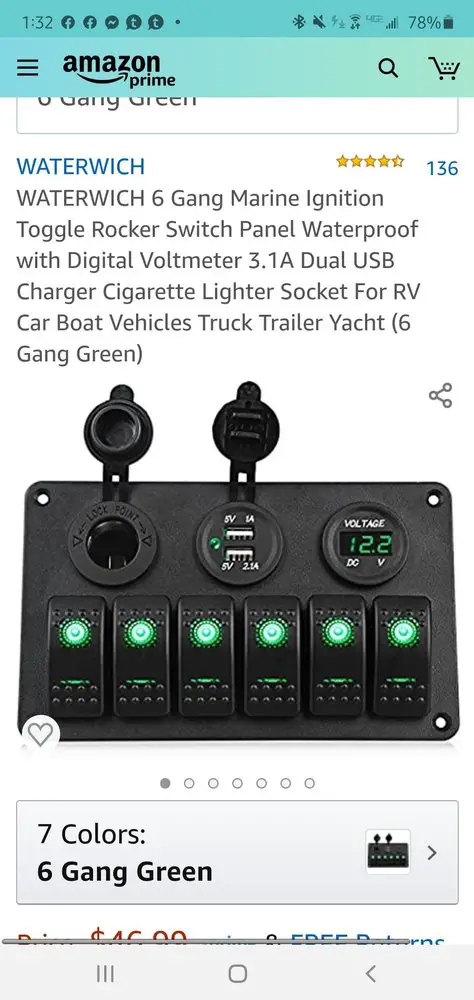

Its the same size as the white warning label on your dash. Its screw holes are almost a perfect match for the rivets on that plate.

Its also from Amazon and its a marine panel. Mine is green but you can get blue or red to.

Heads up, there is a brace in the dash behind the center decal that will not let you install the panel flat on dash. I made spacers to raise my panel to clear the brace out of a cheap wal mart plastic cutting board and painted it black. You can see the brace in the 1st photo if you blow it up.

I made my spacers wider and scared them to the dash. Then the panel screws to the spacers, that way when I need to add something I only have the switch panel to remove.A5231547f65c7b5d3e4a1934301e6e16B41aa6efee533c569172eac560b8222b1eab1c552aa0f608364f2706164a1c05178b1cce674b4266dc53cfa5b0fa3e49

Sent from my SM-N976V using Tapatalk

  • Like
Reactions: Mudwing
P

Pilot2016

Active Member
Lifetime Member
Dec 6, 2019
118
173
43
Rockhill Sc
Ownership

  1. 700-4
I am spending some $$ gentlemen. Just monted some new 26" Terrabites Ordering mirrors and hub covers now. Just bought 2 - 4" cube lights from my neighbor, and now am about to order a 12" or 18" bar for the front. Here is where I need some input from the upper crust..
I use my rig prinarily for some trail riding, use around the farm and yard and when the dogs let me, I pleasure ride.

1) Mounts for the rear light cubes. Mount to the factory top and secure inside with over size washers? OR use an offset ROPS mount to extend under the top?? Pictures if your set up if you have.
2) Mount for the 12" or 18" light bar. I am wanting to mount on the factory front push bar. This should be easy...I am guessing. I just dont want to drill into thebar.
3) Switch. 3 gang switch so I can add some "side" lights later. Have at it gentlemen and help me spend some of my stimilus $$.

(my rigs pic for attention)

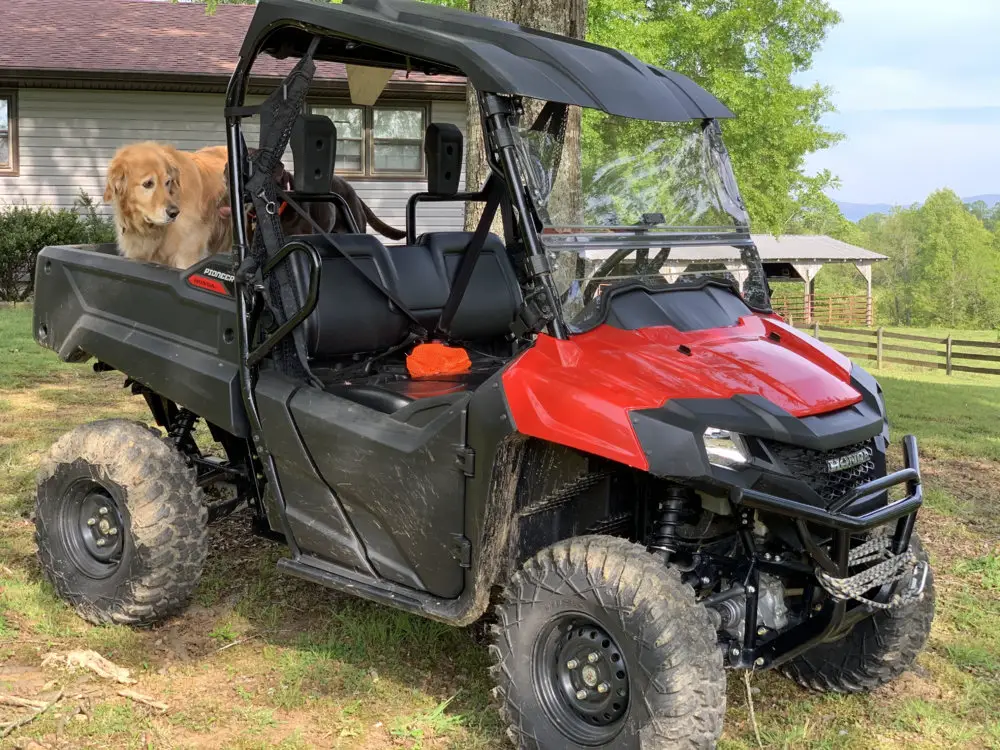

View attachment 197731 View attachment 197732
I managed to try all the different MOUNTING locations for LEDS on my 18 P700-4.
Thought Id share some ideas for you.

I Mounted dual small LEDS as overhead Dome lights on the middle overhead ROPS.
One pointing front seat and one toward backseat and storage box.

Mounted the Rear backup LEDs on ROPS from HondaSXS store. Plug and play.

Roof LEDS using large rubber and stainless washers.

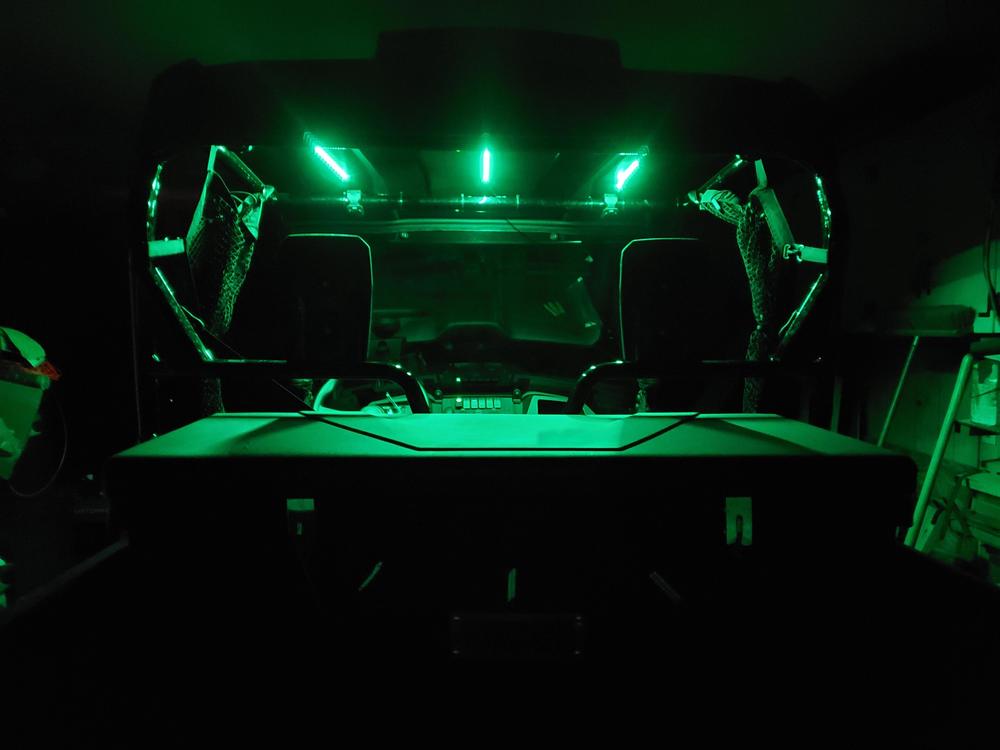

On the Hood below the windshield,I mounted Green LEDS lights same as roof.

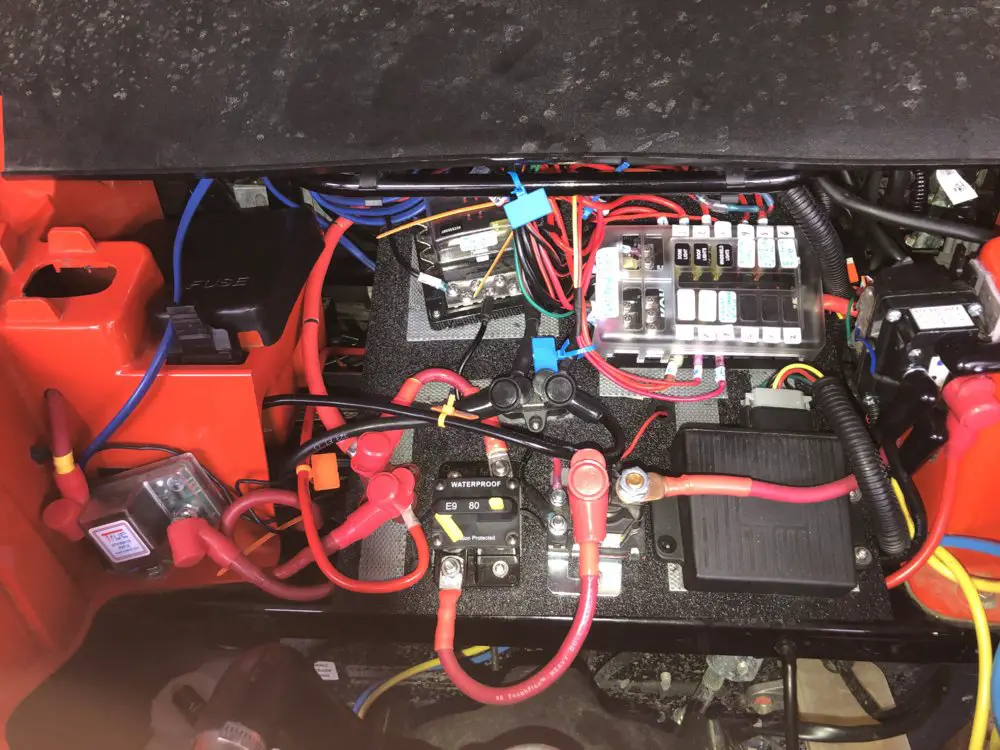

Pics below of all 4 mounting locations and my distribution panel setup on 2nd battery and the 2 switch cockpit panels I installed.

Good Luck
$$s go FAST!!!!👍👍🤪
54043C2F 5D5C 40B4 97FF 47C5754D689C
C957CA92 3EE5 4046 931C 8B1C2C9C475F
7303A9D5 62D2 488A AC92 DC9D2A086BF2
7892240C 9E21 4D54 8170 9A91406ECF31
81AB22B8 D099 49A6 8C0A C8D33E8B5997
54043C2F 5D5C 40B4 97FF 47C5754D689C
C957CA92 3EE5 4046 931C 8B1C2C9C475F
7303A9D5 62D2 488A AC92 DC9D2A086BF2
7892240C 9E21 4D54 8170 9A91406ECF31
81AB22B8 D099 49A6 8C0A C8D33E8B5997

Last edited:
  • Wow
  • Like
Reactions: Noob and Mudwing
Noob

Noob

Active Member
Oct 27, 2016
59
122
33
West slope of the Blue Ridge
Ownership

  1. 700-2

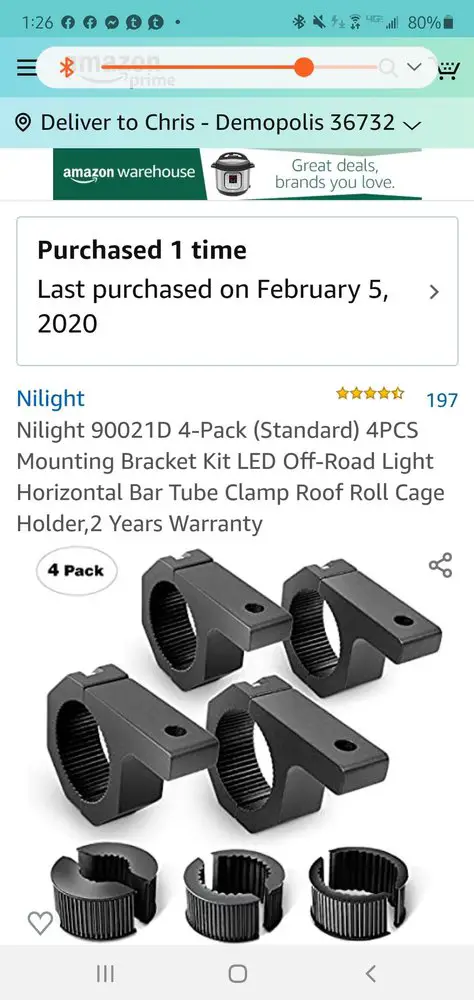

YESSIREE!!! The items that wre working for other folks is a huge help. I forgot about the Stark Lights....I believe those are plug and play The OEM lights are barely enough to light the front yard much less find my way through the pasture! AND the Nilight mounts are what I will use for the lightbar.

  • Like
Reactions: Mudwing
hondabob64

hondabob64

Well-Known Member
Oct 22, 2018
215
795
93
Louisiana
Ownership

  1. 500
36” light bar, led cubes front & rear! Looked great in the yard last night, will test in the woods soon!

B8247906 B45D 41C4 A399 EC9C4809928B 41006C4D D41C 44F7 9D52 0FBD2FF1F224 9D457A23 A6EC 4917 9A3B 683E58479084

  • Like
Reactions: Noob and Mudwing
Sarbuck

Sarbuck

Active Member
Sep 29, 2018
55
186
33
Idaho
Ownership

  1. 1000-5
I managed to try all the different MOUNTING locations for LEDS on my 18 P700-4.
Thought Id share some ideas for you.

I Mounted dual small LEDS as overhead Dome lights on the middle overhead ROPS.
One pointing front seat and one toward backseat and storage box.

Mounted the Rear backup LEDs on ROPS from HondaSXS store. Plug and play.

Roof LEDS using large rubber and stainless washers.

On the Hood below the windshield,I mounted Green LEDS lights same as roof.

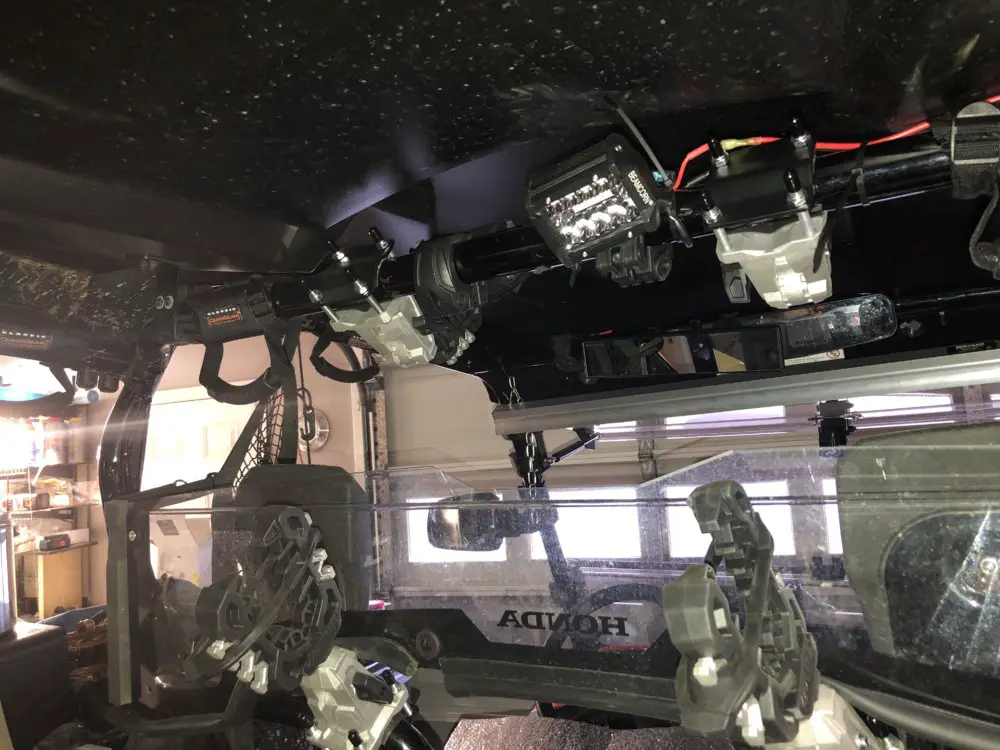

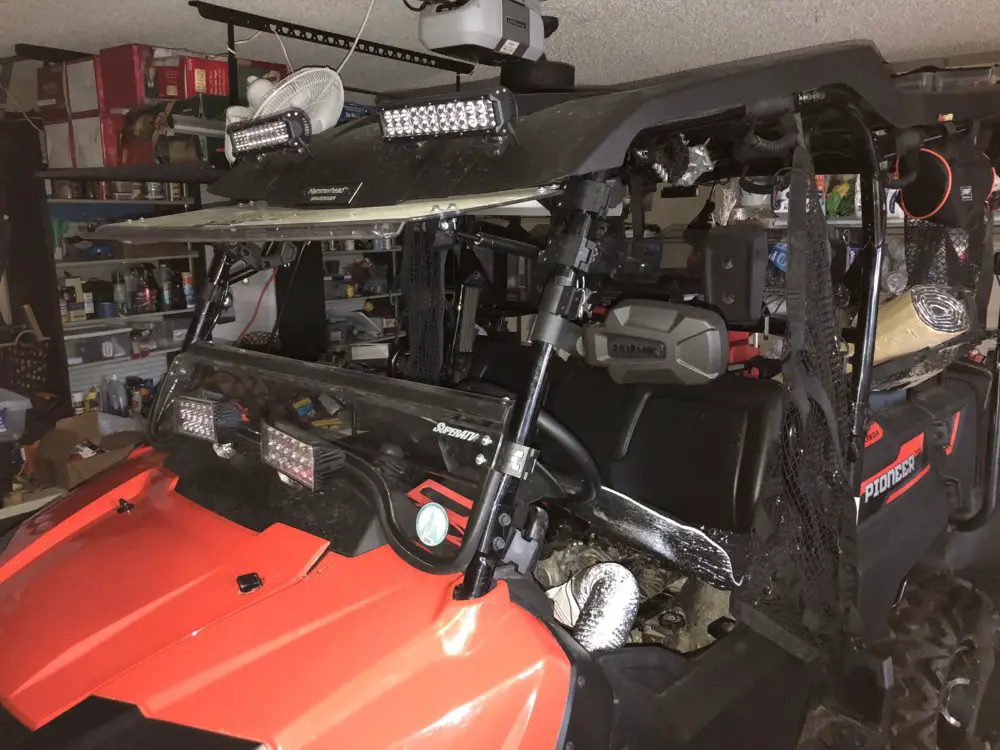

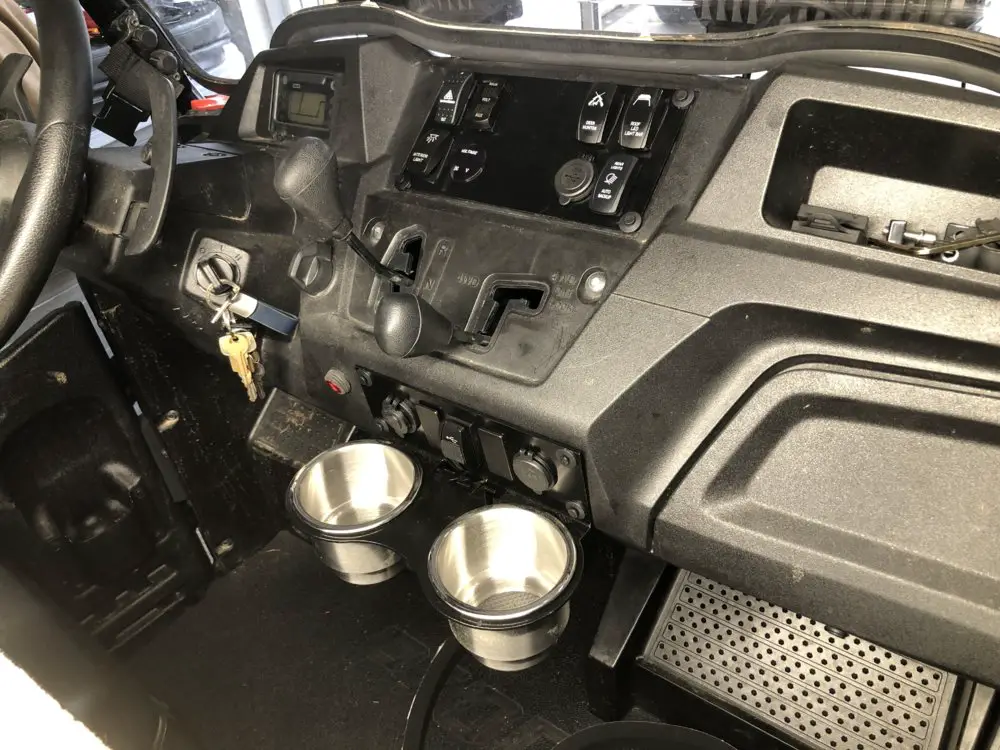

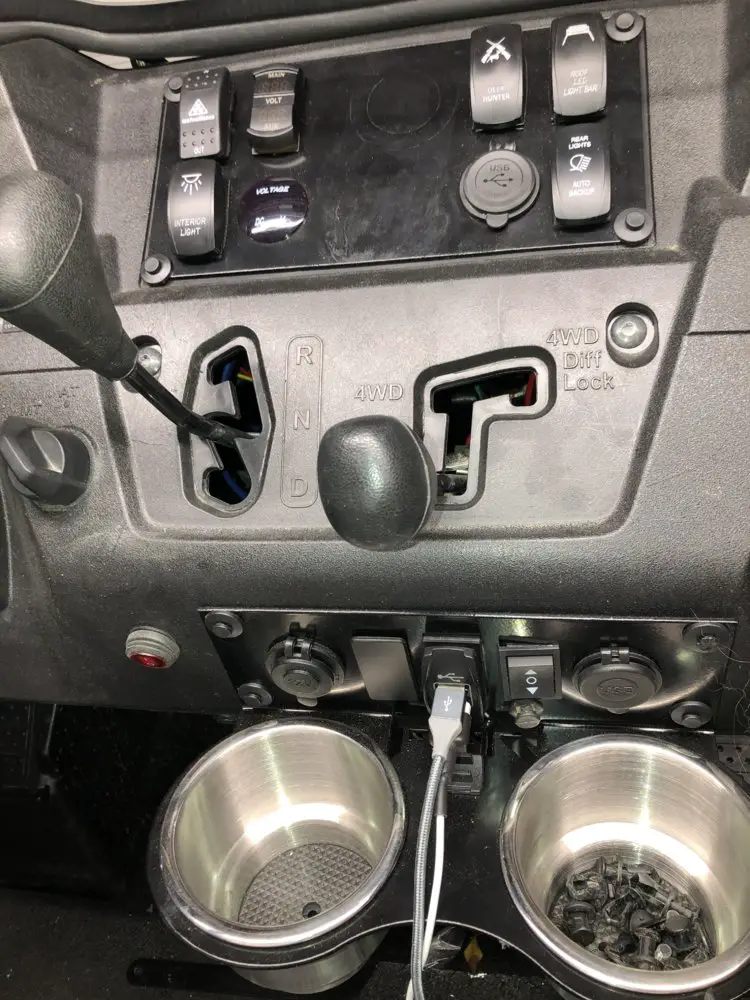

Pics below of all 4 mounting locations and my distribution panel setup on 2nd battery and the 2 switch cockpit panels I installed.

Good Luck
$$s go FAST!!!!👍👍🤪View attachment 198023View attachment 198024View attachment 198025View attachment 198026View attachment 198027View attachment 198054View attachment 198054View attachment 198054View attachment 198023View attachment 198024View attachment 198025View attachment 198026View attachment 198027View attachment 198054View attachment 198055
@Pilot2016, how did you mount the switch plate to the plastic dash? It looks like you used the push pin connecters that are used all over the Honda's. I like that idea because you can remove them easily when you need to add a new accessory or whatever to the panel. I'm doing a similar project right now, and can't find any push pin plastic connecters that are small diameter, like 3/16". Did you just drill out for 1/4" push pins, or find a source for small diameter push pins? I don't have a lot of wiggle room on the dash plate or plastic to go bigger than what is already there. What's holding the panel to the Pioneer dash?
