P700 Sub harness 08Z01-HL3-600

Thedirkster

Thedirkster

New Member
Nov 4, 2017
15
16
3
Ceres, Pa
Ownership

  1. 700-2
Recently purchased Honda accessory sub harness 08Z01-HL3-600 for my 2017 P700-2. Guess what it DOES NOT work\fit. One could get it to work by hacking in and spicing in, but that is not the point of plug and play. The issue is that there is an incorrect connector installed on the harness that prevents you from directly plugging into the main harness. The sub harness is basically designed to be placed in between the accessory plug (cigarette lighter) and the main harness. The connection to the accessory plug is OK, but the one tying back to the main harness isn't. I spent better part of a morning at dealer (along with a dealer rep, by fortune happened to be in that day) discussing issue. Everyone agreed the harness will not work - again without hacking into harness - thus totally defeating the purpose. I was insured that the dealer and account rep would both be looking into this by contacting an engineer in California and they would be getting back to me.

So prior purchasing the harness be aware.

Deluxe700

Deluxe700

Well-Known Member
Lifetime Member
Jul 2, 2017
856
1,101
93
Central Arkansas
Ownership

  1. 700-2
I'm not sure if that is the same part number that I bought.... but mine fit fine, just as intended. I have a 2017 P700-2. If you need me to look up what part number I purchased, I can do that. But it worked out great for me... your explanation of how it snaps in is correct, but the one I purchased hooked in just as it was designed..

Thedirkster

Thedirkster

New Member
Nov 4, 2017
15
16
3
Ceres, Pa
Ownership

  1. 700-2
D-700 thanx for the reply....Yes, if you wouldn't mind sending me the part number that would be great. I am just wondering, though, if yours being a 700 deluxe, and mine being only a 700 - that, that might be a difference? I've attached a photo of the one I received from Honda, but doesn't not plug and play...The clear bic pen is pointing to the connector that is not compatible to anything on the main harness.

Cable harness

  • Like
Reactions: bgervais
Thedirkster

Thedirkster

New Member
Nov 4, 2017
15
16
3
Ceres, Pa
Ownership

  1. 700-2
OK, I guess I'm not understanding this correctly. I believe the red connector will go back to the main harness connector, correct??? What is under the blue tape on the other 4 wires? Are they all +12V, or are 3 of them +12 and then the 4th is a common ground shared between? Also are they just bare wire under the tape or do they have terminals on them?

Deluxe700

Deluxe700

Well-Known Member
Lifetime Member
Jul 2, 2017
856
1,101
93
Central Arkansas
Ownership

  1. 700-2
I was wrong...I bought the same part number that you bought...and it works fine

Gator

Gator

The Most Unknown Member
Lifetime Member
Sep 16, 2015
2,488
10,464
113
Louisiana
Ownership

  1. 700-2
You unplug the orange (red) connector (back left corner under the hood) and you plug this in between the two plugs. It takes 15 seconds.

They all have +12V. I think one or two also have -12V (but I'm not sure).
They have terminal on them. Round terminals about 1/8" diameter.
I didn't have the mating terminal so I cut and spliced them.

Deluxe700

Deluxe700

Well-Known Member
Lifetime Member
Jul 2, 2017
856
1,101
93
Central Arkansas
Ownership

  1. 700-2
I'm going to have to go out and look at mine and see how I installed it... I know it was easy..and works perfectly, as I have several things hooked to it for key on power...

tjoreo

tjoreo

Well-Known Member
Lifetime Member
Feb 18, 2015
1,025
1,975
113
Southern Idaho
Ownership

  1. 1000-5
I looked up the part number for a 16 and it has a different part number, so there could be some problems with the cable. I was just curious if the plugs will connect together for the harness. In theory they should because this is just a simple splice between the accessory socket if I'm thinking correctly. Sure wouldn't be the first thing honda has messed up, sorry to say.

advertisement
H

hernjarp

New Member
Jan 29, 2018
1
0
1
Louisiana
Ownership

  1. 700-4
Could anyone help with providing the correct wiring harness for a 2015 Honda Pioneer 700-4? I'm wanting to plug it in under the hood.

B

bigbruse

Member
Jun 28, 2016
88
37
18
va
Ownership

  1. 700-4
Could anyone help with providing the correct wiring harness for a 2015 Honda Pioneer 700-4? I'm wanting to plug it in under the hood.
o bought the 08Z01-HL3-600 for my 2016 pioneer 700 and works great used it for my turn signal kit and going to use it for when i get the EZ-STEER power steering.

  • Like
Reactions: GrnP500
B

bigbruse

Member
Jun 28, 2016
88
37
18
va
Ownership

  1. 700-4
o bought the 08Z01-HL3-600 for my 2016 pioneer 700 and works great used it for my turn signal kit and going to use it for when i get the EZ-STEER power steering.

sorry the one i got was 08Z02-HL3-A00 which to me looks identical to 08Z01-HL3-600

tjoreo

tjoreo

Well-Known Member
Lifetime Member
Feb 18, 2015
1,025
1,975
113
Southern Idaho
Ownership

  1. 1000-5

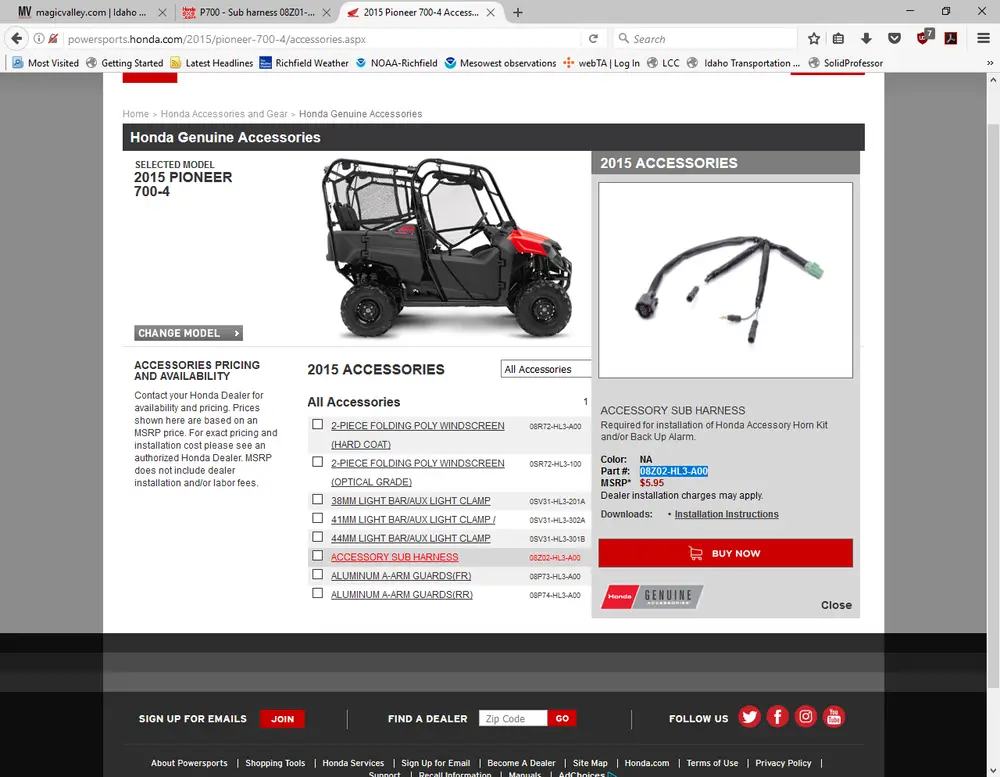

According to the honda power sports page it is the 08Z02-HL3-A00. There is some instructions on the install but it pertains mostly to install a back up alarm. On the last page it talks about the sub harness.
Upload 2018 1 30 12 30 51

  • Like
Reactions: bigbruse
B

bigbruse

Member
Jun 28, 2016
88
37
18
va
Ownership

  1. 700-4
According to the honda power sports page it is the 08Z02-HL3-A00. There is some instructions on the install but it pertains mostly to install a back up alarm. On the last page it talks about the sub harness.
View attachment 63491
correct. it has 2 + AND 1 -

M

mkc809

New Member
Nov 20, 2017
15
11
3
Oakdale, LA
Ownership

  1. 700-4
dirkster... did you get the 08Z08-HL5-A00 harness. Just wondering because i bought the same harness as you did and it didnt work on my 2017 700-4 deluxe. So im gonna try 08Z08-HL5-A00.

Thedirkster

Thedirkster

New Member
Nov 4, 2017
15
16
3
Ceres, Pa
Ownership

  1. 700-2
dirkster... did you get the 08Z08-HL5-A00 harness. Just wondering because i bought the same harness as you did and it didnt work on my 2017 700-4 deluxe. So im gonna try 08Z08-HL5-A00.


The picture shows what FINALLY worked. Got it from dealer. Previous one I got was from "on-line distributor" - it was same part number - BUT different cable. Your best bet to save the grief is go through a dealer, that why if it isn't (ain't) right you go back and B out the dealer.

Dirkster

H700acc cable

mohawkhondapower

mohawkhondapower

New Member
Jan 31, 2018
25
11
3
k-town
Ownership

  1. 700-4

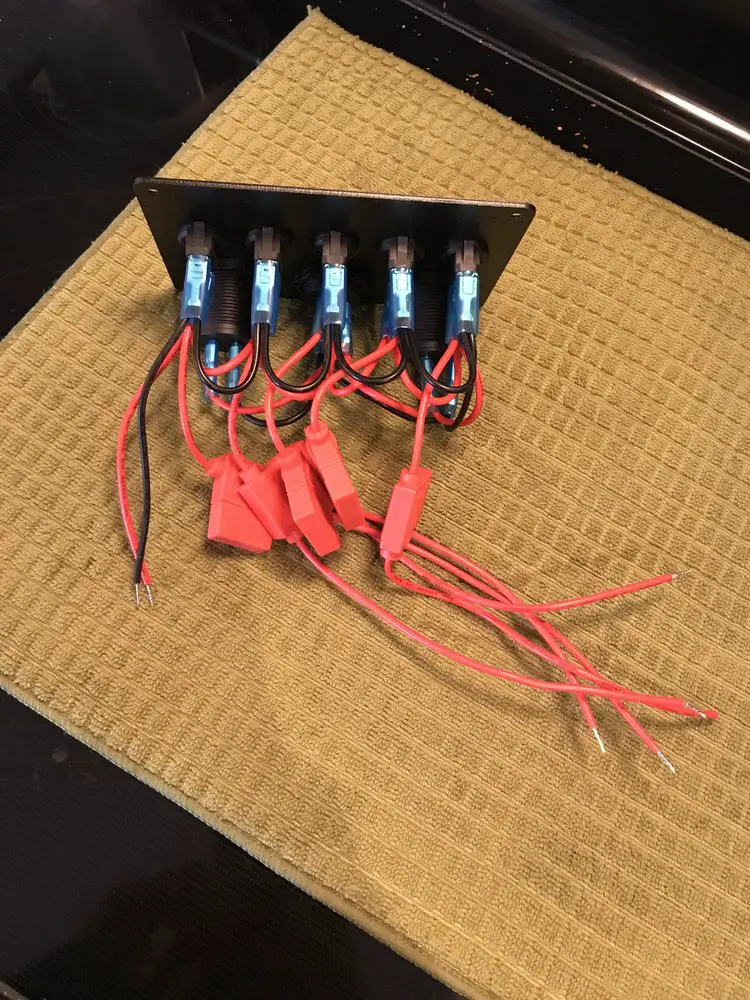

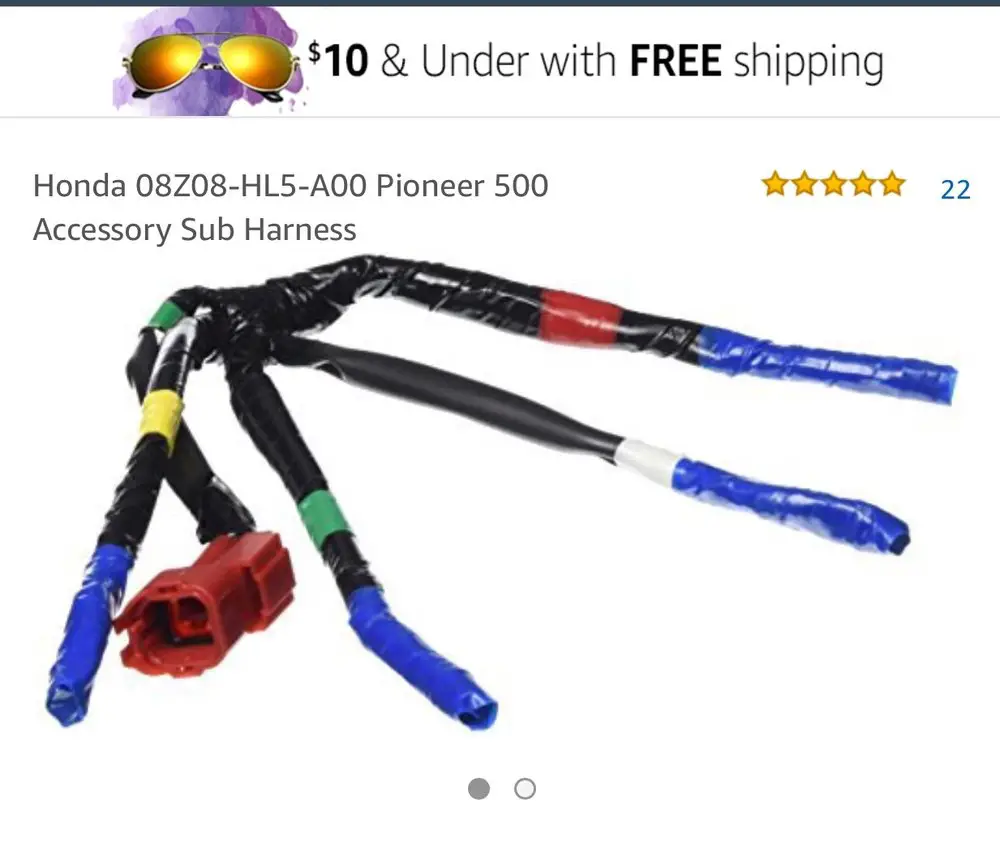

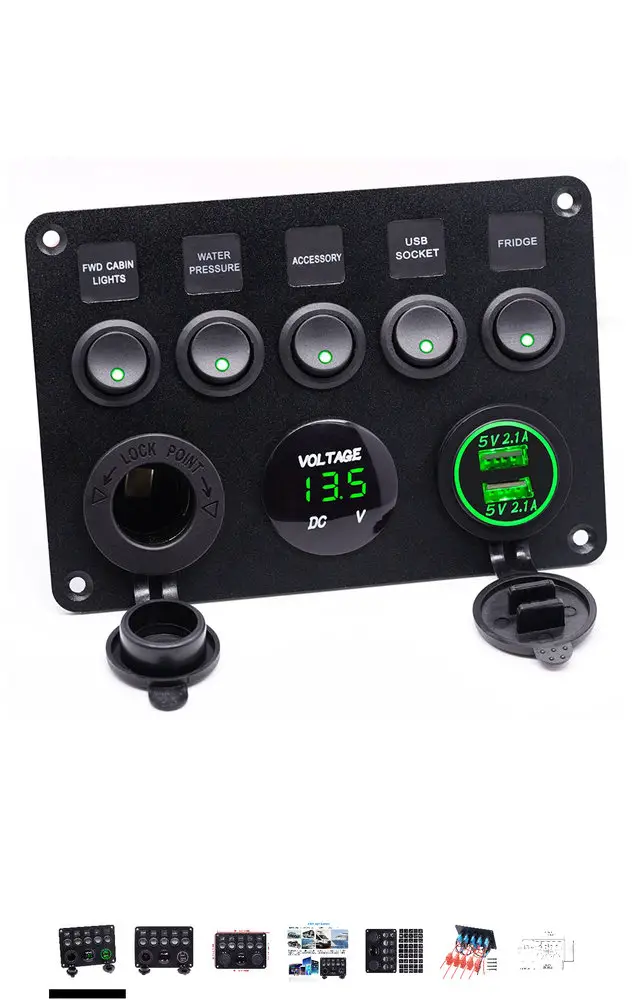

I just bought this little switch panel and was wondering if anyone could give me a little input before I start hacking things up lol I bought this sub harness ill attatch a couple pics. I took a pic under the hood at what I think the sub harness should plug into I think. I just want to make sure I hook up all the wires right and not burn my rig down lol thanks for any help.

IMG 2710 sub FullSizeRenderpanel Bikeplug IMG 2740

Thedirkster

Thedirkster

New Member
Nov 4, 2017
15
16
3
Ceres, Pa
Ownership

  1. 700-2
I just bought this little switch panel and was wondering if anyone could give me a little input before I start hacking things up lol I bought this sub harness ill attatch a couple pics. I took a pic under the hood at what I think the sub harness should plug into I think. I just want to make sure I hook up all the wires right and not burn my rig down lol thanks for any help.

View attachment 67891 View attachment 67892 View attachment 67893 View attachment 67894

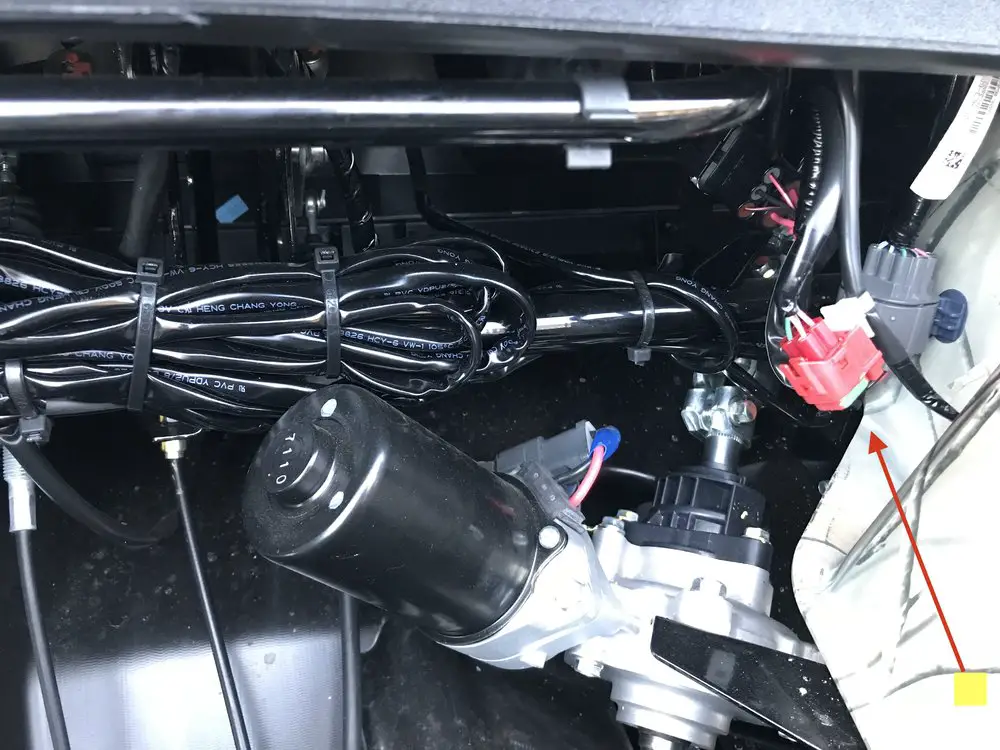

The connector you are pointing to with the little red arrow, is the diagnostic port. You need to tie into the accessory plug (cigarette plug).

mohawkhondapower

mohawkhondapower

New Member
Jan 31, 2018
25
11
3
k-town
Ownership

  1. 700-4
The connector you are pointing to with the little red arrow, is the diagnostic port. You need to tie into the accessory plug (cigarette plug).

ok thanks, ill look for that accessory plug again
