Winch power problem

[smilingu]

I have a pioneer 1000S-5 2016, installed a winch in the back, have dual batteries still having problem with winch drawing too much power and messing up power too tracks , I guess because clutch is electric any help would be appreciated



[Admin]



[Mark in Northern Iowa]

Howdy, and Welcome.
.
The simple answer. Your dual battery system is NOT hooked up properly.
If it was, your primary battery would not be effected by anything you do or run.
.
Read through this other post and fix what isn't hooked up correctly.

P1000 - Yet Another Pioneer 1000 Dual Battery Install - video

Greetings all - this is my first post - from West Chester, PA. Just joined a few weeks ago. Love seeing everyone and reading all of the great community knowledge! Just got our 2020 P1K-5 used with only 34 miles on it! The first thing I wanted to do was add the dual battery system for...

hondasxs.com

.
Have a good day



[Alan_Vander]

I have a pioneer 1000S-5 2016, installed a winch in the back, have dual batteries still having problem with winch drawing too much power and messing up power too tracks , I guess because clutch is electric any help would be appreciated

is your winch hooked to the aux battery?


Sent from my SM-G996U using Tapatalk



[smilingu]

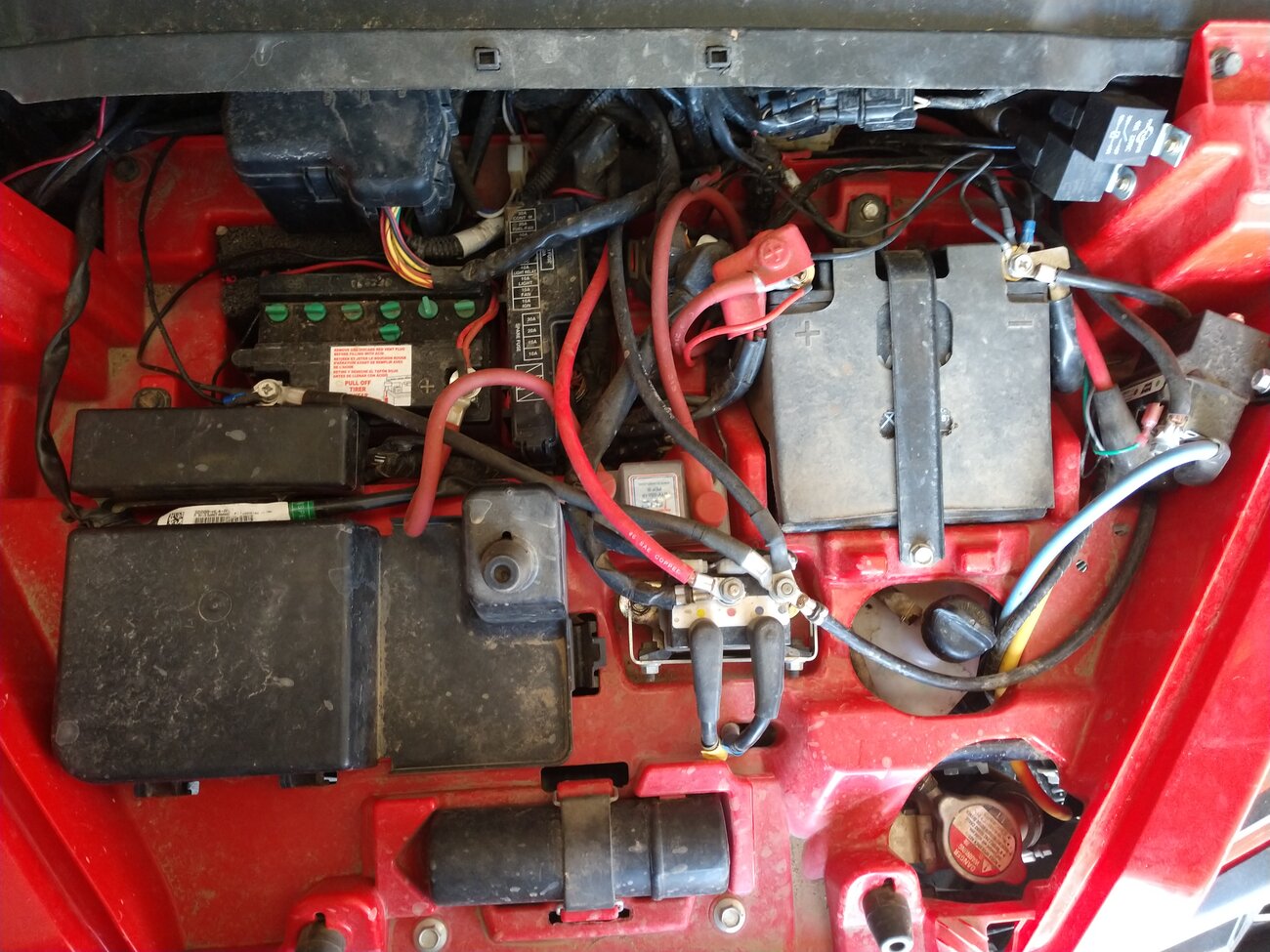

Here's a pic



[Alan_Vander]

Here's a pic

View attachment 316686

looks like 1 winch is on 1 battery and 1 is on the other? guessing the driver side selenoid is for the rear winch?

Sent from my SM-G996U using Tapatalk



[Remington]

Ive have a front and rear wench.
they MUST be wired to the secondary battery or u will loose power to specific drive components. @smilingu you need to get whatever winch is on that primary battery off and onto the secondary battery.



[Hondasxs]

You got lots of work to do under there my firend.

Sent from my SM-G996U using Tapatalk



[smilingu]

looks like 1 winch is on 1 battery and 1 is on the other? guessing the driver side selenoid is for the rear winch?

Sent from my SM-G996U using Tapatalk

That's right yellow and blue wires go to back winch, looks like I'll have to figure out what dealer did and fix it



[smilingu]

That's right yellow and blue wires go to back winch, looks like I'll have to figure out what dealer did and fix it



[smilingu]

Does anybody know where the black wire harness under the positive post on solenoid is supposed to go they jumped the two solenoids together looks like the black harness is how they got power and I need to remove that and replace it with positive from aux battery



[Mark in Northern Iowa]

I think it is going to the starter relay.
.
I found this other post that should help you.

P1000 - Let the mods begin....

So I'm finally getting some time to start planning how exactly I'm going to start the hemorrhage of cash, I mean mods, and after lots of reading on here, the obvious first step is getting the 2nd battery in place. I've got 2 main questions to get some advice on before I get started: 1. I'm...

hondasxs.com

.
His first post, where he says Item #2
"-the larger black cable coming out of the left side of the contactor is the winch battery cable that runs to the starter relay and then the red cable runs back to the stock battery."
.
Edit to add
and his pic half way down the page, looks exactly like yours

https://hondasxs.com/attachments/013cbf44-8f8d-48de-b440-7ab381597d46-jpeg.85521/

.
Have a good day



[smilingu]

I think it is going to the starter relay.
.
I found this other post that should help you.

P1000 - Let the mods begin....

So I'm finally getting some time to start planning how exactly I'm going to start the hemorrhage of cash, I mean mods, and after lots of reading on here, the obvious first step is getting the 2nd battery in place. I've got 2 main questions to get some advice on before I get started: 1. I'm...

hondasxs.com

.
His first post, where he says Item #2
"-the larger black cable coming out of the left side of the contactor is the winch battery cable that runs to the starter relay and then the red cable runs back to the stock battery."
.
Edit to add
and his pic half way down the page, looks exactly like yours

https://hondasxs.com/attachments/013cbf44-8f8d-48de-b440-7ab381597d46-jpeg.85521/

.
Have a good day

Thanks that looks like the same setup so you hook up the wire from starter to solenoid and move it from solenoid to second battery, then 2nd battery (+) to winch solenoid ? Then move (-) from main battery to winch solenoid over to 2nd battery ? Wire coming off starter solenoid is always live , wouldn't that just keep both batteries connected ? Sorry they sure make it confusing



[smilingu]

They used starter relay to power 1st winch solenoid the ran Jumper's to 2nd winch relay



[JMynes]

what dealer did

There’s your problem right there.
