P700 08z08-hl5-a00 hookup help for switch panel

[bassadict69]

I just bought this harness hoping to make it easy to wire up my switch panel and lightbar. I am a wiring dummy, just so you know!

I want my switch panel to be on only when the key is on. Do I simply unwrap one leg of this harness that has both pos and neg and run them to the switch panel?



[Admin]



[NewHere2]

Can you post a pic of the harness ?

What year is your machine ?



[Hondasxs]

I think he has the OEM 4 or 5 leg wire harness for the DLC. (red connector)
I'm not familiar with it at all. Mostly because the circuit it uses is not protected.
Thus why we designed the the key-on harness.

KEY ON POWER Harness for Honda Pioneer 1000, 700, 500, and Talon 1000.

Quick and easy KEY ON Accessory power source for your Honda Pioneer. PLUG-N-PLAY No Splicing of wires. No Tapping of wires. 3ft lead easily reaches anywhere under the hood. This kit plugs inline with OEM harness and provides a 12v positive lead. Use this Key-On Accessory wire to run the...

store.hondasxs.com



[bassadict69]

I am not opposed to buying this other harness... I am just looking for a simple way to hook up power to my switch panel, then to my lightbar and later a backup light, etc. If this other harness allows that, I will purchase...



[Blueridgesxs]

Why do you need another panel if you have extra spots for rocker switches on dash? Total newb here



[Hondasxs]

I am not opposed to buying this other harness... I am just looking for a simple way to hook up power to my switch panel, then to my lightbar and later a backup light, etc. If this other harness allows that, I will purchase...

I think what you have will work. Plug it in and put a test light to it.

Why do you need another panel if you have extra spots for rocker switches on dash? Total newb here

Because it is not nearly enough places. a panel makes it look nice.



[bassadict69]

So, with either of these harnesses, do I still need the fuse panel? How does that get wired in, from this harness?



[NewHere2]

I can’t locate the Honda part number you posted. Is it just the harness and no fuse box ?

What year is that harness for ?

If possible, post a pic of it.



[bassadict69]

https://www.partzilla.com/catalog-product/collection/E18303897C65EF72ED0748B77D10FAA08F586A84/177DF6872C71C94AA48CC32189DA7DBE4C99EBC4?titan_sku=08Z08-HL5-A00&gad_source=1



[Hondasxs]

Ya, thats what I thought it was.
one of those is a key-on hot wire.
Some are grounds.. no clue what the other ones do.



[trigger]

https://www.partzilla.com/catalog-product/collection/E18303897C65EF72ED0748B77D10FAA08F586A84/177DF6872C71C94AA48CC32189DA7DBE4C99EBC4?titan_sku=08Z08-HL5-A00&gad_source=1

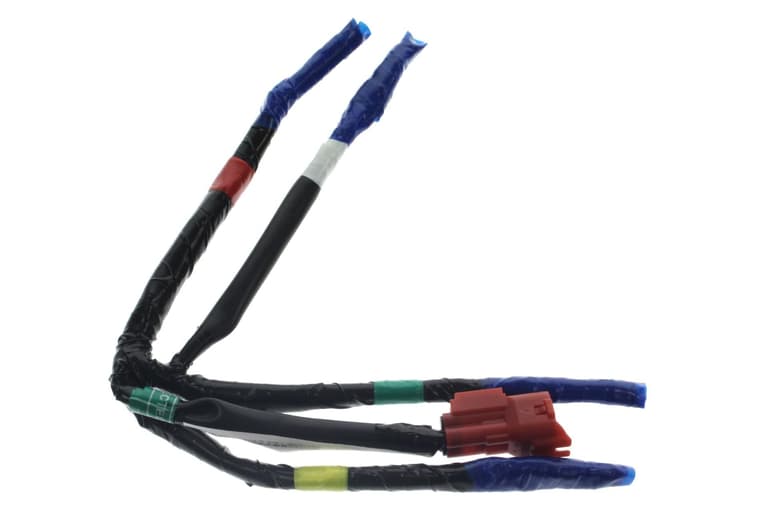

View attachment 410349

Looks a lot like the one for the P500 which supplies 4 hots and 2 grounds.
