P500 Front receiver Bolt on install

[Lburou]

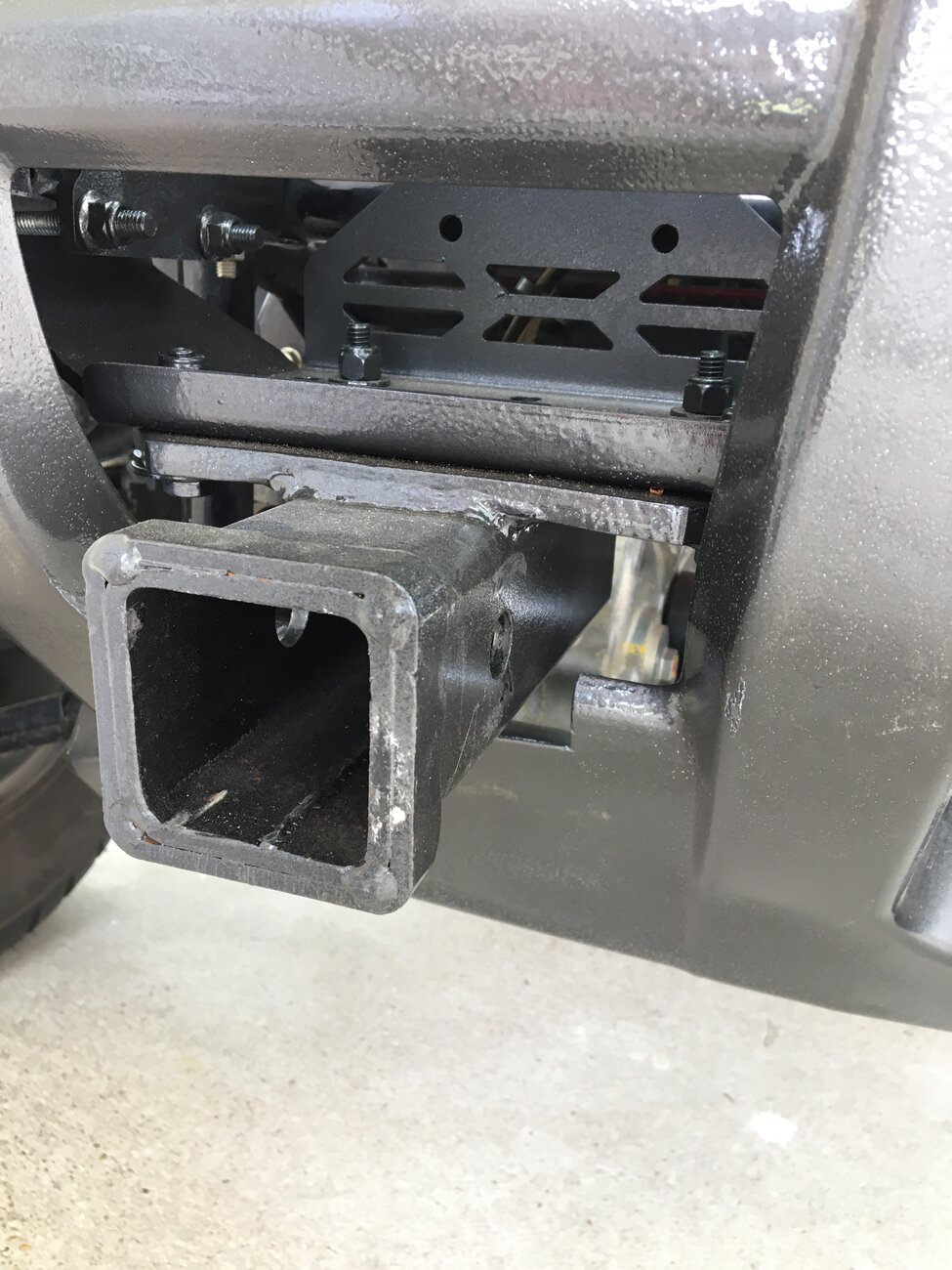

We routinely put a small trailer in and out of a small space. The front receiver makes that easy. I won't put much weight on it, but it works for us.



Parts used:
Winch mount
Bolt on receiver



[Admin]



[Dave75]

We routinely put a small trailer in and out a small space. The front receiver makes that easy. I won't put much weight on it, but it works for us.

View attachment 333000 View attachment 333001 View attachment 333002 View attachment 333003 View attachment 333004

You did a good job on that.
Thanks for the photos.



[LilRedDonkey]

We routinely put a small trailer in and out a small space. The front receiver makes that easy. I won't put much weight on it, but it works for us.

View attachment 333000 View attachment 333001 View attachment 333002 View attachment 333003 View attachment 333004

Parts used:
Winch mount
Bolt on receiver

if i am seeing this rite, is that winch plate mounted upside down to get the receiver lower? i've been looking all over for a lower mount to do this same thing. good job, and THANKS!!!



[pappyo]

Expand <> Add 2 in. Receiver to Rear.
2 in. Receiver <> Front & Rear ( setup for Attachments )
1 <> WINCH use
2 <> Ft. & Rear Bumper
3 <> HITCH Basket
4 <> Trailer Ball
5 <> ????

1st.time <> Ft. & Rear Receiver <> 1986 Honda TRX 350
have put on ATV's <> UTV's<> Tractors & few Trucks & Jeeps


1st. 2 pictures P520 Ft. ( Rear to be do soon )
Last 5 pictures ft. & Rear P500 ( has Double 2in. Receiver in Rear & OEM Stock hitch )
Both have Ft. Verticle Winch Storage.



[Lburou]

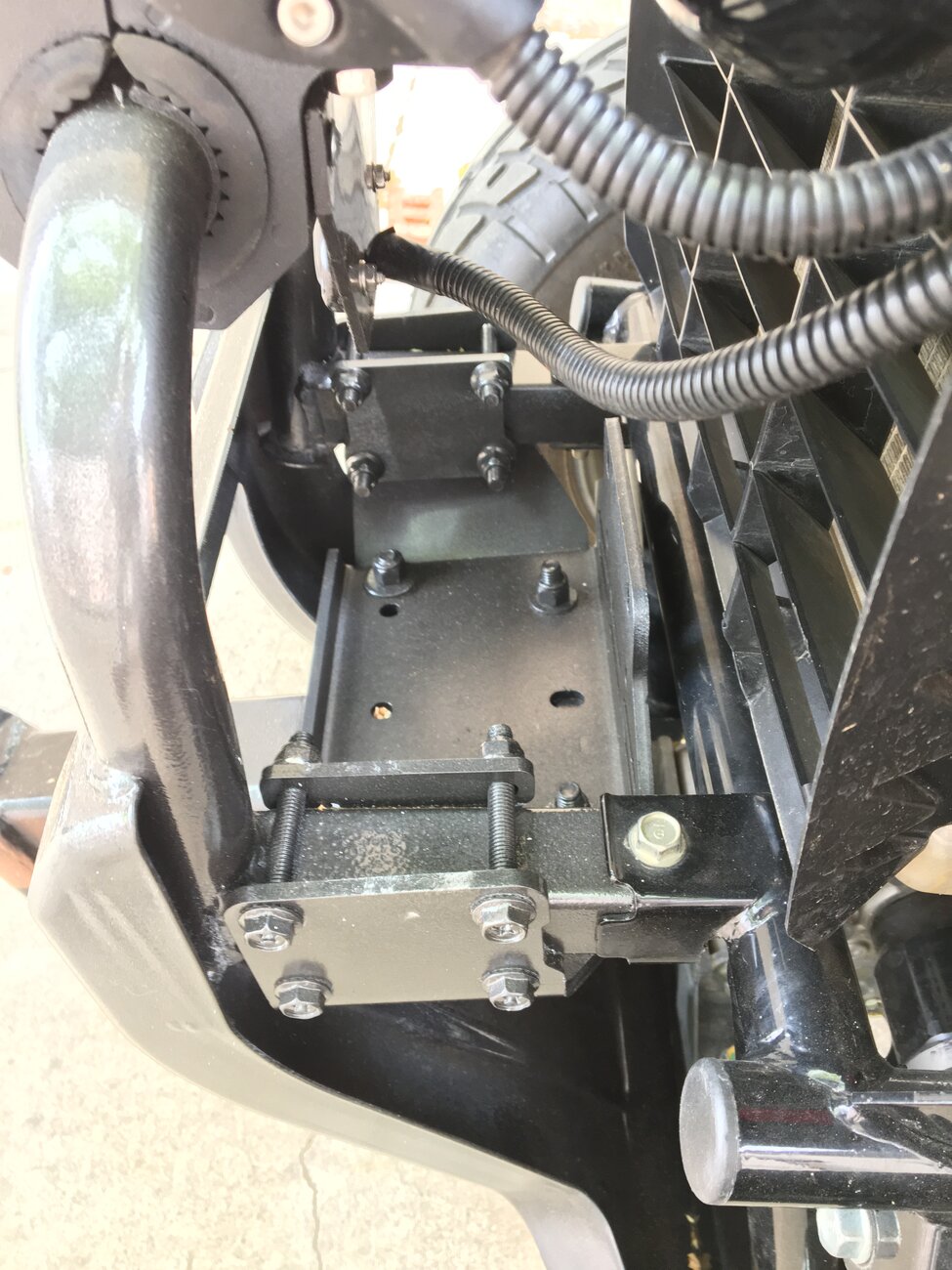

if i am seeing this rite, is that winch plate mounted upside down to get the receiver lower? i've been looking all over for a lower mount to do this same thing. good job, and THANKS!!!

Exactly! Plus, I notched the bumper a bit as well. If I had a do over, I'd find a way to mount the receiver further out, (read away from the radiator), to facilitate the hitch pin removal.



[LilRedDonkey]

Exactly! Plus, I notched the bumper a bit as well. If I had a do over, I'd find a way to mount the receiver further out, (read away from the radiator), to facilitate the hitch pin removal.

i noticed that, can you get the pin in and out?



[Lburou]

i noticed that, can you get the pin in and out?

If I hold my mouth just right, the pin goes in and out. Not easy.



[pappyo]

Cure <> "Shallow Pin Situation" <> described on <>"Front Hitch"
Take the HITCH off & Drill NEW HOLE FORWARD of Factory Hole.
Will STILL <> "Not Be" the Weakest Point <> of P500/P520 front winch mount.

FYI:
LOCATE <>CENTER & DRILL EACH SIDE One at a time <> start small work your way up to pin size. ( DONOT Drill Stright through Both sides ) average drill press is Not that accurate.



[Lburou]

Cure <> "Shallow Pin Situation" <> described on <>"Front Hitch"
Take the HITCH off & Drill NEW HOLE FORWARD of Factory Hole.
Will STILL <> "Not Be" the Weakest Point <> of P500/P520 front winch mount.

FYI:
LOCATE <>CENTER & DRILL EACH SIDE One at a time <> start small work your way up to pin size. ( DONOT Drill Stright through Both sides ) average drill press is Not that accurate.

That is one solution. For once a year changes, I can live with it this way. Haven't kicked the ball with my knee yet, but could change my mind if I make a habit of skinning my shins on the insert.

If I change it, it would be easier to redrill holes in the winch mount. Don't have a drill press. Thanks for the suggestions Pappyo.



[Lburou]

if i am seeing this rite, is that winch plate mounted upside down to get the receiver lower? i've been looking all over for a lower mount to do this same thing. good job, and THANKS!!!

BTW, it was MUCH easier to remove the front bumper to get the winch mount bolted on and make the notch in the shield below the receiver. Easier to paint while it was off as well. Drilled holes in the receiver with a common hand drill. Got the bolts at Tractor Supply. HTH



[LilRedDonkey]

shorter pin could work. cut pin on the bend, heat the cut end red hot and mushroom with hammer a little. or
save pin and use a thick bolt just long enough to stick out the other end and drill a small hole through end sticking out for the lock pin.
