P500 Help

[herd90]

So, torq locker installed, ps, front brakes, winch, @trigger heat shield has arrived. New skid plates and getting 8 ply radials 26-9/12 on all 4 today. I'm a true amateur mechanic and unsure where to permanently mount all this and roll. 2nd battery?

Sent from my SM-G975U using Tapatalk



[Admin]



[herd90]

Location?

Sent from my SM-G975U using Tapatalk



[The Green Goat]

I'll take a pic of my setup when I get home tonight. It's not installed, yet, but it'll give you idea of what I am planning on doing.



[Mudder]

Location?View attachment 265619

Sent from my SM-G975U using Tapatalk

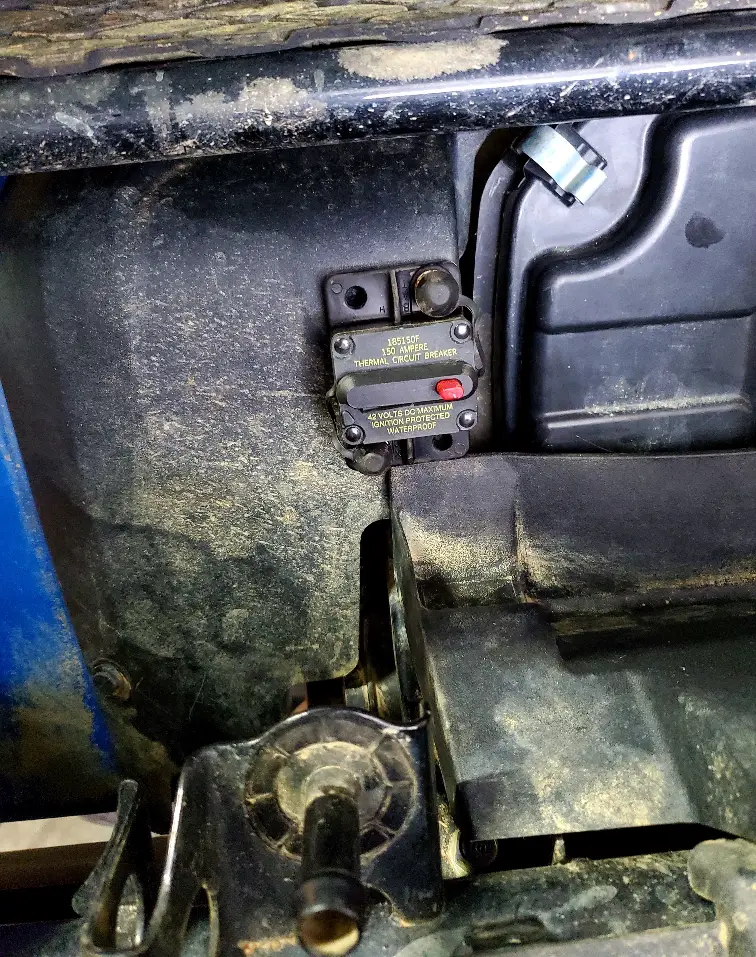

I zip tied my circuit breaker on the frame behind the passenger, facing the battery. An easy reach in to operate it and close to the battery.



[herd90]

I'll take a pic of my setup when I get home tonight. It's not installed, yet, but it'll give you idea of what I am planning on doing.

Really like to see a picture of the set up. I haven't zip tied or screwed anything down yet.

Sent from my SM-G975U using Tapatalk



[The Green Goat]

Really like to see a picture of the set up. I haven't zip tied or screwed anything down yet.

Sent from my SM-G975U using Tapatalk

Doh! sorry. forgot about this. Setting myself a reminder to take a picture tonight when I get home.



[The Green Goat]

Crappy pics, but Hopefully you get the idea of what I'm doing.

Pathway will be:
Main battery > Blue Sea Mini add-a-battery > Aux battery pos > 500a Stinger relay (on via ignition or switch; haven't decided) > 200a Blue Sea breaker > red BUS bar > relay boxes (2 on aluminum plate for random things, 1 on shock brace for Auxbeam switches) > various accessories > black BUS bar > Aux battery neg.

35ah Mighty Max battery will be mounted inside the battery box which will be mounted in the aluminum tray I had made, and this will be mounted under the driver seat on the frame.

BS-MAAB and its Automatic Control Relay will be mounted on the vertical plastic panel between the driver and passenger side by you legs.

Everything except Auxbeam relay box will be mounted to the 1/4" x 8.5" x 10" aluminum plate I had cut. This will be mounted to the shock brace. Stinger and breaker will be mounted to the bottom of the plate.



[Mudder]

Nice work. I have the rats nest version under my hood.



[herd90]

Yeah that's awesome @The Green Goat. I'd like to work with what I have on hand. Thank you for taking those pictures!

Sent from my SM-G975U using Tapatalk



[herd90]

All good.

Sent from my SM-G975U using Tapatalk



[herd90]

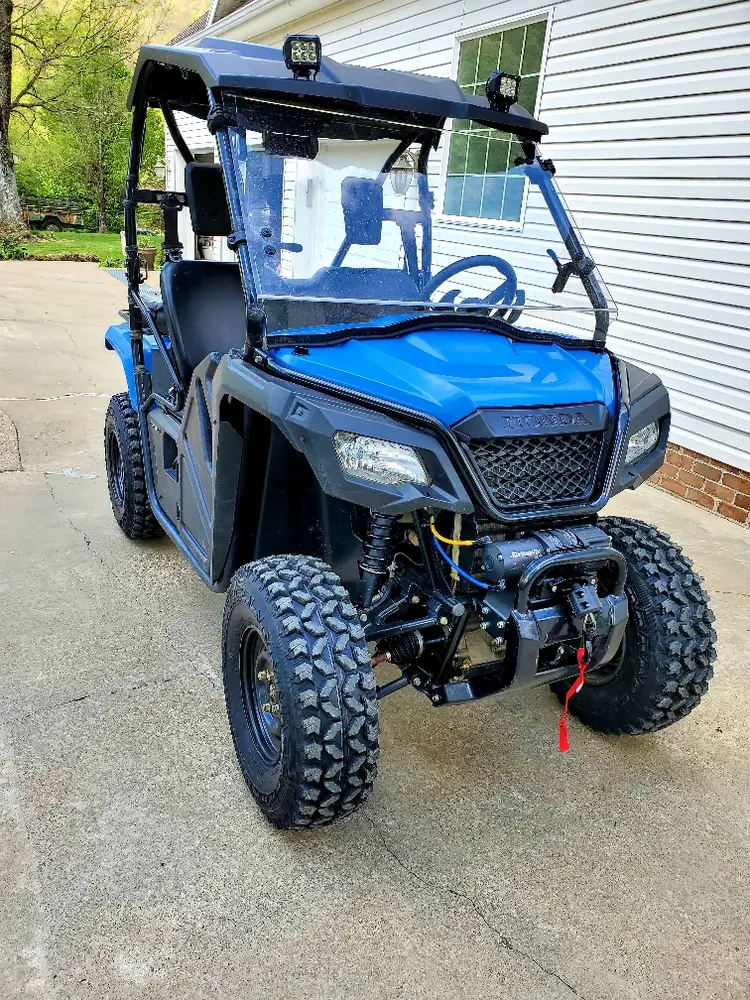

Torq locker, ps, front brakes, winch, @trigger heat shield, 26" tires. Bought several tools I'd have never owned. Thanks to this forum for sharing your thoughts.

Sent from my SM-G975U using Tapatalk



[trigger]

Torq locker, ps, front brakes, winch, @trigger heat shield, 26" tires. Bought several tools I'd have never owned. Thanks to this forum for sharing your thoughts. View attachment 267154

Sent from my SM-G975U using Tapatalk

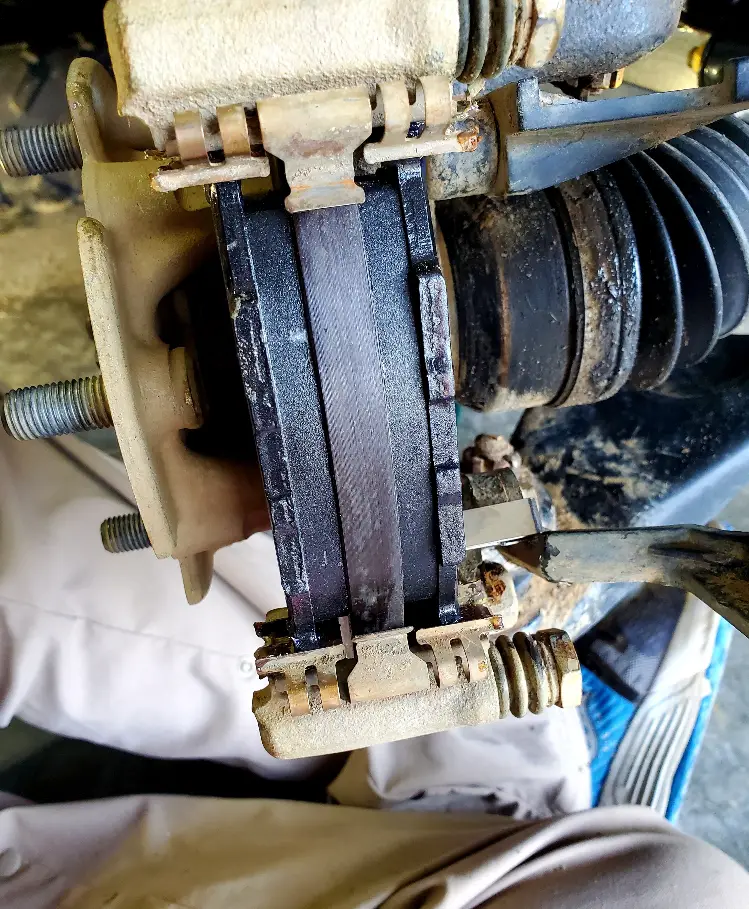

Front brakes?



[herd90]

Yeah

Sent from my SM-G975U using Tapatalk



[trigger]

YeahView attachment 267271

Sent from my SM-G975U using Tapatalk

Wow, already huh?



[rustyneversleeps]

Torq locker, ps, front brakes, winch, @trigger heat shield, 26" tires. Bought several tools I'd have never owned. Thanks to this forum for sharing your thoughts. View attachment 267154

Sent from my SM-G975U using Tapatalk

Looks good man - what tools did you end up buying?



[herd90]

7/32" pin punch, crimping tool, pry bar, 3/8" long handle ratchet and 20ft of 6 ga copper wire with a wire cutter.
