P1000 Honey Badger

[HONEY_BADGER77]

So far I have built or bought and installed : (Me-made) Led whips , Honda winch mount and Harbor Freight 5000lb winch ( pulled a buried jeep out once I anchored to a tree and pulled my self out a few times under water and works great) , am/fm /mp3 player and 6 1/2" Boss audio tube and Walmart flexible radio antenna , front over head light LED strips , High Lifter 2" lift kit , Super ATV front Forward 1.5" A-arms , STI HD7 Matte Black/Radiant Red wheels with ITP Cryptid 30x10-14 tires, Honda flip up windshield , 45" curved LED bar roof mounted , Drilled the baffle in the muffler with 4 7/8" holes and fabbed a new 2" tail pipe exit flange, second battery under hood, Honda rear view mirror.

next plans ,build a snorkel and run vent lines up ,build a rear bumper and maybe a front , led reverse lights, led side lights, led cab lights , build a nicer switch plate from the pattern, etc.

I am sorry I didnt take time to take more pictures as I installed but I will try to more from now on and I will be posting more picts of what has been done.



[Admin]



[HONEY_BADGER77]

14569001_10206358172627936_1944221567_n

• HONEY_BADGER77
• Oct 1, 2016

14542883_10206358177668062_369317375_n

• HONEY_BADGER77
• Oct 1, 2016

14555834_10206358177428056_1144867009_n

• HONEY_BADGER77
• Oct 1, 2016

14509182_10206358175828016_1728867154_n

• HONEY_BADGER77
• Oct 1, 2016

14555932_10206358177868067_1374271319_n

• HONEY_BADGER77
• Oct 1, 2016



[HONEY_BADGER77]



[HONEY_BADGER77]



[HONEY_BADGER77]

https://www.facebook.com/video.php?v=10205728228839735



[HONEY_BADGER77]

https://www.facebook.com/video.php?v=10210967244005033

Our backyard track we are steadily building too.



[HONEY_BADGER77]

my boy and my niece on our track in my dads P1000-5



[HONEY_BADGER77]

my nephew and I in our soup bowl now a horseshoe



[HONEY_BADGER77]

some of our Honda family and our Bulldog and Yamaha family too top of Mud Creek Jacksonville TX.



[HONEY_BADGER77]

where i mounted my homemade led whips



[HONEY_BADGER77]

started on my homemade snorkel today and almost finished it but letting paint dry over night. couple of push/ pull tabs and 4 5mil allen bolts and covers off



[HONEY_BADGER77]

this is what you see from rear of engine looking forward. the factory air duct has a rubber 90 at engine to loosen on pipe side with #2 pillips and a rubber coupler under front seat near bottom frame same style clamp, then 2 pull tabs one at front i have pulled see the holes and one at rear near engine is tricky to see but maybe thats just cause my buggy is filthy, anyhow take the front rubber coupler off both pipes and you can drop pipe down and towards drivers side and pull up and out through seat hole real easy



[HONEY_BADGER77]

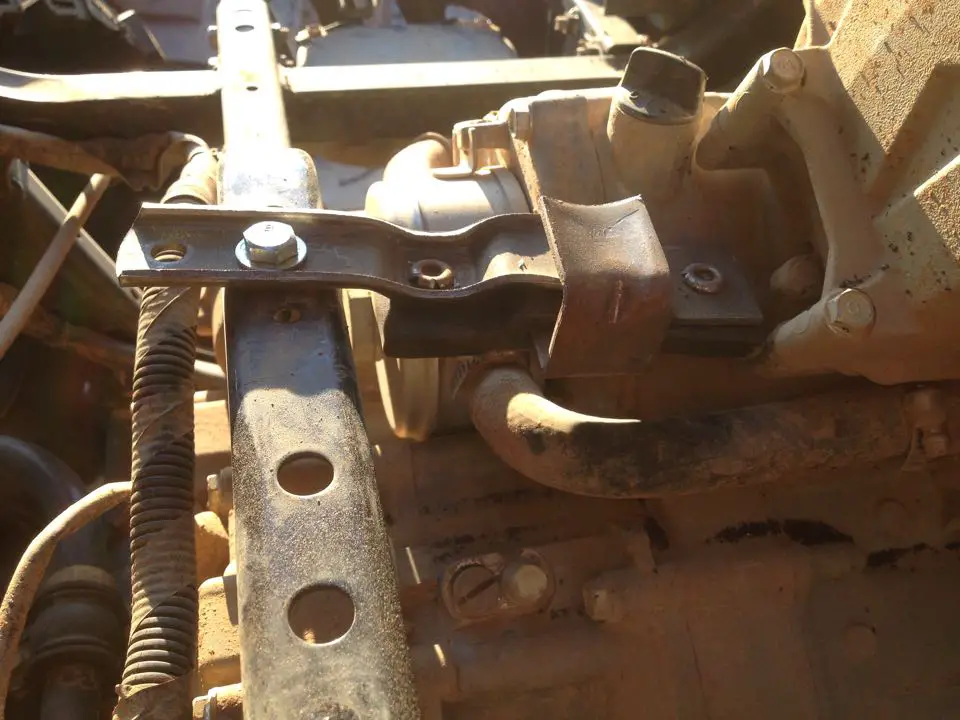

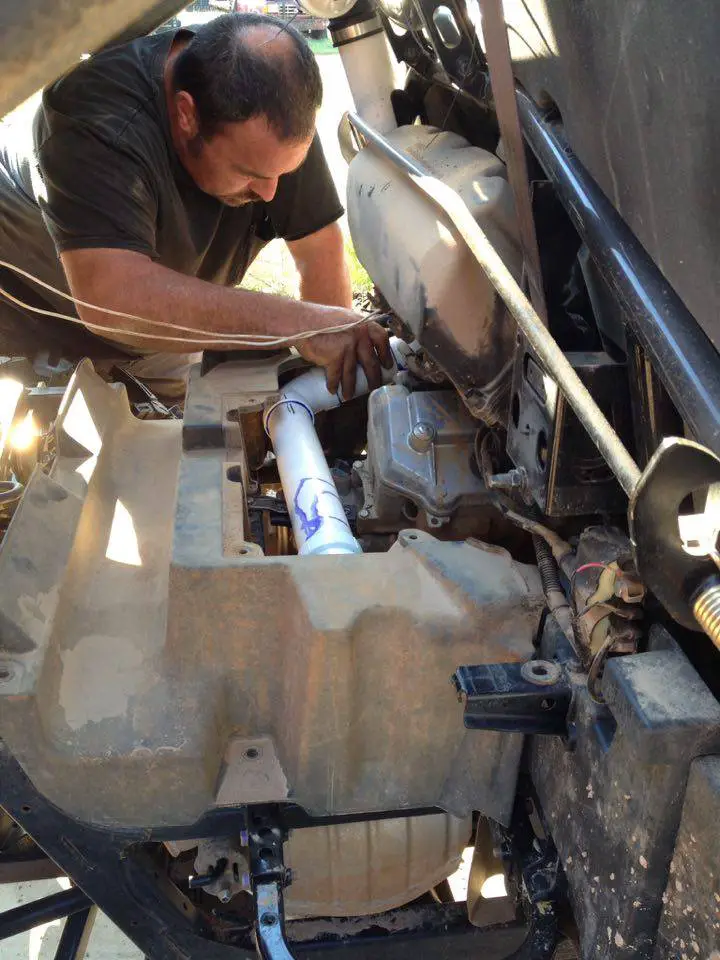

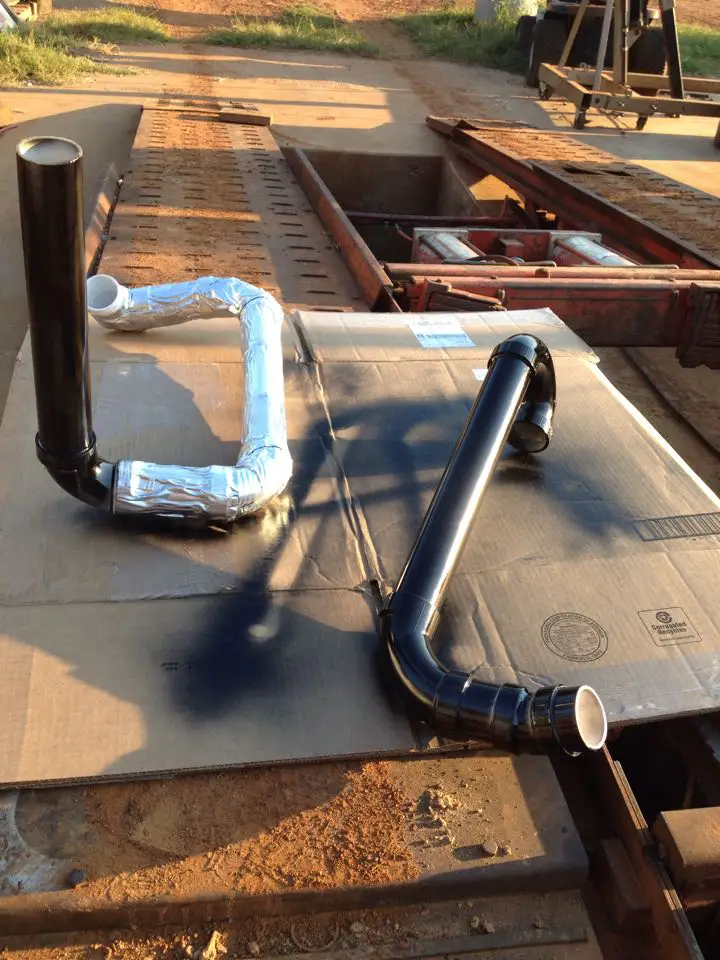

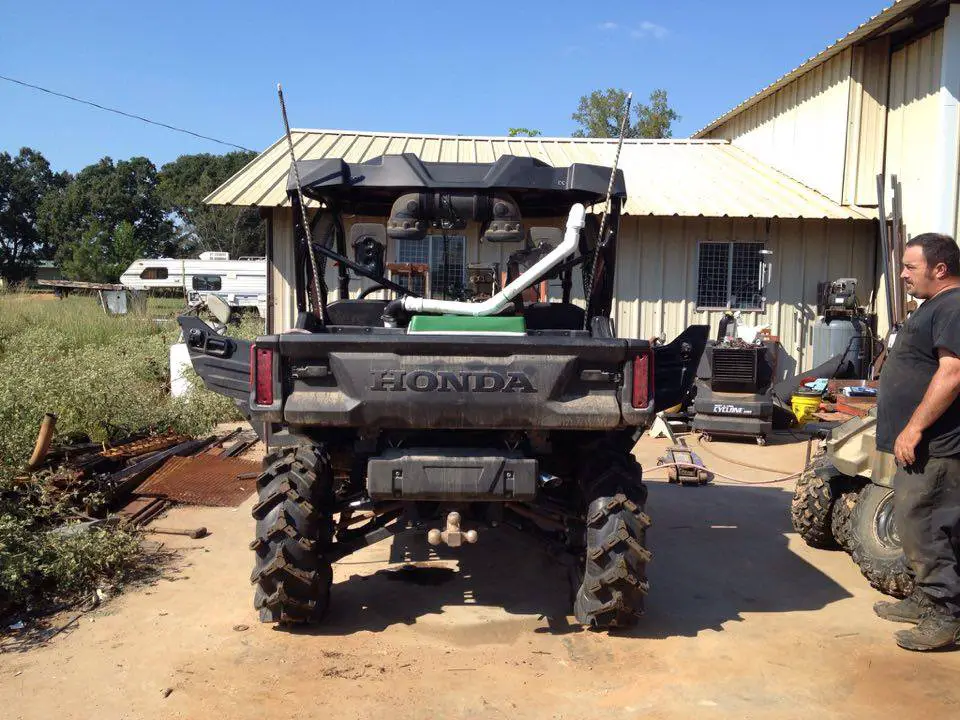

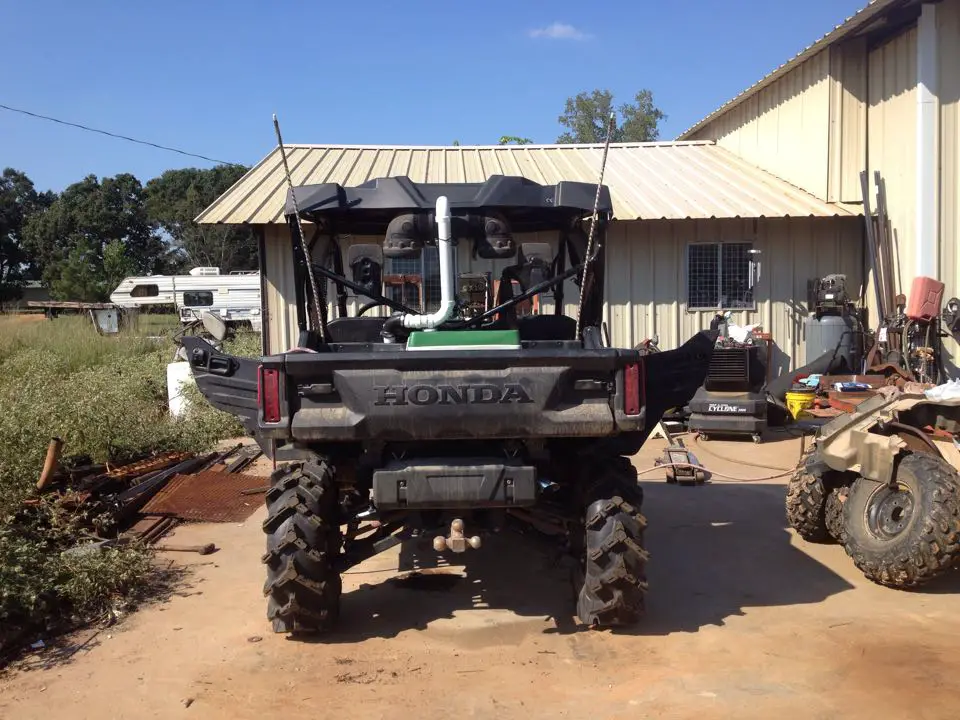

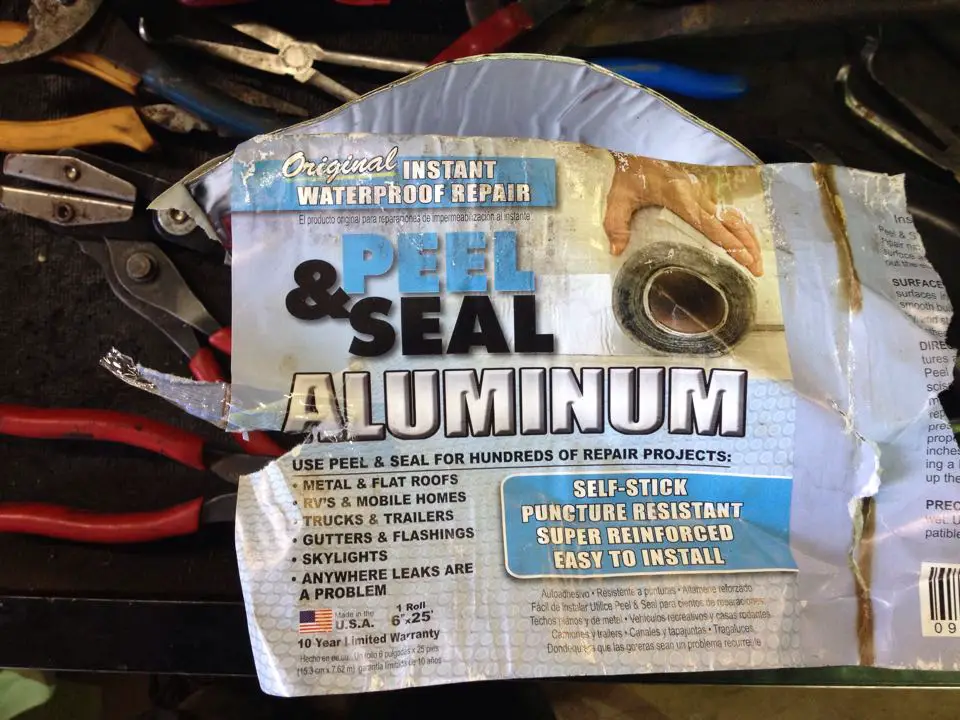

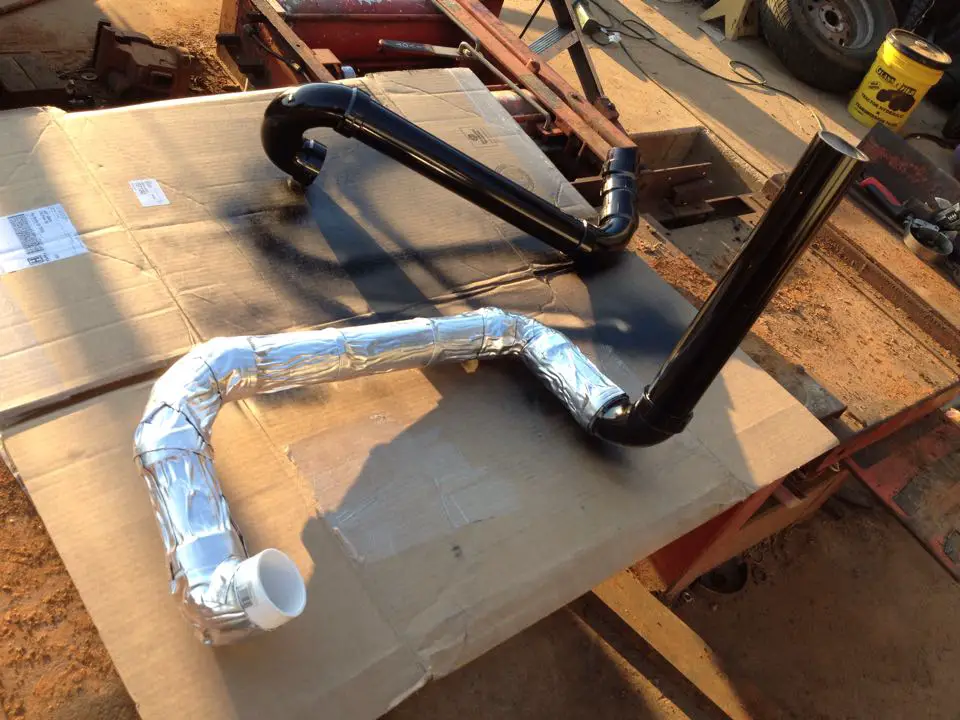

next ,pipes and pipe couplings were flying all over this thing like a mad man trying to break a code on a bank vault , but through the miracle of time I found a good combo of parts and measurements , added a little exhaust bracket to help support the new crossover pipe, then I had to do some minor cutting to the engine cover plastic on drivers side , I also had to trim the front top plastic that hangs over the square metal frame on the bed for pipe to not interfere with dump operations , missed that photo op somehow. then i looked at it going to the right side behind seat but i chose to put it in the middle to keep mud away from intake. decided to wrap the pieces around the engine with some aluminum sealer wrap stuff I had laying around from some auction box lot , should keep most heat off the pipe. will look better painted so that was next. then I need to build a few more brackets to hold upper pipe to rops.



[HONEY_BADGER77]

High Lifter front and rear lift already installed didnt get pictures during but really took about 15 mins on front and 20 mins on rear to do, very easy.and gained exactly 2 inch height



[X4Dice]

next ,pipes and pipe couplings were flying all over this thing like a mad man trying to break a code on a bank vault , but through the miracle of time I found a good combo of parts and measurements , added a little exhaust bracket to help support the new crossover pipe, then I had to do some minor cutting to the engine cover plastic on drivers side , I also had to trim the front top plastic that hangs over the square metal frame on the bed for pipe to not interfere with dump operations , missed that photo op somehow. then i looked at it going to the right side behind seat but i chose to put it in the middle to keep mud away from intake. decided to wrap the pieces around the engine with some aluminum sealer wrap stuff I had laying around from some auction box lot , should keep most heat off the pipe. will look better painted so that was next. then I need to build a few more brackets to hold upper pipe to rops.

View attachment 23452 View attachment 23453 View attachment 23454 View attachment 23455 View attachment 23457 View attachment 23458 View attachment 23463

Can you show how you brought it up behind the seat? Thanks



[HONEY_BADGER77]

Can you show how you brought it up behind the seat? Thanks

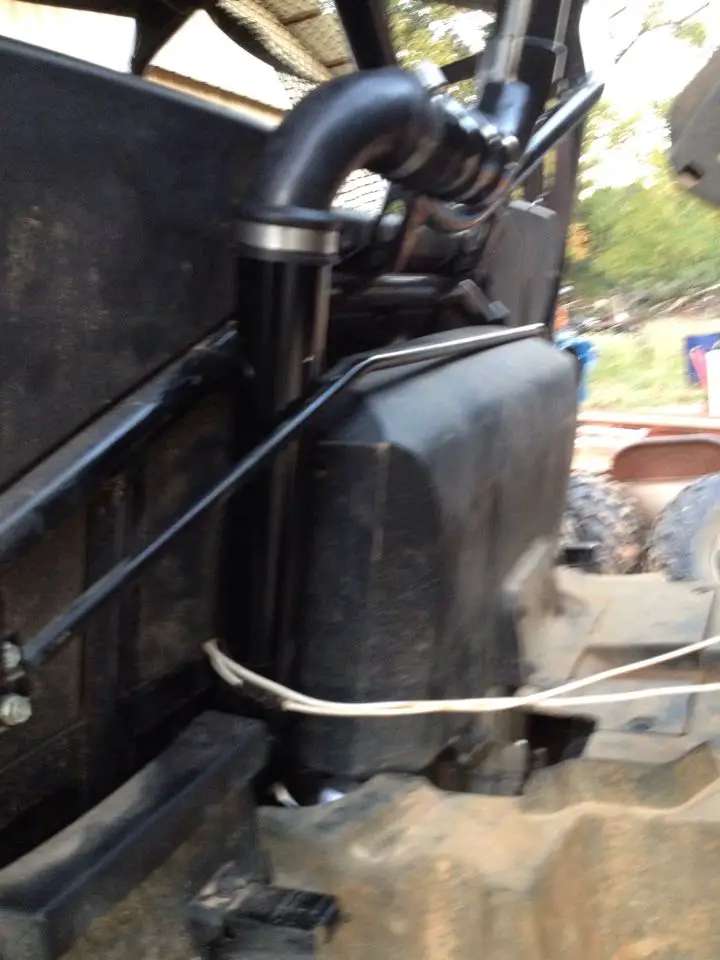

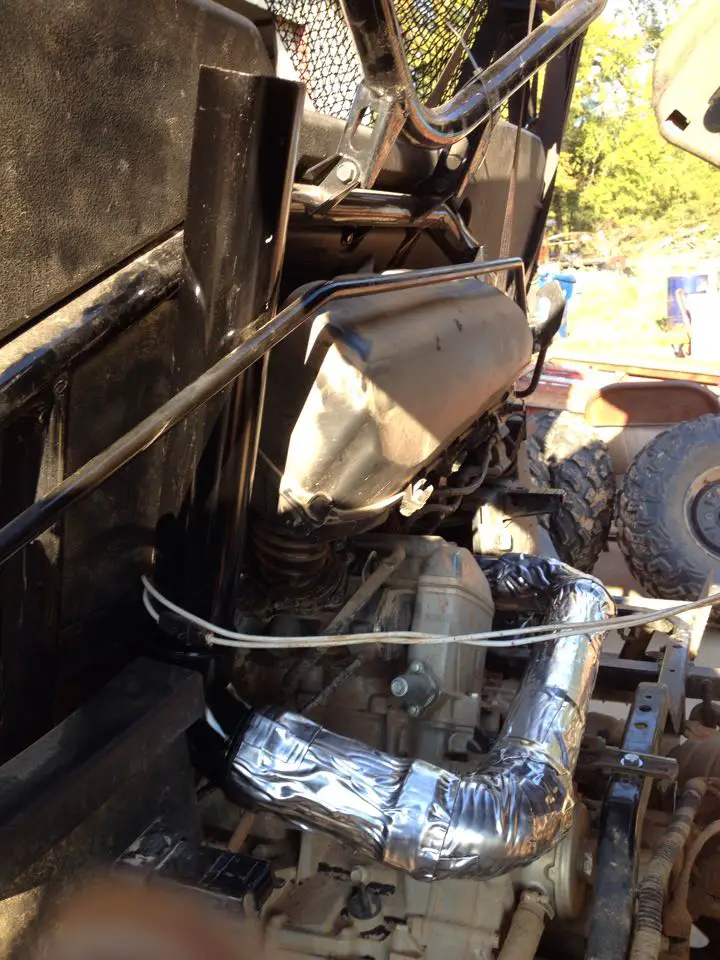

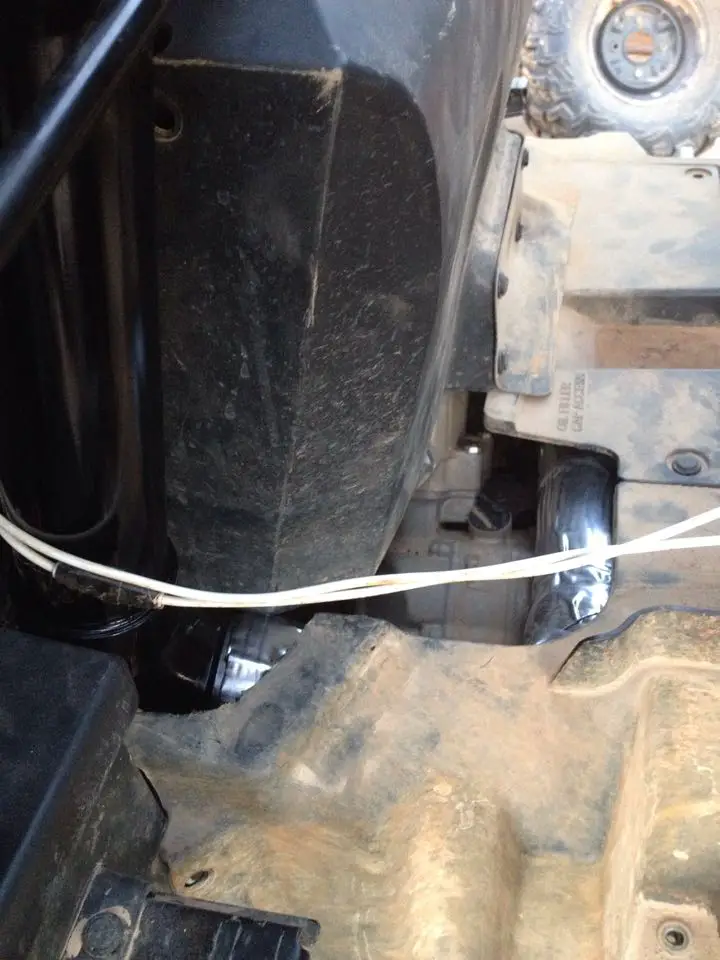

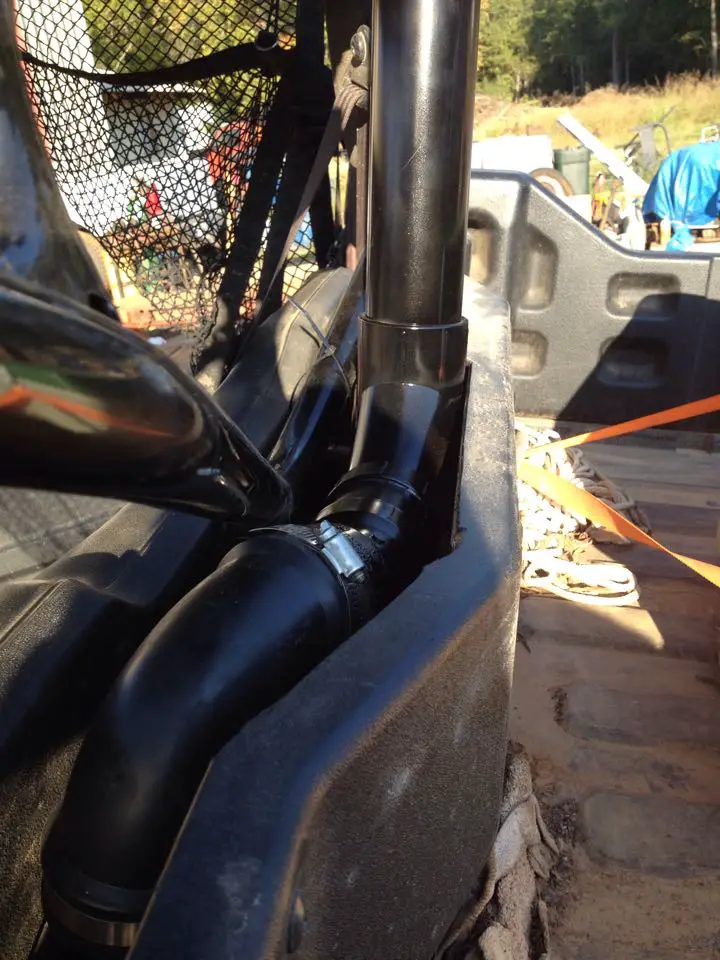

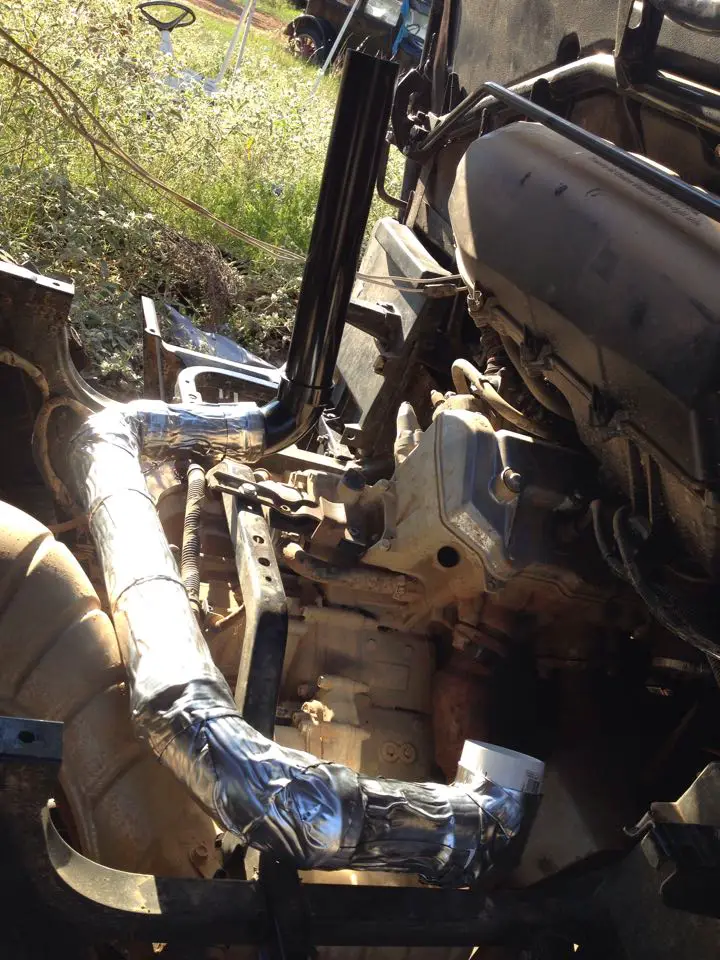

here it is



[X4Dice]

here it is

View attachment 23529 View attachment 23530 View attachment 23531 View attachment 23532 View attachment 23533 View attachment 23534 View attachment 23535

Very nice! Thank you!



[joeymt33]

Looking great! Y'all have a good time don't you?!


Quote by jackal: "we won't be doing any extreme trails".



[HONEY_BADGER77]

Looking great! Y'all have a good time don't you?!


Quote by jackal: "we won't be doing any extreme trails".

yes sir Joeymt33 ,we try to have a ball when we get a chance.
