Mirror Brackets for Honda OEM Soft Doors

GROR

GROR

Active Member
Vendor
Lifetime Member
Supporting Member
Jul 15, 2021
58
241
33
Castle Dale, Utah
Ownership

  1. 1000-5
Ghost Rocks Off-Road is a family-owned and operated small business located in Castle Dale, Utah, and we are proud to keep our quality, production, and innovation in the USA. Our custom products are built in the United States by skilled workers at a fair living wage. We are a family of passionate Honda SXS enthusiasts who love hitting the trails, hunting, fishing, camping, and exploring the great outdoors. We believe that the Honda SXS is not just a mode of transportation but the best-built SXS on the market, and we are dedicated to sharing our passion and innovation with our customers.

1st product:

A-Pod brackets are mounted in the original lower (A-pillar) bolt holes with Hardened Class 10.9 JIS M12X1.25x55mm Flange Bolts. The brackets are designed for single bolt mirrors that mount with a 10mm or 8mm bolt (Seizmik pursuit, Tusk Pivot Folding UTV Mirror), etc. The lightbar portion will fit a 50”- 54” curved lightbar. A-Pod brackets are Laser-cut from high-carbon ¼ USA Steel and powder-coated for corrosion resistance. Using ¼ steel reduces lightbar vibrations on tough trails and provides a solid mount platform for the mirrors; another advantage is that the A-pillar is torqued to OEM specifications and not separated and will not rust the inner A-pillar like other mounting options.

Testing and Passenger Side Mirror Visibility:

We tested the A-pod with three mirrors: our original mirror, the Seizmik Embark, a vertically oriented mirror, the Xprite, and the Tusk Pivot Folding UTV Mirror, which are horizontally oriented mirrors. The passenger side vertically oriented mirror was not visible. Meanwhile, the horizontally oriented Xprite and TUSK mirrors are partially obstructed but fully functional. We tested the bracket by trail-ridding and hitting trees and other obstructions with our mirrors; it was not crazy but purposeful. In our testing, the mirrors folded how they were designed, and the brackets were not bent and undamaged.

A-POD HSD 2-IN-1 Mirror/Lightbar Multi-Pod
Developed specifically for the 2016-2024 Honda Pioneer 1000, 1000-5, and 1000-6 with Honda Fabric Soft Doors Installed. Fits 50''/54" Curved Light Bar/ 10mm-8mm Single Bolt Mirror.


20230819 113649

Includes:
2- A-Pod Mirror/Lightbar Brackets
4- Hardened Class 10.9 JIS Flange Bolts M12X1.25
4- 12mm Aluminum A-Pillar spacers
2- Mirror 10mm-8mm reducing spacers

A-Pod 2-in-1 Mirror Lightbar Multi-Pod.
Developed specifically for the 2016-2024 Honda Pioneer 1000, 1000-5, and 1000-6
Fits 50''/54" Curved Light Bar/ 10mm-8mm Single Bolt Mirror.

20230819 113805
INCLUDES:
2- A-Pod Brackets.
4- 12mmx45mm Class 10.9 flange bolts.
4- 12mm x 3/8 Aluminum A-pillar spacers
2- 10mm-8mm reducing mirror spacers

Please Visit www.ghostrocksoffroad.com for more information

All our products are backed with a lifetime warranty against manufacturer defects (normal wear and tear are not included) for the reasonable life of the product.

  • Like
Reactions: 500oneer and tjoreo
tjoreo

tjoreo

Well-Known Member
Lifetime Member
Feb 18, 2015
1,024
1,965
113
Southern Idaho
Ownership

  1. 1000-5
Looks like a great product that will solve the problem with the rear view mirrors with the fabric soft doors. I came up with a different design, but I like the ingenuity and your commitment to make a great product. Good luck on your endeavor.

  • Like
Reactions: GROR and HBarlow
HBarlow

HBarlow

Well-Known Member
Lifetime Member
Jun 14, 2020
1,614
6,004
113
Daniels, WV
Ownership

  1. 1000-3

  2. Talon X
Ghost Rocks Off-Road is a family-owned and operated small business located in Castle Dale, Utah, and we are proud to keep our quality, production, and innovation in the USA. Our custom products are built in the United States by skilled workers at a fair living wage. We are a family of passionate Honda SXS enthusiasts who love hitting the trails, hunting, fishing, camping, and exploring the great outdoors. We believe that the Honda SXS is not just a mode of transportation but the best-built SXS on the market, and we are dedicated to sharing our passion and innovation with our customers.

1st product:

A-Pod brackets are mounted in the original lower (A-pillar) bolt holes with Hardened Class 10.9 JIS M12X1.25x55mm Flange Bolts. The brackets are designed for single bolt mirrors that mount with a 10mm or 8mm bolt (Seizmik pursuit, Tusk Pivot Folding UTV Mirror), etc. The lightbar portion will fit a 50”- 54” curved lightbar. A-Pod brackets are Laser-cut from high-carbon ¼ USA Steel and powder-coated for corrosion resistance. Using ¼ steel reduces lightbar vibrations on tough trails and provides a solid mount platform for the mirrors; another advantage is that the A-pillar is torqued to OEM specifications and not separated and will not rust the inner A-pillar like other mounting options.

Testing and Passenger Side Mirror Visibility:

We tested the A-pod with three mirrors: our original mirror, the Seizmik Embark, a vertically oriented mirror, the Xprite, and the Tusk Pivot Folding UTV Mirror, which are horizontally oriented mirrors. The passenger side vertically oriented mirror was not visible. Meanwhile, the horizontally oriented Xprite and TUSK mirrors are partially obstructed but fully functional. We tested the bracket by trail-ridding and hitting trees and other obstructions with our mirrors; it was not crazy but purposeful. In our testing, the mirrors folded how they were designed, and the brackets were not bent and undamaged.

A-POD HSD 2-IN-1 Mirror/Lightbar Multi-Pod
Developed specifically for the 2016-2024 Honda Pioneer 1000, 1000-5, and 1000-6 with Honda Fabric Soft Doors Installed. Fits 50''/54" Curved Light Bar/ 10mm-8mm Single Bolt Mirror.

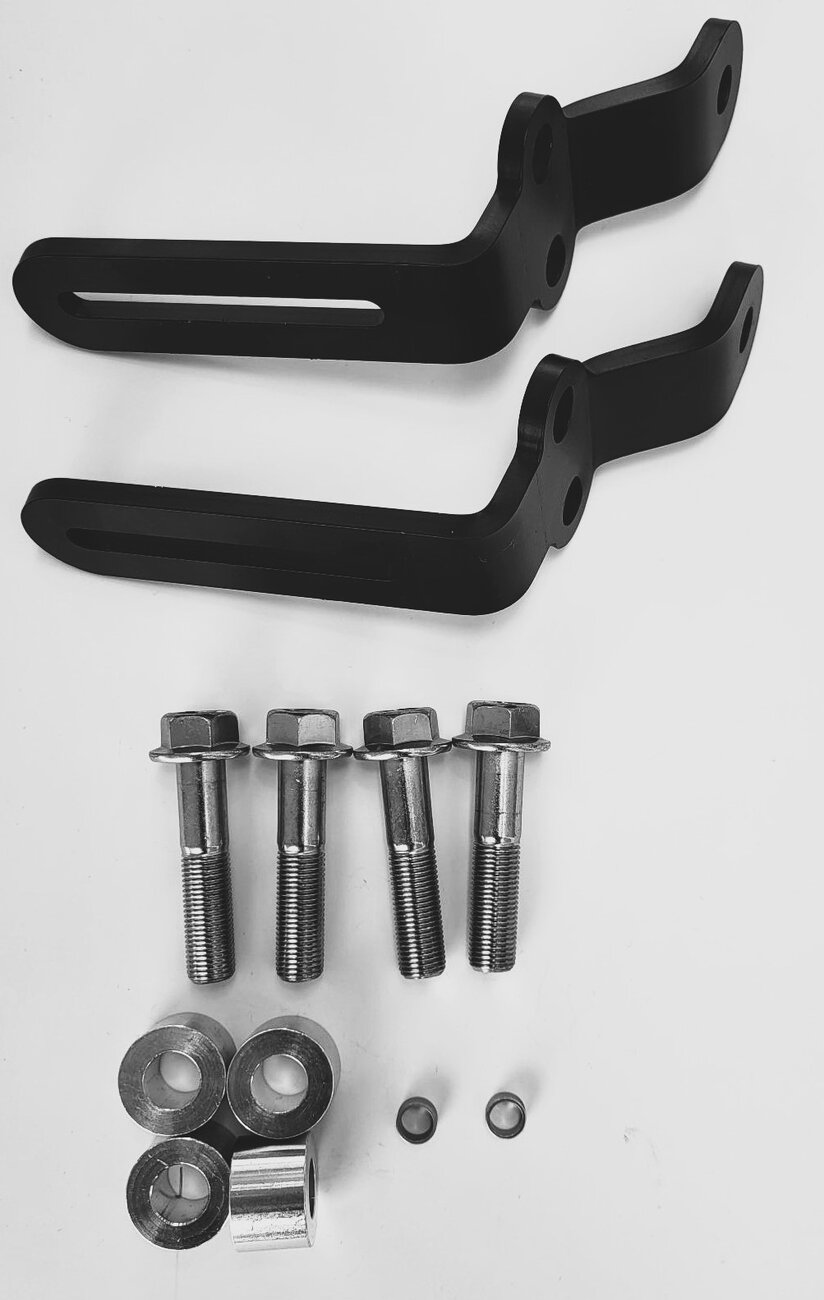

View attachment 416304

Includes:
2- A-Pod Mirror/Lightbar Brackets
4- Hardened Class 10.9 JIS Flange Bolts M12X1.25
4- 12mm Aluminum A-Pillar spacers
2- Mirror 10mm-8mm reducing spacers

A-Pod 2-in-1 Mirror Lightbar Multi-Pod.
Developed specifically for the 2016-2024 Honda Pioneer 1000, 1000-5, and 1000-6
Fits 50''/54" Curved Light Bar/ 10mm-8mm Single Bolt Mirror.

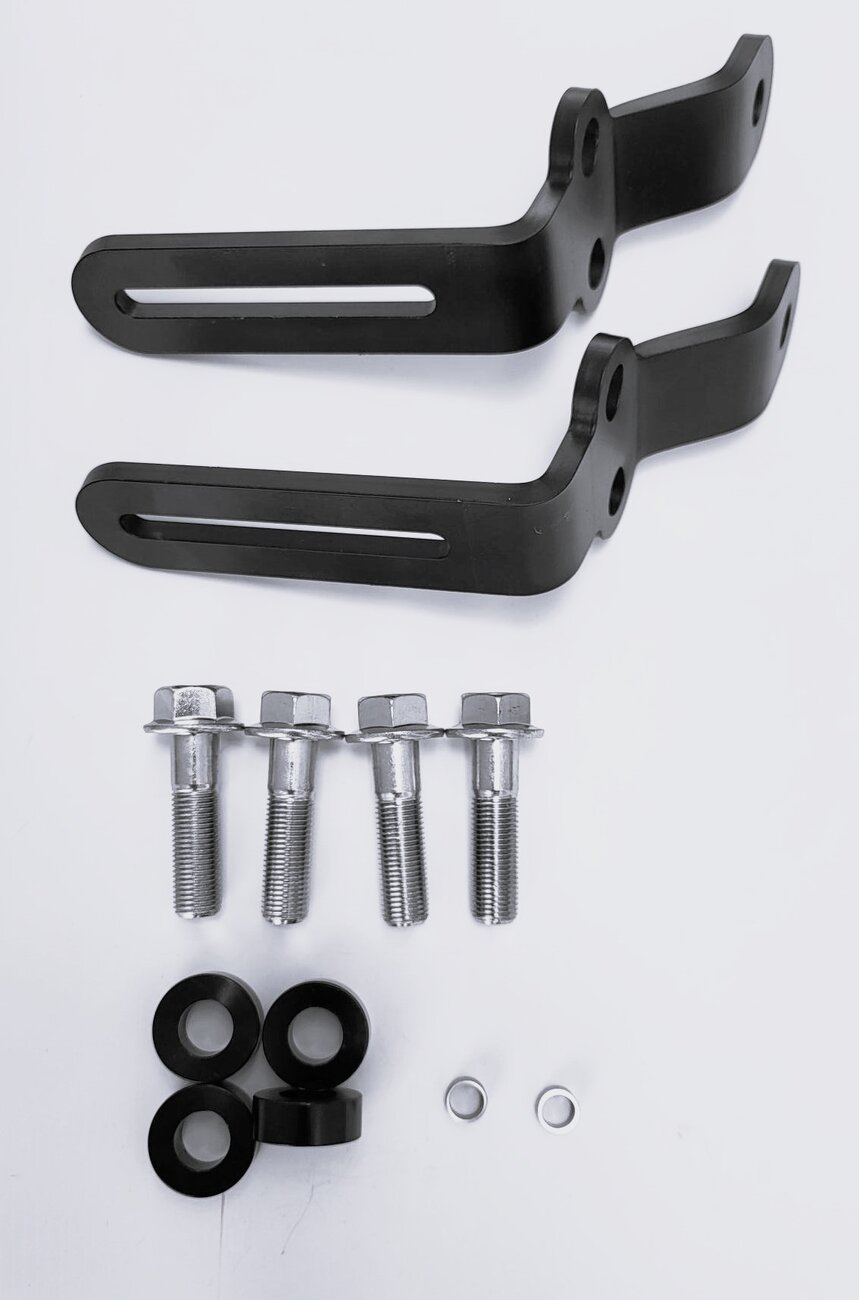

View attachment 416312
INCLUDES:
2- A-Pod Brackets.
4- 12mmx45mm Class 10.9 flange bolts.
4- 12mm x 3/8 Aluminum A-pillar spacers
2- 10mm-8mm reducing mirror spacers

Please Visit www.ghostrocksoffroad.com for more information

All our products are backed with a lifetime warranty against manufacturer defects (normal wear and tear are not included) for the reasonable life of the product.

Your product looks sturdy. How does it work?

Do you drill through the fabric and upper door tube frame to insert the bolts then attach the brackets to the outside fabric and secure to the bolts with the provided nuts?

tjoreo

tjoreo

Well-Known Member
Lifetime Member
Feb 18, 2015
1,024
1,965
113
Southern Idaho
Ownership

  1. 1000-5
@HBarlow Looking at their website, it looks like a variation of their light bar mount to accommodate the mirrors. It just attaches to the A pillars, not to the doors. Glad to see there are other options.

Sent from my SM-G781V using Tapatalk

  • Like
Reactions: HBarlow
GROR

GROR

Active Member
Vendor
Lifetime Member
Supporting Member
Jul 15, 2021
58
241
33
Castle Dale, Utah
Ownership

  1. 1000-5
Sorry, I should have posted the instillation instructions:


Attachments

  • A-POD HSD 2-IN-1 LIGHTBAR-MIRROR MULTI-POD INS.pdf
    1.5 MB · Views: 110
GROR

GROR

Active Member
Vendor
Lifetime Member
Supporting Member
Jul 15, 2021
58
241
33
Castle Dale, Utah
Ownership

  1. 1000-5

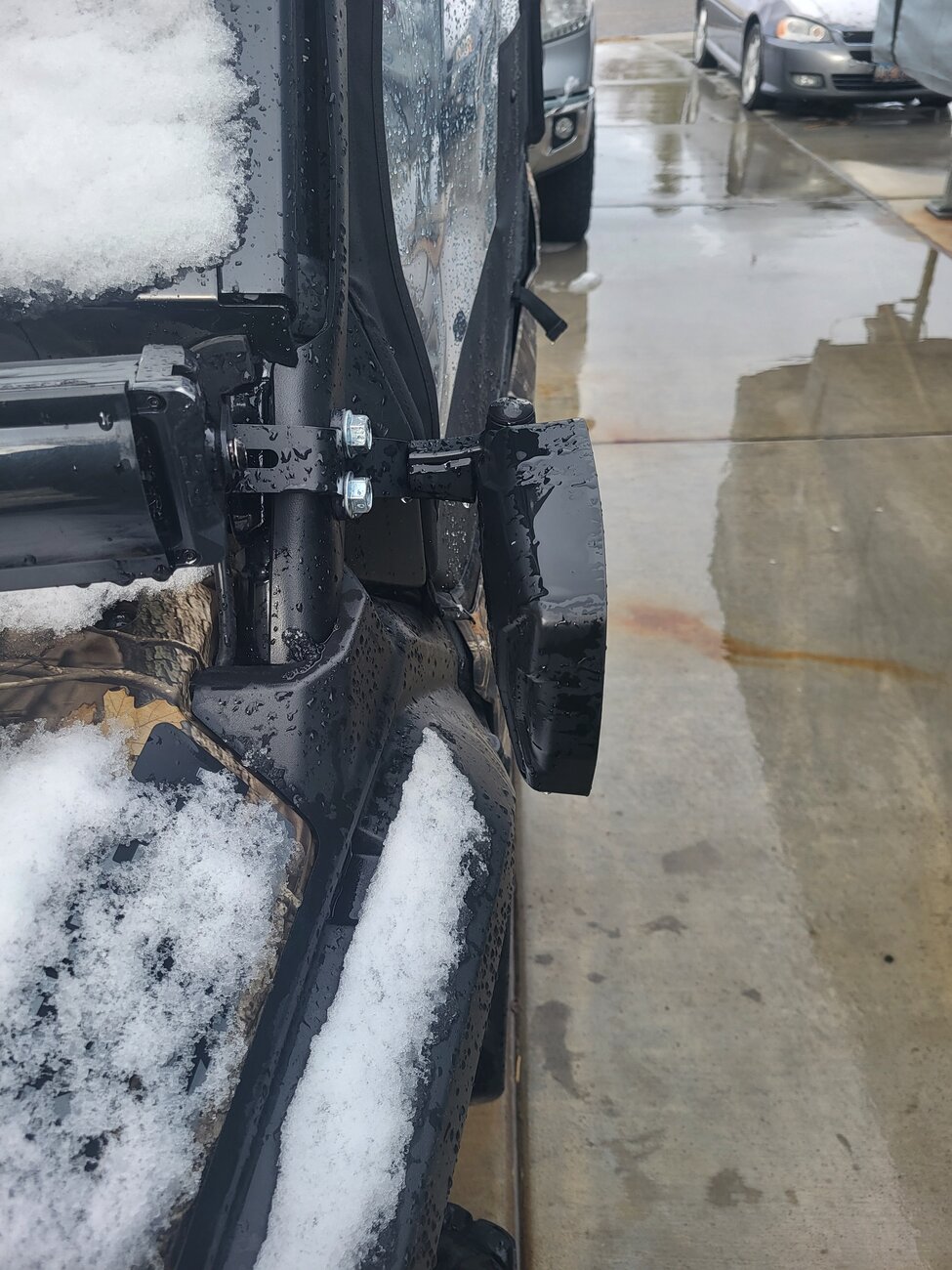

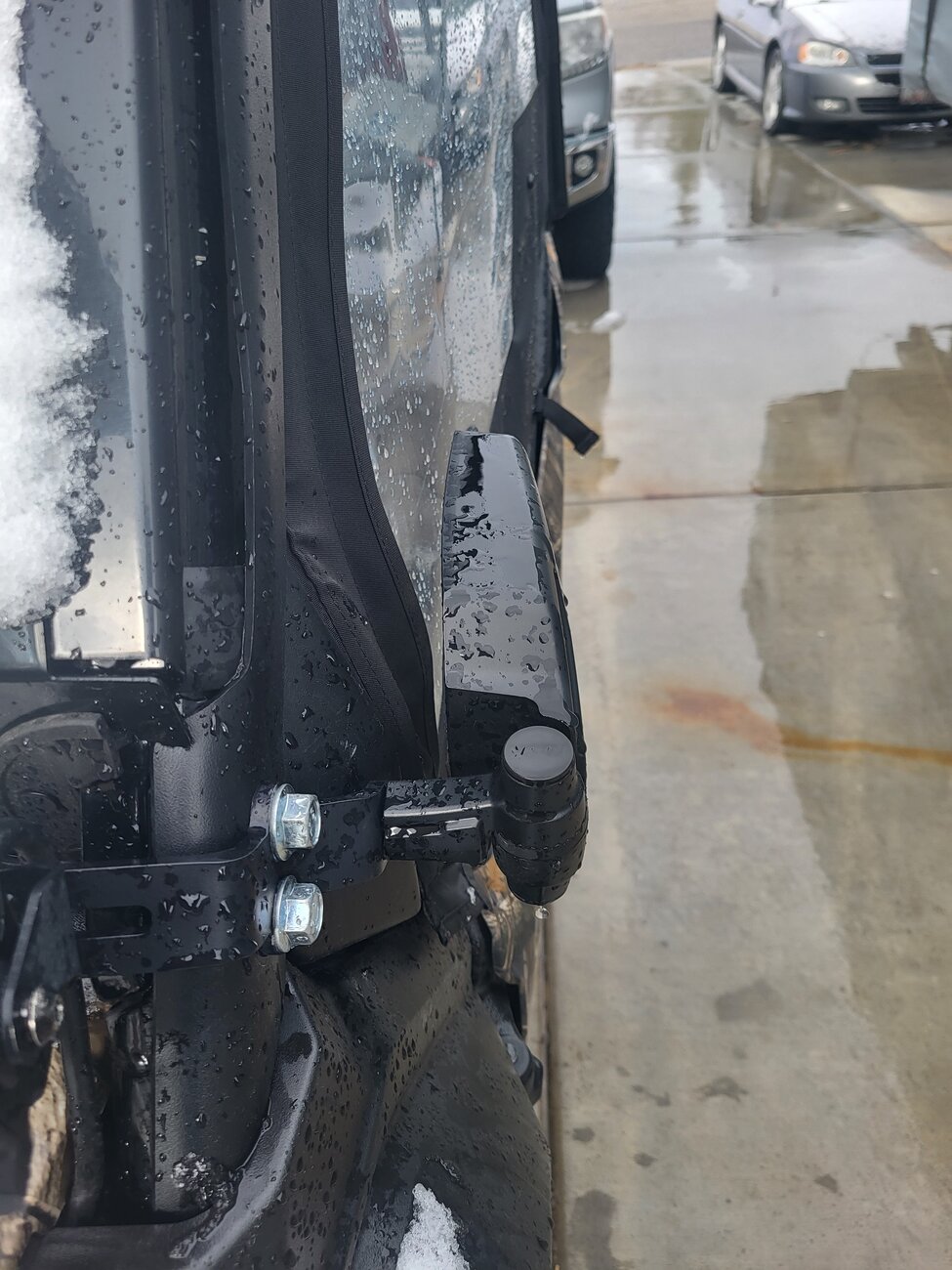

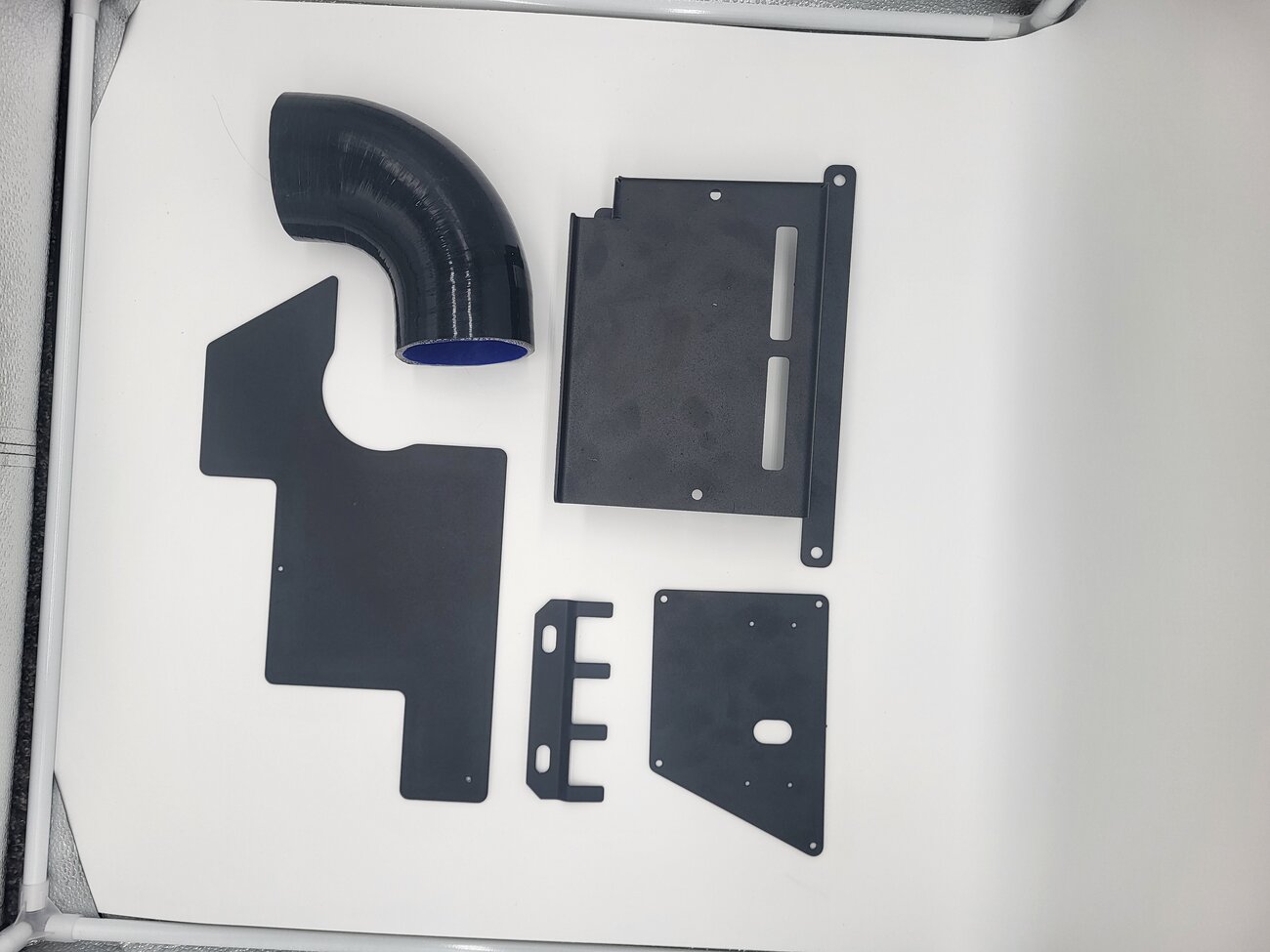

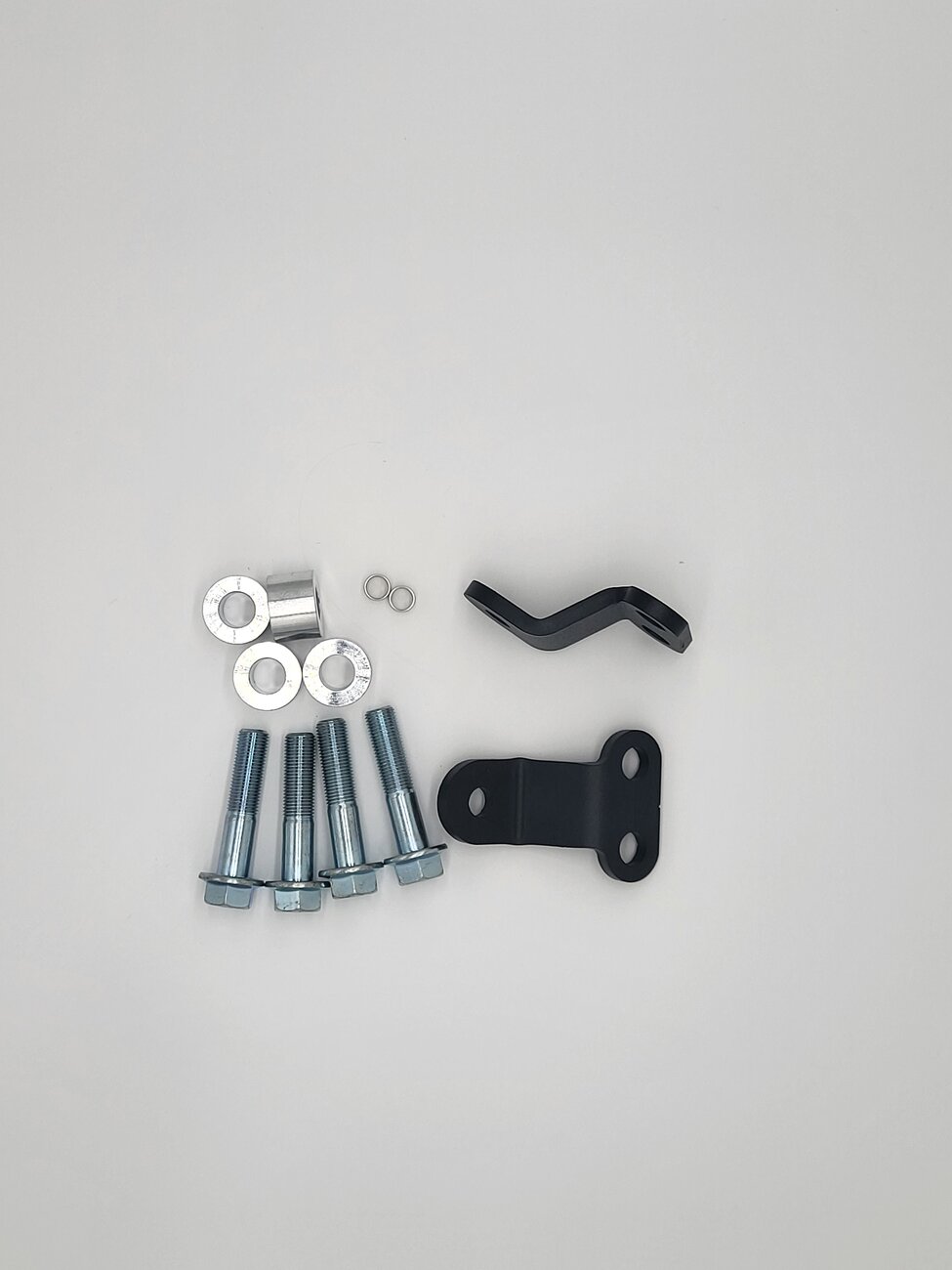

New brackets without the light bar mount in stock and ready to ship. Brackets ate made from 1/4" steel and tested to take an impact. We also have our new GR-5 Dual Battery mounting plates tested and ready for production.
Includes:
Auxbeam above battery fuse box mount.
Front mounting plate.
3" silicone 90° boot and clamp.
4 slot relay bracket

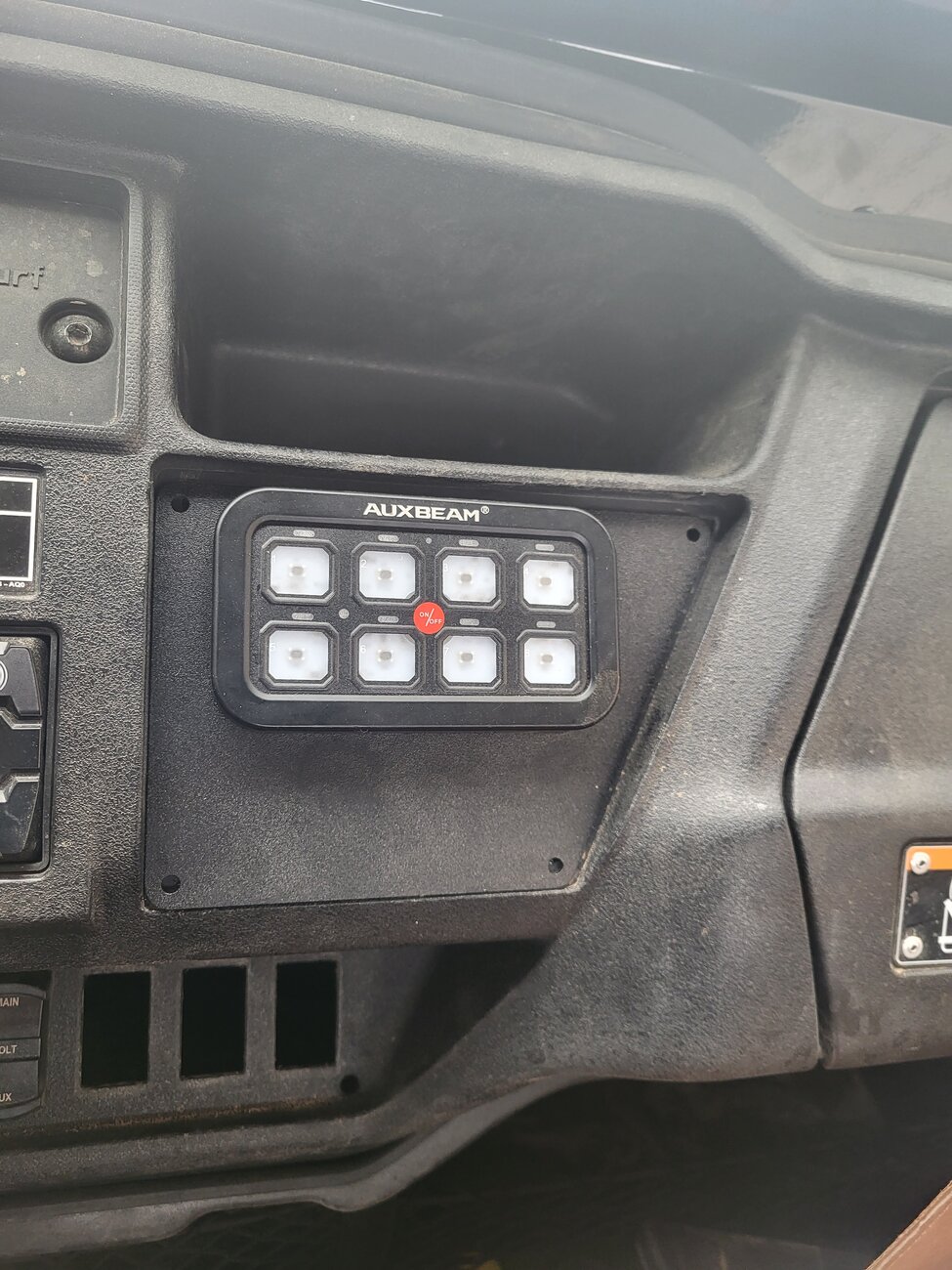

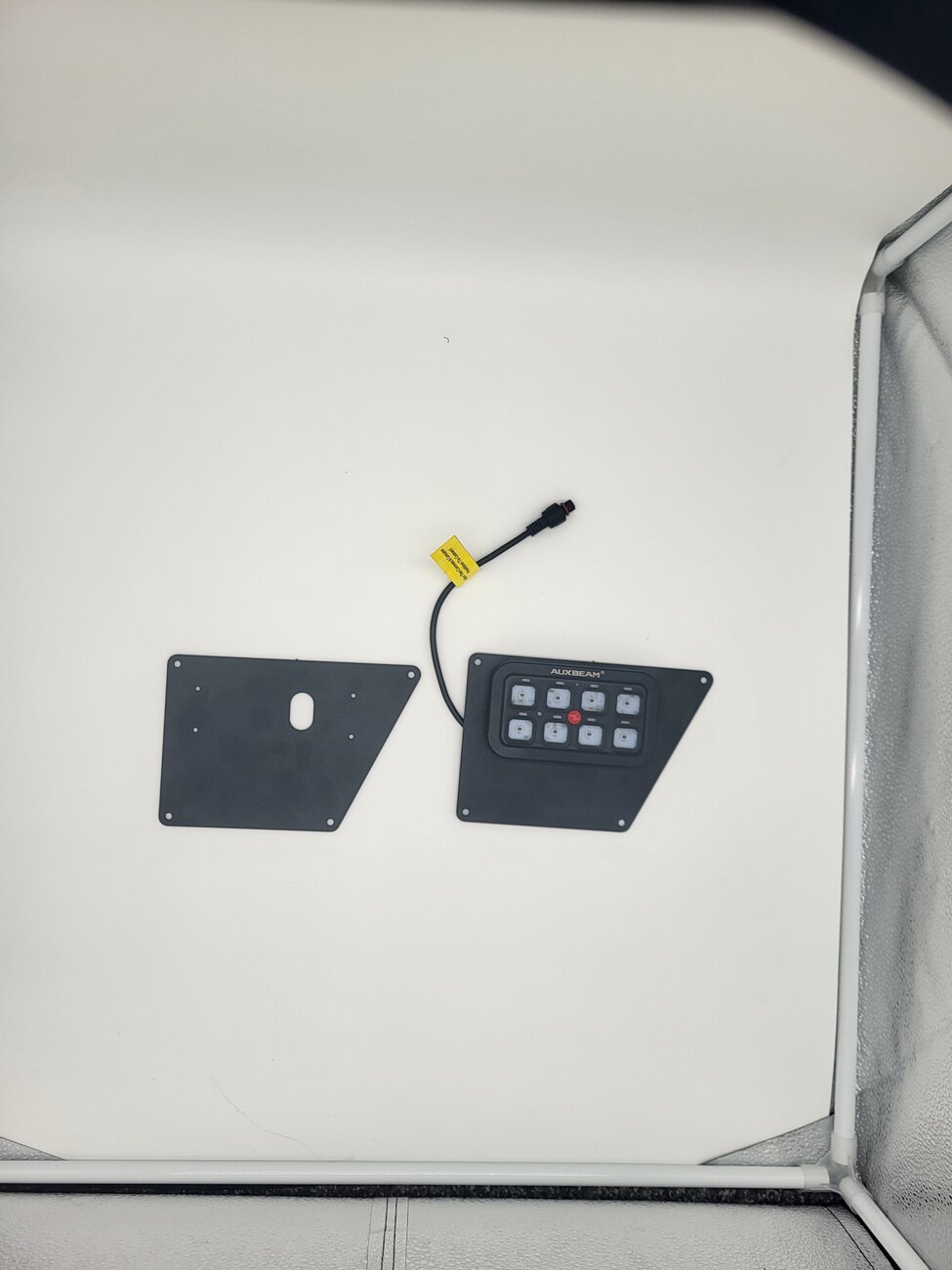

Interior auxbeam control panel. 2022-2024 P1K
Avaliable soon at ghostrocksoffroad.com

20240329 081146 20240329 093006 20240329 093018 20240329 103543 20240329 120832 20240329 093126

E

elarson6772

Active Member
Supporting Member
Mar 23, 2024
32
105
33
Saginaw, Michigan
Ownership

  1. Looking to buy
New brackets without the light bar mount in stock and ready to ship. Brackets ate made from 1/4" steel and tested to take an impact. We also have our new GR-5 Dual Battery mounting plates tested and ready for production.
Includes:
Auxbeam above battery fuse box mount.
Front mounting plate.
3" silicone 90° boot and clamp.
4 slot relay bracket
Interior auxbeam control panel. 2022-2024 P1K
Avaliable soon at ghostrocksoffroad.com

View attachment 423858 View attachment 423859 View attachment 423860 View attachment 423870 View attachment 423871 View attachment 423872
Timing on battery plate?
