2022 Honda Talon Gas Tank Vent Line

[white22]

I was installing a snorkel kit on my 2022 Honda Talon. Everyone had said that the gas tank vent line was up under the hood in the middle of the bike. I searched forever up front and couldn’t find it. Long story short I found that they moved the vent line to the back of the bike. It’s plugged into the frame with a barb behind the battery box in the back. I have a 2022 Talon X4 LV, I hope it’s the same for anyone else having a hard time finding it!



[Admin]



[CID]

First things first - welcome from the once great state of Colorado. The link in my sig will take you to some basic Talon information if you haven't seen it. It's also a stickie in the General Talon 1000 Discussion forum making it easier to find. Included there are pics of the original gas tank vent location.

I didn't know they moved the gas tank vent. Any chance you can get a photo of its new location?



[Remington]

on my 2022 Honda Talon.

Welcome from Michigan!
like @CID said, a photo would
help alot. Plus we havent seen many 22’s in posession either.
Post em up!
Pics Or It Didnt Happen!



[white22]

First things first - welcome from the once great state of Colorado. The link in my sig will take you to some basic Talon information if you haven't seen it. It's also a stickie in the General Talon 1000 Discussion forum making it easier to find. Included there are pics of the original gas tank vent location.

I didn't know they moved the gas tank vent. Any chance you can get a photo of its new location?

Hey man, I don’t have a picture but i know they moved it to the back of the bike. I found it plugged into the frame right behind the battery box in the back. Hope this helps✌🏻



[CID]

Hey man, I don’t have a picture but i know they moved it to the back of the bike. I found it plugged into the frame right behind the battery box in the back. Hope this helps✌🏻

Just knowing they moved it helps a lot or I'd still be telling everyone that all Talons vented in the same place. If you have a cell phone and a drop light, a photo would help more though. 🤔



[EvilHRDirector]

We have a 2021 Talon X LV, 2 seater, that I installed the snorkel kit on and had a hard time finding the gas vent line as well. I was about to give up and call the company again as the instructions showed it to the left of the air box. I eventually found it between the cockpit wells behind the firewall flap in the front. Not an easy place to get to.



[Remington]

We have a 2021 Talon X LV, 2 seater,

Hay! Seen you just joined yesterday!
Welcome from Michigan.

You got pics of that X2 LV?
kind of a thing when you first join. The OP of this thread has ignored it as you can see lol. Why we say Pics Or It Didnt Happen!
Best if you start n Intro thread about yourself and pics of the rig so we can get to know ya! If u need help with any of it just ask!



[EvilHRDirector]

Hay! Seen you just joined yesterday!
Welcome from Michigan.

You got pics of that X2 LV?
kind of a thing when you first join. The OP of this thread has ignored it as you can see lol. Why we say Pics Or It Didnt Happen!
Best if you start n Intro thread about yourself and pics of the rig so we can get to know ya! If u need help with any of it just ask!

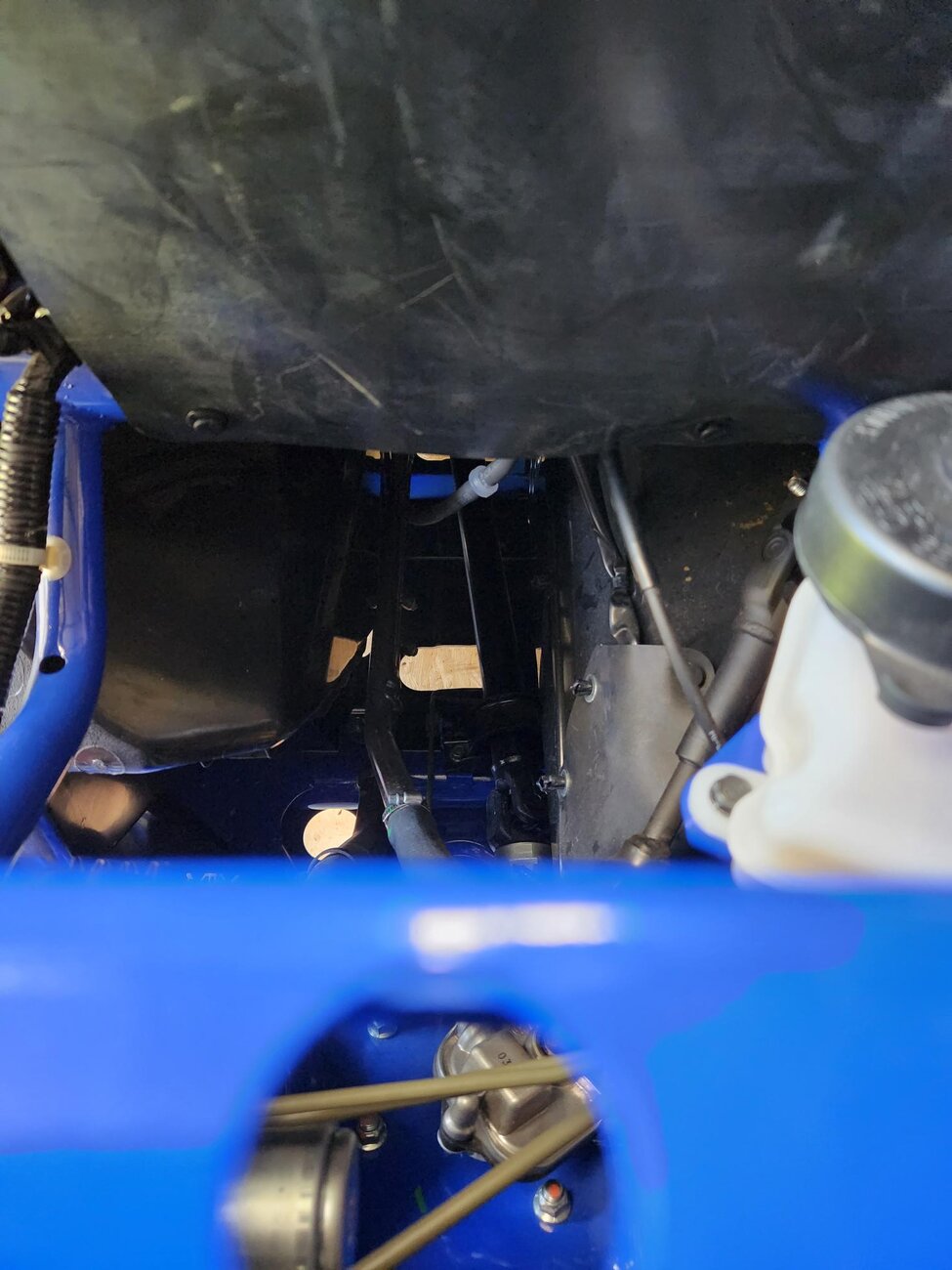

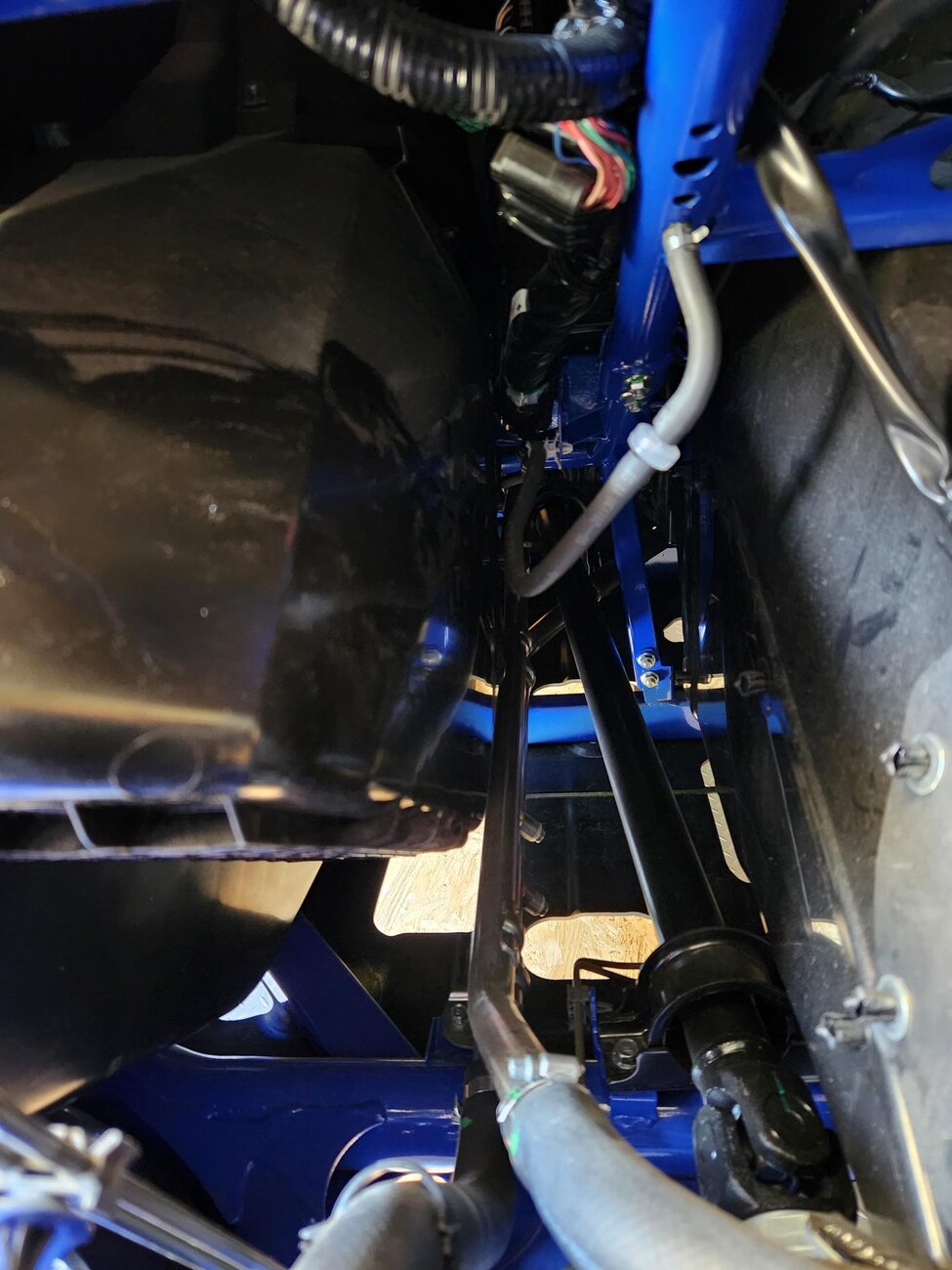

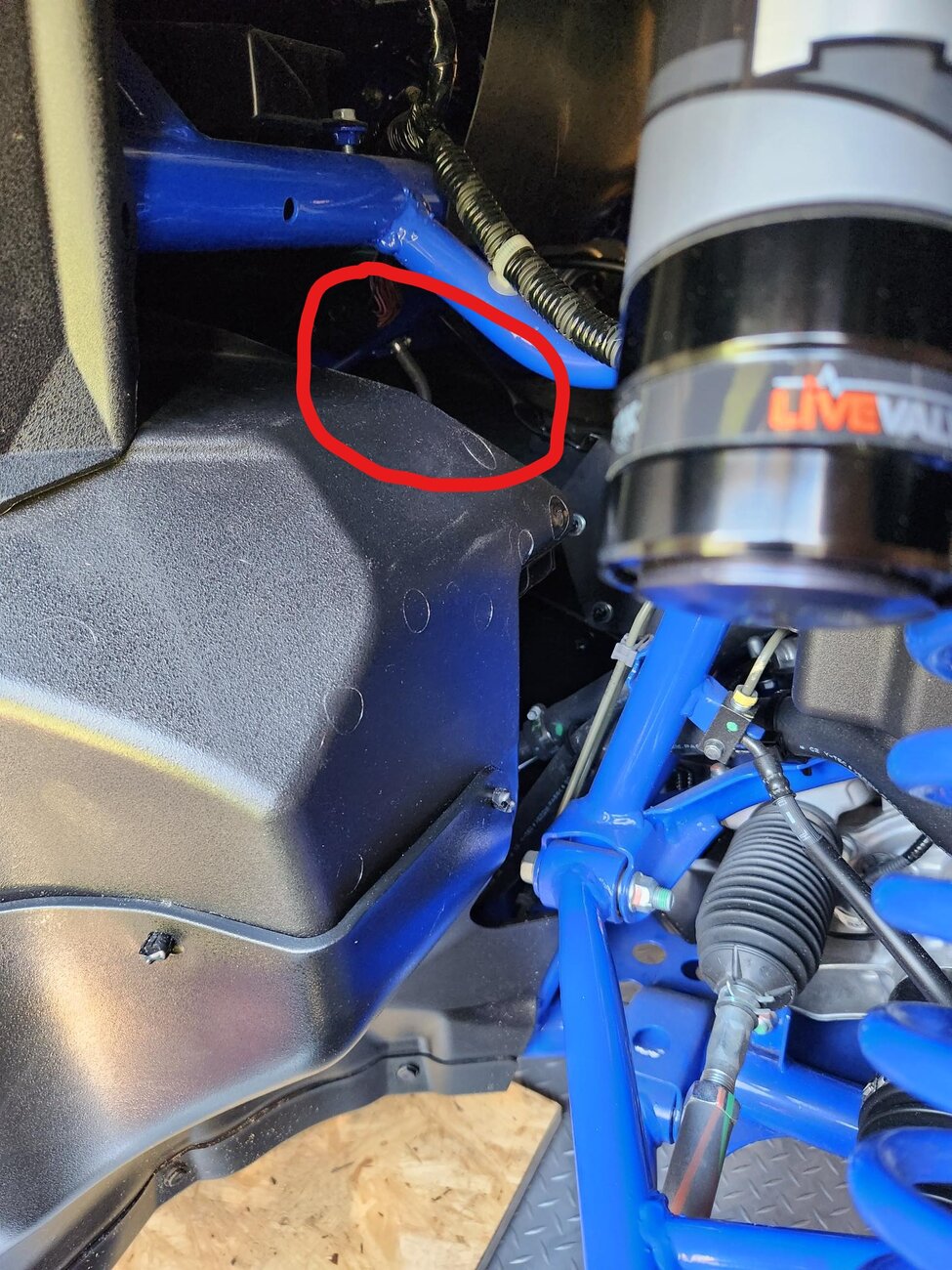

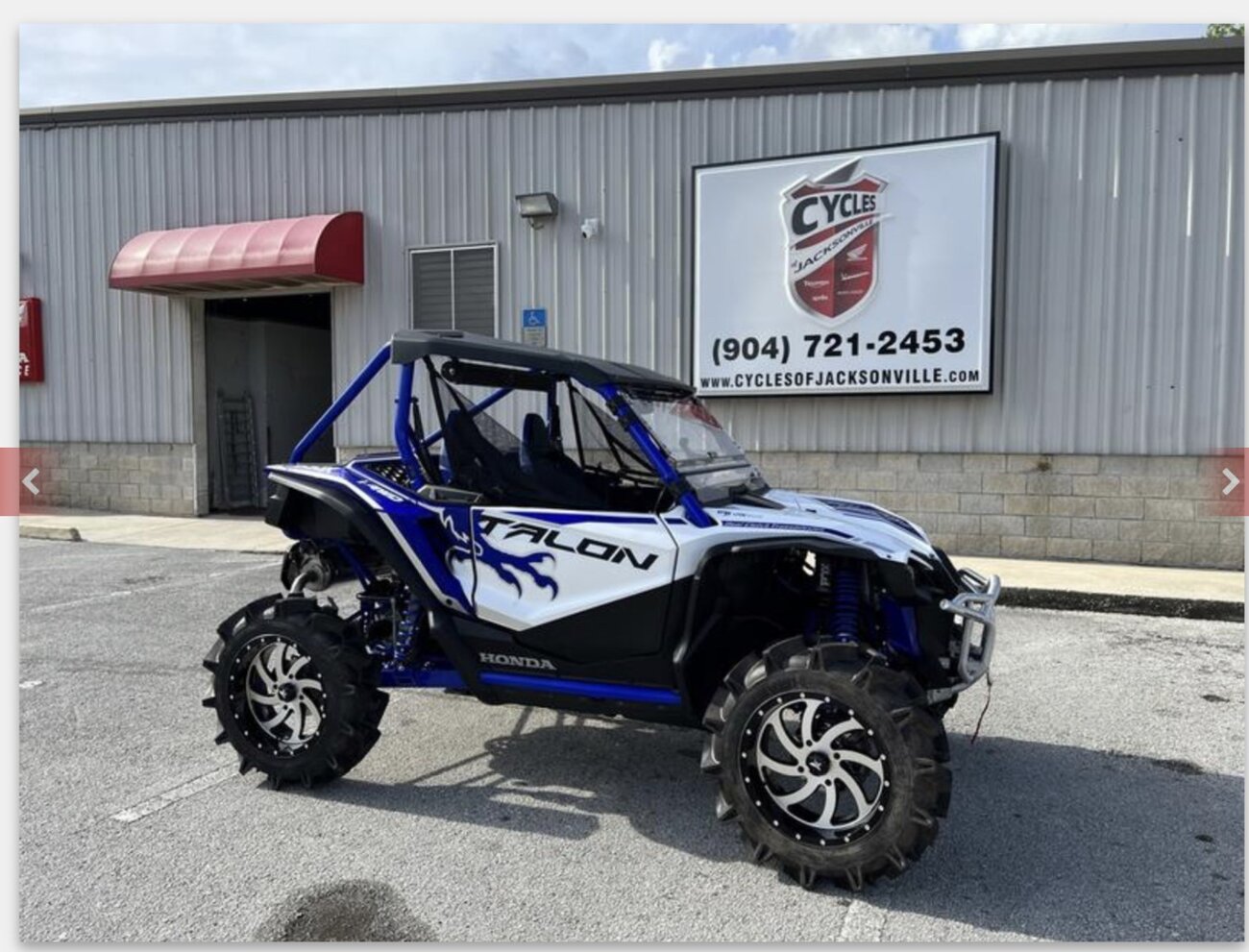

Thanks for reminding me to prove it in pictures, reminds me of my days in the Navy. I am attaching the photo of the rig and a few of the location I found for the gas vent tube.



[Remington]

Thanks for reminding me to prove it in pictures, reminds me of my days in the Navy. I am attaching the photo of the rig and a few of the location I found for the gas vent tube.

View attachment 360450 View attachment 360453 View attachment 360455 View attachment 360456

Dam shes purdy!
always loved the White/blue color
Some good size swampers you have too!
