Calling switch

[Redomen]

I just received my 10 pin caroling switch to wire stinger for key on or aux on and not sure how to wire it up. I’m not getting continuity between any two pins when it’s in key on or aux. can someone send me a diagram please.



[Admin]



[NTCPrezJB]

@Hondasxs this might be best for you



[Hondasxs]

@Hondasxs this might be best for you

Thanks.

What are you trying to wire with it?

Sent from my SM-G996U using Tapatalk



[Hondasxs]

What are you trying to wire with it?

Guess I mean.. how do you want it to work.
Are u using it for a stinger?


Sent from my SM-G996U using Tapatalk



[Hondasxs]

I have a diagram... Let me find it.



[Hondasxs]

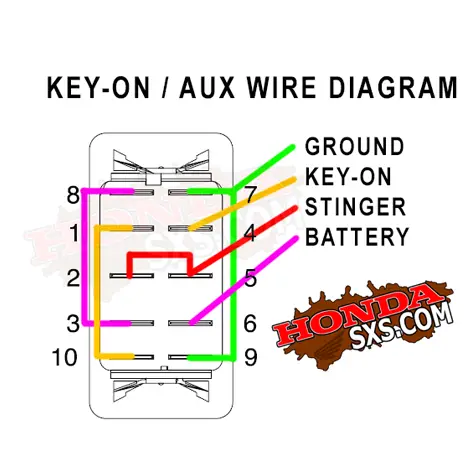

This is what I use.
Up will be lite when up.
Down will be lite when down.
Middle is off, no lights.



[Redomen]

This is what I use.
Up will be lite when up.
Down will be lite when down.
Middle is off, no lights.

View attachment 284948View attachment 284949

Thank you



[Redomen]

Got it done. Thanks all.
