P1000 DIY headlights

Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
17,952
62,638
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5
Darn. I was hoping the LOW stayed ON when switched to HI. But nope.

So.. I dont have a easy solution.

Diodes will have to be used. It will be a PITA to wire up.

  • Like
Reactions: Isaiah and BWAF
evildoctor

evildoctor

Member
May 2, 2016
61
94
18
NC
Ownership

  1. 1000-3
Darn. I was hoping the LOW stayed ON when switched to HI. But nope.

So.. I dont have a easy solution.

Diodes will have to be used. It will be a PITA to wire up.

no worries, I was hoping it was something I missed but I thought I tried it. Anyways, it isn't a big deal b/c I have other led light bars mounted if I ever needed more lights. Thanks for your suggestion anyway...

Toyhauler33

Toyhauler33

Active Member
Lifetime Member
Jan 29, 2016
43
101
33
Mid Ga
Ownership

  1. 1000-5
What about using a relay instead of diodes? Something similar to a HID relay harness maybe?

Sent from my SM-G960U using Tapatalk

Tramguage1

Tramguage1

Texan
Moderator
Lifetime Member
Supporting Member
Club Contributor
Jul 2, 2015
7,100
26,722
113
Somereset, Texas
Ownership

  1. 1000-5

  2. Talon X
Are you guys wanting both fixtures to light on high?
Floods on low and spots and floods on high?

evildoctor

evildoctor

Member
May 2, 2016
61
94
18
NC
Ownership

  1. 1000-3
What about using a relay instead of diodes? Something similar to a HID relay harness maybe?

Sent from my SM-G960U using Tapatalk

Not sure if a relay will work. A relay is basically a switch but diodes is suppose to allow flow one direction similar to a check valve.

  • Like
Reactions: Isaiah and BWAF
evildoctor

evildoctor

Member
May 2, 2016
61
94
18
NC
Ownership

  1. 1000-3
Not sure if a relay will work. A relay is basically a switch but diodes is suppose to allow flow one direction similar to a check valve.

Ok...after doing a little more research, I stand to be corrected. I believe a relay may be what I need although I also think a diode will work as well. Here's a video I found recently explaining how a relay(relays) are used in a "low and high beam" configuration. Not sure if this link will work but here it is.......

  • Like
Reactions: Pilot2016
Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
17,952
62,638
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5
Ya, if you want to re-wire and re-design the whole switch/OEM relay system.
For me. I would want to retain the OEM switch/system.

Low = 1 cube on Flood
HI = both cubs on Flood + spot

evildoctor

evildoctor

Member
May 2, 2016
61
94
18
NC
Ownership

  1. 1000-3
Ya, if you want to re-wire and re-design the whole switch/OEM relay system.
For me. I would want to retain the OEM switch/system.

Low = 1 cube on Flood
HI = both cubs on Flood + spot

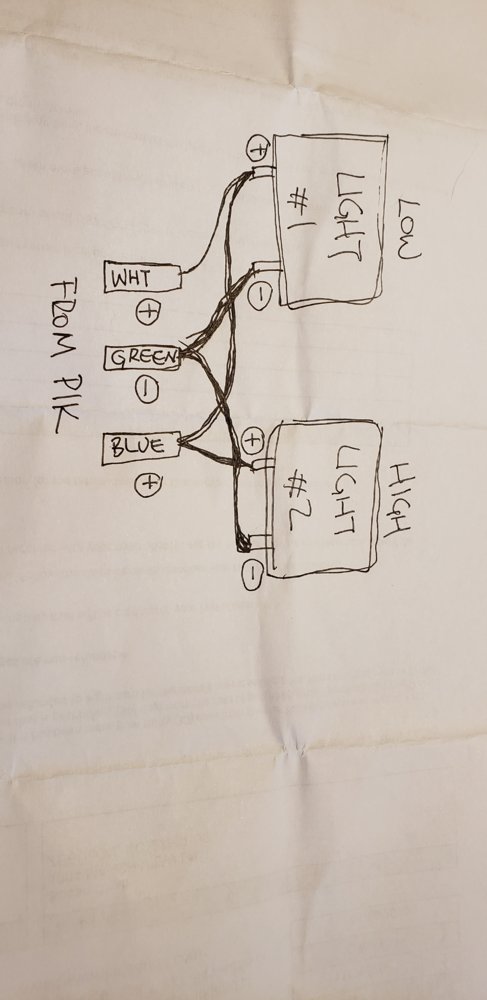

I think I'm gonna try the diode route first. on my previous diagram I drew up, I think all I have to do is add a diode on the 2nd wire running back to led light pod #1 from the high beam wire....so that when I turn on low beam it will prevent power going back to led light pod #2.

  • Like
Reactions: Isaiah
CumminsPusher

CumminsPusher

Just a Honda doing Honda things.
Lifetime Member
Supporting Member
Club Contributor
Oct 14, 2015
41,588
318,073
113
Washington/Idaho
Ownership

  1. Other Brand

  2. 1000-5

  3. Talon X LV
I liked those in Talon, look good in Pioneer. Nice job. Do they vibrate at all.

evildoctor

evildoctor

Member
May 2, 2016
61
94
18
NC
Ownership

  1. 1000-3
A little update....
So I try and do a little color match.
20200314 111650
20200314 111738
20200314 111745
