P1000 Middle brake pipe route

[shadleyp]

I apologize if there is already a thread that answers these questions - if so please send me there otherwise I greatly appreciate any help you all might have. I have a 2016 Pioneer 1000 that the front driveline broke off and wrapped the middle brake pipe around it - I have the parts but looking to find out how to route the new brake pipe. Anyone have a picture of where theirs goes or can explain where to route it through from the master cylinder. Thanks



[Admin]



[NTCPrezJB]

Yikes! I hope you weren’t heading downhill when that happened.

I’m sure someone will be able to get you some pics to help you get it back together



[Remington]

I have a 2016 Pioneer 1000

Sorry to hear about your issue. We might be able to help u but we need a few things first.

First off, 2 posts since 20’ and no pics of the rig. POIDH.

Also to do with pics, some pics of your damage would help us as well to see what your talking about so we can pin point the area in question.

Details especially pics help us alot



[JenElio]

I apologize if there is already a thread that answers these questions - if so please send me there otherwise I greatly appreciate any help you all might have. I have a 2016 Pioneer 1000 that the front driveline broke off and wrapped the middle brake pipe around it - I have the parts but looking to find out how to route the new brake pipe. Anyone have a picture of where theirs goes or can explain where to route it through from the master cylinder. Thanks

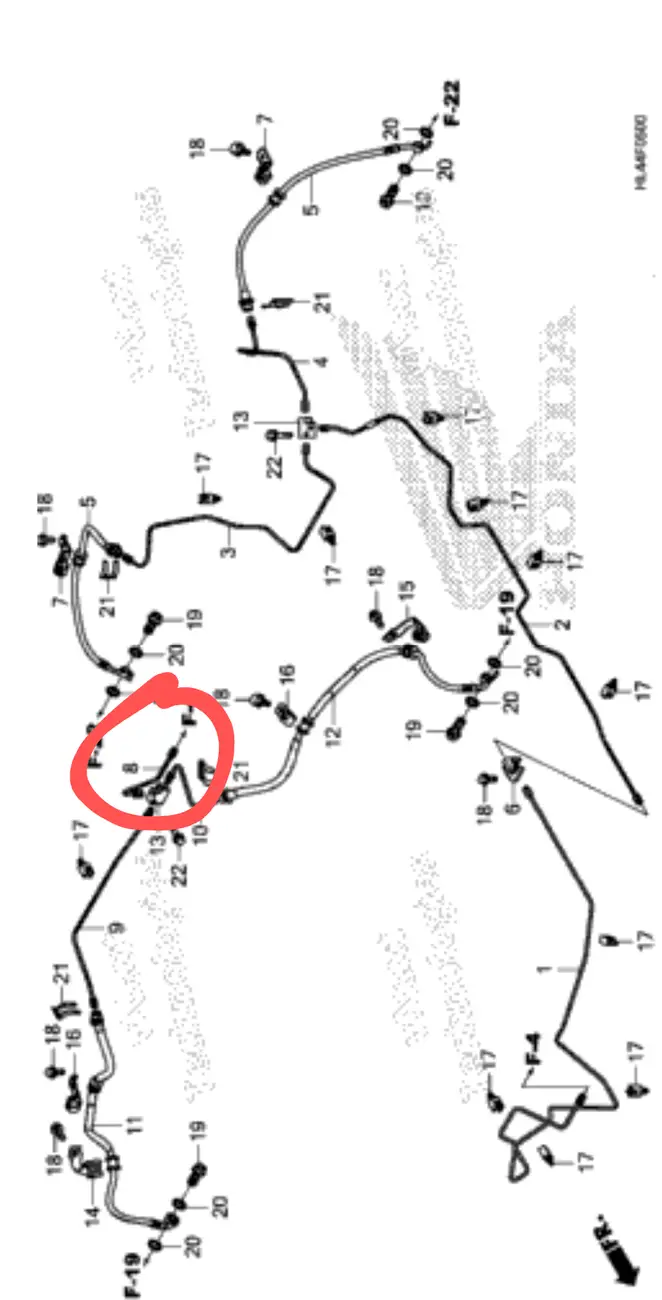

Like Remi mentioned, we need some pics of the damage and or the new brake lines you're wanting to run. In this quick diagram line 8 goes to the master cylinder.......seems kinda short to need to know how to route.....

Apologies for the vertical pic...

My guess is you need to route pipe (2)....I can't take any pics as mine has a skid plate on currently but I would imagine you'd want to lay it in place more or less where it goes and make sure to absolutely stay away from the driveshaft 😬

Good luck 👍



[StewB]

Waita minute! That's the plan for the Battle of the Bulge!

Like Remi mentioned, we need some pics of the damage and or the new brake lines you're wanting to run. In this quick diagram line 8 goes to the master cylinder.......seems kinda short to need to know how to route.....

Apologies for the vertical pic...
View attachment 391645
My guess is you need to route pipe (2)....I can't take any pics as mine has a skid plate on currently but I would imagine you'd want to lay it in place more or less where it goes and make sure to absolutely stay away from the driveshaft 😬

Good luck 👍



[Remington]

Waita minute! That's the plan for the Battle of the Bulge!

I think your right! I see Patton’s 3rd army coming up the rear flank in f19 & 20



[shadleyp]

Thank you guys - took a shot at it - and got it in - just seemed like a bad design for where it goes - since it routes right next to the front drive shaft - seems like it would do it again :\ it gets used hard ranching - in lots of water and sagebrush - didnt get a pic after I put it in sorry
