P700 Need phot0 of 700-4 ROPS attachment

[Gator]

Hey guys
I am installing a 700-4 ROPS on my 700-2.
In the back, where the ROPS attaches to the frame, there are a couple of diagonal braces. These diagonal braces do not quite meet the frame so I am wondering if I have a slight misalignment or there should be a bushing.

I need a photo that clearly shows how that diagonal brace is connected.



[Admin]



[ohanacreek]

Hey guys
I am installing a 700-4 ROPS on my 700-2.
In the back, where the ROPS attaches to the frame, there are a couple of diagonal braces. These diagonal braces do not quite meet the frame so I am wondering if I have a slight misalignment or there should be a bushing.

I need a photo that clearly shows how that diagonal brace is connected.

Every shot I have of the rear of my 700.
I don’t remember a bushing, but I think there was a raised “bung”



[Rinconruss]

This one?

Dirt Bike & Motocross Online Store | MotoSport



[Gator]

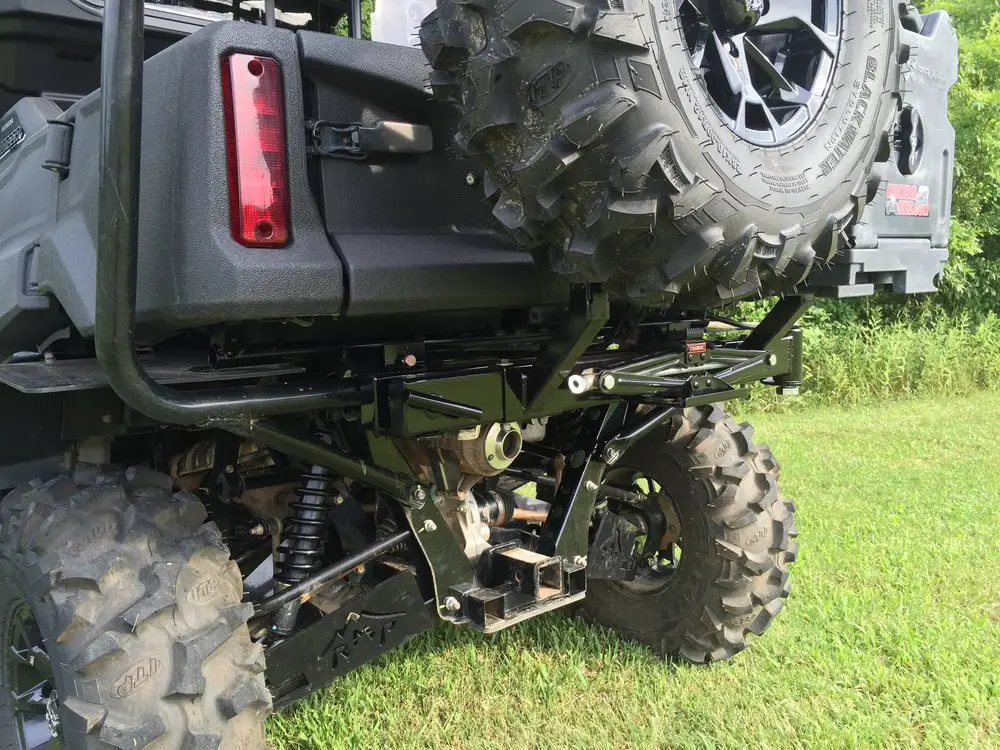

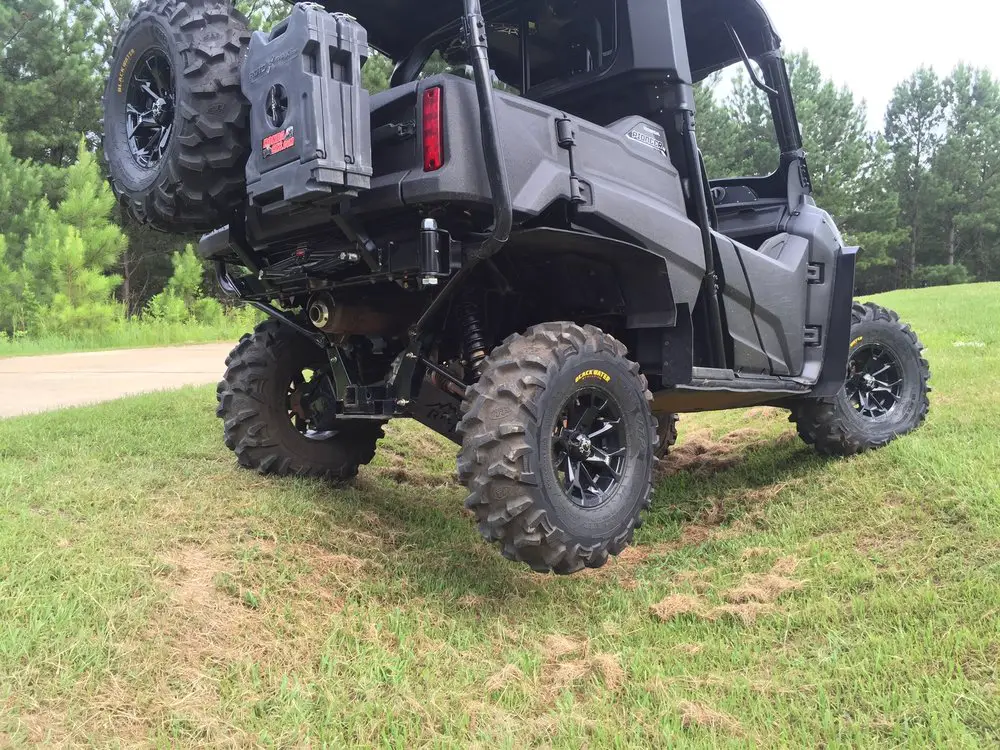

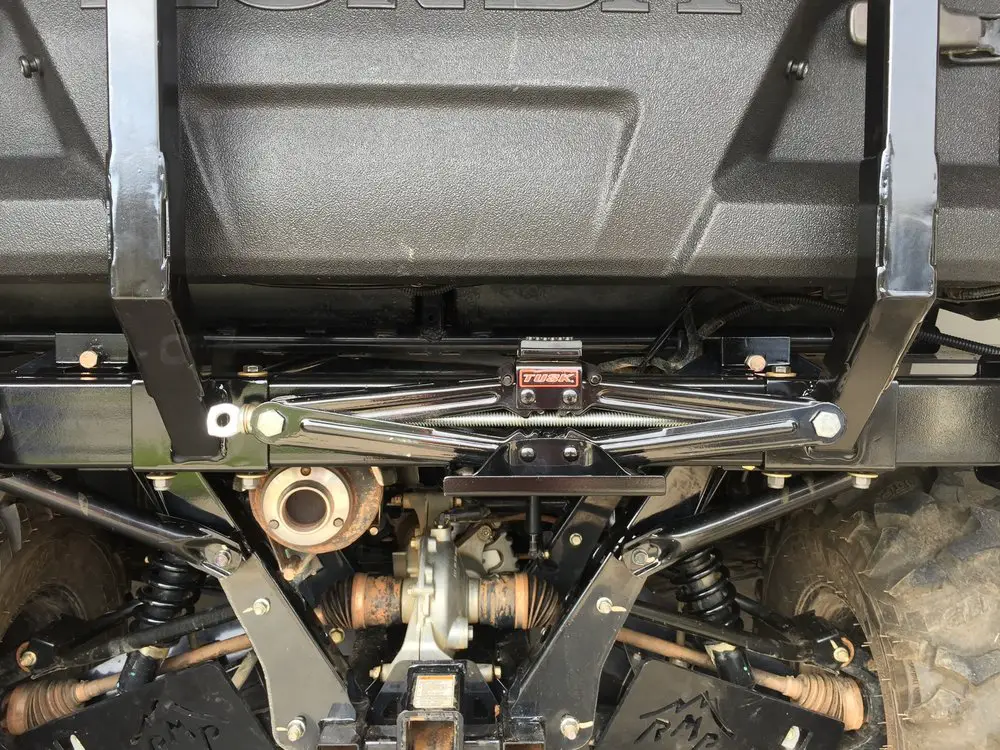

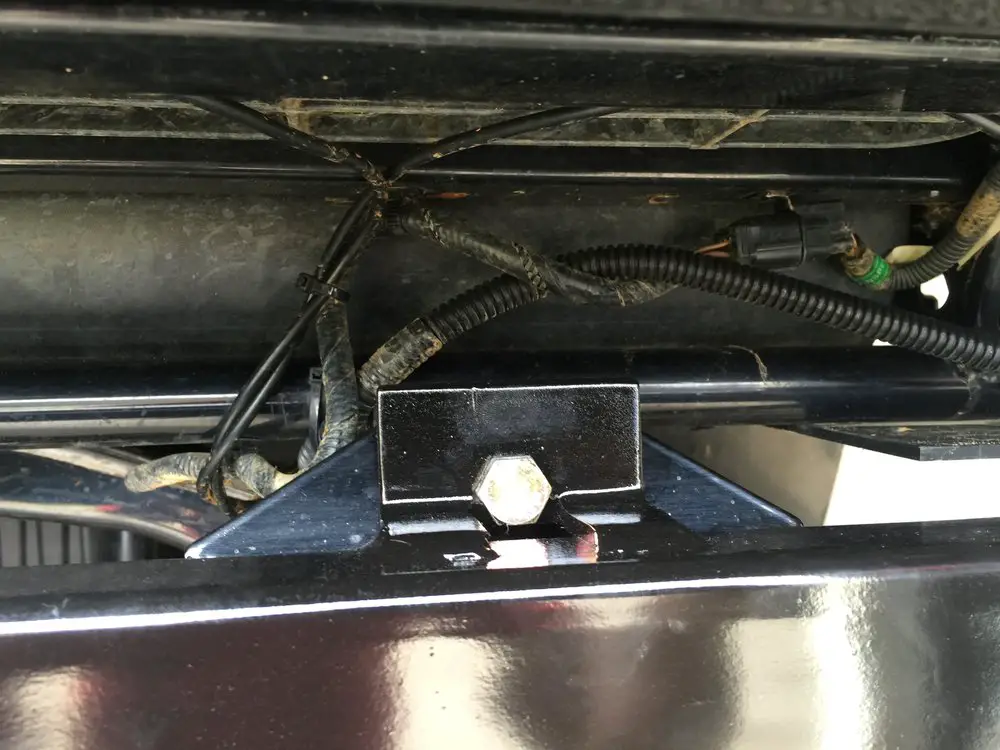

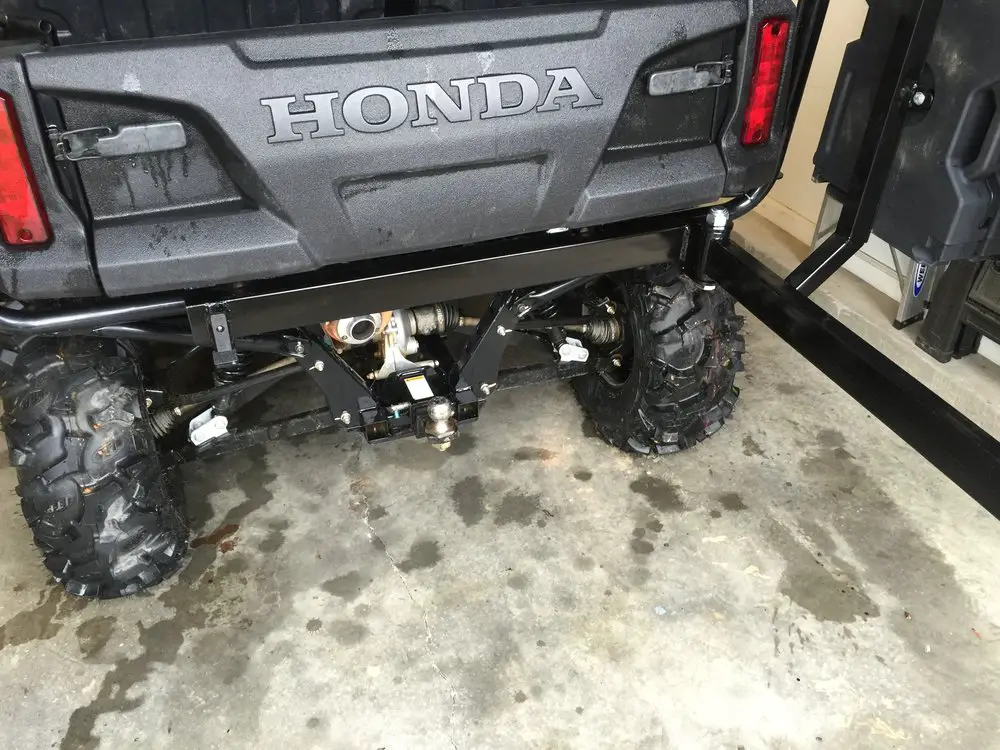

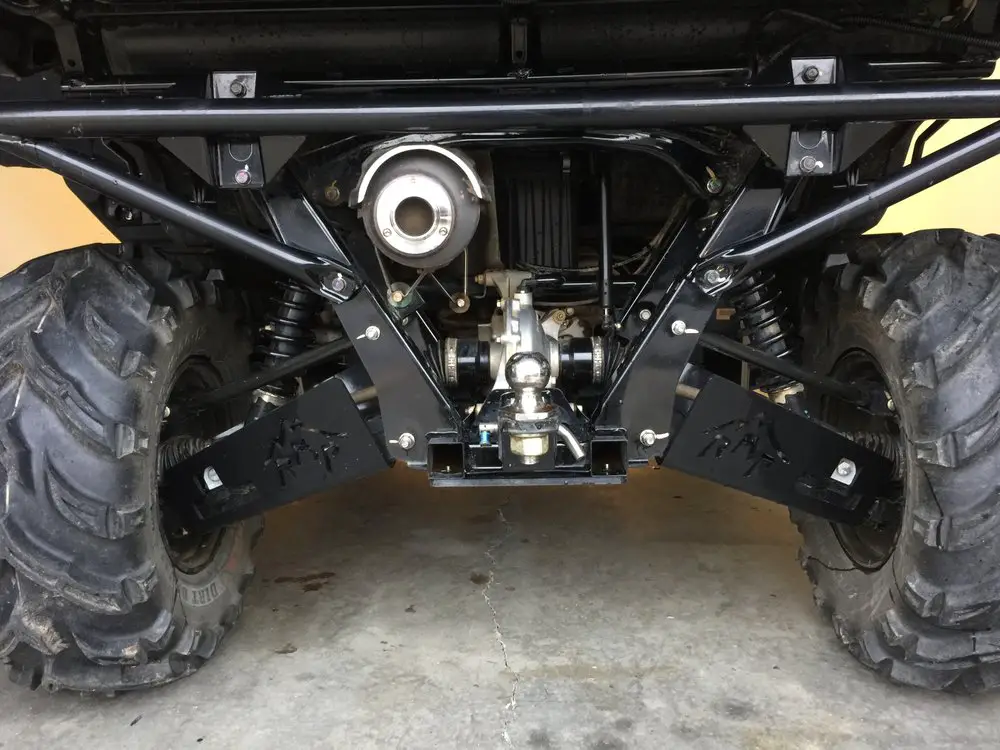

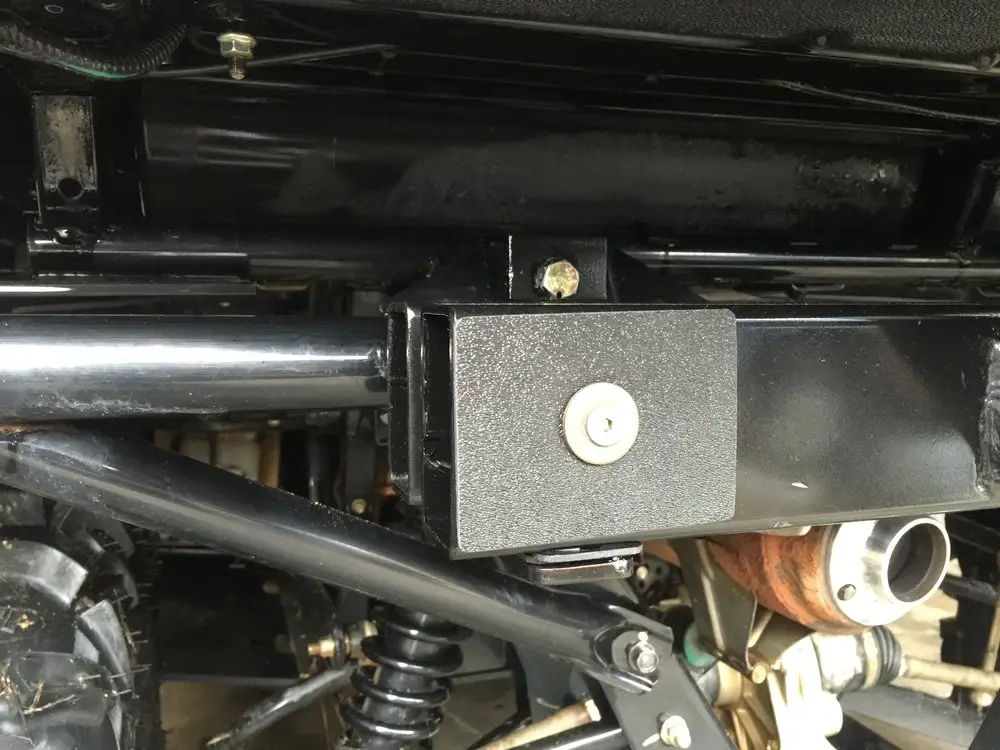

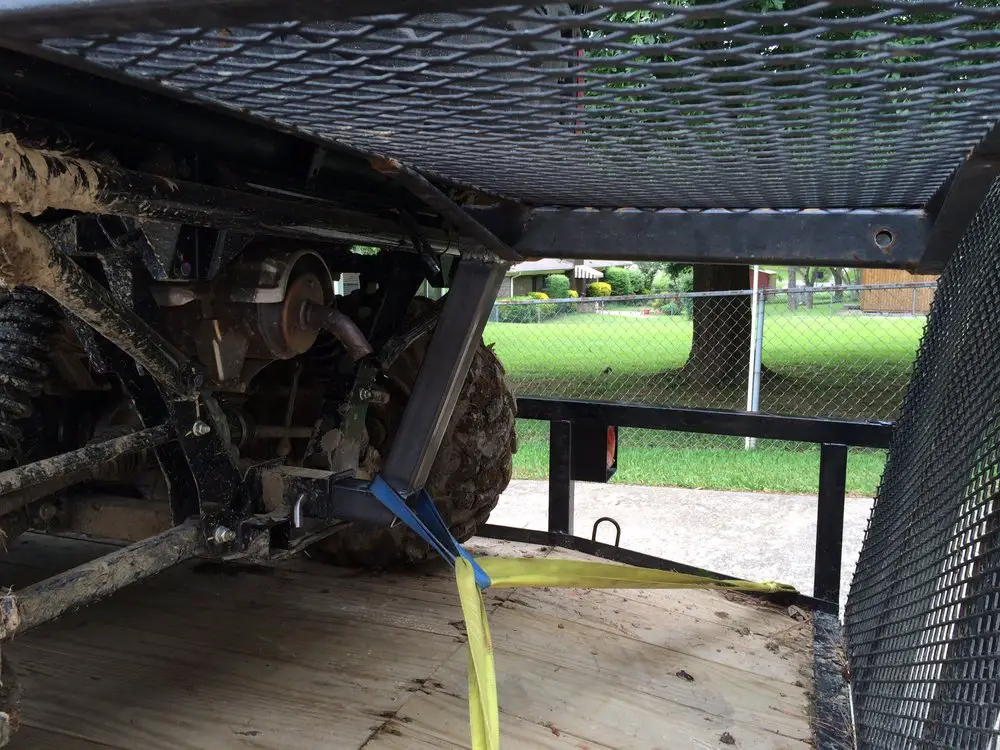

View attachment 65824 View attachment 65825 View attachment 65826 View attachment 65827 View attachment 65828 View attachment 65829 View attachment 65830 View attachment 65831 View attachment 65832 View attachment 65833

Every shot I have of the rear of my 700.
I don’t remember a bushing, but I think there was a raised “bung”

There does seem to be something there. Thanks man. I'll dig deeper.



[Rinconruss]

Looks like I should have read the entire question before trying to answer. Was on break at work and was short on time.



[Gator]

Looks like I should have read the entire question before trying to answer. Was on break at work and was short on time.

I do that sometimes.



[Tflynn]

I do that sometimes.

Care to elaborate on your plan here Gator? I know you been talking about doing this for awhile



[swsebek]

Hey guys
I am installing a 700-4 ROPS on my 700-2.
In the back, where the ROPS attaches to the frame, there are a couple of diagonal braces. These diagonal braces do not quite meet the frame so I am wondering if I have a slight misalignment or there should be a bushing.

I need a photo that clearly shows how that diagonal brace is connected.

You mean the rear... I'm home I will take a walk out snap a few



[swsebek]

Haha The rear of course..."Duh"
Hope these help



[Gator]

Thanks @swsebek Those help, and I do see something that looks like a bushing.



[Gator]

I'm not sure @Tflynn .
I'm a few bolts away from having the 700-4 ROPS on my 700-2.
Now that I have it, I can modify it and adapt it any way I want.
I'm just not sure what I want yet.

BTW: I might have the only 700-2 with the 700-4 ROPS.



[1rooster]

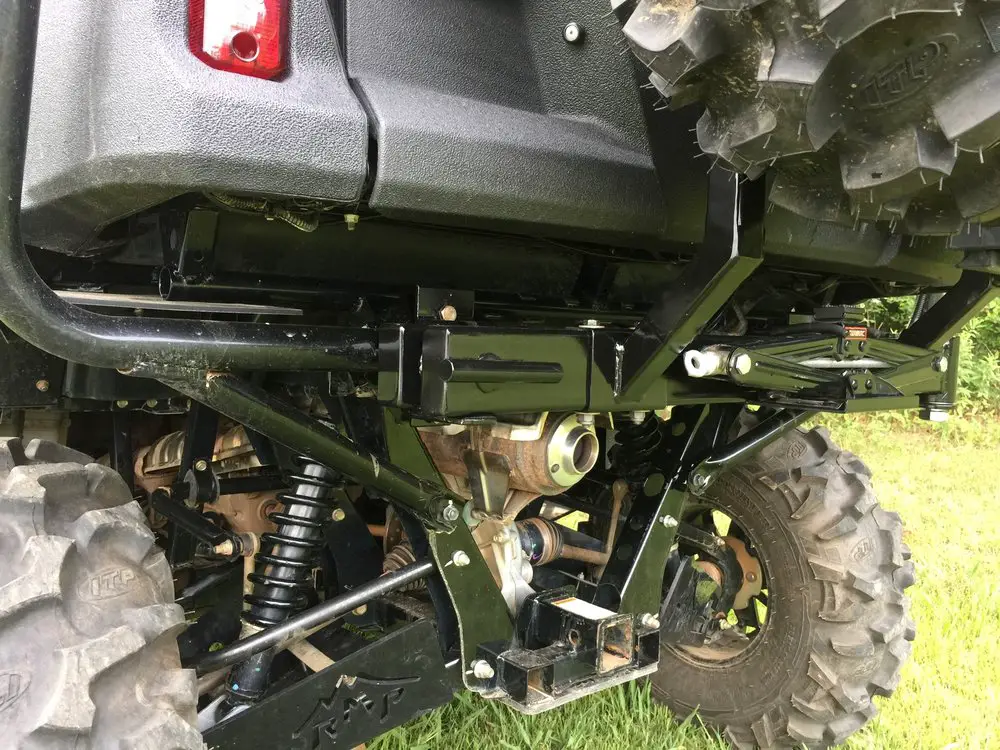

Here ya go gator. I know I sent these to you in text but maybe this can help other people down the road.



[Gator]

That is the million dollar shot. I was able to cut some tubing and weld in the spacers shown in this picture.

The 700-2 does not have the welded stand offs.

I got the ROPS installed. Now I want to modify it. I have too much going on right now. It'll have to wait.

Side Note: I got a blood nose when the drill hung and I wasn't holding on tight enough.



[HP700deluxe989]

Gator
Where did you fing the 700-4 ROPS? I have been looking around and haven’t found any. I am new to the honda pioneer world. I recently purchased a 700-2 deluxe and love it! I am amazed at what these machines can do.



[Gator]

Rooster (on this forum) made his own and sold the OEM.
You don't want to buy a new one. You will just have to keep checking e-bay and on the forum.
They are hard to come by.

Good luck.

AND Welcome to the forum.
