2023 R4 winch key on plug

[Todml]

Does anyone know the location and description of plug for installing a winch on 2023 Talon R4?



[Admin]



[Todml]

Does anyone know the location and description of plug for installing a winch on 2023 Talon R4?

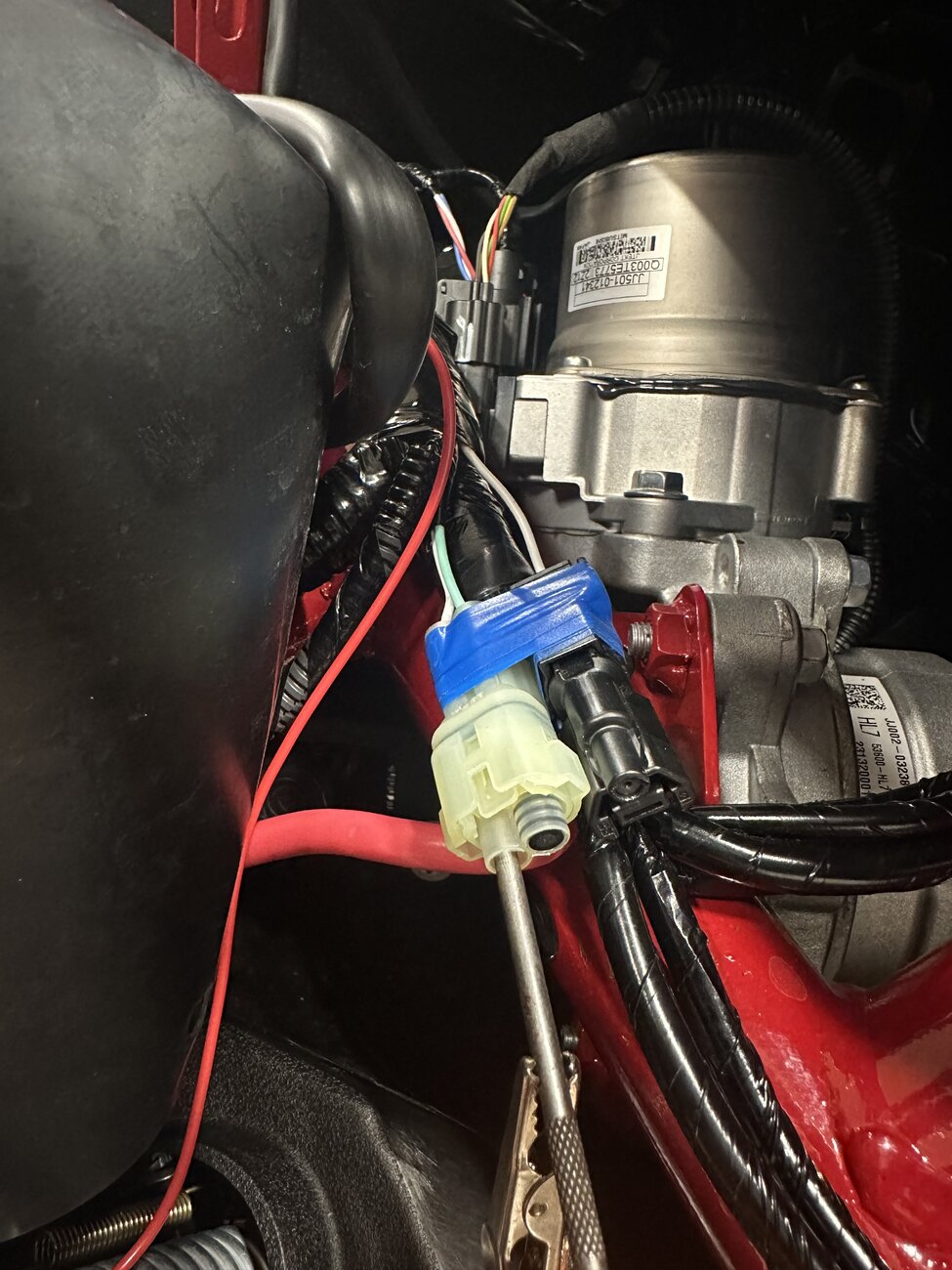

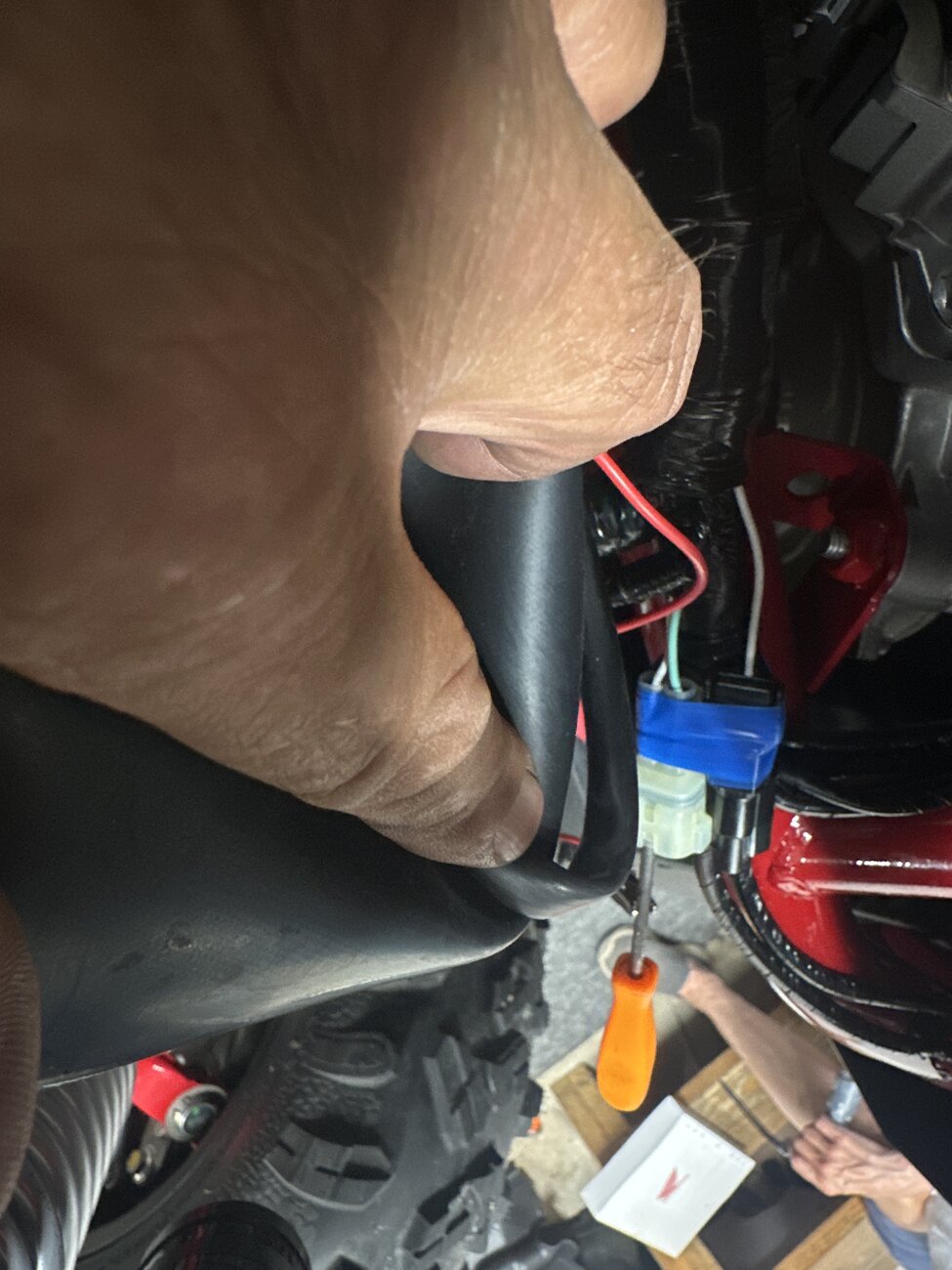

Is it the one I have temped in, (see attachment ) winch does operate not sure type of terminal doesn’t look like barrel



[Todml]

Is it the one I have temped in, (see attachment ) winch does operate not sure type of terminal doesn’t look like barrel

View attachment 397731 View attachment 397732



[CID]

@Hondasxs ?



[HondaTech]

That plug is key on power, ground full time.

Are you using the red power wire under the hood on the drivers side?

If so that wire must be hooked up in the battery box first.



[Todml]

Yes have the big red wire hooked to control box and battery, wasn’t sure if I had correct plug, temped in and tried, works good, just wondering now what type terminal plug goes into pictured plug? Thx



[Todml]

Yes have the big red wire hooked to control box and battery, wasn’t sure if I had correct plug, temped in and tried, works good, just wondering now what type terminal plug goes into pictured plug? Thx

*** for the small red wire from control box



[HondaTech]

What winch are you using?



[Todml]

Super atv, has about 16g wire from control box that needs to plug into key on terminal



[Hondasxs]

Both those connectors, white, black, and the blue one will do for your key-on trigger wire source.
We have connector pigtails in the club store for all of them if you wish.

Search: 15 results found for "talon key"

Search: 15 results found for "talon key" - The Honda SxS Club

store.hondasxs.com



[Todml]

Ok thanks for your time and info
