This DIY kit works with the Honda Accessory Switch Plate 0SA30-HL4-100

Welcome to Honda Pioneer Tech

HONDA PIONEER 1000 3P/5P, D.I.Y. SWITCH & CONNECTOR KIT, 0SA30-HL4-100, KIT#14 | eBay


KIT#14
DIY KIT CONTAINS THE FOLLOWING:
SWITCHES QTY 4 TOTAL ( SAME MAKE AS HONDA OEM ) NO PRINTING ON ACTUATOR
QTY 2 - 5 AMP, TO BE USED IN THE LIGHT BAR & AUX LIGHT SOCKET, SPST, ON/OFF
QTY 1 - 7.5 AMP FOR WINDSHIELD WIPER SOCKET, DPDT, ON/OFF
QTY 1 - 10AMP FOR HEATER SOCKET, DPDT, ON/OFF
CONNECTORS QTY 4 TOTAL
QTY 2 - 2 PIN CONNECTORS FOR LIGHT BAR & AUX LIGHT SOCKET
QTY 1 - 3 PIN CONNECTOR FOR 10A HEATER SOCKET
QTY 1 - 4 PIN CONNECTOR FOR 7.5A WINDSHIELD WIPER SOCKET
TERMINALS
QTY 12 - FEMALE SOCKET TERMINAL 20-14 AWG
  • Requirements: Honda Signature Accessory SWITCH PLATE/VOLT METER/WIRE HARNESS must be installed in SXS before proceeding.
  • You will need access to a Molex style crimper to assemble your wiring harness

P700 diy

Last edited:
T

Tomy

New Member
Feb 12, 2018
10
10
3
Needles
Ownership

  1. 1000-5
This DIY kit works with the Honda Accessory Switch Plate 0SA30-HL4-100

HONDA PIONEER 1000 3P/5P, D.I.Y. SWITCH & CONNECTOR KIT, 0SA30-HL4-100, KIT#14 | eBay


KIT#14

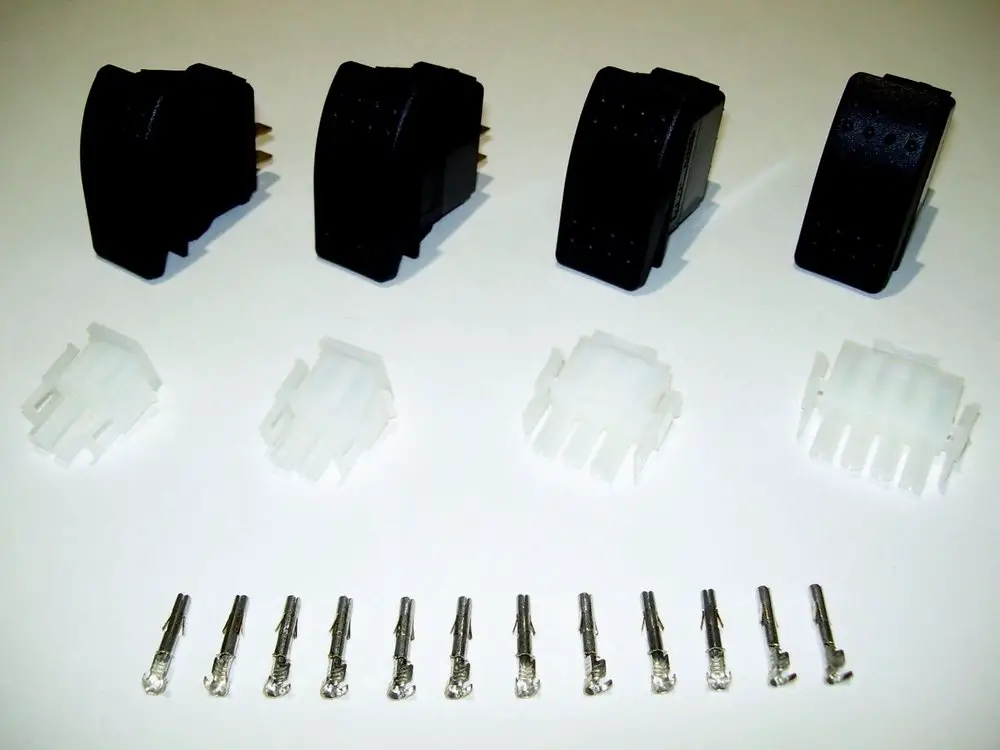

DIY KIT CONTAINS THE FOLLOWING:
SWITCHES QTY 4 TOTAL ( SAME MAKE AS HONDA OEM ) NO PRINTING ON ACTUATOR
QTY 2 - 5 AMP, TO BE USED IN THE LIGHT BAR & AUX LIGHT SOCKET, SPST, ON/OFF
QTY 1 - 7.5 AMP FOR WINDSHIELD WIPER SOCKET, DPDT, ON/OFF
QTY 1 - 10AMP FOR HEATER SOCKET, DPDT, ON/OFF
CONNECTORS QTY 4 TOTAL
QTY 2 - 2 PIN CONNECTORS FOR LIGHT BAR & AUX LIGHT SOCKET
QTY 1 - 3 PIN CONNECTOR FOR 10A HEATER SOCKET
QTY 1 - 4 PIN CONNECTOR FOR 7.5A WINDSHIELD WIPER SOCKET
TERMINALS
QTY 12 - FEMALE SOCKET TERMINAL 20-14 AWG
  • Requirements: Honda Signature Accessory SWITCH PLATE/VOLT METER/WIRE HARNESS must be installed in SXS before proceeding.
  • You will need access to a Molex style crimper to assemble your wiring harness

View attachment 67109
How does the volt meter work I see a button on it for what. I have installed it and tied to both white blk wires without and it working I can see during starting it lights up?

STRATOSMICRO

STRATOSMICRO

Member
Feb 25, 2018
37
22
8
49221
Ownership

  1. 1000-5

  2. Other Brand
How does the volt meter work I see a button on it for what. I have installed it and tied to both white blk wires without and it working I can see during starting it lights up?

I believe you can set the Voltages High & Low Limits through the switch and it will notify you of the same if those thresholds are met.

T

Tomy

New Member
Feb 12, 2018
10
10
3
Needles
Ownership

  1. 1000-5
I believe you can set the Voltages High & Low Limits through the switch and it will notify you of the same if those thresholds are met.
I see that after playing with it but no actual voltage reading..Putting meter to the batt works but on the loom only can change limits. Tony

STRATOSMICRO

STRATOSMICRO

Member
Feb 25, 2018
37
22
8
49221
Ownership

  1. 1000-5

  2. Other Brand
Not sure on that, I would suggest contacting your local Honda dealer for tech support on the Accessory Switchplate meter issue, you might have a defective unit.

Thanks, Rob

T

Tomy

New Member
Feb 12, 2018
10
10
3
Needles
Ownership

  1. 1000-5
Not sure on that, I would suggest contacting your local Honda dealer for tech support on the Accessory Switchplate meter issue, you might have a defective unit.

Thanks, Rob
Thanks for your time

T

Tomy

New Member
Feb 12, 2018
10
10
3
Needles
Ownership

  1. 1000-5
Thanks for your time

Talk to a guy saying there are 4 wh/Black wires.. went to Napa bought a fuse splitter and now we’re cooking.
Not sure if Honda’s way is the best, crimping over wires could be a trouble shooting nightmare down the road. I know I’m getting old but I used some large Channel locks
