This is a new item and I need to work on some instructions.
NOTE: I am looking for a simple install video for anyone interested. I will place a bounty of $50 store credit for a completed video.

Item link - Pre-Wired Relay Control Switch for AUX and Key-on usage. For Stinger, Cole Hersee or any.
--------------------------------

Thank you for purchasing the Pre-Wired Relay Control Switch Harness.
530ziPmyHPrJ G4f ZTSLJ9Aw923 h923 s noauthuser0

This kit simplifies the wiring of an AUX key-off/key-on control switch for your master fuse box relay. Such as a Stinger or Cole Hersee.

The harness comes wired and tagged for easy installation but here we will go over each.
  • Yellow wire - This needs a key-on source. Recommend tying into the ACC circuit. This is the key-on trigger source.
  • Green long wire - This needs a ground. Any frame or battery ground will be fine. Running it to the fuse box ground bus works well.
  • 2 Small post hoops - These go to the small post on the relay. For most relays, the polarity is irrelevant.
  • Red wire with fuse - This goes on the large relay post, battery side. This is our hot constant trigger source.
  • The Rocker Switch - Install it into the housing with the tab matching correctly
Overall, this is very simple but we understand it can be intimidating to many. If you need help please reach out. Even after hours, we will reply via the forum here, text, or email.
Thanks.


NtAJYjLgHQSSyMiNPGsmKMgw1920 h865 s noauthuser0BsQvLCrGUMJWUp53vSIkjlgw1920 h865 s noauthuser0J ThyCZW5iojFA2ys8j vuAw1920 h865 s noauthuser0

Last edited:
  • Like
Reactions: TimG
czajkaej

czajkaej

Member
Jul 2, 2022
13
59
13
Ridgecrest, CA
Ownership

  1. 1000-5
This is a really neat addition, which is perfect when you have a dual battery setup with an Aux Fuse block in place. This allows the use of the Aux battery without turning on the engine while still protecting the start battery.

  • Like
Reactions: TimG
Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,256
65,363
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
This is a really neat addition, which is perfect when you have a dual battery setup with an Aux Fuse block in place. This allows the use of the Aux battery without turning on the engine while still protecting the start battery.
Very nice Ed,
I have been thinking of hitting you up for a video on this. It's perfect.
I really think once people see how simple this is it will be a HOT ITEM.


  • Like
Reactions: TimG and ChadD
I

ike775

Active Member
May 20, 2020
47
116
33
yerington nevada
Ownership

  1. 700-4
Do I need the stinger if I have the oem fuse panel? Looks like in other posts there is a connector on the fuse panel that works as the stinger?

  • Like
Reactions: ChadD
Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,256
65,363
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
Do I need the stinger if I have the oem fuse panel? Looks like in other posts there is a connector on the fuse panel that works as the stinger?
Your talking about the accessory addon fuse box (image below)
Then, no.
While this item will work. Its made for a stinger/large relay.
I would like to make you a custom one to better fit the OEM fuse box or an AuxBeam if that's what you plan to use it for.
And it would work great. Just a small change in the ends is all it really is.

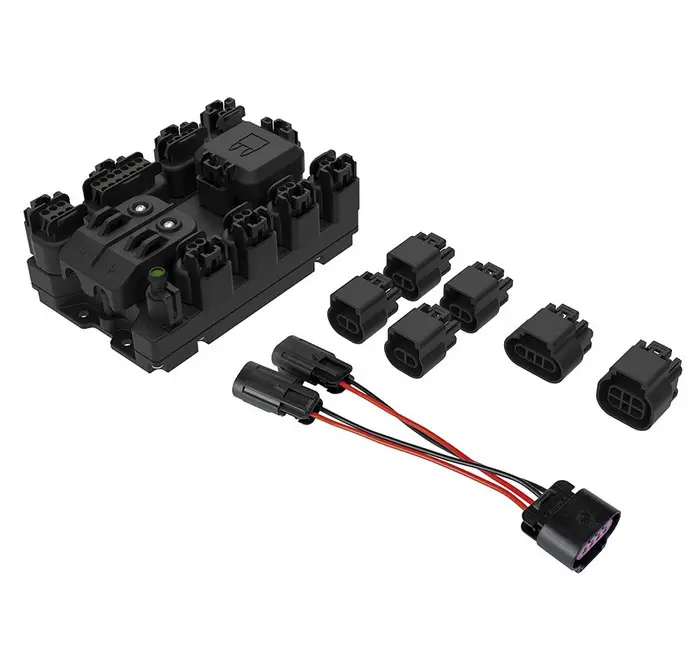

Below is the fuse box I am referring to.

Genuine honda fuse box 22

  • Like
Reactions: ChadD
I

ike775

Active Member
May 20, 2020
47
116
33
yerington nevada
Ownership

  1. 700-4
Your talking about the accessory addon fuse box (image below)
Then, no.
While this item will work. Its made for a stinger/large relay.
I would like to make you a custom one to better fit the OEM fuse box or an AuxBeam if that's what you plan to use it for.
And it would work great. Just a small change in the ends is all it really is.

Below is the fuse box I am referring to.

View attachment 432040
Yes I have the model #0SS25-HL4-A00
Want to set up so I can have key off power for the SVV works stereo and light bars as I add them in the future.

  • Like
Reactions: ChadD
I

ike775

Active Member
May 20, 2020
47
116
33
yerington nevada
Ownership

  1. 700-4
Your talking about the accessory addon fuse box (image below)
Then, no.
While this item will work. Its made for a stinger/large relay.
I would like to make you a custom one to better fit the OEM fuse box or an AuxBeam if that's what you plan to use it for.
And it would work great. Just a small change in the ends is all it really is.

Below is the fuse box I am referring to.

View attachment 432040
I ordered the switch try isolator and stinger from the Honda sxs store earlier today. Thinking if just tap into the acc fir the key on wire and then just wire up everything else as normal but a breaker before the aux panel when I add more stuff.

  • Like
Reactions: ChadD
Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,256
65,363
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
I ordered the switch try isolator and stinger from the Honda sxs store earlier today. Thinking if just tap into the acc fir the key on wire and then just wire up everything else as normal but a breaker before the aux panel when I add more stuff.
Ya. Could.
Just feel like it's more then you may need at thr moment. But sure. It will work.

Sent from my SM-G996U using Tapatalk

  • Like
Reactions: ChadD
I

ike775

Active Member
May 20, 2020
47
116
33
yerington nevada
Ownership

  1. 700-4
Ya. Could.
Just feel like it's more then you may need at thr moment. But sure. It will work.

Sent from my SM-G996U using Tapatalk
I’d rather have you build me a different switch, I spent all this money to have it look clean.

  • Like
Reactions: ChadD
I

ike775

Active Member
May 20, 2020
47
116
33
yerington nevada
Ownership

  1. 700-4
Ya. Could.
Just feel like it's more then you may need at thr moment. But sure. It will work.

Sent from my SM-G996U using Tapatalk
A aux switch would be nice, pm me the price. After doing the 2nd battery on the p700, piecing it together making brackets, and putting all the wire connectors on and trying to keep it clean all under the little space under the hood, I am trying to keep it simple and clean on the 1000.

  • Like
Reactions: ChadD
advertisement
Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,256
65,363
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
A aux switch would be nice, pm me the price. After doing the 2nd battery on the p700, piecing it together making brackets, and putting all the wire connectors on and trying to keep it clean all under the little space under the hood, I am trying to keep it simple and clean on the 1000.
Won't be any additional. I need to make a few of these anyway.
Did you still want the stinger?
