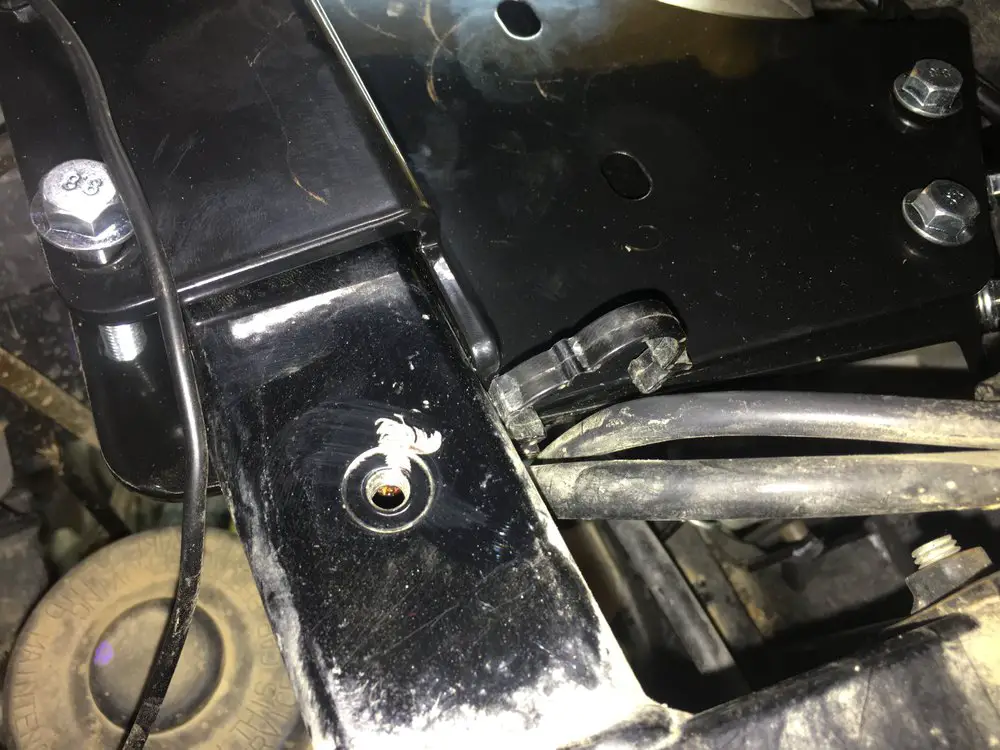

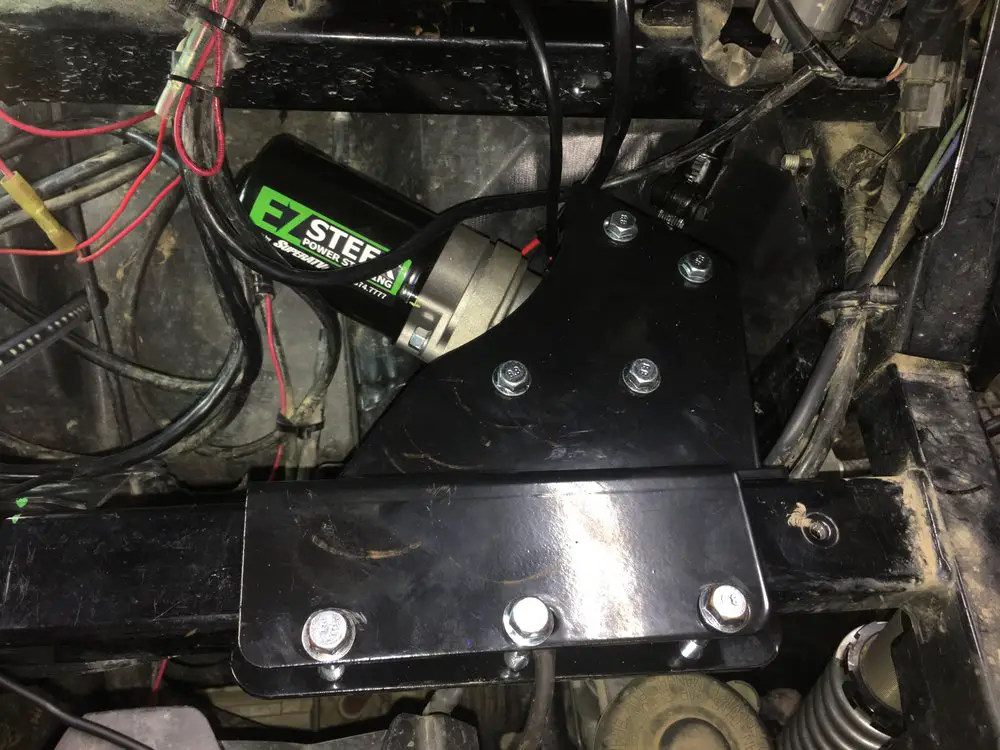

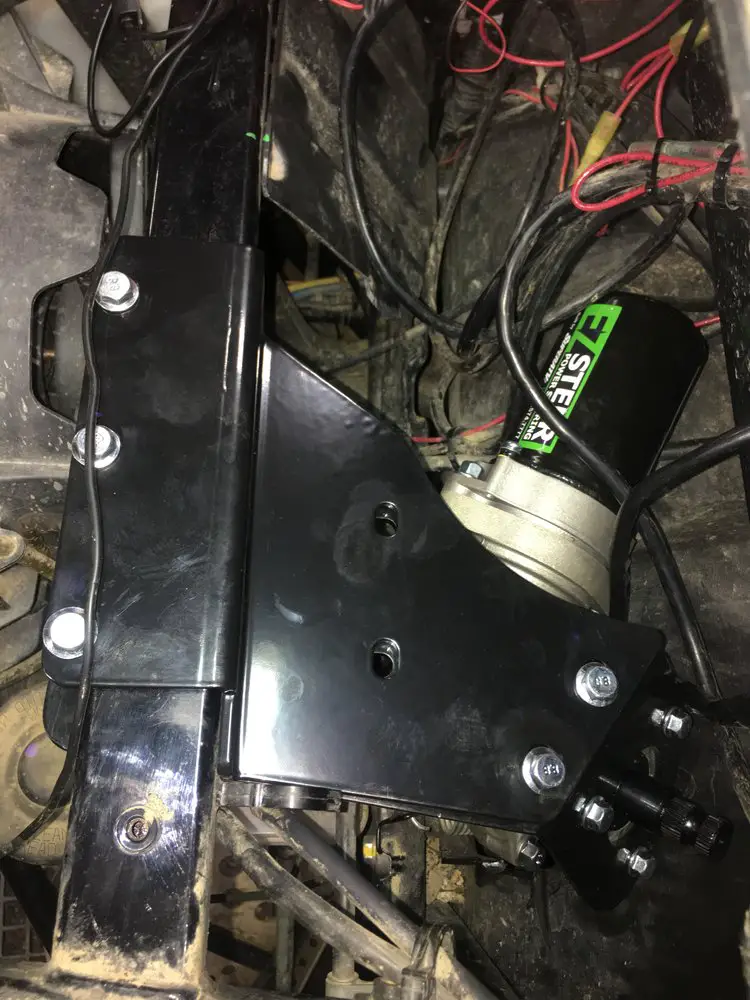

- Put lower shaft on andconnect it to rack and pinion shaft. Then mount motor to plate and bump it in..... But it goes..View attachment 64121That stock plastic wire holder below gets cut off View attachment 64122You can see it bolted now.. all bolts are loose.. except motor 3 bolts... I tightened them...It's tricky fishing it in place because you have to wiggle it in and the same time line splines up with shaft on motor and lower universal.Install lower universal bolt that holds splined shaft in... leave all bolts loose again. View attachment 64123Now Install upper shaft to motor and to steering stem....Remember to slide on washer, clip and rubber boot.... I didn't the first time

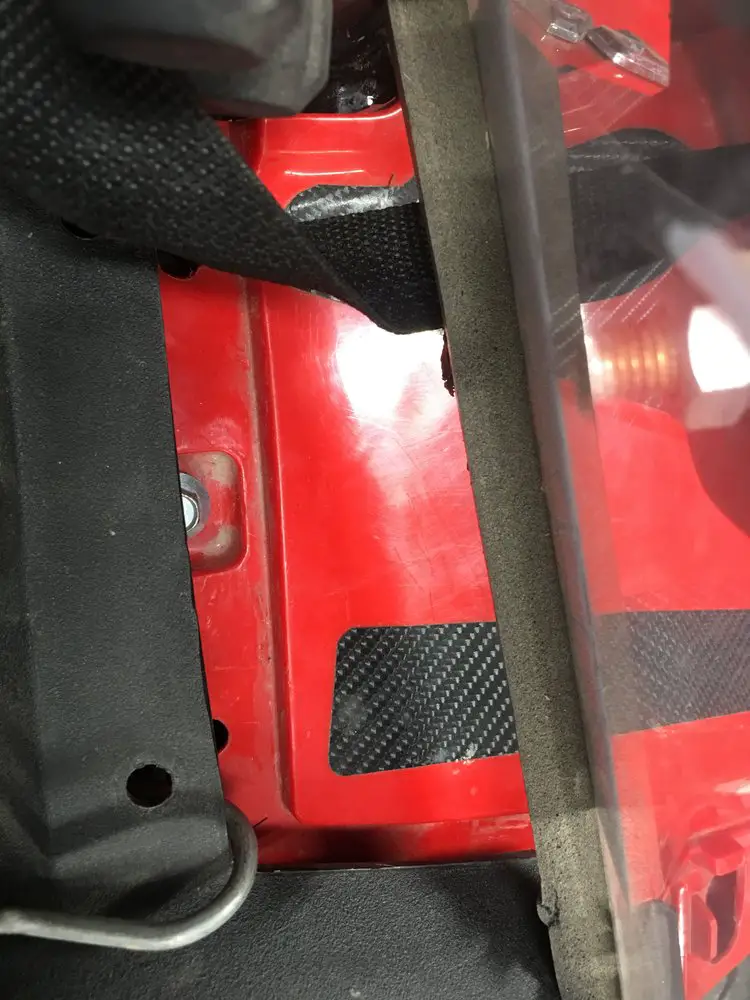

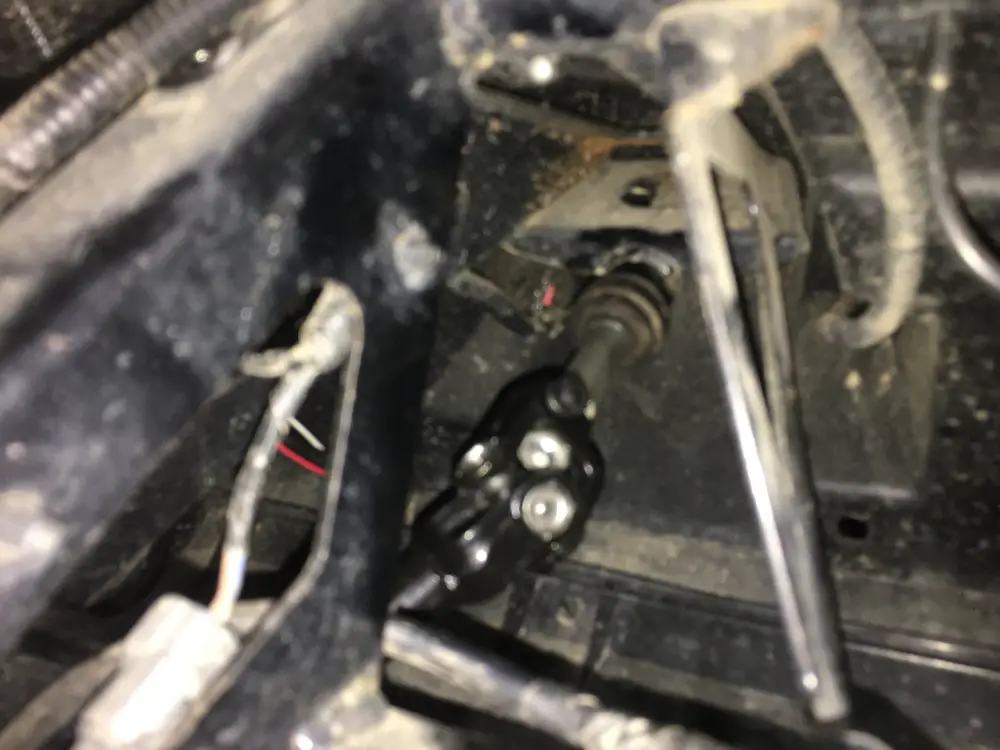

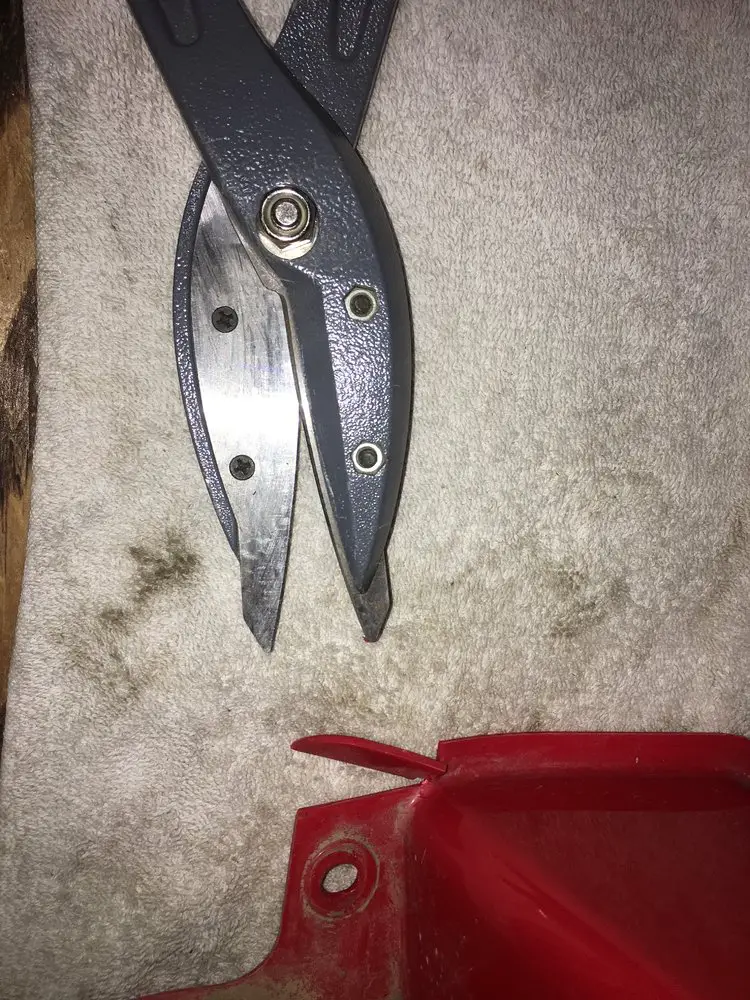

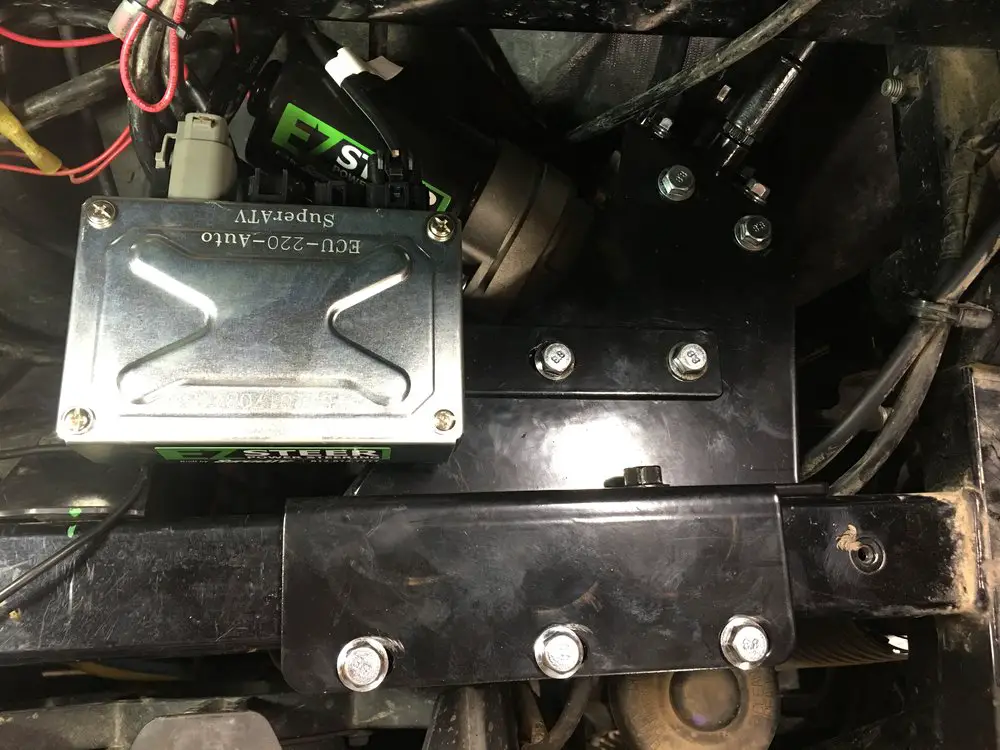

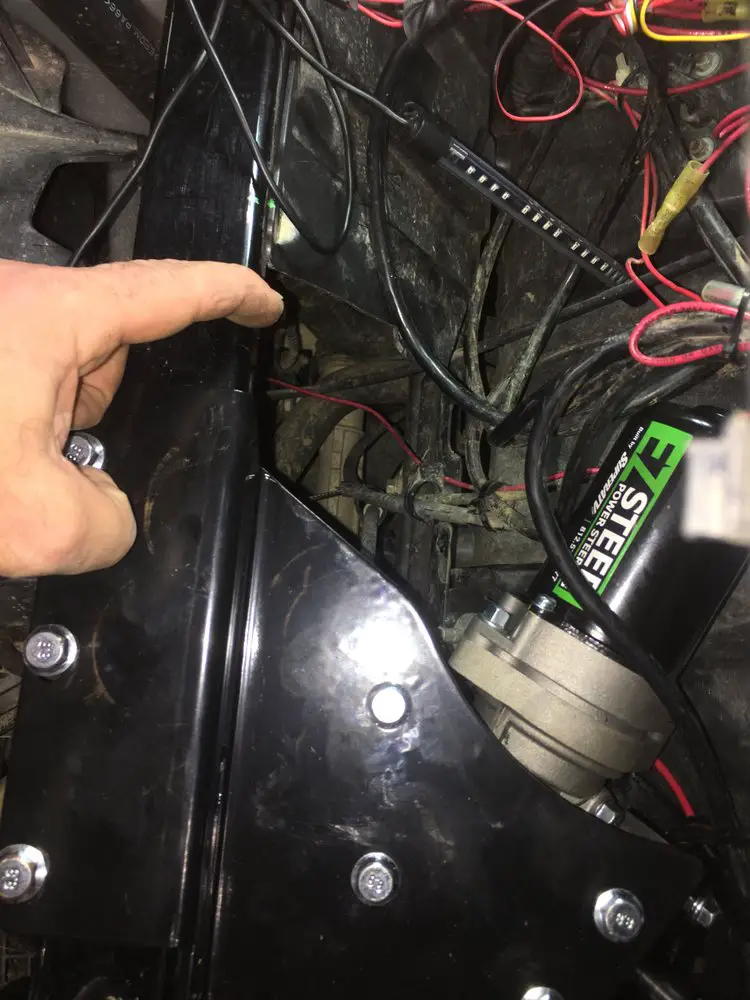

also have machine front wheels off ground and straight.check steering wheel so it not crooked... I mean so your Honda logo on it reads straightforward with wheels...View attachment 64124There is paint on splines so some encouraging taps are required...Once on,put in bolts to hold shafts... leave loose.. View attachment 64125Above is the plastic plate I cut out. It doesn't tell you in instructions at all... But you will notice quickView attachment 64126You have to cut this little piece on the fender to have clearance for motor plate... also You have to cut out bumped area above the floor brake spring View attachment 64127Above is the electronic module mounted. Where four plugs that go into it.They are all shaped different. So very easy...
I loved mine that I installed on my 700. After running at one time I kept remembering the salesman saying that they didn't need power steering. What a difference. My new 1000 5 seater has it and I can't imagine being without it.
Did anyone else have bad shafts to start off? I put the kit in and found the fit of the u-joints to the yoke in the lower portion of the shaft very loose. It was noticeable when turning as I could feel the slack in the steering.
That being said, I was sent new ones promptly and that fixed it.
Also has anyone though of extending the LED to mount in the dash so a person can actually see it on start up?
That being said, I was sent new ones promptly and that fixed it.
Also has anyone though of extending the LED to mount in the dash so a person can actually see it on start up?
swsebek
Red,White And Blue Collar Soul
Lifetime Member
When you put yours in, did you find it necessary to take the snap ring off the steering column? I did not do that and had no issues.
Also do you notice some flexing of the motor assembly as you turn stop to stop?
Also do you notice some flexing of the motor assembly as you turn stop to stop?
swsebek
Red,White And Blue Collar Soul
Lifetime Member
I removed it,would have been a bear to do without...So far I haven't done anything But pull it from one shed to the next......But so far I feel that it is piece of cake to turn....Its tight as hell turning and no slop..Feels reel good.....Even when turning the wheel with key off it feels like stock did......I haven't got to try it out cause I went into snorkel building and windshield...And I had to repair a torn soft top...
You will like it. My opinion is that its not the same as a vehicle power steering, there is no return from it, but that being said its awesome to use a finger to hold the wheel where you want it no matter what.
What are you doing for a snorkel? Routing up the passengers side?
What are you doing for a snorkel? Routing up the passengers side?
swsebek
Red,White And Blue Collar Soul
Lifetime Member
No I went drivers side
Up to hood for ram intake and look.. I'm getting pics ready now for the Install thread
Cool, I can't wait for pictures. I went the other way, up the passengers side and I'm glad I did, last year we went riding and found a stick. The stick missed my boy in the front seat, and if not for the PVC would have done some serious damage to my wife in the back seat. AS it was, the stick caught the chin of her helmet and winded her. Makes me want to look at hard doors.
advertisement
B

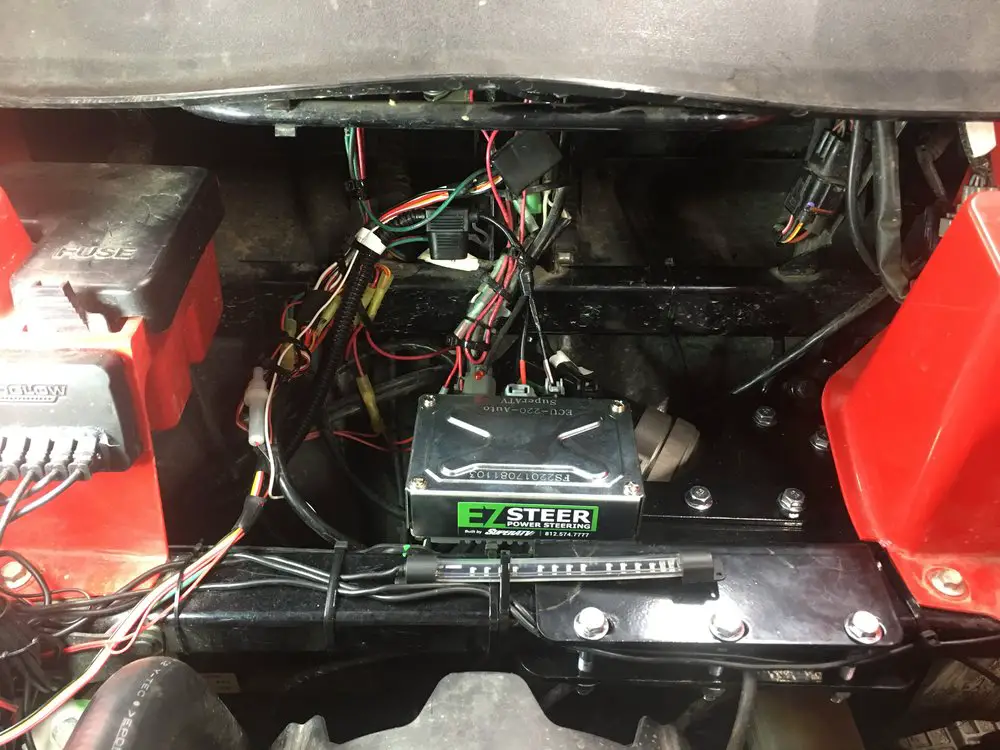

swsebekView attachment 64141Use a bungy cord and pull toward seat with another one..... now you can put that bolt in...I didn't have extra hands or help.Also it is better to have plastic kind of warm. I have learned in the past that plastic may be brittle and brake if too coldATTACH=full]64142[/ATTACH] View attachment 64146 And there you have it.Ziptie the wires all the way back. The unit has an led red light that lets you know it's ok when key is turned on...I'm no electrician so don't laugh at my wiring.

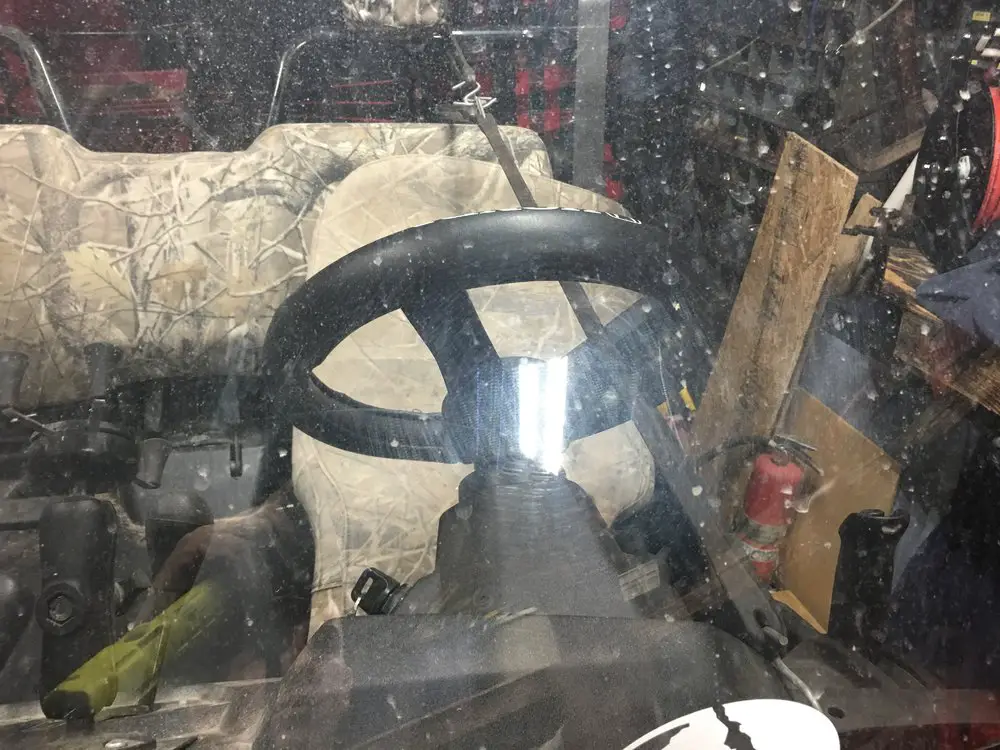

I must say that everything is way worth the money... My garage floor is fiber webbing and when the machine is just sitting there you can not turn the wheels before at all.. with this unit hooked up I can cut the wheel easily and you can hear the treads ripping... I haven't tested yet... View attachment 64143 View attachment 64144 View attachment 64144 View attachment 64145 View attachment 64142
