Talon tailgate ?

[stellarpod]

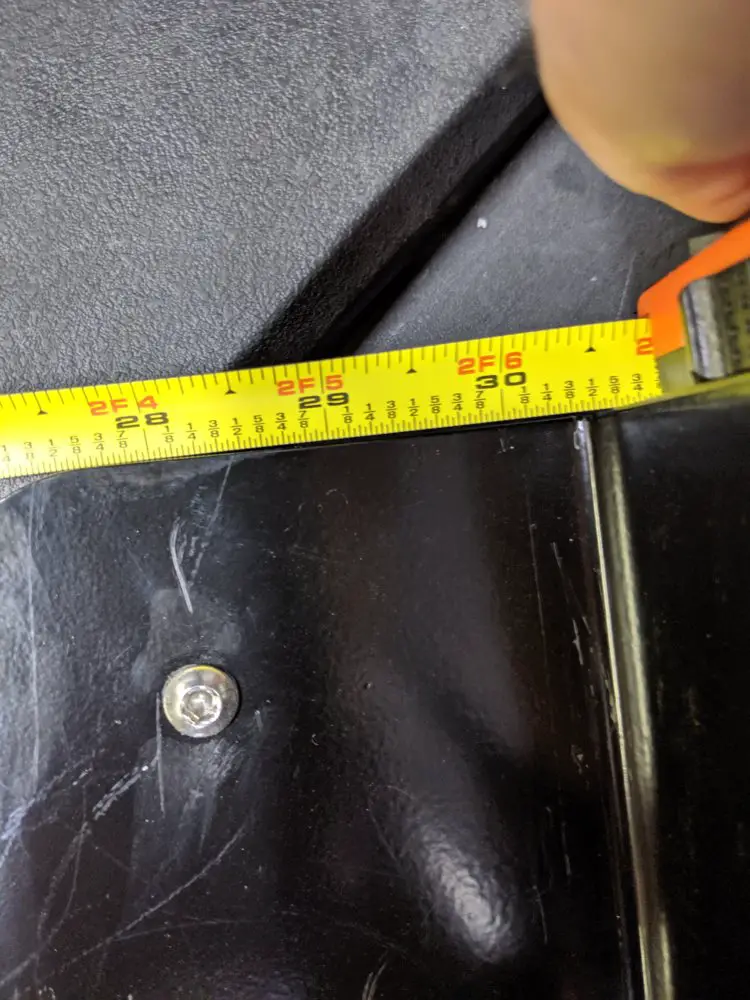

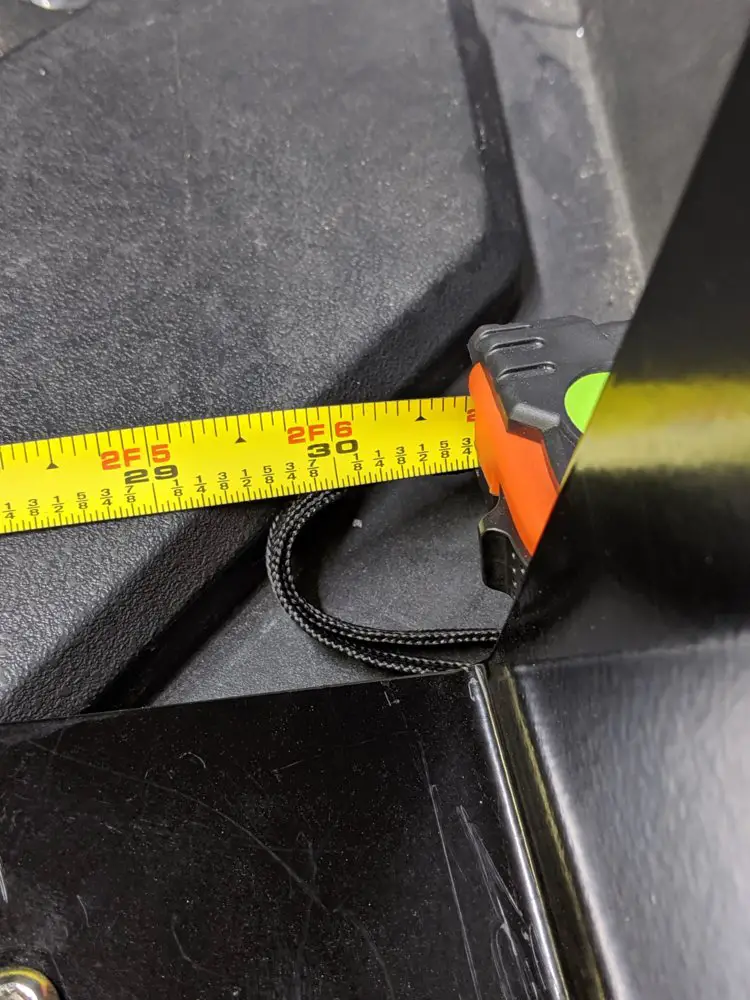

Here's some pics

View attachment 134097 View attachment 134098

Thanks! I wonder if you can give me the dimension between the rails/tubes. In other words, I want to see what the dimension is at its narrowest point, the point that would define how wide a box could fit inside the tailgate.

Steve



[Admin]



[Fordman]

Thanks! I wonder if you can give me the dimension between the rails/tubes. In other words, I want to see what the dimension is at its narrowest point, the point that would define how wide a box could fit inside the tailgate.

Steve

Ok that is between the mounting plates that attach the extender , so your wanting a different measurement ?



[stellarpod]

Ok that is between the mounting plates that attach the extender , so your wanting a different measurement ?

First, I really appreciate your help, and I'm not doing a very good job of describing what I'm looking for. I'll attach one of your previous pics with annotations that will hopefully make it more clear.

Hope that clarifies, and thank you again for your help.

Steve



[Ryanr84]

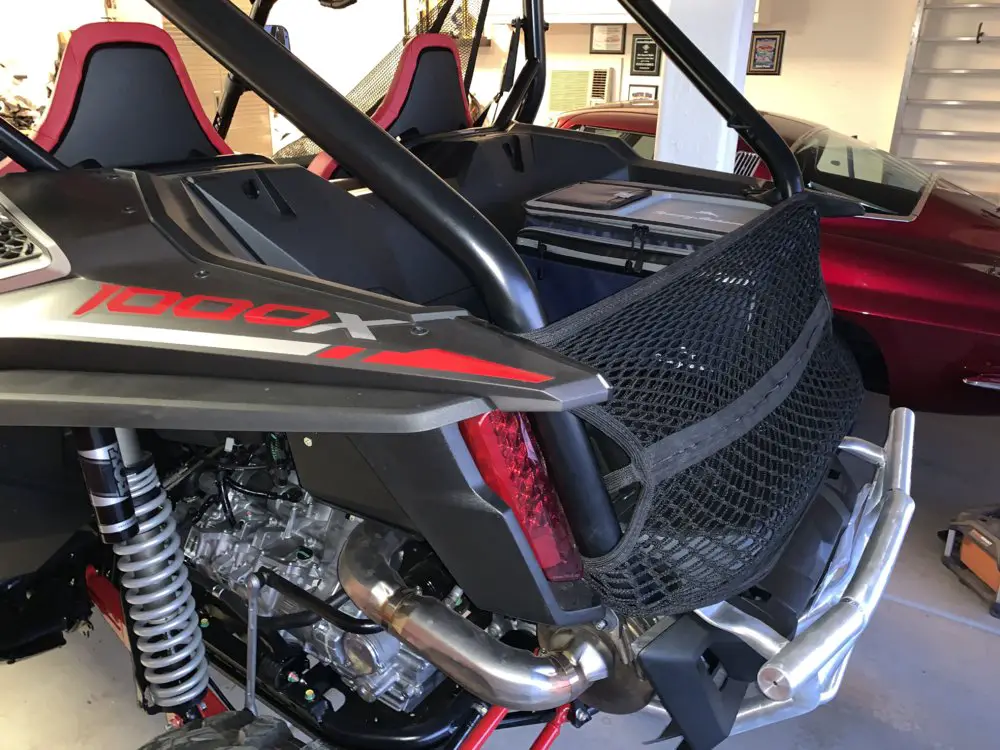

I just added a net and seems to work fine

View attachment 130768

Yea i like that idea too,im gonna do the same



[Fordman]

Sorry it took so long I think this is what you're looking for it's just a little shy of 27 in inside the tubes

Sent from my Pixel 3a using Tapatalk



[stellarpod]

No worries, my friend. I'm a patient guy

That's exactly what I was looking for. Thanks again, sir!

Steve



[Fordman]

Your welcome , I had to modify mine slightly, I drilled four more holes to make it set flat like I wanted it to but I'm really happy with it now

Sent from my Pixel 3a using Tapatalk



[KenThompson]

I couldn’t wait for a tailgate that was functional, so I built my own. I still have to add the 4.5 gallon Fuelpax mount and the tray for the coolers. Bags will hang on the outside. It swings out to the right side and uses a slam latch.



[BWAF]

I couldn’t wait for a tailgate that was functional, so I built my own. I still have to add the 4.5 gallon Fuelpax mount and the tray for the coolers. Bags will hang on the outside. It swings out to the right side and uses a slam latch.

View attachment 153011 View attachment 153012 View attachment 153013

Looks good

Sent from my SM-G930U using Tapatalk



[Razorback]

Heartland Honda in Springdale, AR has the best looking one I've seen. It is made by a local to them shop. But I can't find a pic now.



[Sheetmetalfab]

I couldn’t wait for a tailgate that was functional, so I built my own. I still have to add the 4.5 gallon Fuelpax mount and the tray for the coolers. Bags will hang on the outside. It swings out to the right side and uses a slam latch.

View attachment 153011 View attachment 153012 View attachment 153013

Nice design.

What latch did you use?

Link?



[KenThompson]

Nice design.

What latch did you use?

Link?

The latch is a 2 stage slam latch. I think it was from Eberhardt



[Hondasxs]

I couldn’t wait for a tailgate that was functional, so I built my own. I still have to add the 4.5 gallon Fuelpax mount and the tray for the coolers. Bags will hang on the outside. It swings out to the right side and uses a slam latch.

View attachment 153011 View attachment 153012 View attachment 153013

Very nice.
I think this is the best I seen yet.
More space and looks very sturdy.
Good job.

Sent from my SM-G955U using Tapatalk



[KenThompson]

Very nice.
I think this is the best I seen yet.
More space and looks very sturdy.
Good job.

Sent from my SM-G955U using Tapatalk

Thanks!



[TerryH]

Heartland Honda in Springdale, AR has the best looking one I've seen. It is made by a local to them shop. But I can't find a pic now.

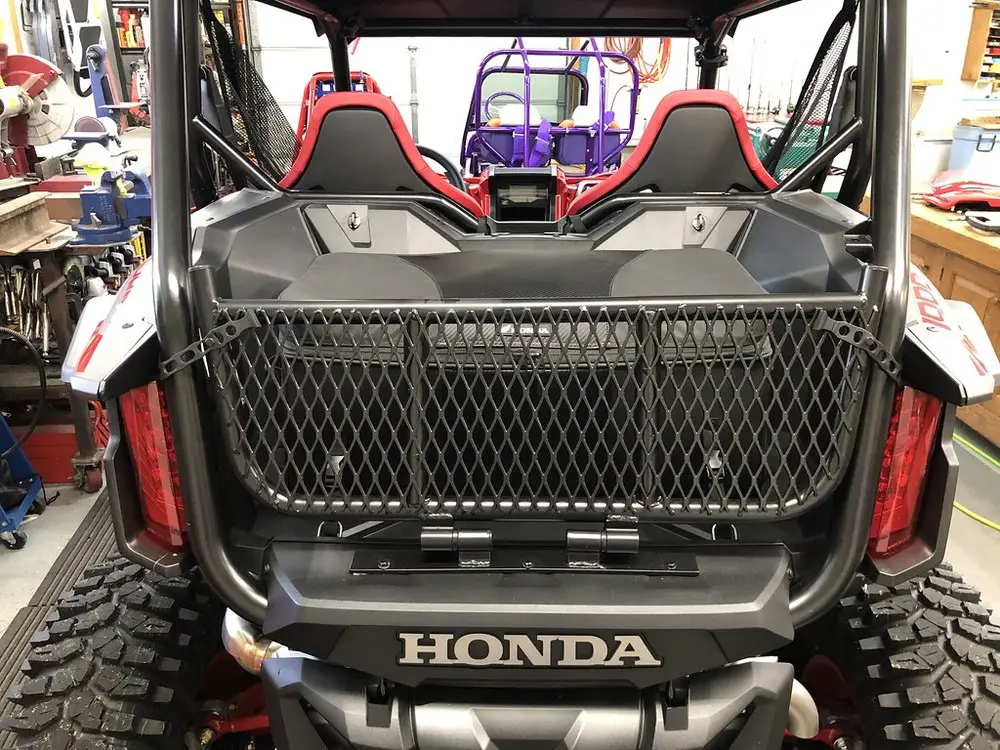

I just bought my X from Heartland. Here's the tail gate they have made. They have a bed extender as well. The gate was in my deal but I think it's $199.00.



[KenThompson]

I just bought my X from Heartland. Here's the tail gate they have made. They have a bed extender as well. The gate was in my deal but I think it's $199.00.

View attachment 155831

It looks like it doesn’t fit the roll bar angle. Maybe it’s the angle of the photo.



[TerryH]

It looks like it doesn’t fit the roll bar angle. Maybe it’s the angle of the photo.

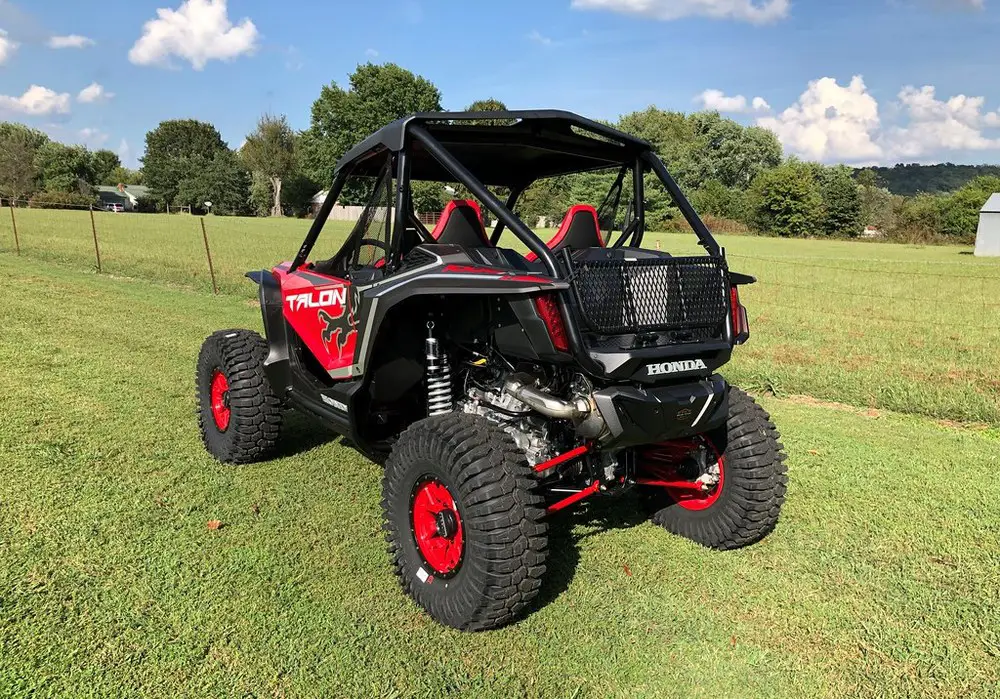

Better photo.



[KenThompson]

Better photo.

View attachment 155864

I noticed you put 32” tires on your talon. I couldn’t decide between 30 and 32. It looked to me that 32’s would rub the rear of the front fender when you would turn, so I went with 30’s. Do yours rub? Are the wheels the same 5+2 offset?



[TerryH]

I noticed you put 32” tires on your talon. I couldn’t decide between 30 and 32. It looked to me that 32’s would rub the rear of the front fender when you would turn, so I went with 30’s. Do yours rub? Are the wheels the same 5+2 offset?

The wheels are (EDIT: 4/3 not) 5/2. The tires barely do touch the panel inside the fender. Don't think it'll be an issue.



[Morris1219]

I couldn’t wait for a tailgate that was functional, so I built my own. I still have to add the 4.5 gallon Fuelpax mount and the tray for the coolers. Bags will hang on the outside. It swings out to the right side and uses a slam latch.

View attachment 153011 View attachment 153012 View attachment 153013

Best looking one I have seen, might have to build one to copy this one.


Sent from my iPhone using Tapatalk
