P700 Which pre-wired winch rocker?

[CardinalSxS]

Hi all - recent joiner to the forum...have been reading and reading and reading... So many mods, so little time.

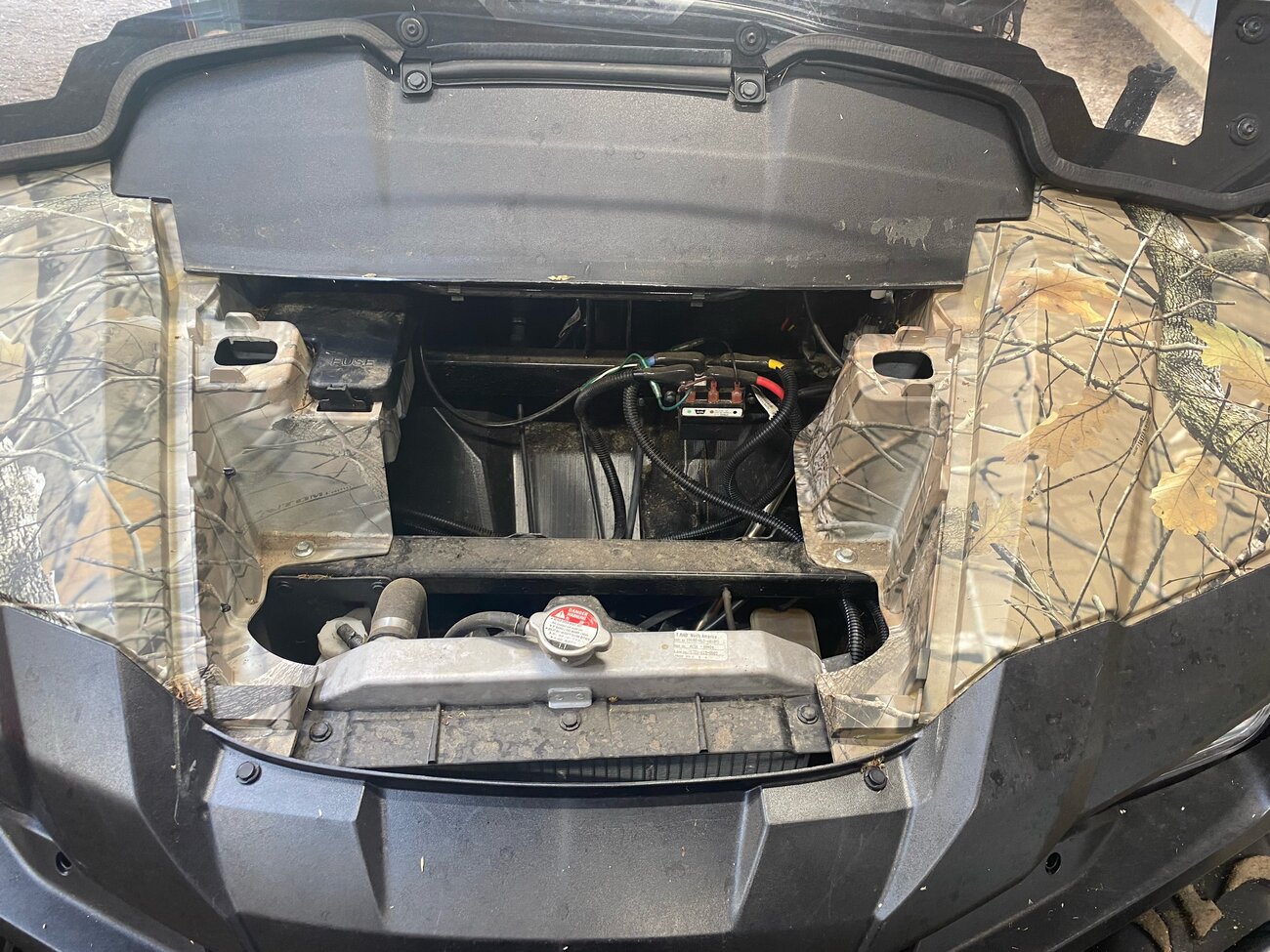

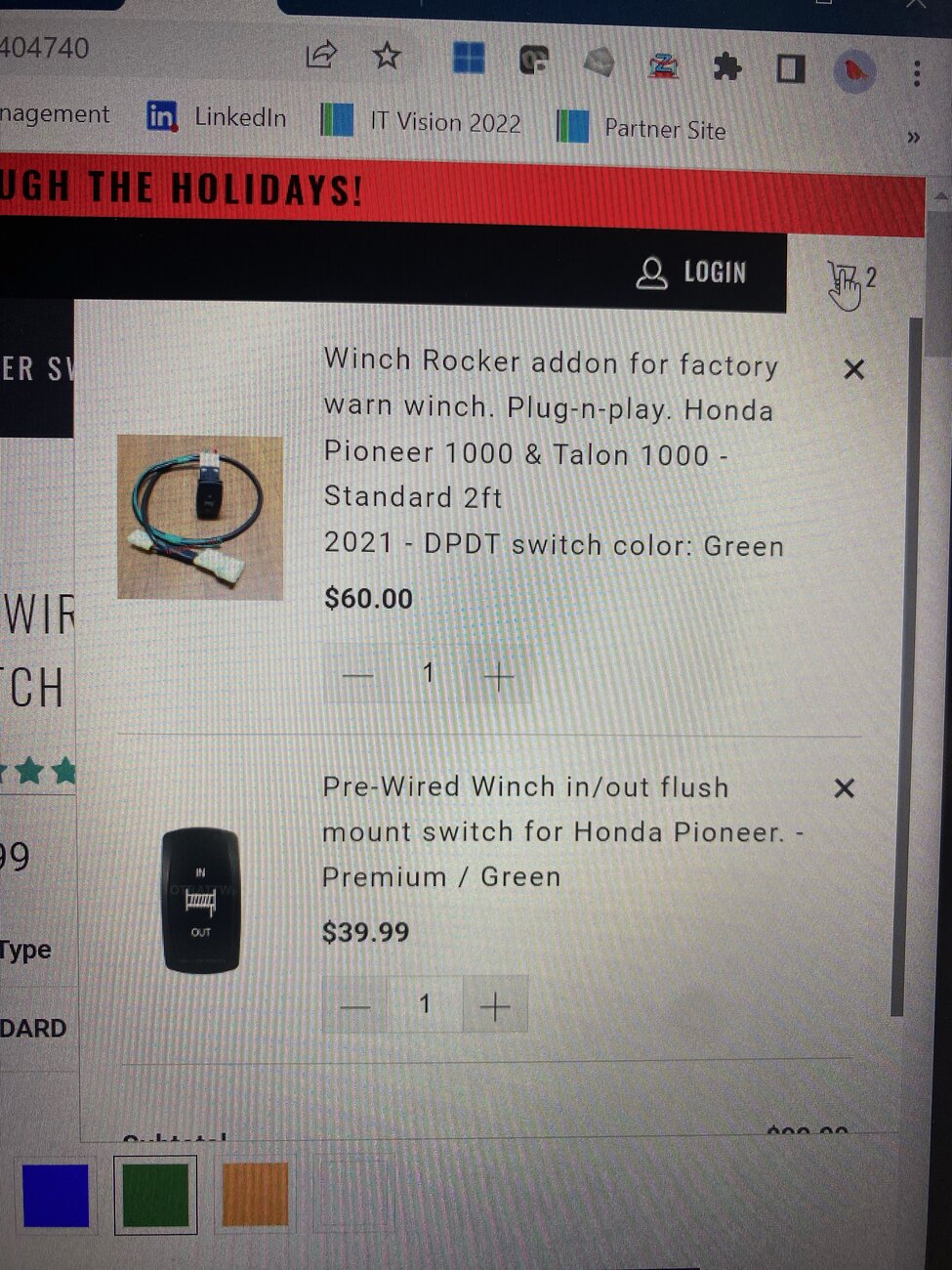

So I'm just getting started and want to add a rocker switch for my Warn winch...trying to figure out which one will work with my setup. Here are the two that I believe could work, and here's a pic from underneath my hood. Thoughts? Thanks in advance.



[Admin]



[Hillbillytnt]

Hi all - recent joiner to the forum...have been reading and reading and reading... So many mods, so little time.

So I'm just getting started and want to add a rocker switch for my Warn winch...trying to figure out which one will work with my setup. Here are the two that I believe could work, and here's a pic from underneath my hood. Thoughts? Thanks in advance.

View attachment 358403 View attachment 358404

Check out the club store. I’m running the one they sell. Should work on any of them.



[CID]

I used this one from the club store for my Talon and my contactor looks just like yours. All it takes is 4 wires - 1. Switched hot. 2. Ground. 3. To one end of the 3 contactor terminals. 4. To the other end of the 3 contactor terminals. The middle brown/tan contactor wire is left alone. Double tap spade connectors are included in the kit.

Pre-Wired Winch in/out flush mount switch for Honda Pioneer, Talon.

New product. Prewired Winch In/Out switch designed for the Honda Pioneer 1000,700,500 and Honda Talon 1000 R/X/X4/R4 and other units. 3ft contactor controls wires easily reach anywhere under the hood of your Pioneer. Specifically designed for contactors mounted under the hood area. 20" power...

store.hondasxs.com

The black and green wires coming in from the bottom of the photo are directly from the In/Out winch switch.



[Hondasxs]

The top one, "for factory winch," is if you have the OEM WARN/HONDA winch installed.
The bottom one is if you don't and just need a rocker.



[Smitty335]

The top one, "for factory winch," is if you have the OEM WARN/HONDA winch installed.
The bottom one is if you don't and just need a rocker.

Remind me to talk to you about the difference between the Honda winch wiring and the regular winch wiring, it'll be later when I find a top winch bumper mount.



[CardinalSxS]

I used this one from the club store for my Talon and my contactor looks just like yours. All it takes is 4 wires - 1. Switched hot. 2. Ground. 3. To one end of the 3 contactor terminals. 4. To the other end of the 3 contactor terminals. The middle brown/tan contactor wire is left alone. Double tap spade connectors are included in the kit.

Pre-Wired Winch in/out flush mount switch for Honda Pioneer, Talon.

New product. Prewired Winch In/Out switch designed for the Honda Pioneer 1000,700,500 and Honda Talon 1000 R/X/X4/R4 and other units. 3ft contactor controls wires easily reach anywhere under the hood of your Pioneer. Specifically designed for contactors mounted under the hood area. 20" power...

store.hondasxs.com

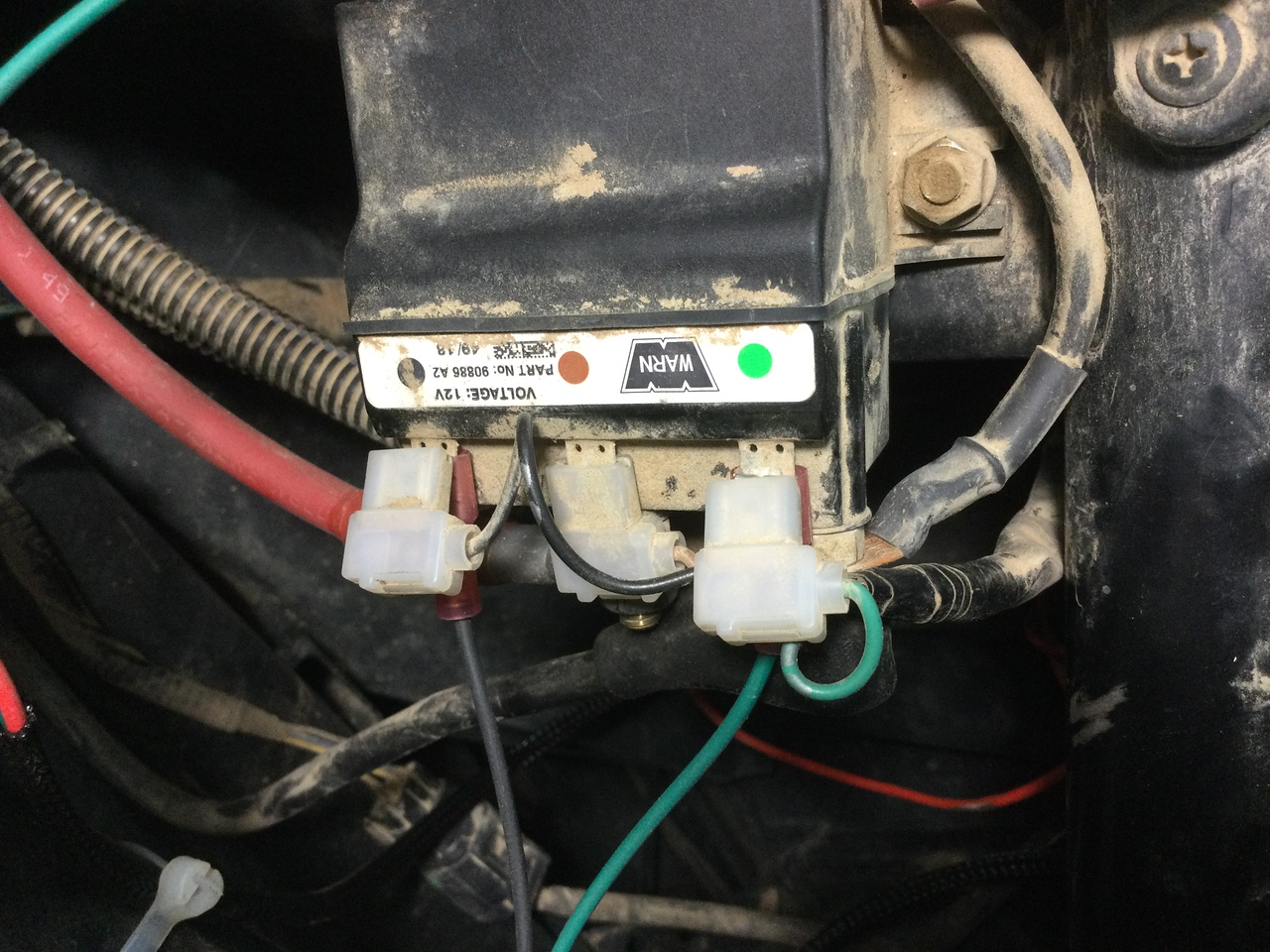

The black and green wires coming in from the bottom of the photo are directly from the In/Out winch switch.

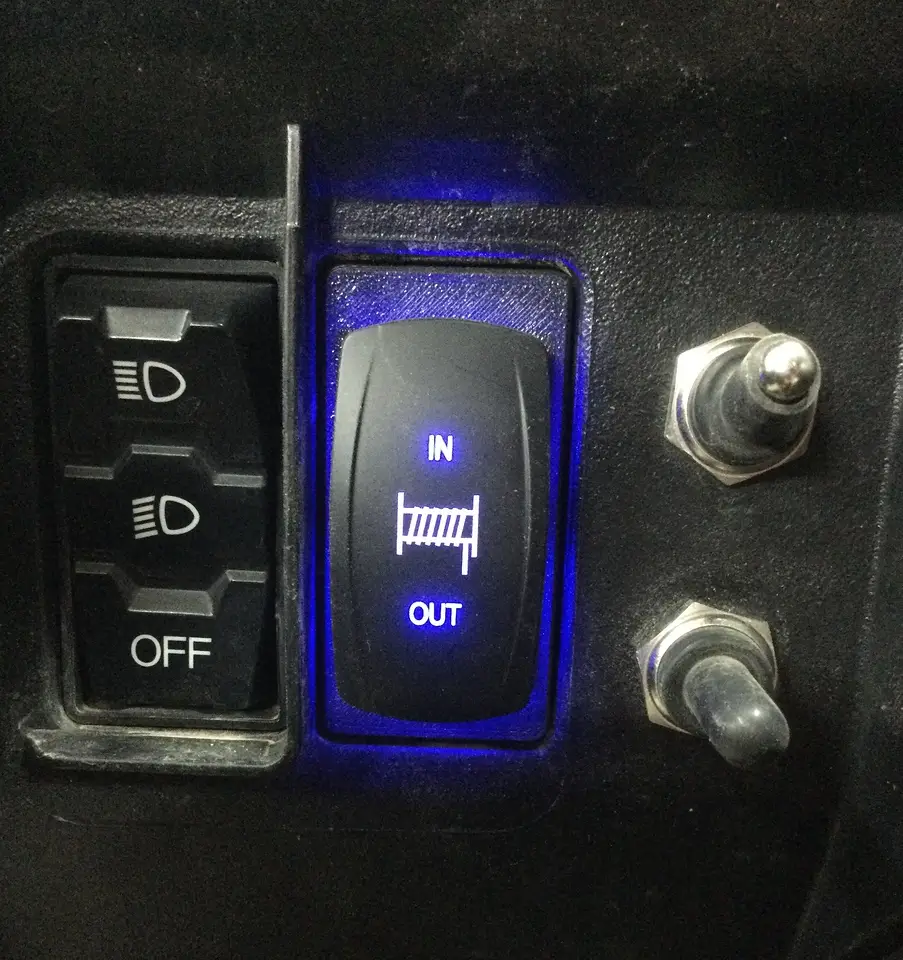

View attachment 358412

View attachment 358413

This is great - really appreciate the pics, too. Just made the purchase from the store. Thanks!
