P500 Am I missing something

[bskerj]

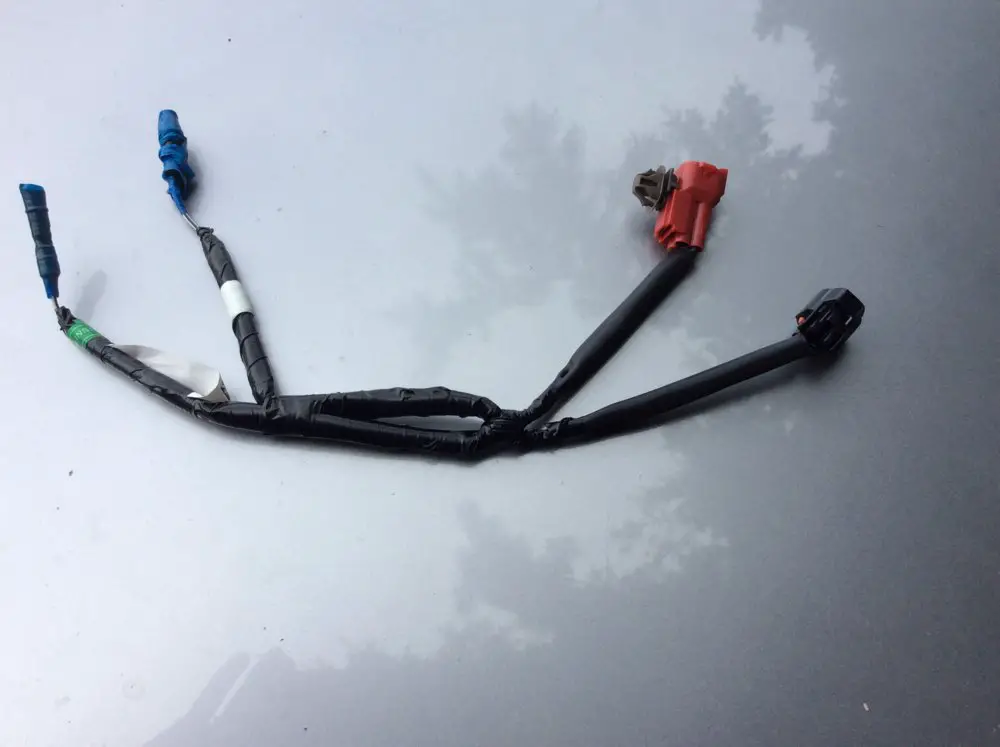

I am getting ready to install a Warn Pioneer 500 Winch. I purchased a sub harness figuring that I could use that for the winch along with 3 other accessories. My problem is that I only see 2 connections on the harness. Can someone enlighten me and tell me if I am missing something ? I installed a winch on my Foreman but I never used a sub harness before. Attached is the harness. Thanks in advance.



[Admin]



[Rustell]

https://www.amazon.com/Honda-08Z08-HL5-A00-Pioneer-Accessory-Harness/dp/B00MBVQEKQ?tag=sxsweb24-20

This is what you need ....



[bskerj]

Thanks Rustell and Buford....I am glad there was another..it looks like the black ended one plugs into the accessories plug in located in the cab. Can you use one of the 4 for that purpose ? I will probably head over to Amazon and order from the link you sent Rustell



[trigger]

View attachment 17896 I am getting ready to install a Warn Pioneer 500 Winch. I purchased a sub harness figuring that I could use that for the winch along with 3 other accessories. My problem is that I only see 2 connections on the harness. Can someone enlighten me and tell me if I am missing something ? I installed a winch on my Foreman but I never used a sub harness before. Attached is the harness. Thanks in advance.

I ran my winch leads to the battery/power block.
Seems like a winch would be alot of draw on those small wires alone.
But I'm no electrician either.



[bskerj]

I ran my winch leads to the battery/power block.
Seems like a winch would be alot of draw on those small wires alone.
But I'm no electrician either.

Agreed Trigger...the harness is for the switch for the winch that mounts on the dash...thanks



[bigbore]

Thanks Rustell and Buford....I am glad there was another..it looks like the black ended one plugs into the accessories plug in located in the cab. Can you use one of the 4 for that purpose ? I will probably head over to Amazon and order from the link you sent Rustell

FWIW:

P500 - Obsessive winch install.
