P700m2 Battery Buse Board

[longbeards]

I now have 4 accessories that I would like to hook up to some type of fused board so that I wouldn't have to run them off of the battery terminal...A Buse Board is what the guy at radio shack called it, and he couldn't get one...Do any of you run them? If so where did you get it? thanks longbeards WV..

Running: Winch, back up LED light, LED light Bar,,,and wire for ag sprayer..thanks



[Admin]



[ohanacreek]

I added this to have high amp fused for WetSounds Sub(30amp), WetSounds 6(15amp), Lightbar (30amp)

MINI BLADE FUSE BLOCK HOLDER WITH LED INDICATOR MARINE BOAT 4 GANG NEW PATENT https://www.amazon.com/dp/B00S1KQ46U/?tag=sxsweb24-20

My PDM60 just won’t handle that much more amperage.



[Koda]

Blue seas fuse block 12 fuse They also make smaller ones but you need to allow for future installs.



[longbeards]

ohanacreek,
How does it set up,,,,looks like cut wire fastening, then run main wire to battery? Never done so if you can walk me threw it I will order one! thanks longbeards wv



[longbeards]

Blue seas fuse block 12 fuse They also make smaller ones but you need to allow for future installs. View attachment 62265

Koda,
I appreciate the post! Love the set up,,,can you explain,,,going to order this week! Thanks longbeards wv



[Koda]

Koda,
I appreciate the post! Love the set up,,,can you explain,,,going to order this week! Thanks longbeards wv

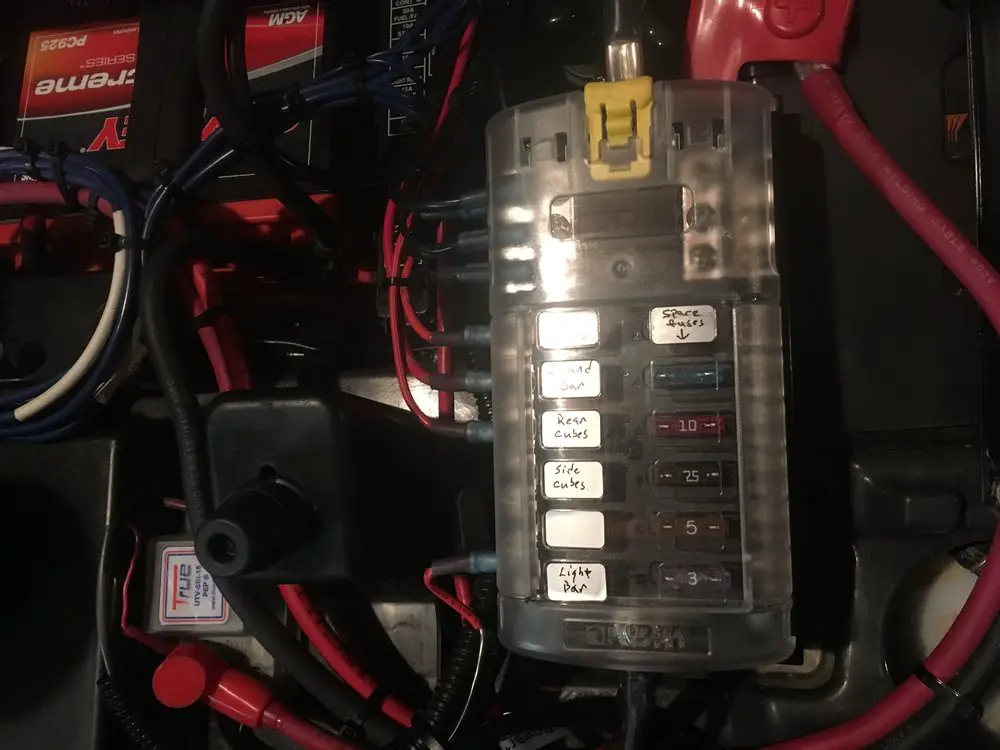

This is a better photo. The lugs on the top and bottom are where the cables from your battery hook up(-at top and +on bottom). Mine come off the auxiliary battery that is isolated from the primary battery. Definitely suggest a dual battery setup since you are running a winch.



[ohanacreek]

ohanacreek,
How does it set up,,,,looks like cut wire fastening, then run main wire to battery? Never done so if you can walk me threw it I will order one! thanks longbeards wv

Run a 6ga or 8ga from the second battery + to a ¼-20 lug on one side.

Then run positive to each switch/relay then to accessory using whatever sized wire you need.



[longbeards]

Run a 6ga or 8ga from the second battery + to a ¼-20 lug on one side.

Then run positive to each switch/relay then to accessory using whatever sized wire you need.

Only running one battery, this should still work with that should it not?



[ohanacreek]

Only running one battery, this should still work with that should it not?

Yup need a bigger battery if you’re gonna winch a lot with the lights on.

The 700 has a slightly lower output charging system that the 1000 and I think a slightly smaller battery.

I killed two factory sized battery’s before I moved up to a larger one.
