P1000 Bilge Fan Reverse Polarity

[tylerjohnson]

Hi all,

First of all, this is my first real post but have searched far and wide. I just picked up 2017 1000-5 LE and have a bilge fan installed, with a duct into the front floor area to pull air from and hopefully push air into during the winter. For the life of me I cannot figure out how to wire a DPDT 7 pin switch to do the reverse polarity. I have a 7 pin switch and then I just ordered the DPDT 10 pin from the club shop as well. Can anyone provide me with a diagram of how I should wire a switch up to complete this task? Please and thank you!



[JenElio]

Hi all,

First of all, this is my first real post but have searched far and wide. I just picked up 2017 1000-5 LE and have a bilge fan installed, with a duct into the front floor area to pull air from and hopefully push air into during the winter. For the life of me I cannot figure out how to wire a DPDT 7 pin switch to do the reverse polarity. I have a 7 pin switch and then I just ordered the DPDT 10 pin from the club shop as well. Can anyone provide me with a diagram of how I should wire a switch up to complete this task? Please and thank you!

Welcome to the club from South FL 👍

We need pics.......some others won't think it didn't happen 😂😂

Try to do use the search bar up top, plenty of info on wiring switches. I'm not very good at posting links but.......

Courtesy of the boss man @Hondasxs

Also maybe one of these might work....

Rocker Switch Polarity Reverse Motor Control maintained Amazon.com: Rocker Switch Polarity Reverse Motor Control maintained


Good luck 👍



[Hondasxs]

Haha...
Just sent you a email about this.
I'll try to get one made up before weeks end.

Sent from my SM-G996U using Tapatalk



[tylerjohnson]

Welcome to the club from South FL 👍

We need pics.......some others won't think it didn't happen 😂😂

Try to do use the search bar up top, plenty of info on wiring switches. I'm not very good at posting links but.......

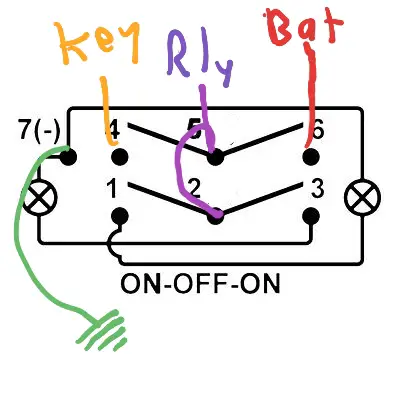

Courtesy of the boss man @Hondasxs
View attachment 296497
Also maybe one of these might work....

Rocker Switch Polarity Reverse Motor Control maintained Amazon.com: Rocker Switch Polarity Reverse Motor Control maintained


Good luck 👍

Thanks for the pic! Does this include using a relay? If so Not sure how to include that.



[tylerjohnson]

Haha...
Just sent you a email about this.
I'll try to get one made up before weeks end.

Sent from my SM-G996U using Tapatalk

Thanks got it! and as soon as you could do anything to help I would be greatly appreciative of wiring that switch or the 7 pin.



[BWAF]

P1000m5 Project no more butt gravy



[BWAF]

Forgot how to make link



[Remington]

Thanks for the pic!

Welcome from Michigan!
He means you for pics of your machine lol



[tylerjohnson]

i figured out my problem now! had a fuse blown in my distribution box under the hood!



[tylerjohnson]

Haha...
Just sent you a email about this.
I'll try to get one made up before weeks end.

Sent from my SM-G996U using Tapatalk

ever get the diagram made up for your 10 pin switch?
