Today I am installing a heat shield on a Pioneer 700-4.
I had some shielding laying around from my 1000 mod and it worked great.
Used about 4ft x 3.5ft piece.
Similar to the 1000. I just placed it under the seat continuing up to the bolt holes on the seat back.
Cut some slits for different things and gave it a splash of black to hide the silver.

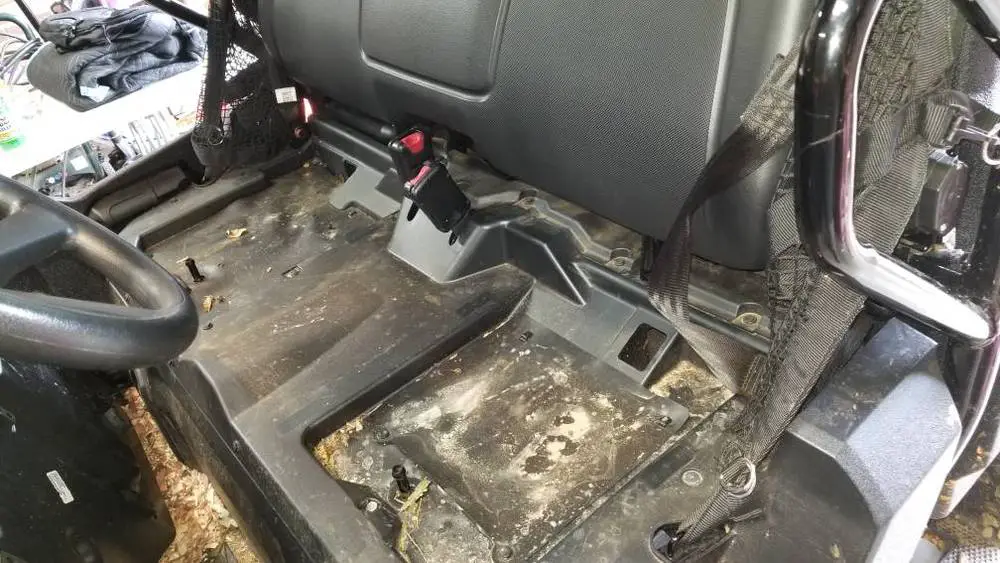

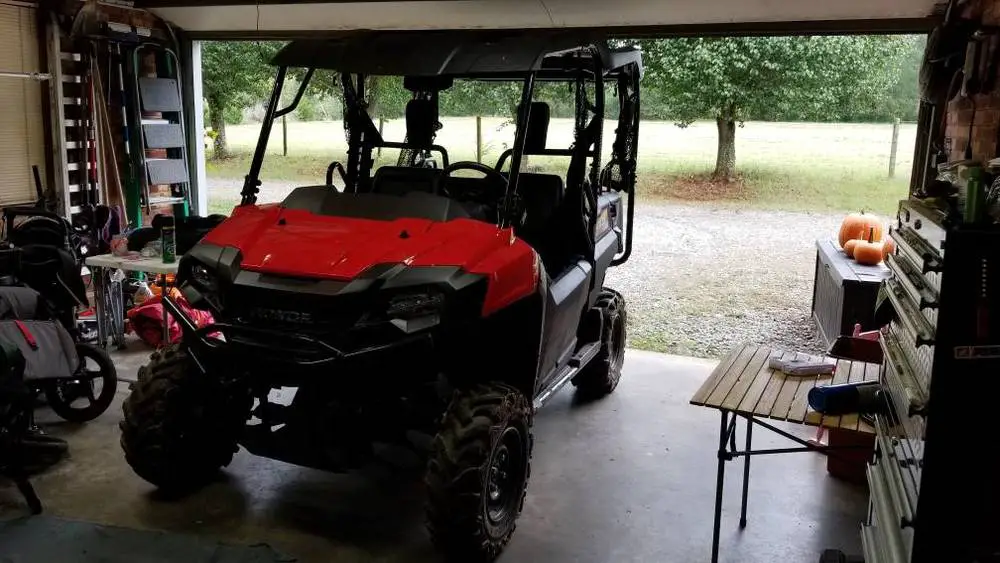

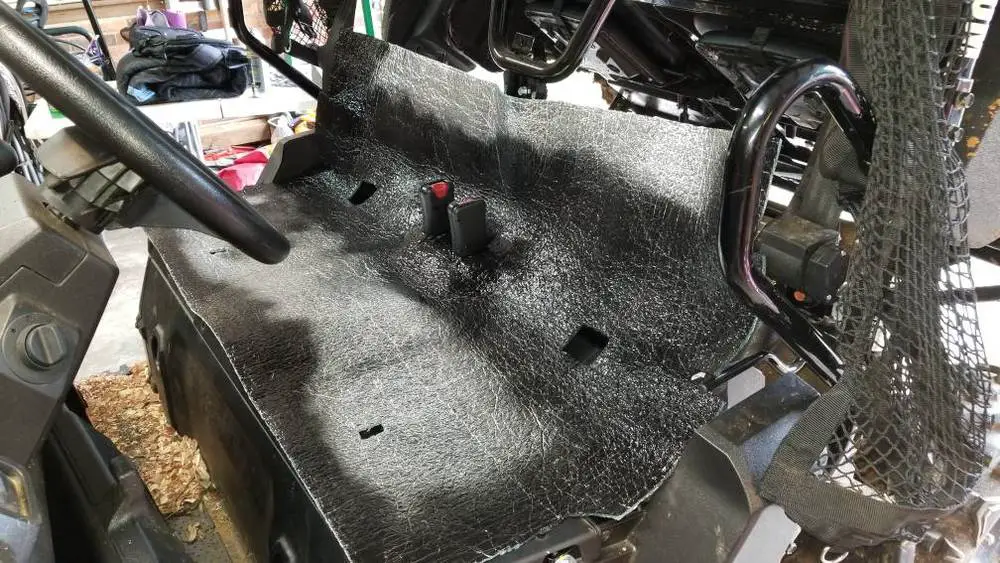

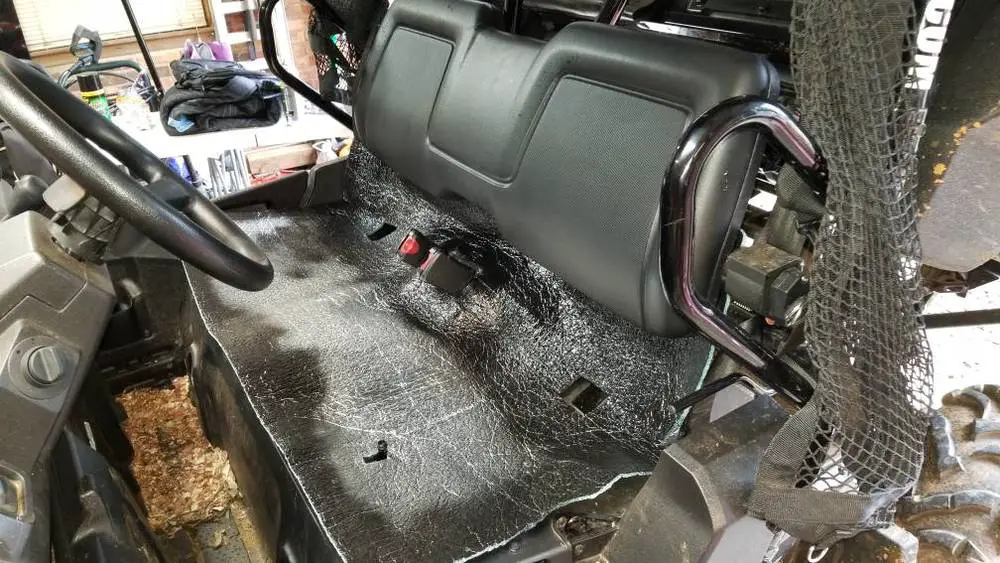

Here are a few pictures. Final picture once it drys. F5f80a915a027ddf848fd1b2b7942248Bb60d15a2c2581f869f4f45aa4388f7cDa2f681ce4211225c3b9099dc24d16329d443ce9886f1c116d87dd0d6a1263fd77183af52c73ef3d4c4fc41caae5b060

Last edited:
suebell

suebell

New Member
Jul 29, 2016
19
25
3
NC
Ownership

  1. 700-4
Today I am installing a heat shield on a Pioneer 700-4.
I had some shielding laying around from my 1000 mod and it worked great.
Used about 4ft x 3.5ft piece.
Similar to the 1000. I just placed it under the seat continuing up to the bolt holes on the seat back.
Cut some slits for different things and gave it a splash of black to hide the silver.

Here are a few pictures. Final picture once it drys. View attachment 89781View attachment 89782View attachment 89783View attachment 89784

Sent from my SM-G955U using Tapatalk

RWJ_700-4

RWJ_700-4

New Member
Lifetime Member
Jan 1, 2018
9
6
3
Winchester, Kentucky
Ownership

  1. 700-4
I am interested in the heat shield. Where do you purchase this type of material and how expensive is it?
Thanks.

  • Like
Reactions: Dp5hunter
Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
17,952
62,637
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5
I used something like this. --> https://amzn.to/2IQ8qWA
Returned it back to the owner @suebell. We took a short 5 min ride and she said normally the seat belt buckles would be too hot to touch. After, they are barely warm. She is happy.

It comes with tape to repair the holes you must cut for the seat belts. I also mentioned about adding some of the tape up inside the panel at your leg. I didnt, but I'm sure it would have a great effect on the heat.

[parsehtml]<script type="text/javascript">
amzn_assoc_tracking_id = "pioneeracc-20";
amzn_assoc_ad_mode = "manual";
amzn_assoc_ad_type = "smart";
amzn_assoc_marketplace = "amazon";
amzn_assoc_region = "US";
amzn_assoc_design = "enhanced_links";
amzn_assoc_asins = "B07G7BC4CV";
amzn_assoc_placement = "adunit";
amzn_assoc_linkid = "ad329c2231f26d55c12cdf906c5e8976";
</script>
<script src="//z-na.amazon-adsystem.com/widgets/onejs?MarketPlace=US"></script>[/parsehtml]

  • Like
Reactions: Dp5hunter
P

Pilot2016

Active Member
Lifetime Member
Dec 6, 2019
118
173
43
Rockhill Sc
Ownership

  1. 700-4
Today I am installing a heat shield on a Pioneer 700-4.
I had some shielding laying around from my 1000 mod and it worked great.
Used about 4ft x 3.5ft piece.
Similar to the 1000. I just placed it under the seat continuing up to the bolt holes on the seat back.
Cut some slits for different things and gave it a splash of black to hide the silver.

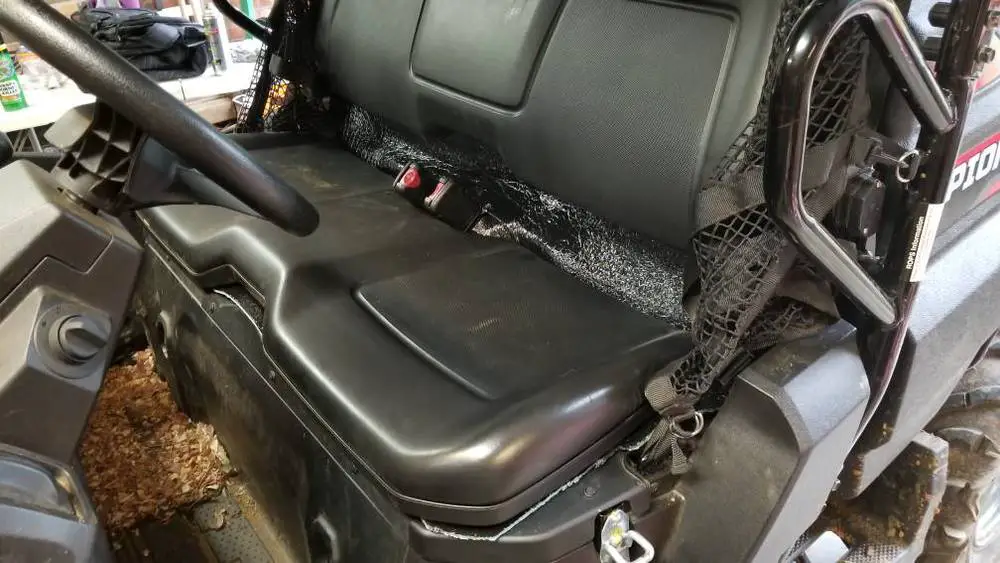

Here are a few pictures. Final picture once it drys. View attachment 89781View attachment 89782View attachment 89783View attachment 89784View attachment 89804
Today I am installing a heat shield on a Pioneer 700-4.
I had some shielding laying around from my 1000 mod and it worked great.
Used about 4ft x 3.5ft piece.
Similar to the 1000. I just placed it under the seat continuing up to the bolt holes on the seat back.
Cut some slits for different things and gave it a splash of black to hide the silver.

Here are a few pictures. Final picture once it drys. View attachment 89781View attachment 89782View attachment 89783View attachment 89784View attachment 89804

Thx Richard
Took your complete advice and installed the same material.

I haven’t trimmed it or painted it yet. Kinda like the silver to match some cup holders ... so undecided.

The piece you have left over is ample to put a second layer. I’m considering it.

I did take it for a long ride and it’s quieter and the heat reduction is significant 👍👍

I’m going to max effort the sound/ heat reduction.

Just ordered some more sound/ heat material to line the entire engine compartment and some self stick sound material to put on the roof of my P700-4.

I’ll post when I get to that!

THX AGAIN... Great post that got me going on this and will keep me busy....(AND I THOUGHT MY BUILD WAS DONE🤪🤪)... at least that’s what I told my wife. She noticed big heat reduction too... so I got a green light!
2C59592F 6397 4D9C 9089 2AEE078BC2C5
505868DA 2090 4404 9199 10DDFA332254
C2606823 22C8 4914 9ECF 68C8AE08BE10

JimmyA

JimmyA

Well-Known Member
Oct 8, 2017
1,644
5,503
113
Northeast texas
Ownership

  1. 700-4
Thx Richard
Took your complete advice and installed the same material.

I haven’t trimmed it or painted it yet. Kinda like the silver to match some cup holders ... so undecided.

The piece you have left over is ample to put a second layer. I’m considering it.

I did take it for a long ride and it’s quieter and the heat reduction is significant 👍👍

I’m going to max effort the sound/ heat reduction.

Just ordered some more sound/ heat material to line the entire engine compartment and some self stick sound material to put on the roof of my P700-4.

I’ll post when I get to that!

THX AGAIN... Great post that got me going on this and will keep me busy....(AND I THOUGHT MY BUILD WAS DONE🤪🤪)... at least that’s what I told my wife. She noticed big heat reduction too... so I got a green light!

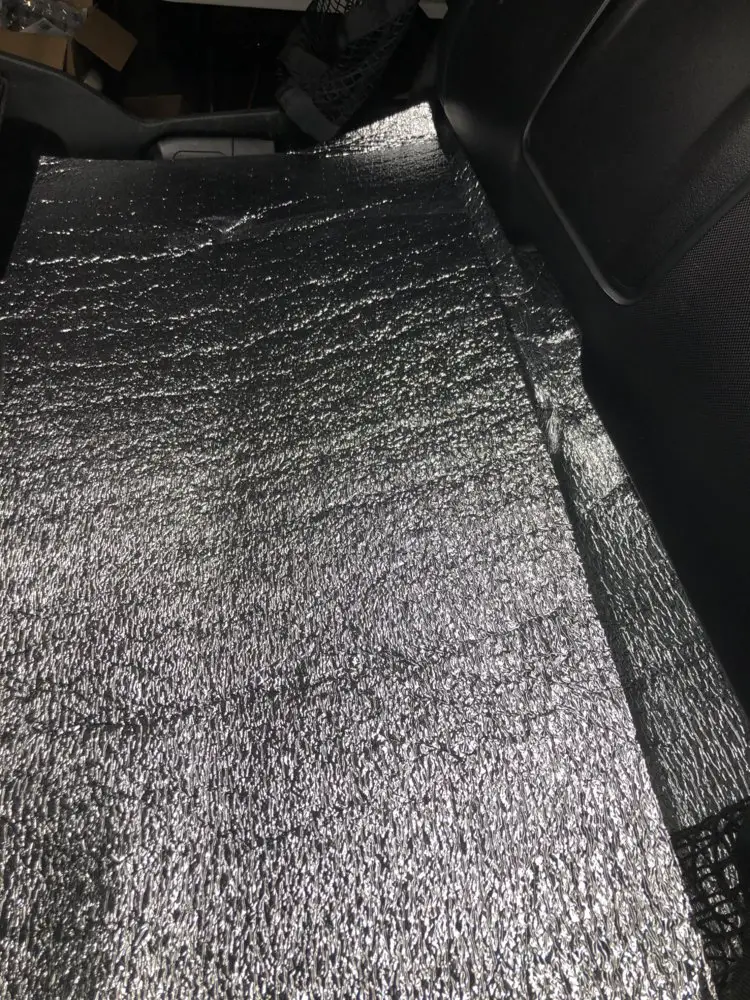

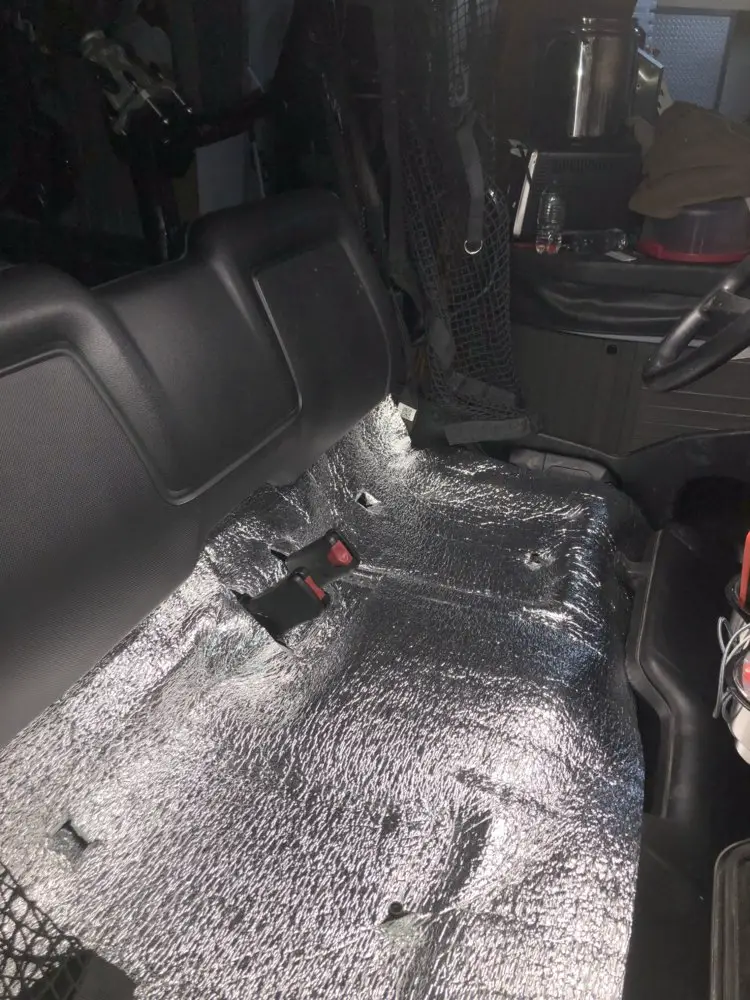

View attachment 196292View attachment 196293View attachment 196294
This will be my next addition! Thanks for the thread.

  • Like
Reactions: Backwoods
N

Nivek

Active Member
Dec 30, 2020
94
208
33
Maine
Ownership

  1. 700-2
I picked up a truck windshield shade that is used to keep the sun off the dash. $10.00 . I’m gonna give it a try. Anybody else tried this?

  • Like
Reactions: DG Rider
DG Rider

DG Rider

Member: Triple Clutch Club
Lifetime Member
Aug 14, 2013
9,174
41,533
113
Casa Grande, AZ
Ownership

  1. 700-2
I picked up a truck windshield shade that is used to keep the sun off the dash. $10.00 . I’m gonna give it a try. Anybody else tried this?
It's what I am using. It helps some...but I honestly don't have much issue with the heat. Mines a 2 seater, which I suspect helps that a lot. I did it as much for noise. I am getting ready to replace it with a cheap rubber or vinyl mat.

  • Like
Reactions: Backwoods
R

RandyM

New Member
Nov 3, 2020
1
4
3
Seabrook TX
Ownership

  1. 700-4
I used the

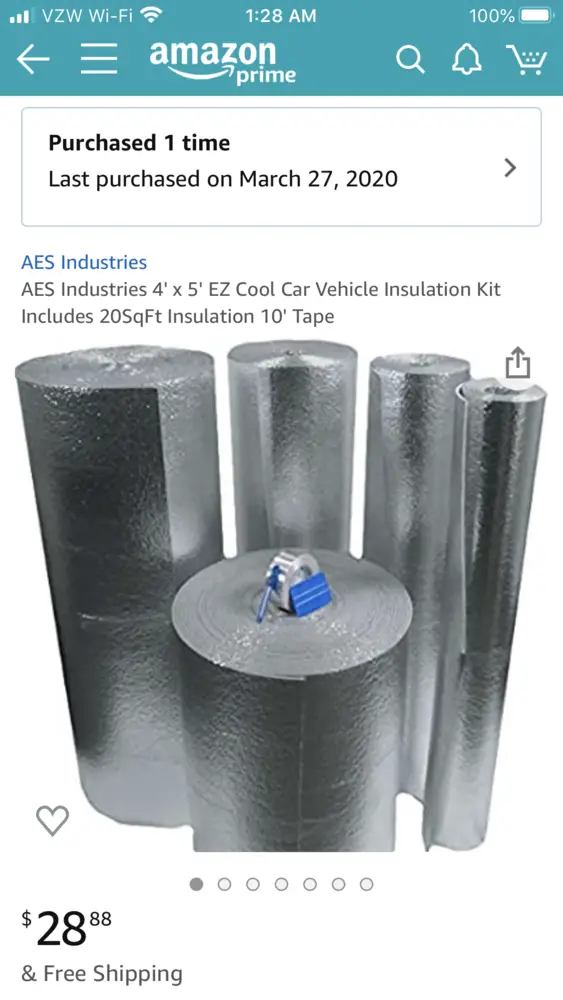

AES Industries 4' x 5' EZ Cool Car Vehicle Insulation Kit Includes 20SqFt Insulation 10' Tape from amazon:
