  1. 1000-5
Does anyone know what connector honda uses so you can just buy the other piece and make your own harness?
I spent $35 on random connections and didn't even get close. Grab the product @ohanacreek suggested above.

  • Like
Reactions: TripleB
TexasHeat

TexasHeat

Member
Jan 28, 2018
30
25
18
Texas
Ownership

  1. 1000-5
PM @Hondasxs for shipping rates across the border.
https://hondasxs.com/conversations/add?to=Hondasxs
I’m just wondering if anyone has tried using a fuse tap with pigtail instead of fighting to find the correct wire for Key On power. As long as you install it on the power side of the fuse you are basically doing the same thing as tapping into a wire without the damage. Of course then there is no need to find the correct wire if you use it on the ACC fuse. It works perfectly for me.

C984FD26 3347 4442 AF45 6126DD94BF4E

G

graybear

Well-Known Member
Nov 20, 2013
118
318
63
East Idaho
Ownership

  1. 1000-5

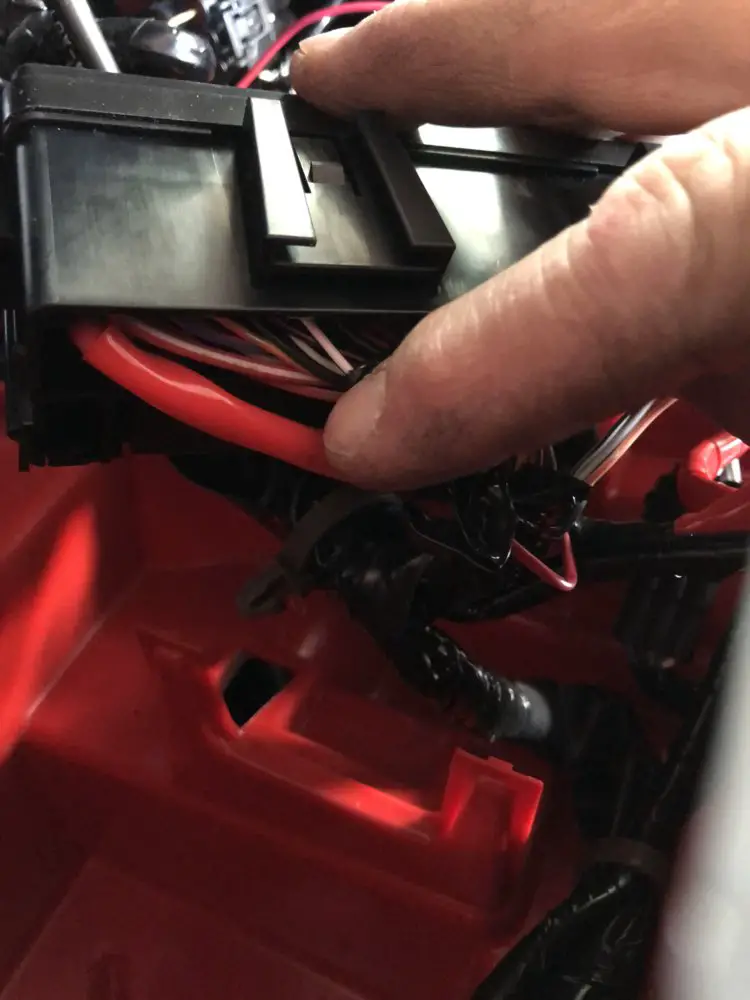

I read through every post in the section last night and there seemed to be confusion over which wire to use for keyed power tap. I took a picture to help explain. when you pull the fuse power block up that is located under the hood next to the battery if you look on the left side of the block, the 5th wire from the top on the left side and not on the battery side of the fuse block you will see a white wire with a black stripe. That is the wire you want for keyed poser for your accessories. It is the wire by my finger. I tapped it and wrapped it in plastic tape. I hope this helps if you are confused as I was. My pioneer is a 2018 1000-5 for reference.
IMG 1410

Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,510
67,230
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
I read through every post in the section last night and there seemed to be confusion over which wire to use for keyed power tap. I took a picture to help explain. when you pull the fuse power block up that is located under the hood next to the battery if you look on the left side of the block, the 5th wire from the top on the left side and not on the battery side of the fuse block you will see a white wire with a black stripe. That is the wire you want for keyed poser for your accessories. It is the wire by my finger. I tapped it and wrapped it in plastic tape. I hope this helps if you are confused as I was. My pioneer is a 2018 1000-5 for reference.View attachment 136983
Yep. Thanks.

Confusion comes from people just picking the first white wire with black strip they see without making sure it's the one for the ACC fuse.

There are several similar wires for different things.

Sent from my SM-G955U using Tapatalk

JimmyA

JimmyA

Well-Known Member
Oct 8, 2017
1,644
5,504
113
Northeast texas
Ownership

  1. 700-4
According to Honda Accessory Instructions. Here is the recommended location for Key On Power for the Honda Pioneer 1000 Side by Side!

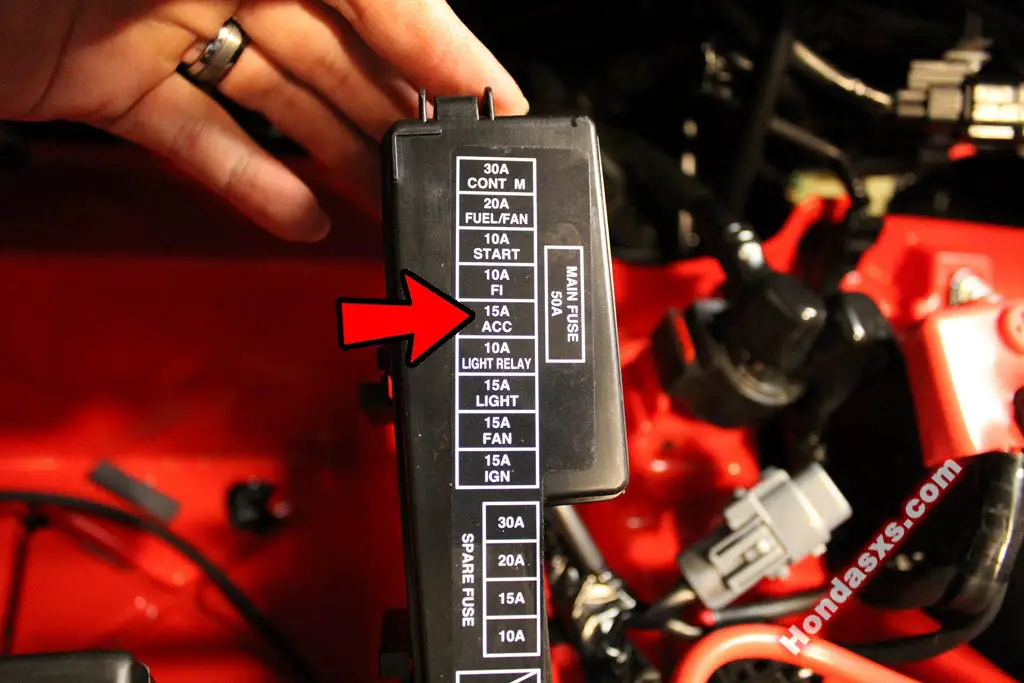

Honda suggest tapping the 15A Acc Fuse on the output side. Here you will find 2 WHITE with a BLACK STRIPE wires coming out of the output side of the fuse. You will need to untape the wire bunch to access them. It is recommended that you use a posi-tap (not shown) vs the wire tap-ins (shown) for a better error free connection.

View attachment 8398 View attachment 8399 View attachment 8400
Good info for future addons. Thanks

TripleB

TripleB

Well-Known Member
Lifetime Member
Aug 13, 2018
15,686
140,698
113
Caryville, Tennessee
Ownership

  1. 1000-3

  2. 1000-5
Yep. Thanks.

Confusion comes from people just picking the first white wire with black strip they see without making sure it's the one for the ACC fuse.

There are several similar wires for different things.

Sent from my SM-G955U using Tapatalk
I did the same thing this winter. I kept searching and finally found I had tapped the wrong wire.

J

jfreak

New Member
Jul 25, 2016
10
10
3
PNW
Ownership

  1. 1000-5
Got most my accessories wired (still need a winch)
This guide was a huge help, so I thought I'd post a couple pictures.

Used factory Honda rollbar clamps to mount the reverse lights.
Stinger battery isolator and blue seas fuse, buss and distro blocks.

IMG 20190714 130108 IMG 20190714 130016 IMG 20190714 130034 IMG 20190714 130006

R

Rxtim83

New Member
Jul 10, 2019
4
7
3
PA
Ownership

  1. 1000-5
I’m going to be installing a 6 way fuse box. Would it be acceptable to pull power to the box from this accessory wire? So that everything would be keyed on and off?

advertisement
Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,510
67,230
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
I’m going to be installing a 6 way fuse box. Would it be acceptable to pull power to the box from this accessory wire? So that everything would be keyed on and off?
No.
This "key-on" source is limited to 15 amps.

You should use it to control relays or maybe a few small amp draw accessories.
Ex. Dome light, winch control, USB port, volt meter, switch backlights.

Sent from my SM-G955U using Tapatalk

  • Like
Reactions: Dirtstiffs-1000
R

Racingsports

New Member
Aug 5, 2019
5
1
1
Virginia
Ownership

  1. 1000-5
I have a 2016 Pioneer 1000-5. Recently I turn the key on and my 15a ACC fuse blows. I disconnected the wire from the 12v cig lighter. Replaced fuse and it still blows. Any clue to why it would do this?
I don’t think a wire melted in the main harness?

Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,510
67,230
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
I have a 2016 Pioneer 1000-5. Recently I turn the key on and my 15a ACC fuse blows. I disconnected the wire from the 12v cig lighter. Replaced fuse and it still blows. Any clue to why it would do this?
I don’t think a wire melted in the main harness?
Have you tapped any wires anywhere? Like at the fuse panel?
Do you have anything hooked up to the backup alarm port?



Sent from my SM-G955U using Tapatalk

R

Racingsports

New Member
Aug 5, 2019
5
1
1
Virginia
Ownership

  1. 1000-5
Have you tapped any wires anywhere? Like at the fuse panel?
Do you have anything hooked up to the backup alarm port?



Sent from my SM-G955U using Tapatalk
No. Looks like water or mud may have gotten in there going to clean it and try a new fuse tomorrow

R

Racingsports

New Member
Aug 5, 2019
5
1
1
Virginia
Ownership

  1. 1000-5

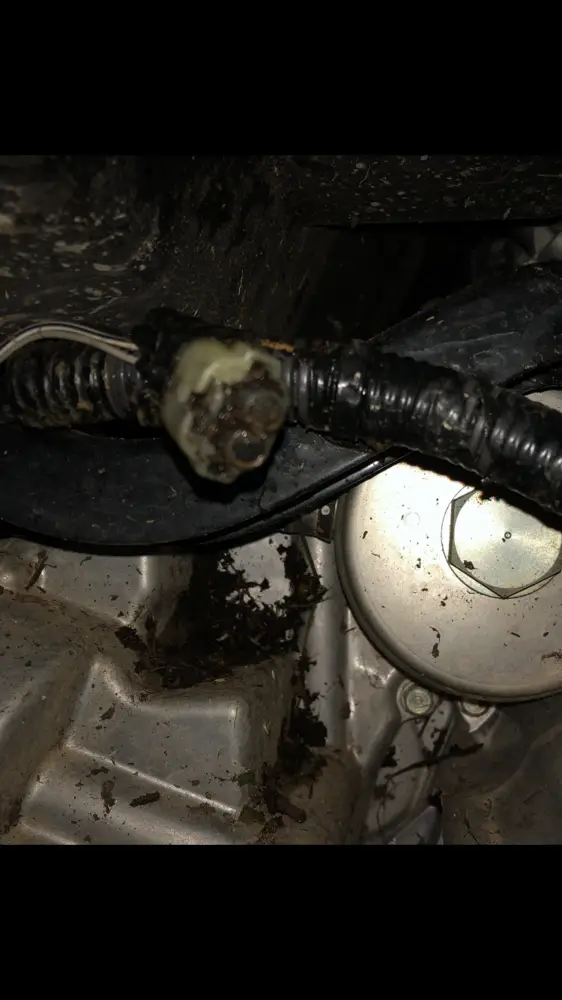

That looks normal. It's a sealed plug with a dummy plug.

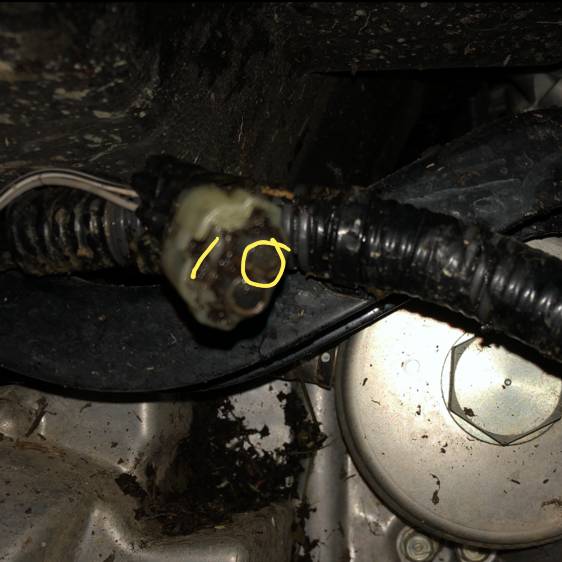

Tip. Grab the circle with a pair of needle noes while lifting the clip at the line and pull. View attachment 145993

Sent from my SM-G955U using Tapatalk
Any other thoughts what is causing the fuse to blow. It’s still under warranty but it’s a 2 hour haul to get it there.

Hondasxs

Hondasxs

Club Founder
Staff member
Lifetime Member
Supporting Member
Feb 13, 2013
18,510
67,230
113
Charlotte, NC
HondaSxS.com
Ownership

  1. 1000-5

  2. Talon R
Just wire short.

Only the Cig. and Backup sockets feed off the 15a ACC circuit.

Do you have any accessories? How are they powered.
If yes, where did you collect your key-on source? Say for the winch?

Sent from my SM-G955U using Tapatalk

  • Like
Reactions: TripleB
