P1000 Key On Power, Illumination, and backup source! - 2016 through 2021 Honda Pioneer 1000 Only

[JenElio]

Is there a pigtail plug you can buy for this?

Yup! Check the club store from the drop down menu. Lots of plug n play stuff there 👍



[Admin]



[daryladams]

According to Honda Accessory Instructions. Here is the recommended location for Key On Power for the Honda Pioneer 1000 Side by Side!

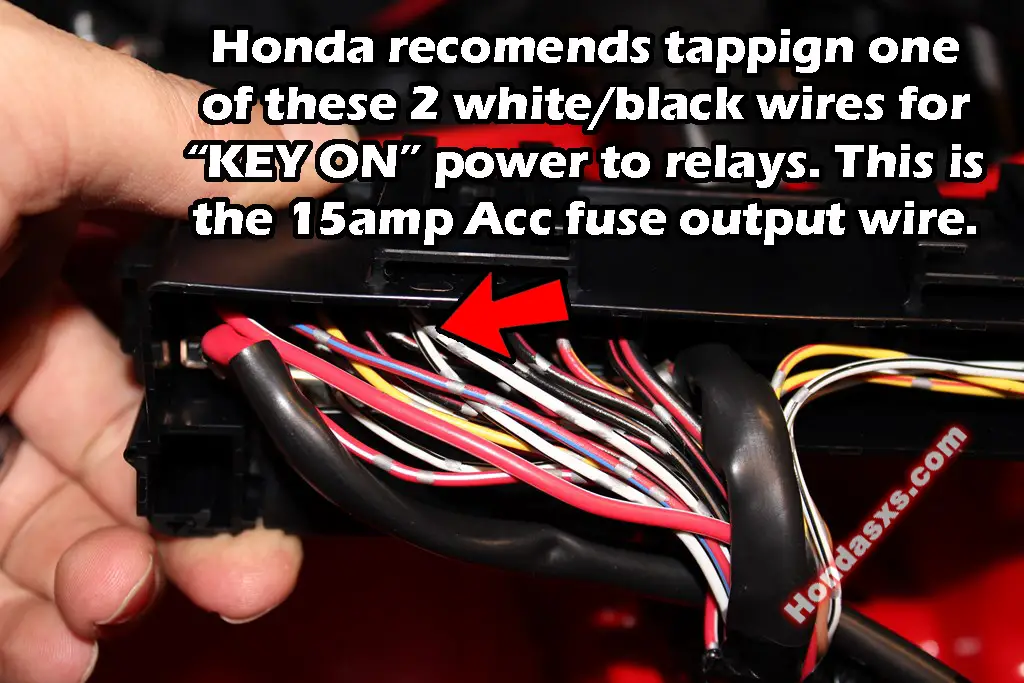

Honda suggest tapping the 15A Acc Fuse on the output side. Here you will find 2 WHITE with a BLACK STRIPE wires coming out of the output side of the fuse. You will need to untape the wire bunch to access them. It is recommended that you use a posi-tap (not shown) vs the wire tap-ins (shown) for a better error free connection.

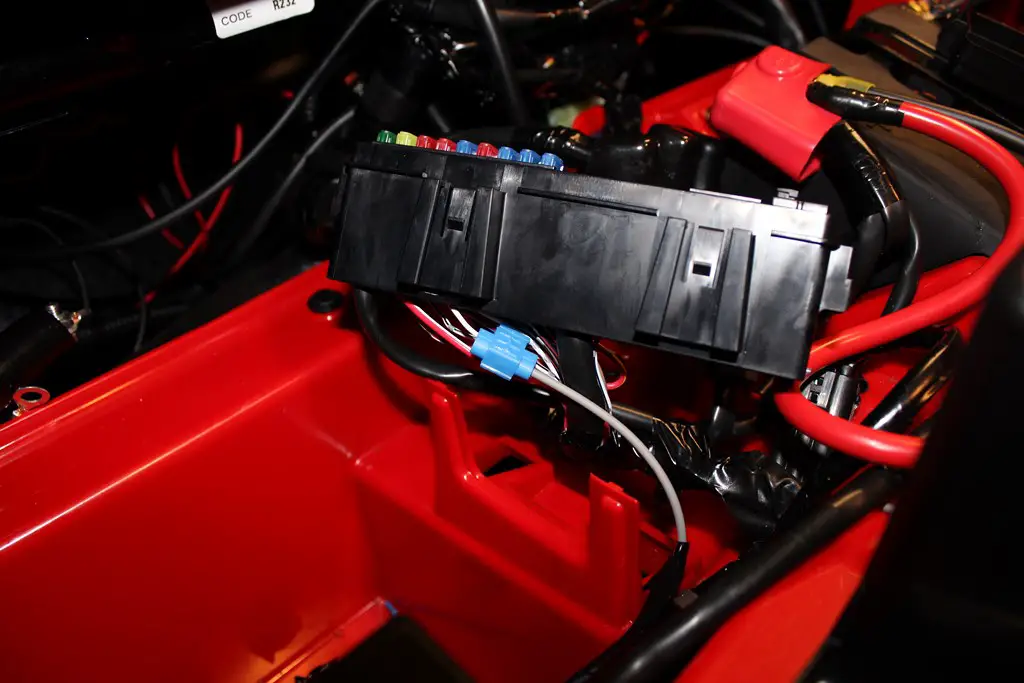

View attachment 8398 View attachment 8399 View attachment 8400

worked perfectly. thanks for the great detail.



[mjn]

worked perfectly. thanks for the great detail.

I'm a little late to the party, but glad @CumminsPusher steered you in the right direction!



[Spoonbill]

Thank you for that information. I hope those watching in Electrical help see it.

I need all the help I can regarding accessory installation. DO we have a section of the forum specifically designed for Electrical and Accessory Installation??



[FelesRex]

Does anyone know where to tap into for light on power on a 2020 Limited Edition? The photos and instructions say it doesn't apply to LE models. Trying to finish wiring up the backlight on my switches. Thanks



[Neohio]

Does anyone know where to tap into for light on power on a 2020 Limited Edition? The photos and instructions say it doesn't apply to LE models. Trying to finish wiring up the backlight on my switches. Thanks

You are probably elbow deep in your wiring project. But consider using this for key on power.

KEY ON POWER Harness for Honda Pioneer 1000, 700, 500, and Talon 1000.

Quick and easy KEY ON Accessory power source for your Honda Pioneer. PLUG-N-PLAY No Splicing of wires. No Tapping of wires. 3ft lead easily reaches anywhere under the hood. This kit plugs inline with OEM harness and provides a 12v positive lead. Use this Key-On Accessory wire to run the...

store.hondasxs.com



[Hillbillytnt]

Does anyone know where to tap into for light on power on a 2020 Limited Edition? The photos and instructions say it doesn't apply to LE models. Trying to finish wiring up the backlight on my switches. Thanks

Are you trying to get the lights on switches to come on with the key or just when the headlights are turned on. If you just want key on then the plug and play from the club store is the way to go. The other will require more work.



[Hondasxs]

That wire only has power when starting my 2021

You need to choose the ACC wire. NOT the starter wire.
Revisit and check again.



[Hondasxs]

Does anyone know where to tap into for light on power on a 2020 Limited Edition? The photos and instructions say it doesn't apply to LE models. Trying to finish wiring up the backlight on my switches. Thanks

For LE models. There is a Diode in the fuse box.
It has a white/black wire. a brown wire. and a Blue wire.
The brown wire is what you need to tap. This is the tail light power wire.
When headlights are on. High OR Low. the brown wire has power.
It would be fine to power switch backlighting.
Any other other uses you should use a relay.



[Paul_H_L11]

According to Honda Accessory Instructions. Here is the recommended location for Key On Power for the Honda Pioneer 1000 Side by Side!

Honda suggest tapping the 15A Acc Fuse on the output side. Here you will find 2 WHITE with a BLACK STRIPE wires coming out of the output side of the fuse. You will need to untape the wire bunch to access them. It is recommended that you use a posi-tap (not shown) vs the wire tap-ins (shown) for a better error free connection.

View attachment 8398 View attachment 8399 View attachment 8400

Just a friendly suggestion; those Scotch-Lok taps like the blue one you have in the picture are a very quick easy "stereo shop" way to tap into a circuit. But.... electricity in the presence of moisture causes corrosion. It will work when you first make the connection, but it will almost certainly fail. That is why all OEM plugs are sealed from moisture.



[bumperm]

I was going to tap into the switched negative for the back up lights, which are mounted high, but then thought about it a bit more. I want the lights for backing up after dark, which won't happen very often, so I don't mind flipping a switch. I also want the lights for camping or work lights, so want to be able to use them key off. Finally decided to "go simple", lighted dash rocker from my aux battery "always on" buss, no need to use the switched negative. Wire run was simple too, up the right front roll bar (with the roof led bar wiring run), then to the rear on the top of the roll bar.



[Greg1000]

I'm new here so hello everyone! I just wanted to say thank you to all the contributors, the info here is priceless thanks again!!!



[bumperm]

I'm new here so hello everyone! I just wanted to say thank you to all the contributors, the info here is priceless thanks again!!!

Well welcome!! I agree with you completely. I've gotten a ton of great ideas here. Hopefully I've shared a couple too.



[Bama-Daniel]

I'm new here so hello everyone! I just wanted to say thank you to all the contributors, the info here is priceless thanks again!!!

Not sure if you did an introduction or not but its a good way to meet people and see where ever is from.



[HarrisJoeHarris]

Okay so say one gets the lights hooked up and they work in reverse several times and then they quit what is the fuse for that ?



[Neohio]

Okay so say one gets the lights hooked up and they work in reverse several times and then they quit what is the fuse for that ?

10a accessory fuse underhood i believe.



[HarrisJoeHarris]

OK I have checked all the fuses and they're all good I was wondering if there was some somewhere else. But I think I found the problem it was in the wiring I guess one of the terminals came looseI checked all the wiring and found that and they're working now. Thank you for the help.



[ODAMO]

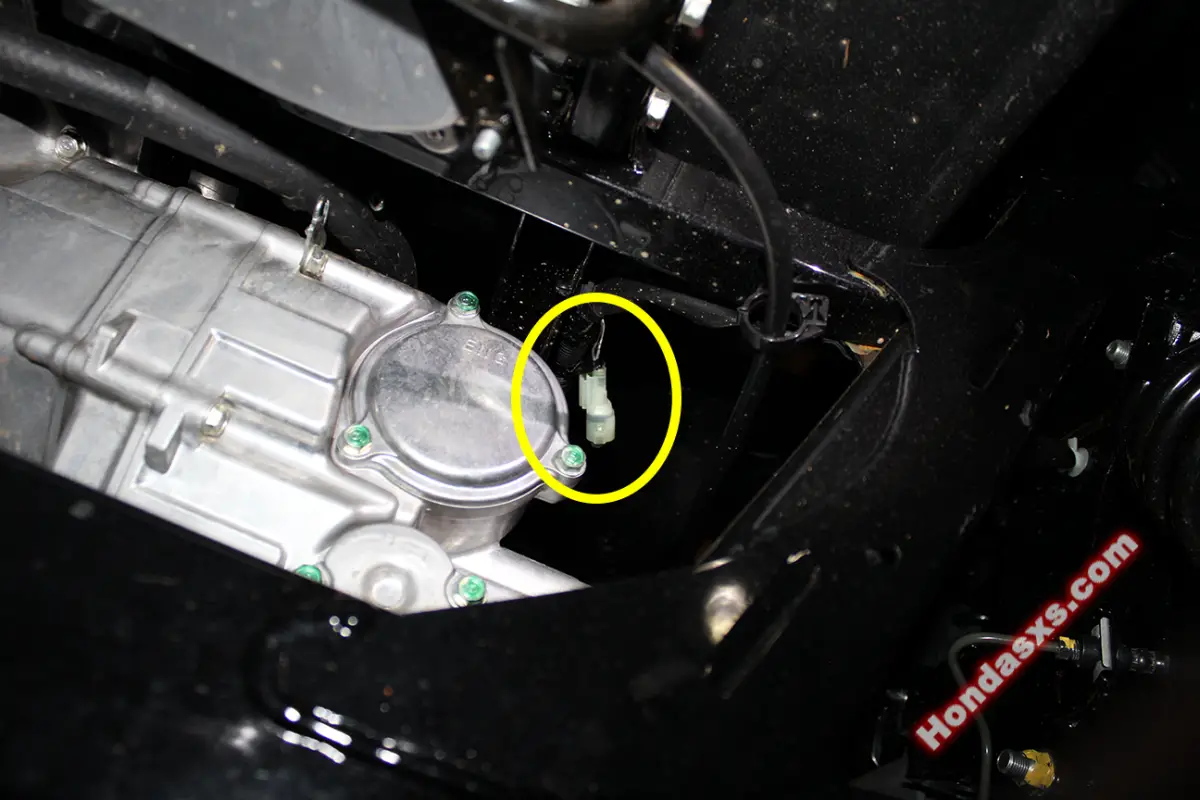

View attachment 9622

These two

Is this the same on 2022 models.



[Hondasxs]

Is this the same on 2022 models.

Yes.

Sent from my SM-G996U using Tapatalk



[ODAMO]

@Hondasxs . The three aux switches on 22 deluxe. Where is the termination end on those 3 ? It looks like they go under the front plastic, Do they double back and end in the big blue ball of tape Near the fuse panel?
