P1000 My 2021 1000-5 Build…so far

[Scottfsu]

SuperAtv front and rear a-arms
SuperAtv Heavy Duty Axles
SuperAtv lift kit
SuperAtv windshield
SuperAtv 6000lb winch
Dual Battery, fuse block, dual Stinger relays (allows use of a hidden push button for aux power wout key)
Dash kit w - Boss stereo, switches, volt meter
Front 50 inch flood/spot light, rear and side lights, led whip lights, led wheel well lights
Overhead speakers w/ wet sounds AS-8 subwoofer under seat
SuperAtv snorkel kit
Frontline 556 wheels w 30x10 -14 Frontline ACPs
Mudbusters XL fender extensions
Fox Shocks
Under seat heat exhaust fan
Panel storage mod
Rear dust screen



[gullyjumper]

Wow ! You have really done a lot to it. Looks good !



[Backwoods]

That looks good and has a lot of nice stuff.



[packer58]

Looks great, dang.......do you ever sleep ???



[Todd627]

Welcome from The Great Lakes State (not to be confused with a great state though).

Good lookin rig!!

#NTC



[P1K5Dave]

How do you like the Frontlines? I almost got them lasttime around, but settled on the BFG KM3's. My rationale was that these tires were more mud-aggressive than I needed in my normal riding.

I'd like to look at them next time. Sand performance has been below my requirements with the KM3's, but then, these may not be much better there.



[Scottfsu]

How do you like the Frontlines? I almost got them lasttime around, but settled on the BFG KM3's. My rationale was that these tires were more mud-aggressive than I needed in my normal riding.

I'd like to look at them next time. Sand performance has been below my requirements with the KM3's, but then, these may not be much better there.

I love the frontlines. Mud, trail, and street they’re awesome. Really smooth ride. Sand, they’re ok but do tend to dig instead of float.



[Scottfsu]

Looks great, dang.......do you ever sleep ???

Not enough. I’ve got many hours into just the wiring alone. Adding accessories has become a stress relieving hobby.



[StewB]

That looks good and has a lot of nice stuff.

Is it just me, or does Backwoods' photo give you double vision?



[Scottfsu]

Is it just me, or does Backwoods' photo give you double vision?

🤣



[packer58]

Is it just me, or does Backwoods' photo give you double vision?

Just stare at it for a while and it'll go away .....



[Smitty335]

🤣

He's never had that effect on me? HA! NoMO



[Diverdon]

Great looking ride. I take delivery of my new 1k-5 in a few days and can’t wait to start a build.



[Scottfsu]

Great looking ride. I take delivery of my new 1k-5 in a few days and can’t wait to start a build.

It’s addictive. I’ve watched so many “how to” videos and read so many posts about modifications. The first one I started with was the dual battery set up. I also used 2 relays when I did it along with a hidden push button that activates all the accessories without the key on. FYI…when the key is on, engine hours are adding up.
Once you have the flexibility of 2 batteries, it opens the door for lots upgrades with electronics.



[Scoop]

I also used 2 relays when I did it along with a hidden push button that activates all the accessories without the key on.

I used a DPDT Carling switch to accomplish this. No need for a second duty-rated relay.

Available in the Club Store.

AUX & Key-on Rocker Switch, DPDT, ON/OFF/ON.

DPDT ON/OFF/ON switch. OTR Carling V-Series This is a maintained ON/OFF/ON switch, not momentary. Two independently wired LEDs Rated 20A 12V No rear barriers between terminals. Insulated 1/4" female quick disconnect terminals can be used. This is a 10 terminal switch. O-Rings installed on the...

store.hondasxs.com



[Scottfsu]

I used a DPDT Carling switch to accomplish this. No need for a second duty-rated relay.

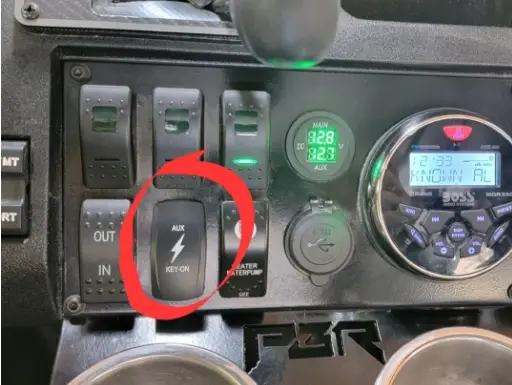

View attachment 367695

Available in the Club Store.

AUX & Key-on Rocker Switch, DPDT, ON/OFF/ON.

DPDT ON/OFF/ON switch. OTR Carling V-Series This is a maintained ON/OFF/ON switch, not momentary. Two independently wired LEDs Rated 20A 12V No rear barriers between terminals. Insulated 1/4" female quick disconnect terminals can be used. This is a 10 terminal switch. O-Rings installed on the...

store.hondasxs.com

I’ve never heard of these. I’ll have to read up and learn how to wire it. The 2 relays were fairly simple.



[Scoop]

I’ll have to read up and learn how to wire it.

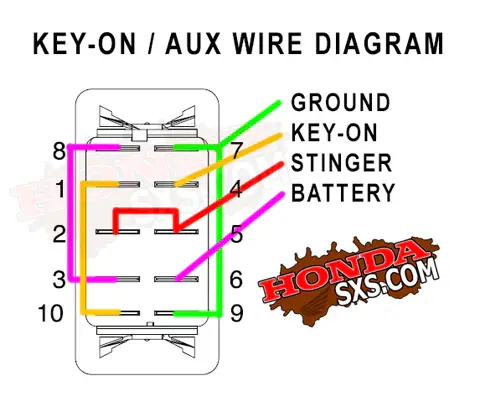

Super simple. Wiring diagram is right there on the Club store product page:



[Scottfsu]

Super simple. Wiring diagram is right there on the Club store product page:

View attachment 367714

When it’s on, does it prevent the dash display and hour meter from being on?



[Scoop]

Correct. It has nothing to do with supplying power to the OEM electrical circuit (e.g., dash display, initiation, etc.).

My accessories are powered from a fuse box that obtains power from the 2nd battery. That fuse box is energized one of two ways:

When the DPDT switch in the key-on position, the fuse box is energized ONLY when power is sent to the relay (completing the circuit that powers the fuse box) from a key-on power source (a circuit only powered when the key is on).

When in the AUX position, the relay circuit closes (to power the fuse box) because 12v is sent to the relay from an always-on power source (e.g., directly from the battery).

When in the middle position (the DPFT is an ON/OFF/ON switch), the fuse box is NOT powered at all, regardless of key position.

In short, the switch in AUX position powers the relay so it thinks they key is on by using 12v always on power.
