P1000 My dual battery setup

[Johnny787]

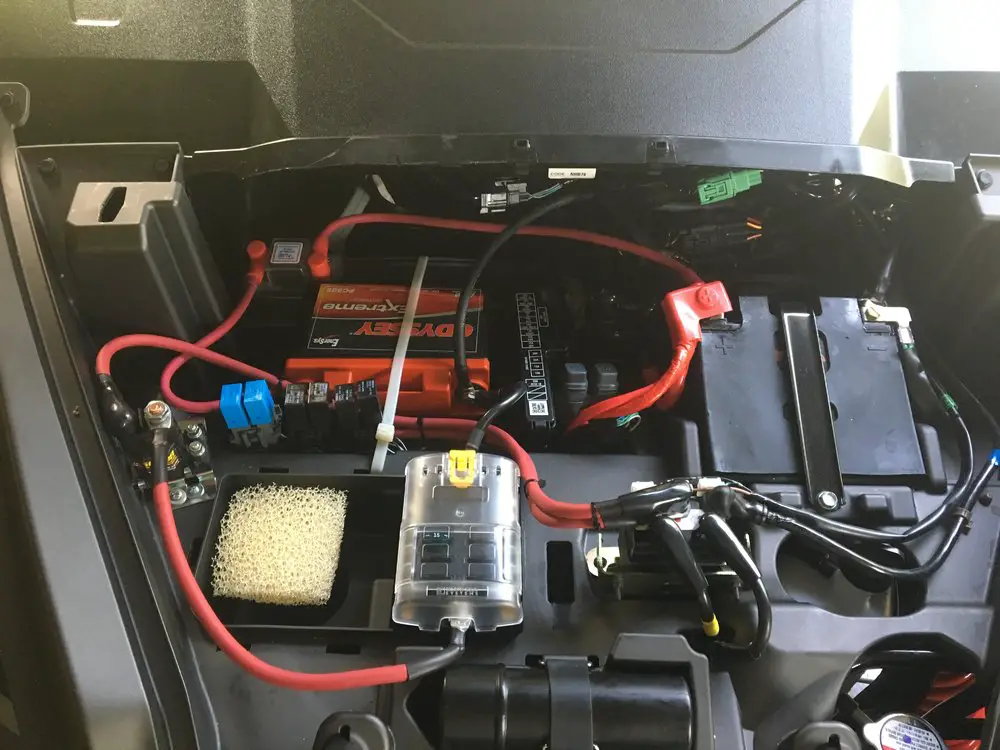

Yesterday I got a good start on my dual battery setup. I am doing it similar to "nc dragon" on youtube. I'm holding off wiring up all the switches and accessories until my switch panel comes in.

I go from primary battery to isolator to second battery to winch to relay to fuse panel. I plan to run the ssv stereo, front light bar and rear light bar off the fuse block.

I'm also planning on using the same radiator hose to extend my intake as ncdragon used. I used the factory setup for the winch which is why my power block is mounted where it is.



[Admin]



[Smitty335]

Yesterday I got a good start on my dual battery setup. I am doing it similar to "nc dragon" on youtube. I'm holding off wiring up all the switches and accessories until my switch panel comes in.

I go from primary battery to isolator to second battery to winch to relay to fuse panel. I plan to run the ssv stereo, front light bar and rear light bar off the fuse block.

I'm also planning on using the same radiator hose to extend my intake as ncdragon used. I used the factory setup for the winch which is why my power block is mounted where it is.

View attachment 55839

Do you have the battery model # handy? I'm in the process of installing a second battery.



[Johnny787]

Do you have the battery model # handy? I'm in the process of installing a second battery.

https://www.amazon.com/gp/product/B0002ILK72/?tag=sxsweb24-20



[Smitty335]

https://www.amazon.com/gp/product/B0002ILK72/?tag=sxsweb24-20

Thanks!



[ripHST]

Yesterday I got a good start on my dual battery setup. I am doing it similar to "nc dragon" on youtube. I'm holding off wiring up all the switches and accessories until my switch panel comes in.

I go from primary battery to isolator to second battery to winch to relay to fuse panel. I plan to run the ssv stereo, front light bar and rear light bar off the fuse block.

I'm also planning on using the same radiator hose to extend my intake as ncdragon used. I used the factory setup for the winch which is why my power block is mounted where it is.

View attachment 55839

I was thinking of putting my Blue Sea where you have it. I’m trying to work out how to attach it though. How did you attach yours?



[Dragon21]

Yesterday I got a good start on my dual battery setup. I am doing it similar to "nc dragon" on youtube. I'm holding off wiring up all the switches and accessories until my switch panel comes in.

I go from primary battery to isolator to second battery to winch to relay to fuse panel. I plan to run the ssv stereo, front light bar and rear light bar off the fuse block.

I'm also planning on using the same radiator hose to extend my intake as ncdragon used. I used the factory setup for the winch which is why my power block is mounted where it is.

View attachment 55839

Glad to see my video is helpful. But really its the members of this forum that gave me all the ideas so i cant take credit. lots of good info here and tons of helpful people



[silverbullet]

Glad to see my video is helpful. But really its the members of this forum that gave me all the ideas so i cant take credit. lots of good info here and tons of helpful people

Is there anyway you could post a diagram on how you wired up your dual power dual throw switch?



[Dragon21]

Is there anyway you could post a diagram on how you wired up your dual power dual throw switch?

Do you have the same switch?



[silverbullet]

Do you have the same switch?

Yes 7 prong



[LJSXS]

Yesterday I got a good start on my dual battery setup. I am doing it similar to "nc dragon" on youtube. I'm holding off wiring up all the switches and accessories until my switch panel comes in.

I go from primary battery to isolator to second battery to winch to relay to fuse panel. I plan to run the ssv stereo, front light bar and rear light bar off the fuse block.

I'm also planning on using the same radiator hose to extend my intake as ncdragon used. I used the factory setup for the winch which is why my power block is mounted where it is.

View attachment 55839

I like this setup but have a question. Can someone explain to me what the stinger relay will do in this specific setup? Thanks



[TheHoover]

I like this setup but have a question. Can someone explain to me what the stinger relay will do in this specific setup? Thanks

It’s basically a kill spot in between the 2nd battery and fuse box. Hook it up to a switch and you can kill the current to fuse box.



[LJSXS]

It’s basically a kill spot in between the 2nd battery and fuse box. Hook it up to a switch and you can kill the current to fuse box.

Thank you!
