Talon Talon Patents - Rear engine, adjustable seats, center gearshift, cooler rack, one piece frame.

[Hondasxs]

HondaSxS.com has obtained more Honda Talon patents today. Similar to what has been posted before in the patents section here --> Honda Patents
You can see several features.

• Rear engine design
• Cockpit style seating.
• Bucket seats.
• Adjustable driver's seat
• One piece frame.

See these other patents
Talon? - Method And Apparatus For Vehicle Components - Patents 9481402
Future - Who's ready for the 2018 HONDA TALON SPORT SxS?
Future - Rumor - First Look - Honda's new 5 link rear suspension!
Future - The Honda Talon 1000 is coming!
Future - Spy photo of the Honda Pioneer i6.



[Admin]



[ToddACimer]

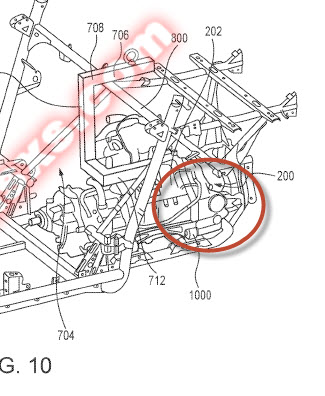

The rear engine photos are interesting. There's basically no room for a rear diff based on the photos of the frame but if you look at the sketch of the rear side of the engine in Figure 8, 9 and 10 it looks like they are using a rear transaxle with the differential bolted directly to the engine case. The sub transmission looks similar to the pioneer 1000 with the front drive shaft coming out the front right.



[Hondasxs]

The rear engine photos are interesting. There's basically no room for a rear diff based on the photos of the frame but if you look at the sketch of the rear side of the engine in Figure 8, 9 and 10 it looks like they are using a rear transaxle with the differential bolted directly to the engine case. The sub transmission looks similar to the pioneer 1000 with the front drive shaft coming out the front right.

View attachment 86186

I saw that and thought the same thing. Then I saw the smaller cycle and said. Na, that's just the oil and dct filter.
Really, we havent a clue.



[ToddACimer]

I saw that and thought the same thing. Then I saw the smaller cycle and said. Na, that's just the oil and dct filter.
Really, we havent a clue.

Tough to say without the rest of the machine in the images. Now that you mention the ENG and DCT filters, those are about the same place on our machines. Still not sure where the rear diff would go since the frame ends right there.



[Hondasxs]

Look here.
Future - Rumor - First Look - Honda's new 5 link rear suspension!



[Smitty335]

Look here.
Future - Rumor - First Look - Honda's new 5 link rear suspension!

View attachment 86187

What's different from Super ATV arms now? I like the 1000 TXXXXXX, a lot better.



[Hondasxs]

What's different from Super ATV arms now? I like the 1000 TXXXXXX, a lot better.

What u talking about there?

Sent from my SM-G955U using Tapatalk



[Smitty335]

What u talking about there?

Sent from my SM-G955U using Tapatalk

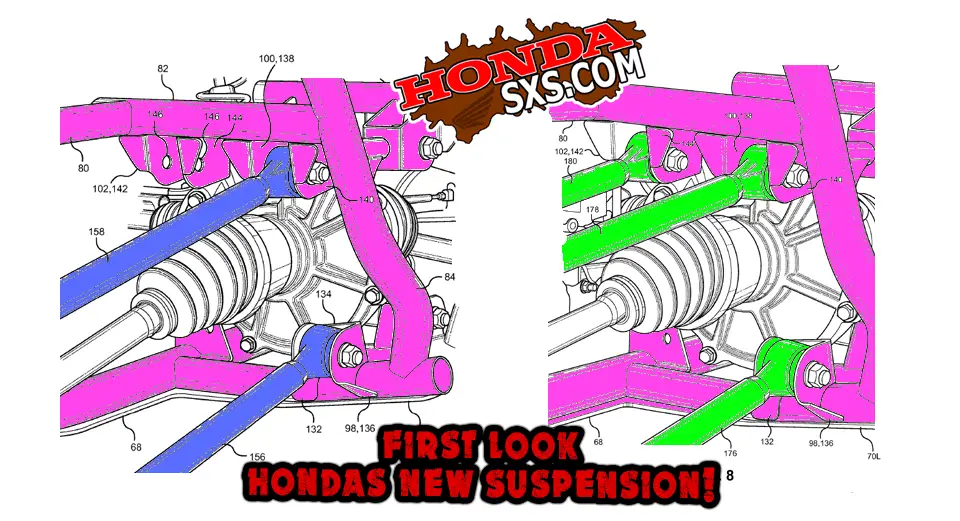

I counted the point of pivots , came up with four on first picture, five on second picture, both including axels?????



[Hondasxs]

Don't count the axles.
Second has 2 up front, and 3 at the diff.



[JACKAL]

I'll just leave this here.....



[ohanacreek]

I'll just leave this here.....

View attachment 86235

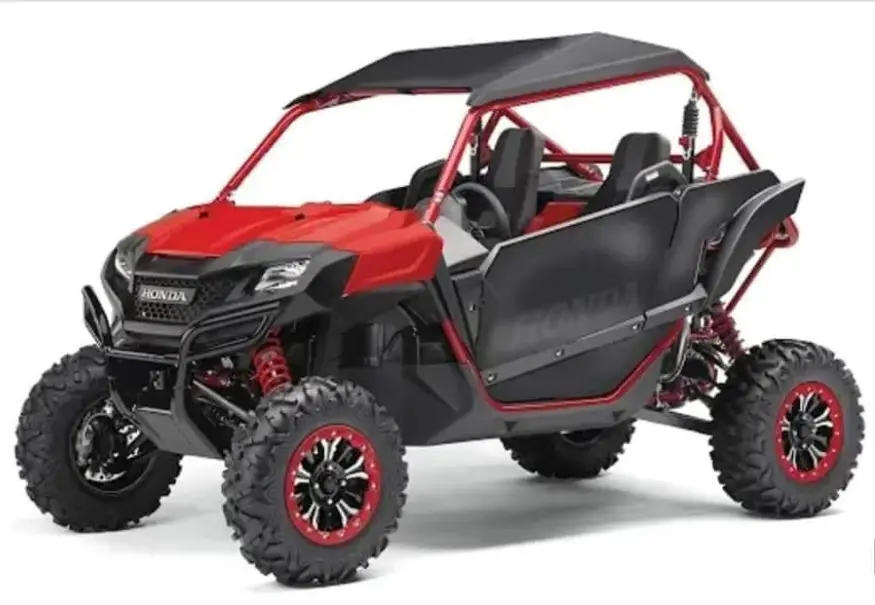

That’s a fairly good photochop job.



[JACKAL]

That’s a fairly good photochop job.

Of a Yamaha YXZ 1000R with a Honda skin on it. LMAO



[ToddACimer]

I'll just leave this here.....

View attachment 86235

Whew... Makes me feel better, it's ugly with no seats for my boys. I'll have to pass them like RZRs when we trail ride



[snuffnwhisky]

Looks like the '16 pioneer winch installation photo... lol.
