Electrical Questions

[North Woods]

This seems obvious but I want to check before I make assumptions. I bought the Honda Talon Under Hood “Keyed On” 40AMP Power Bus Bar- By TurnPro from the Club store along with a fuse box . That limits me to 40 amps of maximum draw total for the fuse box before it blows the inline fuse on the keyed on bus bar right?



[Admin]



[Hondasxs]

Correct. 40 amps is the max



[North Woods]

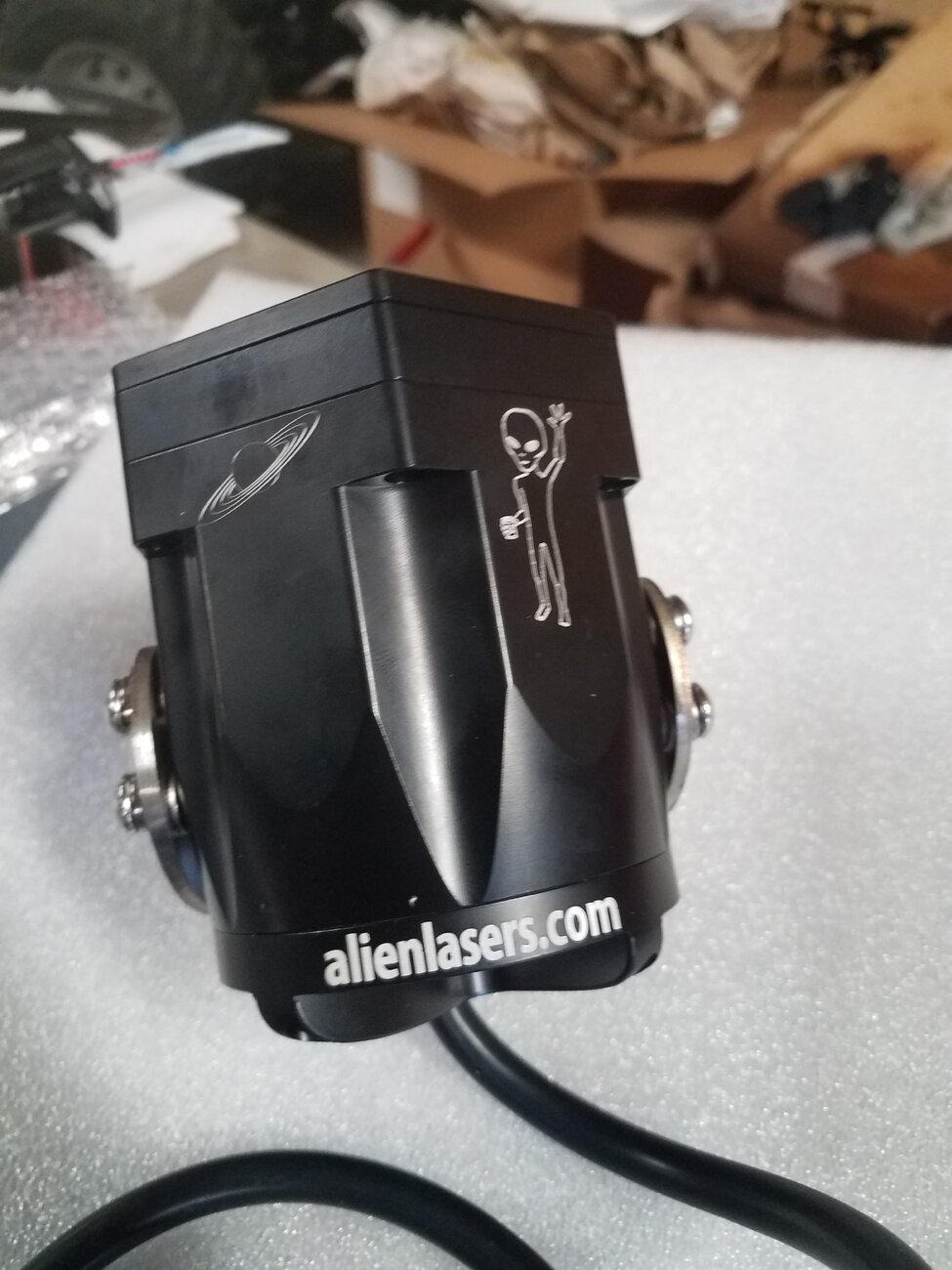

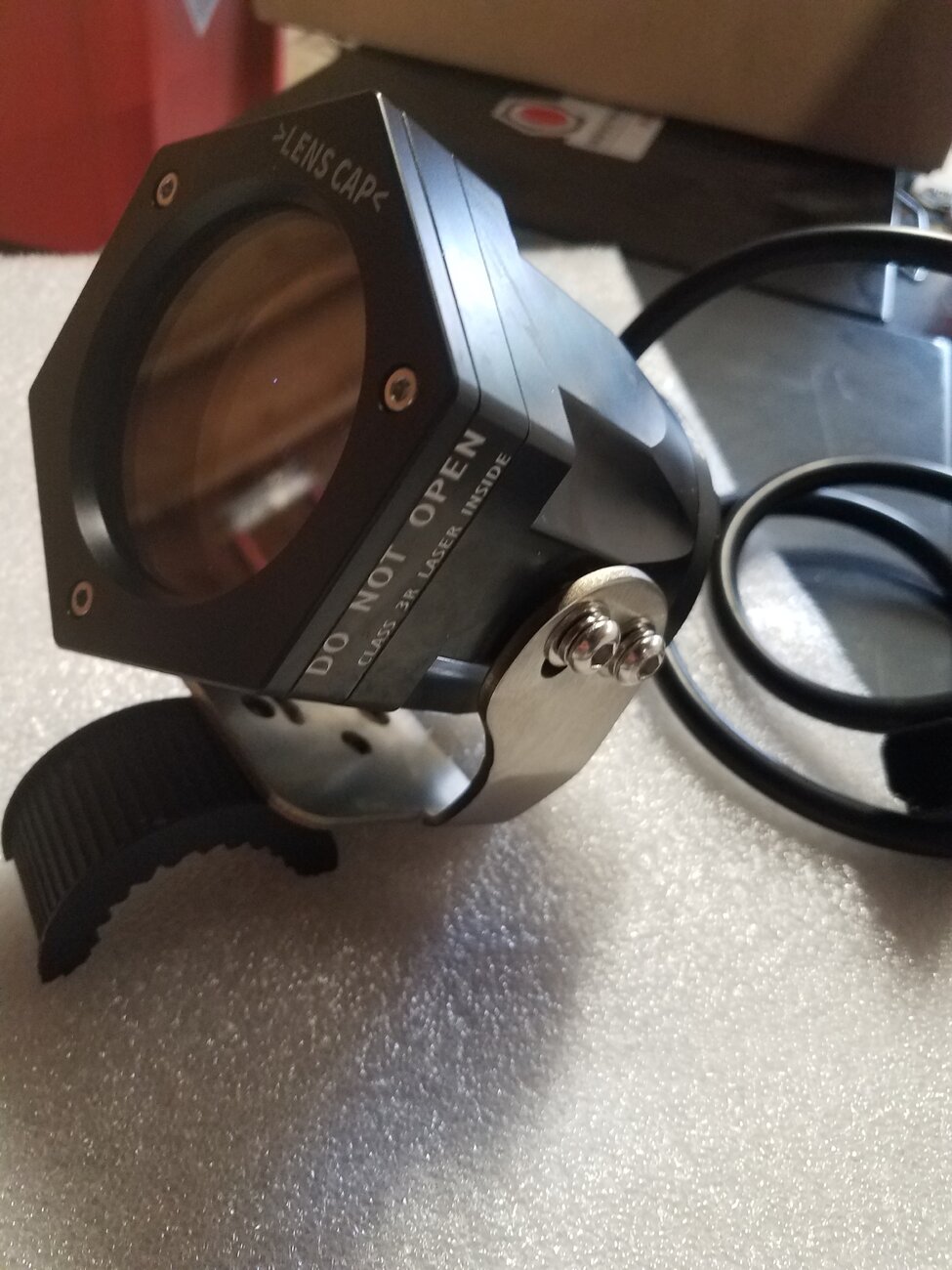

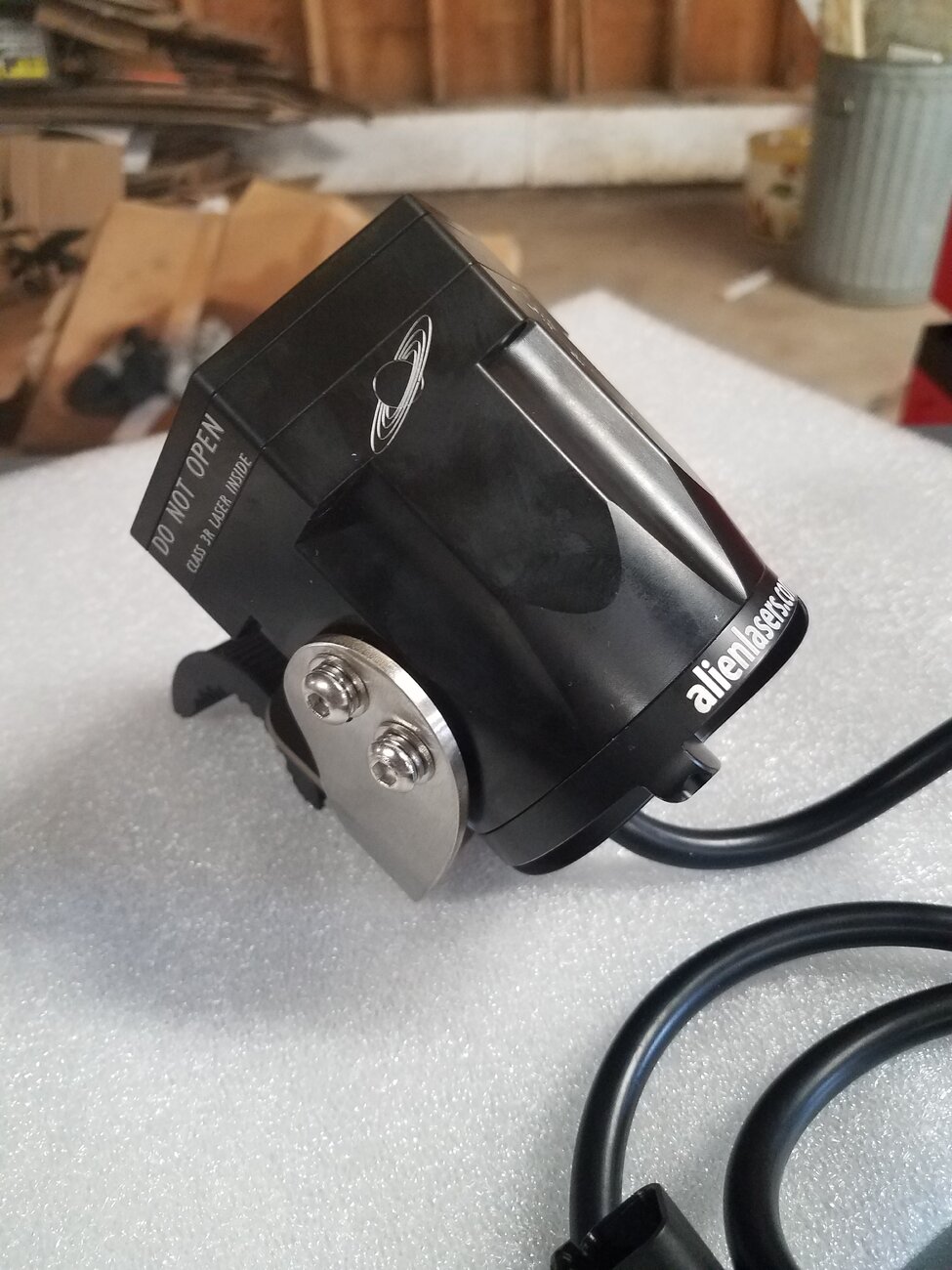

I was afraid of that... I bought some Alien Lasers which have a 30 amp inline fuse.
(my electrical knowledge is high enough that I just get into trouble so please correct any inaccuracies)

1. If I wire them to the fuse box there is a very high chance of blowing that 40 amp fuse when I run them and other accessories at the same time, so this is not a good idea.

2. I want these to be key on power so they don't accidentally get left on, but that's not possible with the current setup.

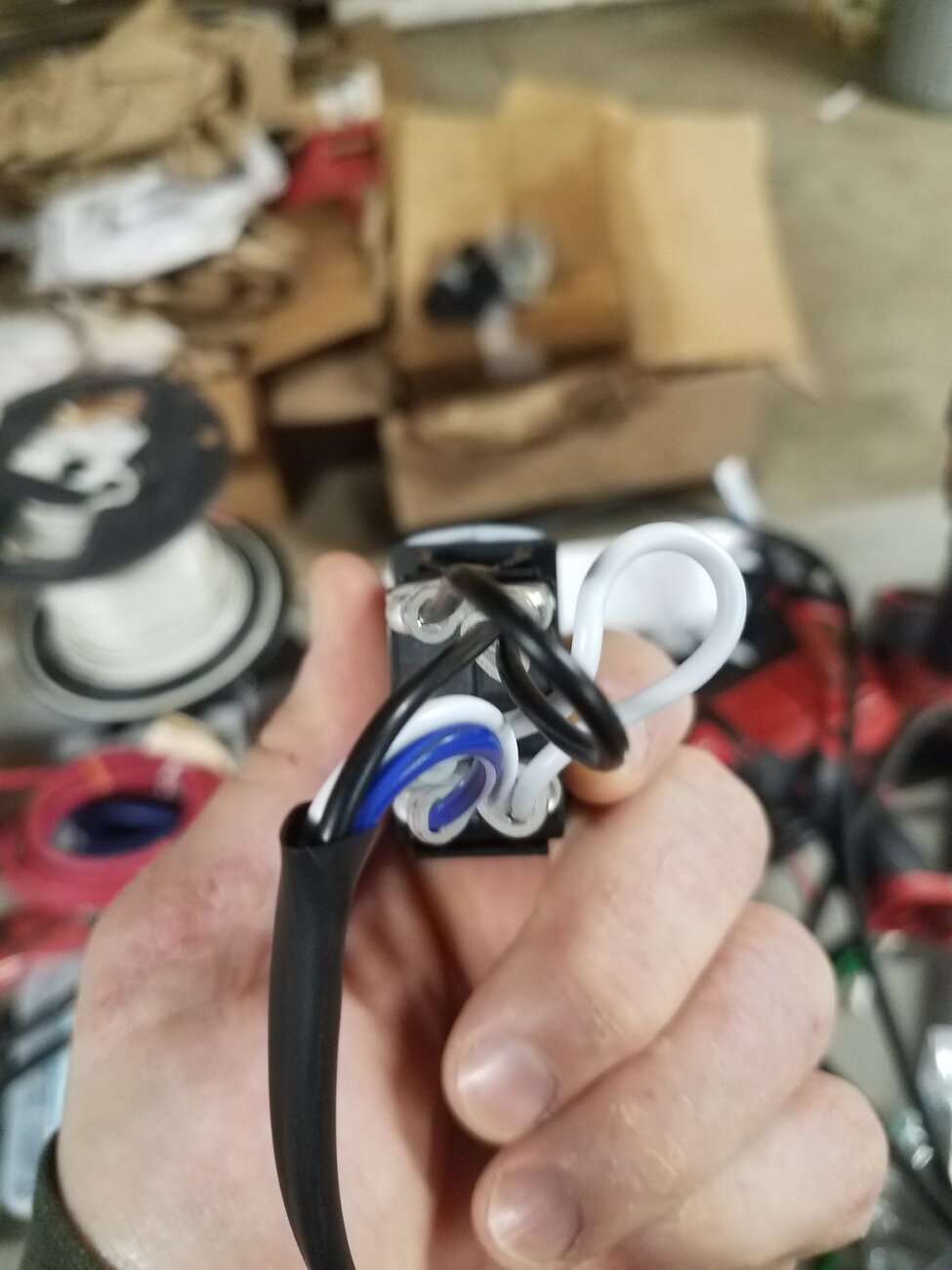

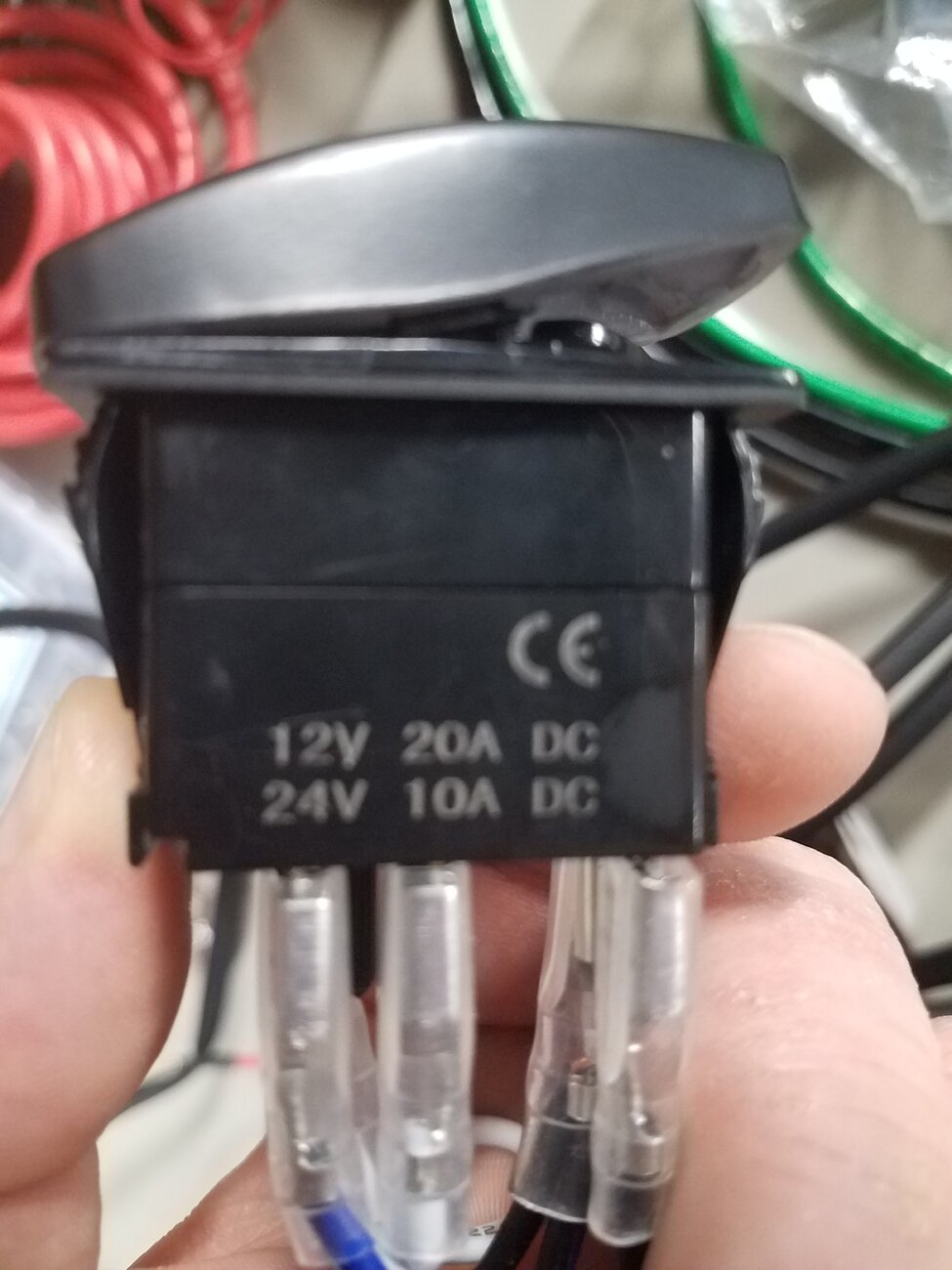

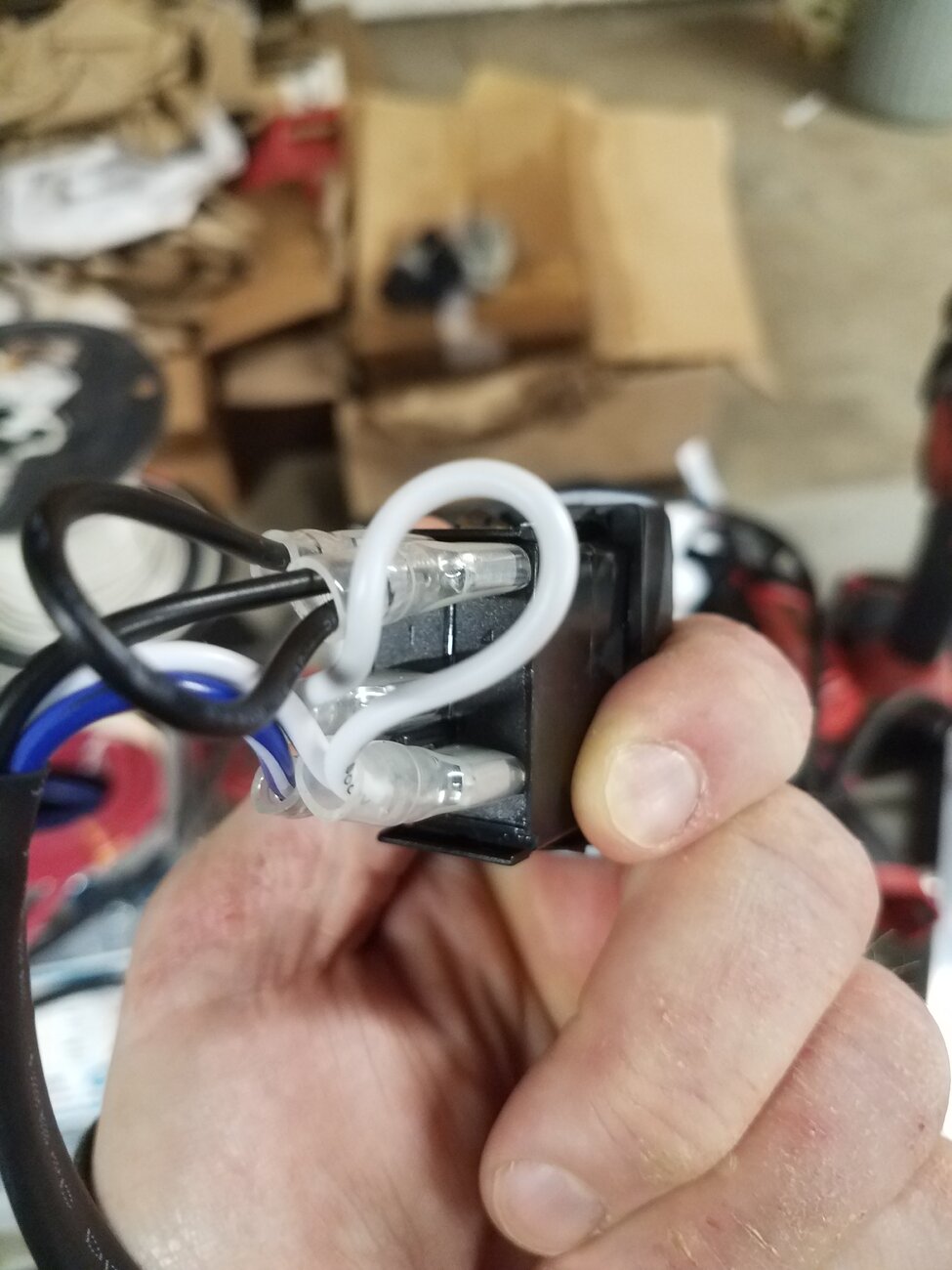

3. I could wire them to the battery but I would have to get key on power for the rocker switch illumination or it would be illuminated all the time.

Is my thinking correct for 1, 2 and 3?

If so, does anyone have a few suggestions on best course of action?
