P500 Getting new wire into existing battery box.

[The Green Goat]

The Green Goat, thanks for that pic. How tough was it to get the original positive wire that was on the battery up to the switch? I guess I need to get back down at the battery but what is the other red wire attached to? Thank you for your time.

Not hard; the wires all follow the same routing (under passenger seat). I didn't extend the factory (+) wire. I ran a new wire to it from the switch and made the connection in the battery box, as seen on the left side of the battery.

Positive wire routing: Battery (+) > BS-MAAB > back to factory (+) wire > wherever that wire goes...
Negative wire routing: per factory

I simply bolted the 2 terminals together and tied this connection out of the way so it didn't short the switch by accidentally touching the (+) terminal.



[Admin]



[rustyneversleeps]

Just throwing in some extra advice after doing this myself the last 2 weeks - go to the hardware store and get 2 longer bolts for the battery. I fought with the stock bolts forever before waving the white flag and driving to get longer ones.



[trigger]

Just throwing in some extra advice after doing this myself the last 2 weeks - go to the hardware store and get 2 longer bolts for the battery. I fought with the stock bolts forever before waving the white flag and driving to get longer ones.

Someone posted a while back they were having a problem with their machine. Turned out they had replaced the battery bolts with longer ones and they had worked loose. I put longer ones in mine too and never had the problem but something to be aware of I guess.



[CSP500]

Thanks for all the advice!



[bowhunterbill]

The Green Goat, that's nice! Did you run the factory wire that was connected to the original battery + up to the switch like below? So with this set up I would need to bring two positive wire and one negative from existing battery box.
View attachment 282546

But where do you mount the outboard motor?

Nice wiring work.




Sent from my iPhone using Tapatalk



[The Green Goat]

But where do you mount the outboard motor?

Nice wiring work.

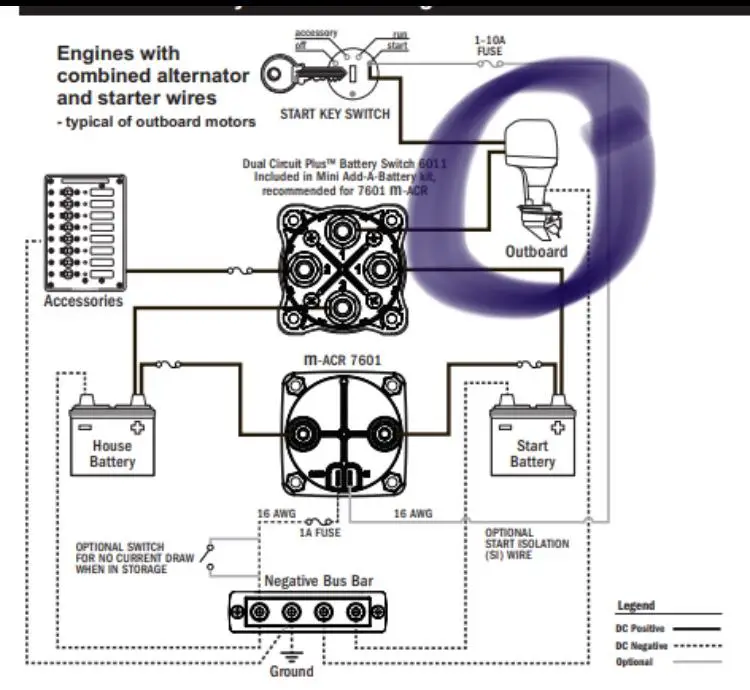

View attachment 282900


Sent from my iPhone using Tapatalk

Requires MFG Supply 2" hitch. Personally, I'm rocking a Verado 600.
