P1000m5 HondaSxS's Pioneer 1k, Build #2.

[Ragnar406]

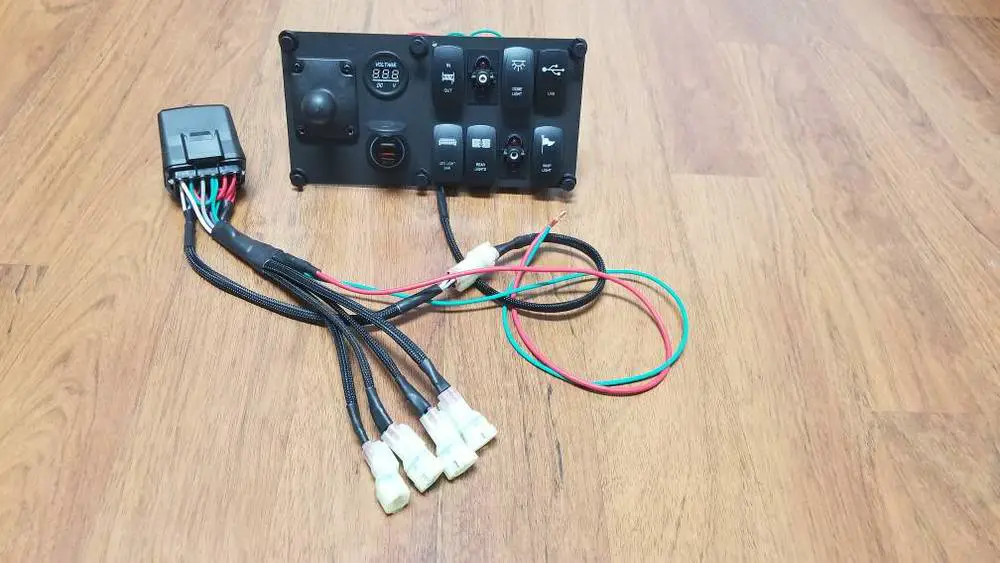

Custom switch panel and relay system is ready.

Drop in ready.
Hook to battery, plug into cig scoket. Done.


Awaiting 1 AUX rocker and a Radio rocker.

Using 4, 20a circuits. But I only used 3 here so I have a spare. Could free up one spot by eliminating USB or moving light bar to high beam trigger.

AUX will control- Key-on/off/on.

Winch only works when AUX is in Key-on mode.

Volte meter is hooked to AUX and reads which ever is selected. Key-on or battery. If I get a second battery it will read both by flipping AUX one way or other and moving the main power wires to the second battery.

Yes @Plumber32, @joeymt33 talked me into it.

Rear light is a worklight overide for auto backup lights. It is a grounded switch.

Ok.
Few more things to tidy up and she is ready to go in.

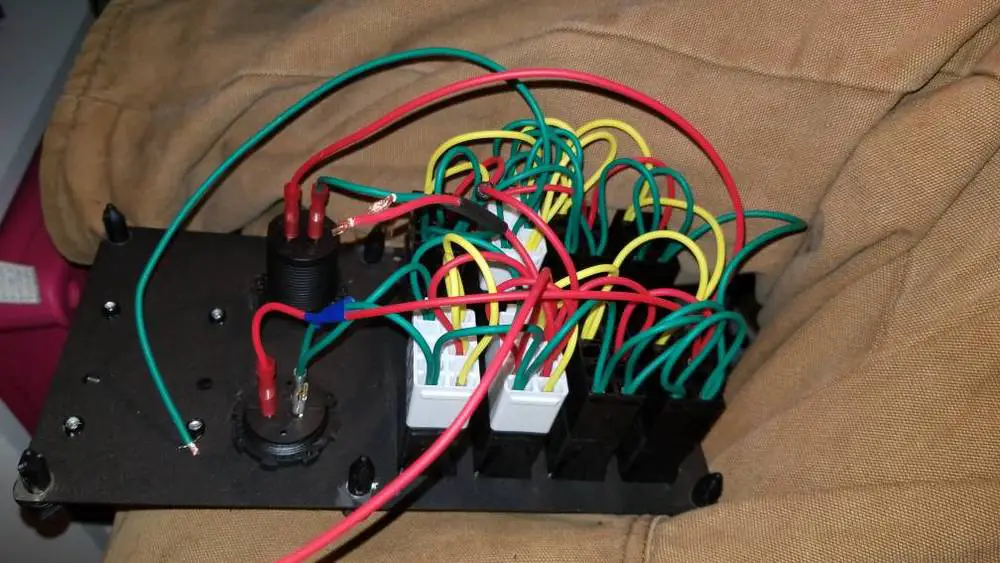

If you have a lot of money I can make you one too. Backpanel will be a little more organized for v2. View attachment 123521View attachment 123522View attachment 123523

Sent from my SM-G955U using Tapatalk

Looks good - they also sell a combo USB and volt meter in the round configuration if you want both



[Admin]



[JTW]

s***.
You do know he has a relay for his 40 mA dome light right.

Sent from my SM-G955U using Tapatalk

b**** please!!



[DSCKY]

Custom switch panel and relay system is ready.

Drop in ready.
Hook to battery, plug into cig scoket. Done.


Awaiting 1 AUX rocker and a Radio rocker.

Using 4, 20a circuits. But I only used 3 here so I have a spare. Could free up one spot by eliminating USB or moving light bar to high beam trigger.

AUX will control- Key-on/off/on.

Winch only works when AUX is in Key-on mode.

Volte meter is hooked to AUX and reads which ever is selected. Key-on or battery. If I get a second battery it will read both by flipping AUX one way or other and moving the main power wires to the second battery.

Yes @Plumber32, @joeymt33 talked me into it.

Rear light is a worklight overide for auto backup lights. It is a grounded switch.

Ok.
Few more things to tidy up and she is ready to go in.

If you have a lot of money I can make you one too. Backpanel will be a little more organized for v2. View attachment 123521View attachment 123522View attachment 123523

Sent from my SM-G955U using Tapatalk

Wow this looks interesting. Not quite taken delivery of my new ride, but trying to plan out a switch panel and accessories. The more I read the more I get lost...lol. I want to make sure I understand this setup. Let's say light bar on front... run wires from light bar, toward wherever I assume that relay with pigtails hanging out, place an opposite connector to the one seen in the picture and just plug it up? Makes for easy change out of accessories in the future? Definitely would like more details!



[Hondasxs]

Wow this looks interesting. Not quite taken delivery of my new ride, but trying to plan out a switch panel and accessories. The more I read the more I get lost...lol. I want to make sure I understand this setup. Let's say light bar on front... run wires from light bar, toward wherever I assume that relay with pigtails hanging out, place an opposite connector to the one seen in the picture and just plug it up? Makes for easy change out of accessories in the future? Definitely would like more details!

Yes.
Just change the rocker and the item plugged in is all you need to do for the 4 on the relay system.



Sent from my SM-G955U using Tapatalk



[Hondasxs]

Looks good - they also sell a combo USB and volt meter in the round configuration if you want both

I couldn't find a red one I liked. I have one coming for the dual battery kit in blue.

Sent from my SM-G955U using Tapatalk



[Hondasxs]

Panel is done.

Sent from my SM-G955U using Tapatalk



[Ragnar406]

I couldn't find a red one I liked. I have one coming for the dual battery kit in blue.

Sent from my SM-G955U using Tapatalk

https://www.amazon.com/dp/B01M7V1ME1/?tag=sxsweb24-20
Mictuning - but has held up so far



[sharp]

I couldn't find a red one I liked. I have one coming for the dual battery kit in blue.

Sent from my SM-G955U using Tapatalk

I have one with red metal trim.seems to be good quality. Not the best picture but you get the idea.



[Dragon21]

Curious why you chose the Pioneer over the Talon if you dont plan to use the rear seats. Id almost look forward to a second build so I could do things right the first time. Looks like its coming along nicely



[JTW]

Curious why you chose the Pioneer over the Talon if you dont plan to use the rear seats. Id almost look forward to a second build so I could do things right the first time. Looks like its coming along nicely

He’s not gay... well, not fully.



[Hondasxs]

Curious why you chose the Pioneer over the Talon if you dont plan to use the rear seats. Id almost look forward to a second build so I could do things right the first time. Looks like its coming along nicely

Still need the seats. Kids and family love to cruise around the farm.
Plus want the cargo/utaility room.
Trust me. It was a hard choice.

Sent from my SM-G955U using Tapatalk



[chadbo]

Still need the seats. Kids and family love to cruise around the farm.
Plus want the cargo/utaility room.
Trust me. It was a hard choice.

Sent from my SM-G955U using Tapatalk

I missed what happened to the 16?



[Hondasxs]

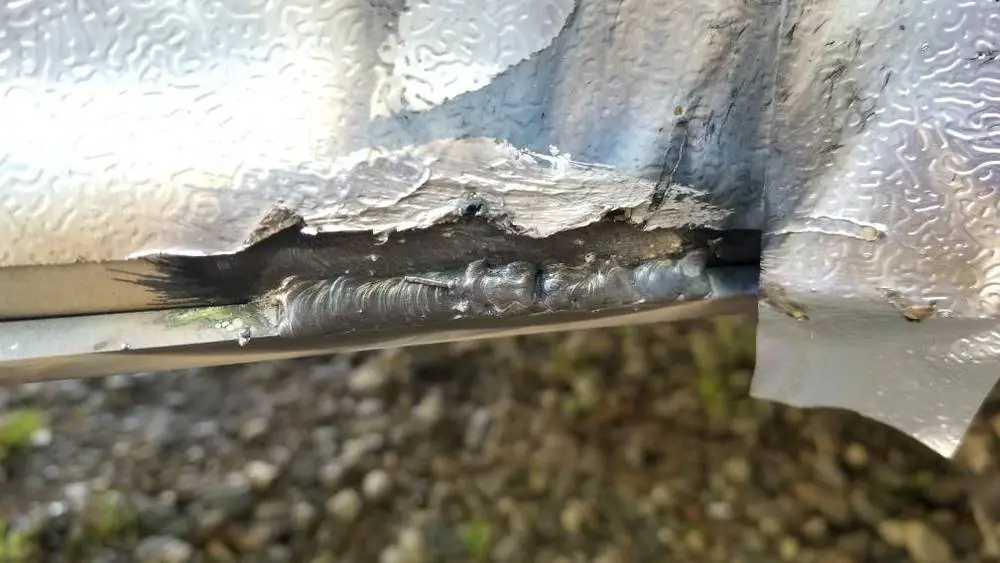

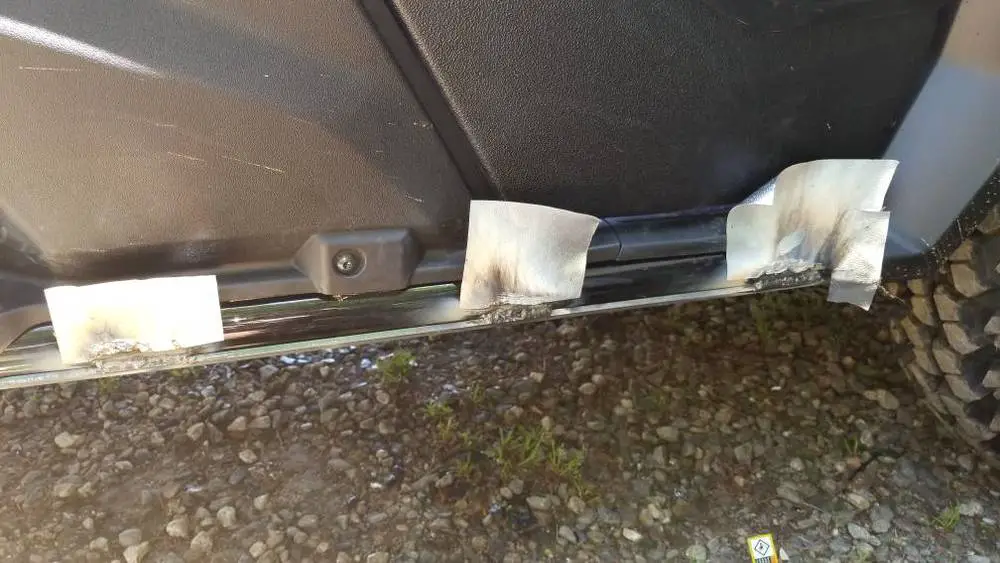

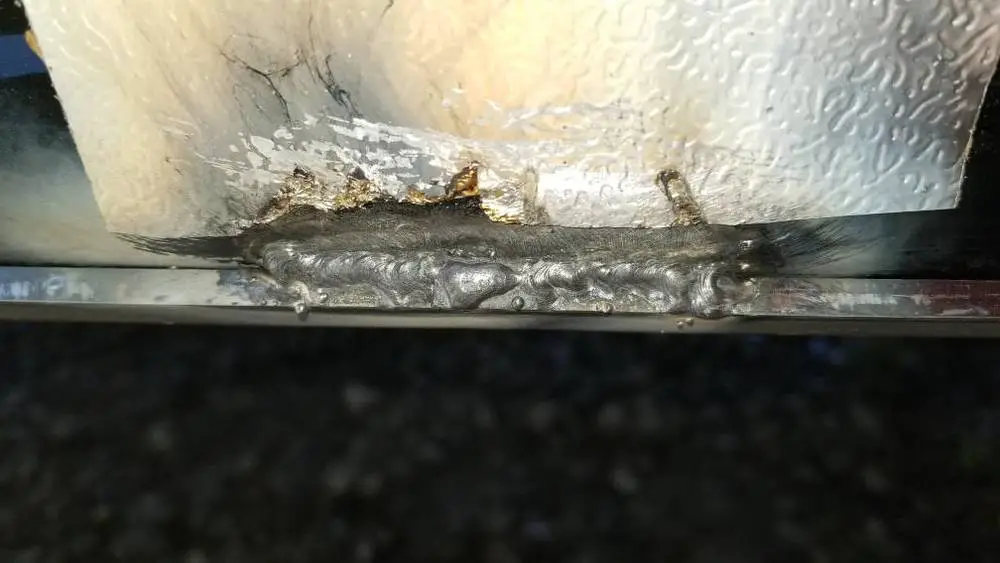

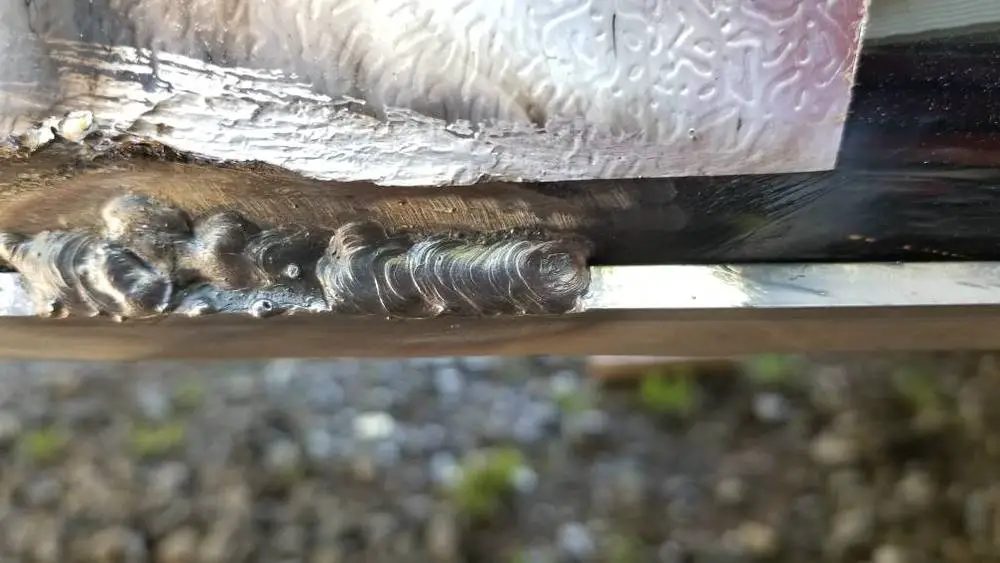

Grinding skills getting better. Look at that preeety stack of dimes.

Sent from my SM-G955U using Tapatalk



[Hondasxs]

I missed what happened to the 16?

https://hondasxs.com/threads/another-segment-of-wear-your-seatbelt.16535/

Sent from my SM-G955U using Tapatalk



[ohanacreek]

Grinding skills getting better. Look at that preeety stack of dimes. View attachment 123720View attachment 123721View attachment 123722View attachment 123723

Sent from my SM-G955U using Tapatalk

Haha



[chadbo]

https://hondasxs.com/threads/another-segment-of-wear-your-seatbelt.16535/

Sent from my SM-G955U using Tapatalk

Oh... blah



[Hondasxs]

Skid plate on.
Next up SATV front arms!
Cant even turn 1/2 steering wheel turn without rubbing these 30" terrabites on the trail armor skid plates. Could trim them I guess.

Sent from my SM-G955U using Tapatalk



[Hondasxs]

Mail just ran.
Switch plate is done.

Look what else I got @Plumber32
Your favorite accessory and clamps too.
Those damn clamps were $65 each. They are 2 axis adjustable. Hoping it help from beating the whips against the cage and busting a diode.

Need to wire them up still.

Sent from my SM-G955U using Tapatalk



[Stauvo]

Hi Honda SxS,
I have a few questions.
You using stock wheels as in wider rears, narrow fronts?
Benefit of front 1.5” wheel spacers?
What setting are you at on front Walker Evans?

Thanks. Stauvo



[Hondasxs]

Hi Honda SxS,
I have a few questions.
You using stock wheels as in wider rears, narrow fronts?
Benefit of front 1.5” wheel spacers?
What setting are you at on front Walker Evans?

Thanks. Stauvo

Yes. Factory wheels but because I chose a 10" tire all around the back looks like it sits in some.
I chose 1" spacers on front and 1.5" on the rear. I haven't installed them yet. Will do that when I install the SATV arms soon.

My shocks are getting cleaned up back at WE right now.

Sent from my SM-G955U using Tapatalk
