Talon Light Bar

[Tommer]

Which harness did you purchase for that light bar? I'm looking at that light bar as well and I'm glad it's working great for you.

https://www.amazon.com/gp/aw/d/B074GYNJ85?tag=sxsweb24-20

This was the only one that was close on rated wattage and a larger gauge. Ordered the smaller 14 gauge at first but got me thinking as I was installing it I would rather not have the wire melt... So did some reading and got the 12 gauge. Not a bad deal for the switch, relay and wire



[Admin]



[Tommer]

https://www.amazon.com/gp/aw/d/B074GYNJ85?tag=sxsweb24-20

This was the only one that was close on rated wattage and a larger gauge. Ordered the smaller 14 gauge at first but got me thinking as I was installing it I would rather not have the wire melt... So did some reading and got the 12 gauge. Not a bad deal for the switch, relay and wire

just pulled pin 6 off the switch so it wouldn’t stay on. Wired to the winch wiring under the hood. Would like an ignition on fuse block, but nobody seems to sell what I want...



[Tommer]

just pulled pin 6 off the switch so it wouldn’t stay on. Wired to the winch wiring under the hood. Would like an ignition on fuse block, but nobody seems to sell what I want...

* pin 6 is for a small led in the switch itself.



[Bo_Darville]

https://www.amazon.com/gp/aw/d/B074GYNJ85?tag=sxsweb24-20

This was the only one that was close on rated wattage and a larger gauge. Ordered the smaller 14 gauge at first but got me thinking as I was installing it I would rather not have the wire melt... So did some reading and got the 12 gauge. Not a bad deal for the switch, relay and wire

Thank you! I'll order the 12 gauge wire kit.



[AlR]

I'm doing up the Talon. Is this the light bar??

Amazon.com: 30W CREE Curved LED Light Bar 19inch single Row Spot Flood Combo Driving Lamp LED Work Light for Off Road Truck Car ATV SUV UTE UTV Jeep Boat,IP67 Waterproof (30W): Home Improvement

Buy 30W CREE Curved LED Light Bar 19inch single Row Spot Flood Combo Driving Lamp LED Work Light for Off Road Truck Car ATV SUV UTE UTV Jeep Boat, IP67 Waterproof (30W): Light Bars - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

The description says the bar is 38" long. I assume the brackets add afew more inches or am I missing something. I'm just starting my research on an appropriate full-width lightbar. I don't want to attach it to the roof. Where I ride, it would be rubbed off by the trees.

I see you have the Honda OEM windshield. It is glass or plastic??

The Amazon.com # for the Polaris brackets is "B07CBVB7L4" but that # isn't working for me... can someone send me the link or a screengrab of the polaris brackets? That would make my life MUCH easier...



[Tommer]

I think 38 is going to be a bit short for you (unless you are mounting to the top of the roof). 42 made me have to fab the mounts a little. 44 would have probably fit perfect.



[SpeedBuggy]

I have the same light bar and found a Nillight wiring harness with the switch and relay on Amazon for 14-15 bucks



[Kevinka1977]

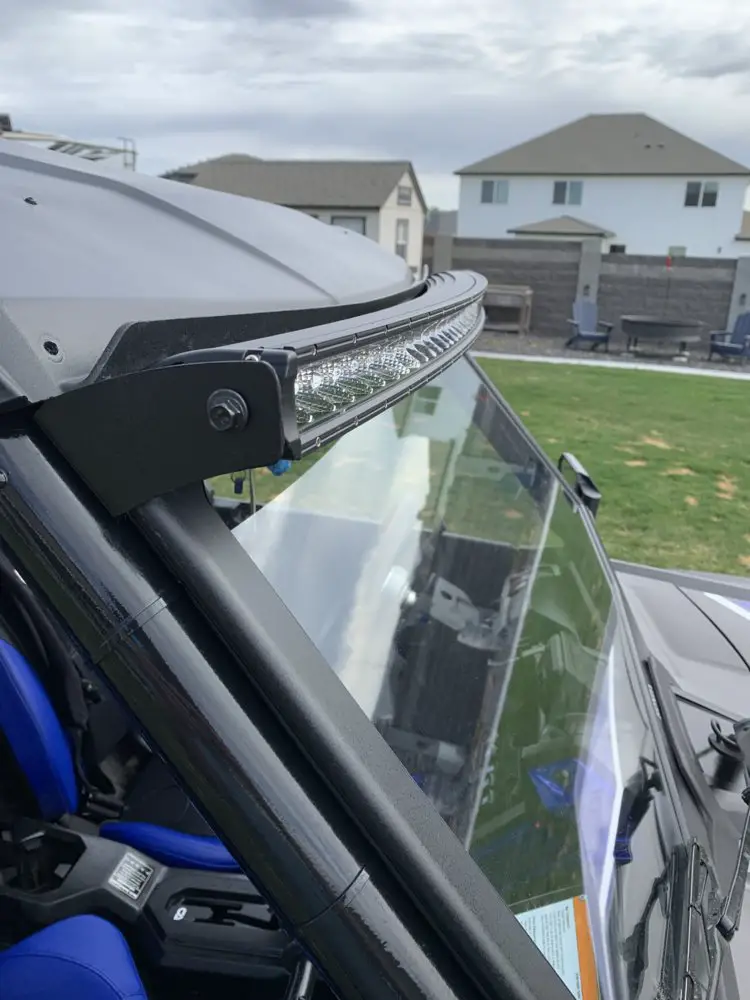

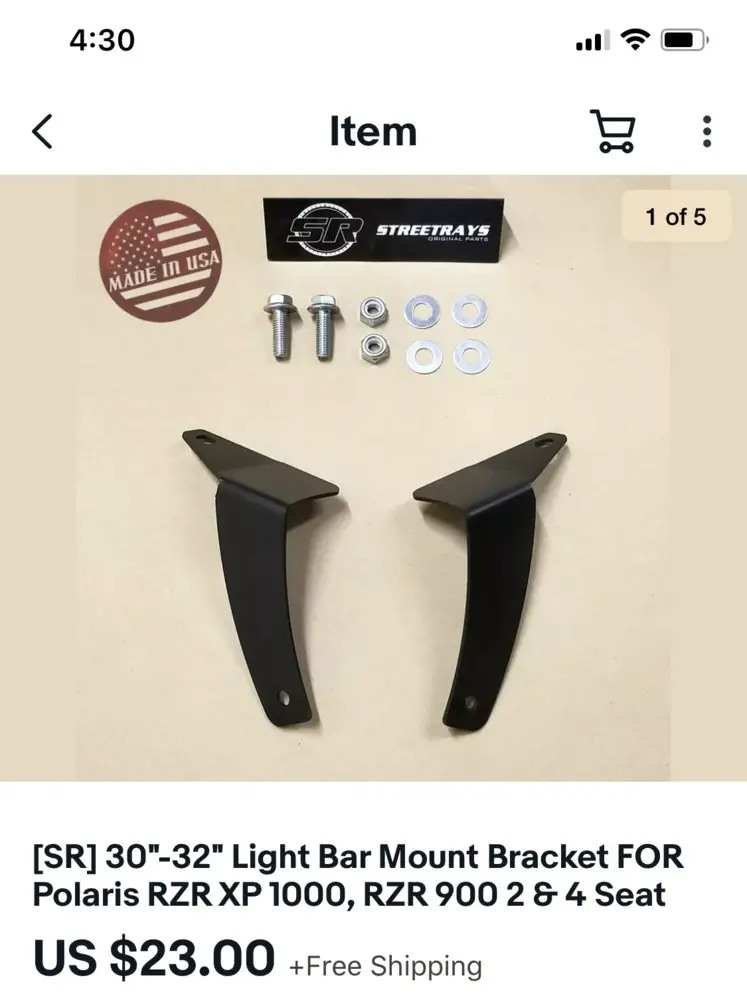

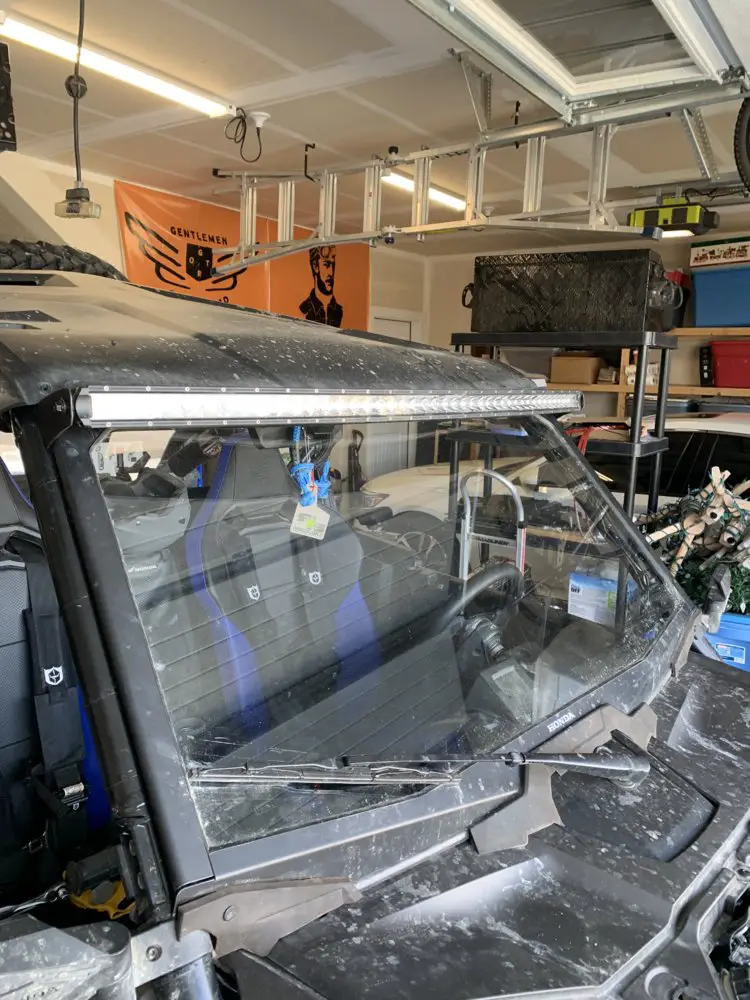

Here is the brackets I used. Drill a few new holes and trimmed them back so they don’t stick out so far.



[Glock21user]

Here is the brackets I used. Drill a few new holes and trimmed them back so they don’t stick out so far.

View attachment 197992 View attachment 197993 View attachment 197994

Looks really nice.
Great job



[ENZO]

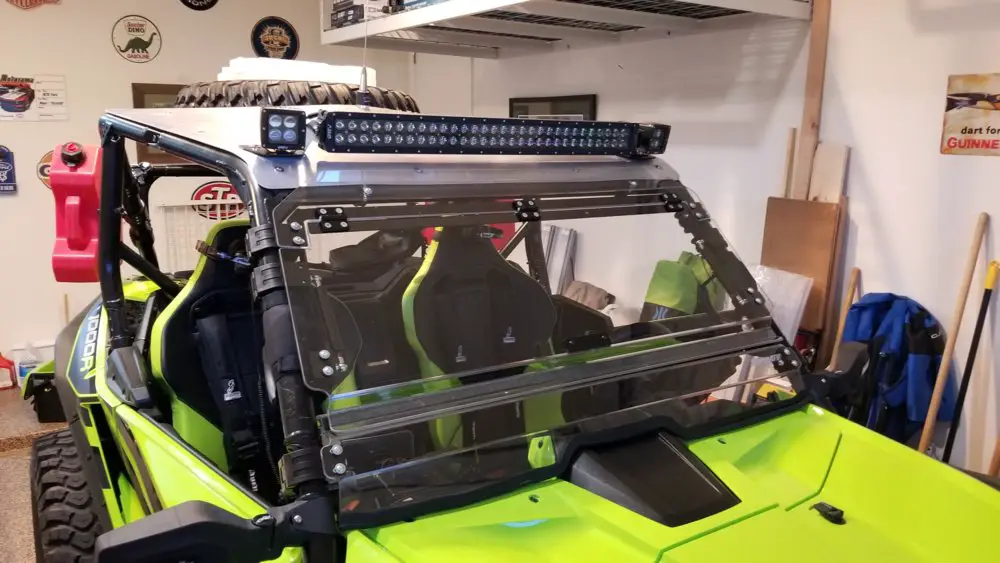

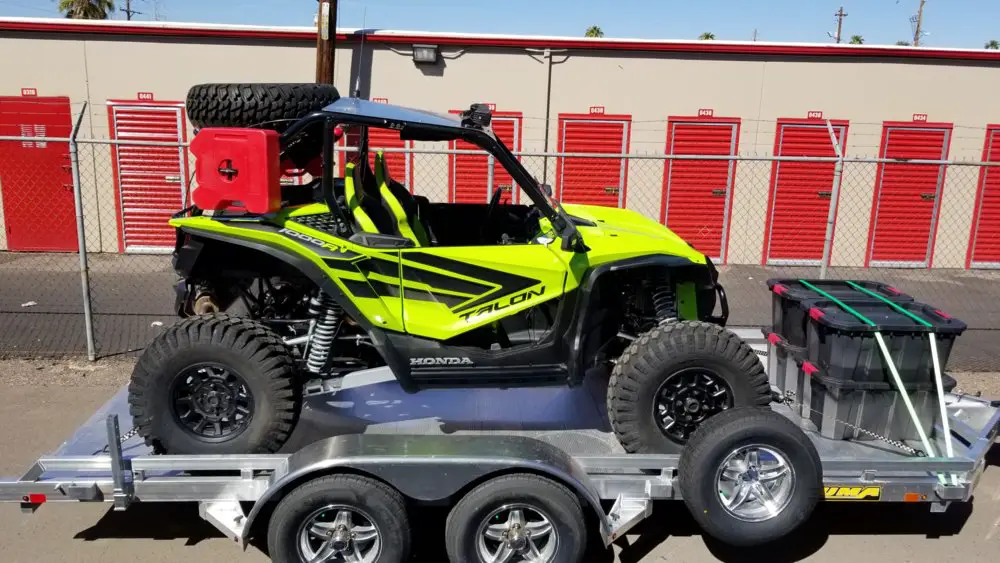

Added a few lights.. and some green. Also fabricated an aluminum roof to streamline and shed some weight. Love it!

View attachment 161305 View attachment 161306 View attachment 161307

Any chance you want to make another one of those roofs. Its exactly what I'm looking for. Just let me know what you would charge if interested
in making one. Thanks!

Added a few lights.. and some green. Also fabricated an aluminum roof to streamline and shed some weight. Love it!

View attachment 161305 View attachment 161306 View attachment 161307



[PhilCod]

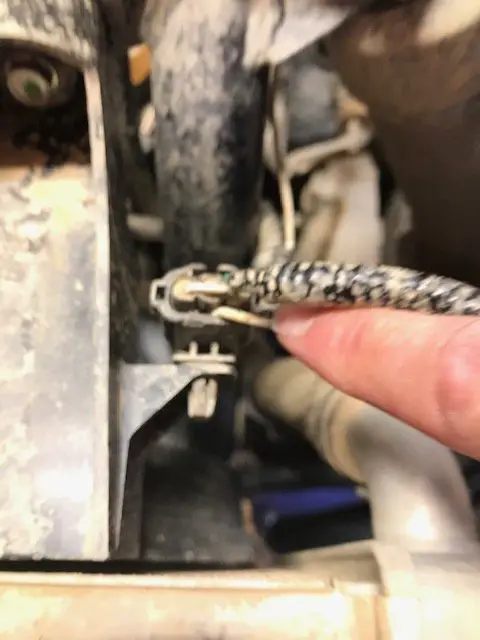

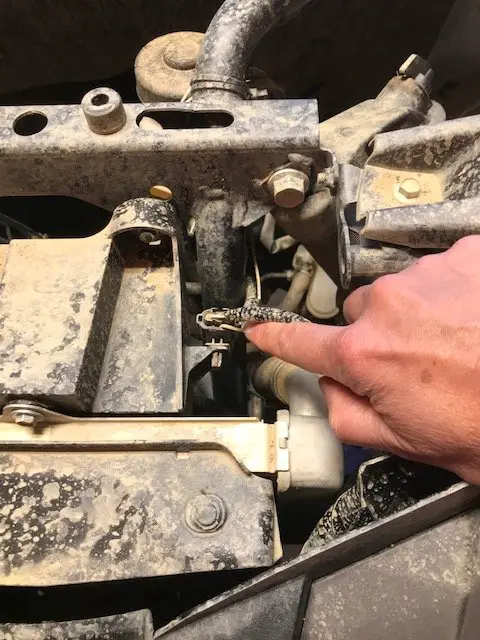

If you want to wire your light bar into your stock headlight switch here is a fairly easy way to do it. First, you will want to use a relay. Hook the relay up like you normally do. But run the accessory or what I call the "hot trigger" to the middle of the headlight plug under the hood. Attached are pictures, yes my Talon is dirty, please forgive me. I just unplugged the headlight plug, and pushed the striped portion of the wire into the the slot where the two connect. It is the middle one. That is your bright light wire. Then plug the two back together. I attached a close up and a picture a little further away to show the location of the plug. Where you mount the relay is up to you. Many if the XTC wiring harness with a bus bar. Others have their own set up.
As for using a relay and plunging the acc wire into the headlight plug I have done this on several machines. It's really nice on ATV's since you really don't have room for extra switches.



[Hondasxs]

If you want to wire your light bar into your stock headlight switch here is a fairly easy way to do it. First, you will want to use a relay. Hook the relay up like you normally do. But run the accessory or what I call the "hot trigger" to the middle of the headlight plug under the hood. Attached are pictures, yes my Talon is dirty, please forgive me. I just unplugged the headlight plug, and pushed the striped portion of the wire into the the slot where the two connect. It is the middle one. That is your bright light wire. Then plug the two back together. I attached a close up and a picture a little further away to show the location of the plug. Where you mount the relay is up to you. Many if the XTC wiring harness with a bus bar. Others have their own set up.
As for using a relay and plunging the acc wire into the headlight plug I have done this on several machines. It's really nice on ATV's since you really don't have room for extra switches.

View attachment 200848 View attachment 200849

@philcod,
I highley recomend a positap vs this hot shot method. But hey.. if it works... it works. Lol.

We also sell a plug-n-play high beam trigger and 3 pin connectors for the more DIY'er.

DIY High Beam Trigger Wire Harness for Honda Talon 1000

Plug-N-Play wire harness for easy installation. Hookup a Small to Medium LED light bar with ease 2ft lead allows easy wiring to the accessory. An easy fix for the dim factor headlights by installing an extra high beam light bar. Plug-n-play install. No modification to the stock wires at all...

store.hondasxs.com

HM-3 Pin Male & Female Plug Connector Set for Honda UTV, SxS, ATV. Wire connector with Terminals and seals.

Replacement connector plugs as shown. Commonly found in most Honda ATV's and UTV's. These kits are factory replacements for damaged plugs or wires. Or create your own waterproof, factory-looking, connection with this kit. These plugs are found across the board in many makes and models from...

store.hondasxs.com



[PhilCod]

@philcod,
I highley recomend a positap vs this hot shot method. But hey.. if it works... it works. Lol.

We also sell a plug-n-play high beam trigger and 3 pin connectors for the more DIY'er.

DIY High Beam Trigger Wire Harness for Honda Talon 1000

Plug-N-Play wire harness for easy installation. Hookup a Small to Medium LED light bar with ease 2ft lead allows easy wiring to the accessory. An easy fix for the dim factor headlights by installing an extra high beam light bar. Plug-n-play install. No modification to the stock wires at all...

store.hondasxs.com

HM-3 Pin Male & Female Plug Connector Set for Honda UTV, SxS, ATV. Wire connector with Terminals and seals.

Replacement connector plugs as shown. Commonly found in most Honda ATV's and UTV's. These kits are factory replacements for damaged plugs or wires. Or create your own waterproof, factory-looking, connection with this kit. These plugs are found across the board in many makes and models from...

store.hondasxs.com

That looks like a good set up. So you plug the two ends into the stock plugs and take the extra wire and tie that into your Relay trigger right? That certainly would do the trick. Good option.



[Hondasxs]

That looks like a good set up. So you plug the two ends into the stock plugs and take the extra wire and tie that into your Relay trigger right? That certainly would do the trick. Good option.

Yes, It even has a ground to use at the relay.
All you need is the large hot wire in/out at the relay.



[Lil_Steve]

Thumbs up for the DIY high beam trigger harness, it simplified the installation of my light bar because I didn't have to worry about adding a separate light switch, I just use the stock headlight switch's high beam position to turn it on/off.



[peekaa]

I see one has a windshield... Is that factory? Does anyone know any full fold downs work on this config. Best looking one out there 👍 also if poss please post links to items that work... Thanks



[SpeedBuggy]

I see one has a windshield... Is that factory? Does anyone know any full fold downs work on this config. Best looking one out there 👍 also if poss please post links to items that work... Thanks

I have the Honda plastic windshield and the light bar fits like a glove. I don’t think a fold down will work unless it’s one of the ones with the split in the middle as the light bar sits in front of the window when installed. I have the 1/4 wind screen in now but you can see the bracket behind the window channel in the pic. My links are not good any more. I had to search around to find them on Amazon when I bought mine as the bracket links were all unavailable. It was a 42” curved single row light bar and RZR mounts. Mounts had to be drilled to fit and mounted up with the window channel hardware.



[SpeedBuggy]

I should also mention to get longer bolts for the light bar itself. The allen head bolts that came with it were too short and would have stripped the threads in the end of the light bar. I got 1/2” longer bolts and they fit perfectly



[IDIOT]

Yes very good light bar.



[peekaa]

It hard to beat for the price and it keeps it below the roof.

Looks awesome... did you have to drill any holes etc in the frame or just used stock holes?
