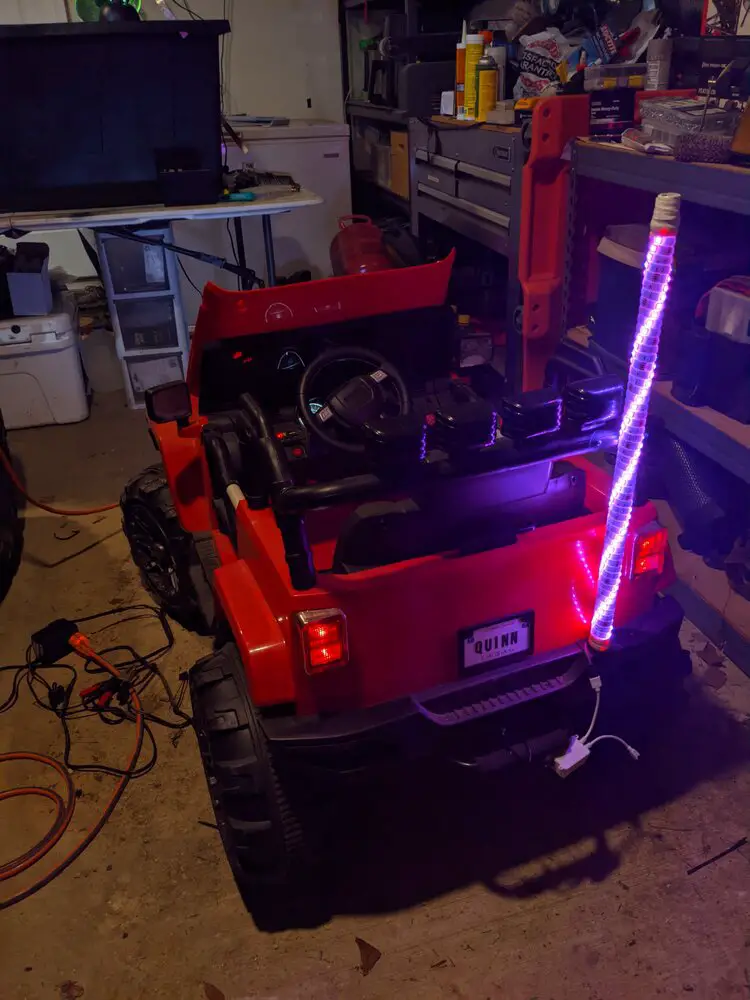

Initially it was, just to see if the LED/controller still worked after sitting in the hot garage for a year. I bought a few 10' 1/2" pieces when I was out and rewrapped them around that, so that's on 1/2" in the pics on the Jeep.

SuperMidget

SuperMidget

Well-Known Member
Feb 24, 2019
100
362
63
AR
Ownership

  1. Other Brand
Initially it was, just to see if the LED/controller still worked after sitting in the hot garage for a year. I bought a few 10' 1/2" pieces when I was out and rewrapped them around that, so that's on 1/2" in the pics on the Jeep.
I thought that looked a little small to be 1". A friend is wanting to make a 1.5 or 2" stubby fat whip for his rzr to be different. Should be interesting.

SuperMidget

SuperMidget

Well-Known Member
Feb 24, 2019
100
362
63
AR
Ownership

  1. Other Brand
I'd like to see that, lol.

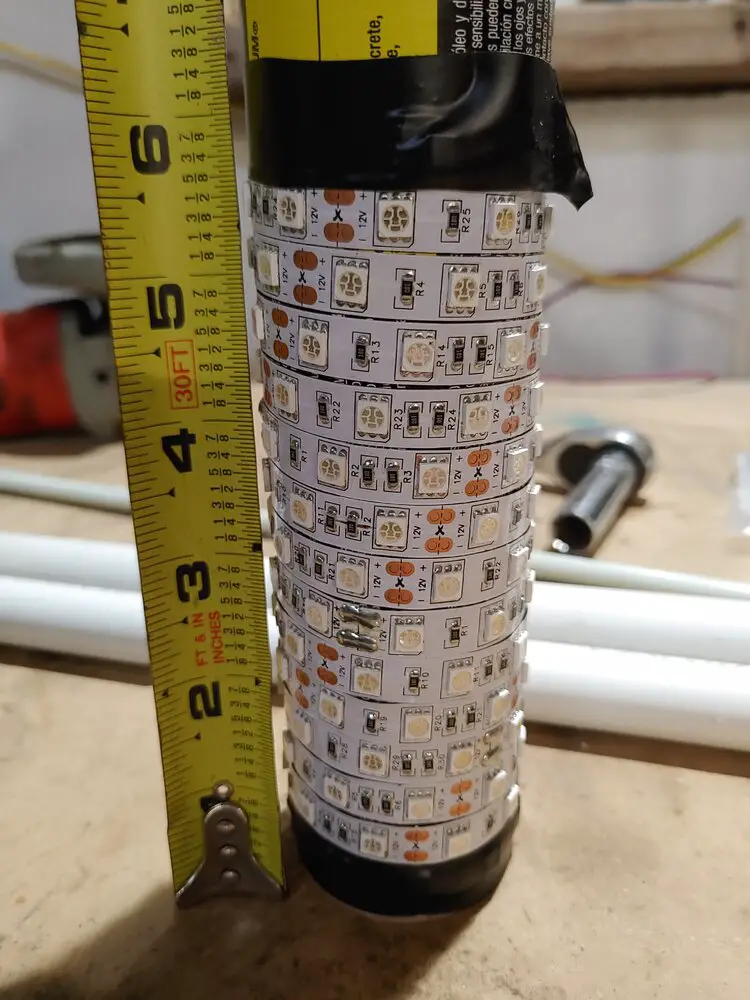

Test wrapping on 2" with some scraps. I figure it will only cover 15 to 18" at best with a full 16ft strip 20201014 185227

Adam490

Adam490

HFA Grand High Wizard
Lifetime Member
Supporting Member
Apr 7, 2019
8,075
60,952
113
Covington, LA
Ownership

  1. 1000-5

  2. Talon R LV
Test wrapping on 2" with some scraps. I figure it will only cover 15 to 18" at best with a full 16ft stripView attachment 231406
I bet it would be pretty cool to wire up a big one using a few rolls of the LED's to make a big flag pole-esque whip to run with a large flag in a receiver extension.

1603468509638

Adam490

Adam490

HFA Grand High Wizard
Lifetime Member
Supporting Member
Apr 7, 2019
8,075
60,952
113
Covington, LA
Ownership

  1. 1000-5

  2. Talon R LV
Got everything except my caps and heat shrink today. Getting everything wired up now.

PXL 20201023 235816695


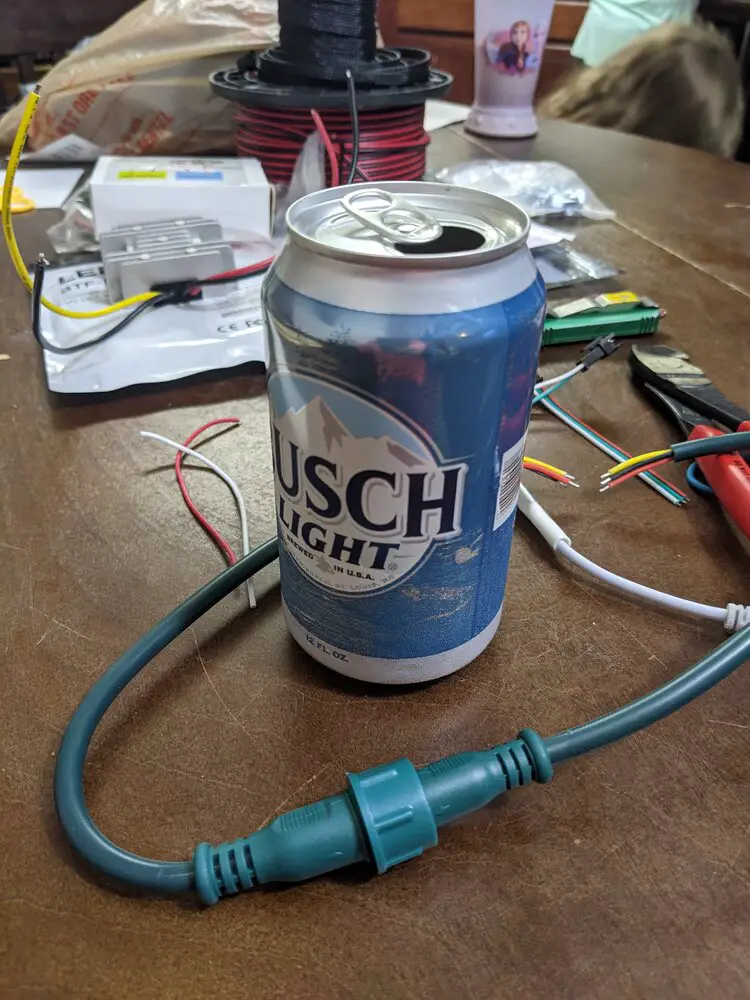

@SuperMidget the waterproof connectors you linked are super beefy. They are like small gauge extension cord grade. I thought they would be small like the ones on my current whips. Not a big deal since they'll be hidden up on the ROPS anyway.

PXL 20201024 000145406

Robobrainiac

Robobrainiac

Well-Known Member
Lifetime Member
Jul 15, 2020
2,564
9,006
113
Missouri
Ownership

  1. 1000-5
I've made a few versions starting with basic solid flashing colors on CB Antennas then WS2811 led's that chase patterns in blocks of 3 lights. These are WS2812B Eco led strips and all that has gone into them. I've never done a build thread before for something i've put together so cut me some slack.

Here is how I did it, others might have a different or better idea on it but i'm very happy with the outcome.

*WARNING* These are 5v LED Whips. They can not be ran without the 12v to 5v converter. If you don't want to run 5v then you can use 12v WS2811 LED strips that are addressed in blocks of 3 instead of individually like these are.

Parts List (with links)

(1) 10ft 1/2" PVC pipe
(2) 5" 3/8 Carriage Bolts
(25) Pack of 3/8 nuts

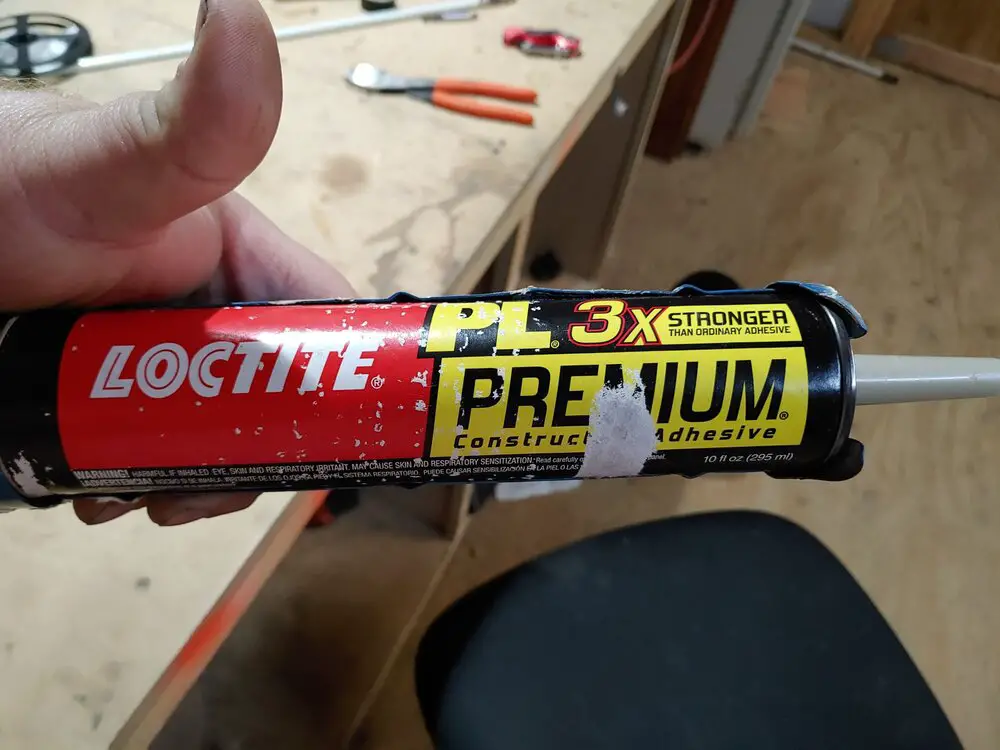

Tube of construction adhesive
1" Clear Heat Shrink
(2) 5m WS2812B Eco LED Strips
12v to 5v 10 Amp Step Down Transformer *not needed if using 12v WS2811 Strips*
120 Pattern Bluetooth Controller or 366 Pattern Controller *I've tried both and they do well. I prefer the Bluetooth personally but it is not waterproof*
Roll Cage Clamps
Waterproof Connectors
Power Connectors

I started with cutting 2 pieces of the PVC at around 36" because i didn't know where the strip would end, overall finished length is about 32" with 29" of that being the light portion.

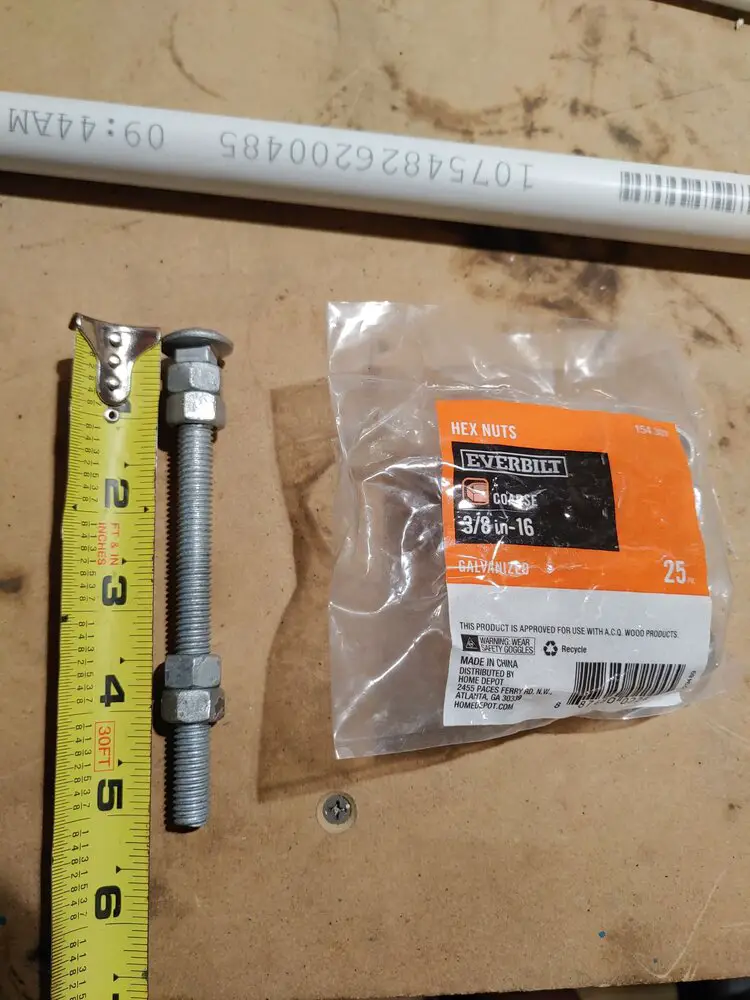

I ran 2 nuts to the top of the bolt and set the bottom 2 leaving enough room to fit in the roll bar mount
View attachment 230973

The nuts are a tight fit and the carriage head isn't needed. I probably could have just as easily used a regular bolt but had these handy.

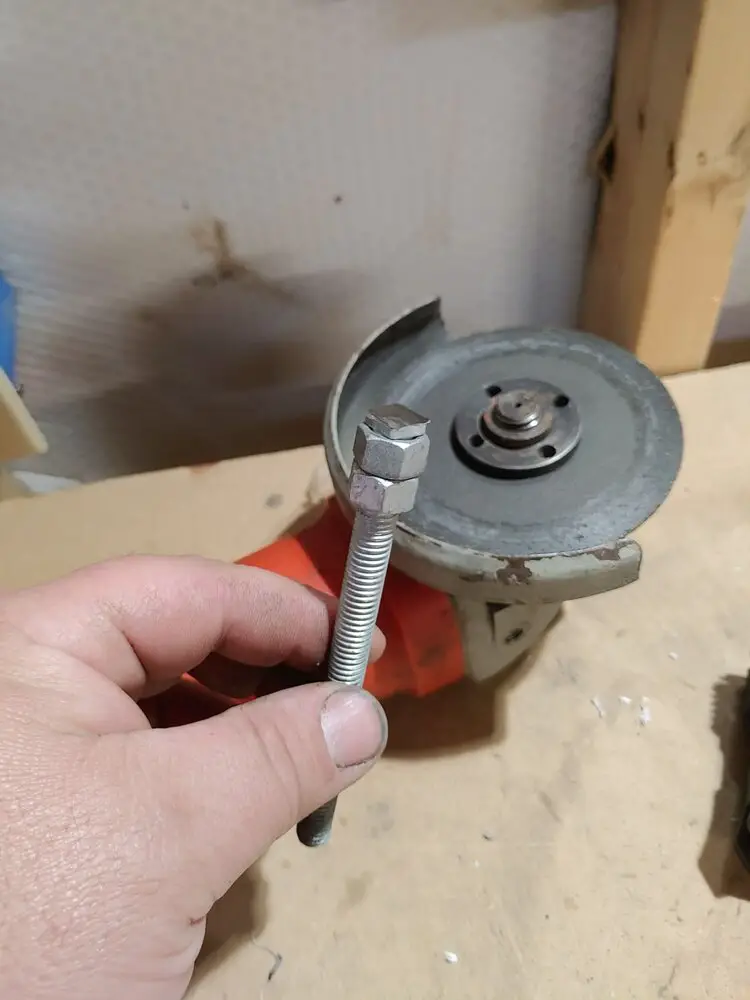

View attachment 230974

Rounded the edges of the top 2 nuts so they would fit in the pipe easier

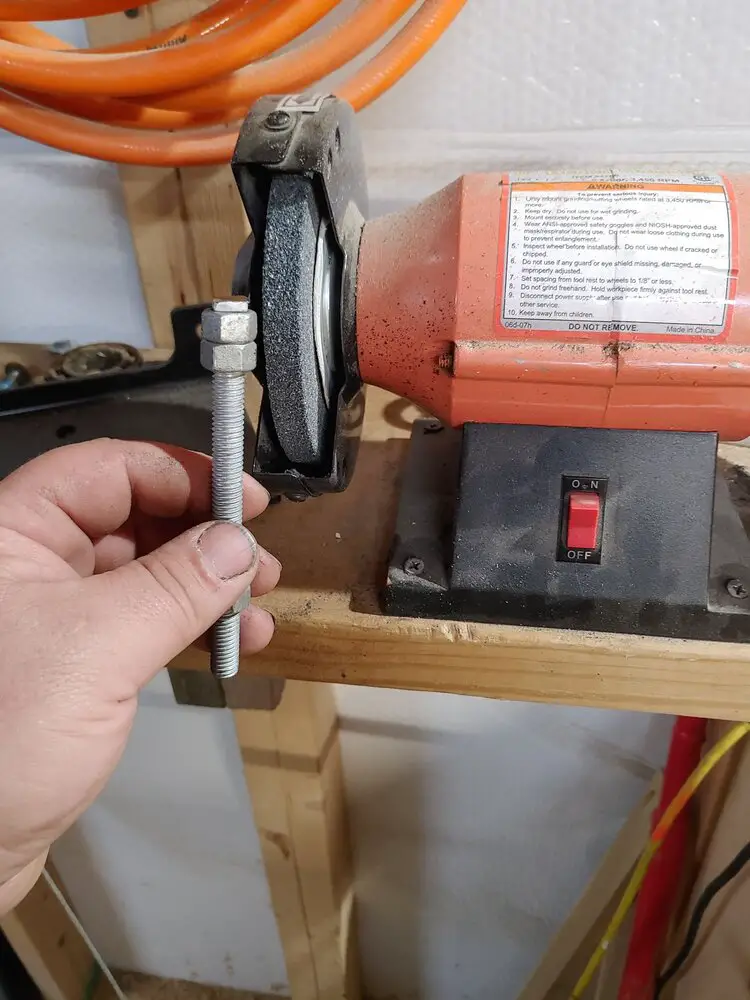

View attachment 230975

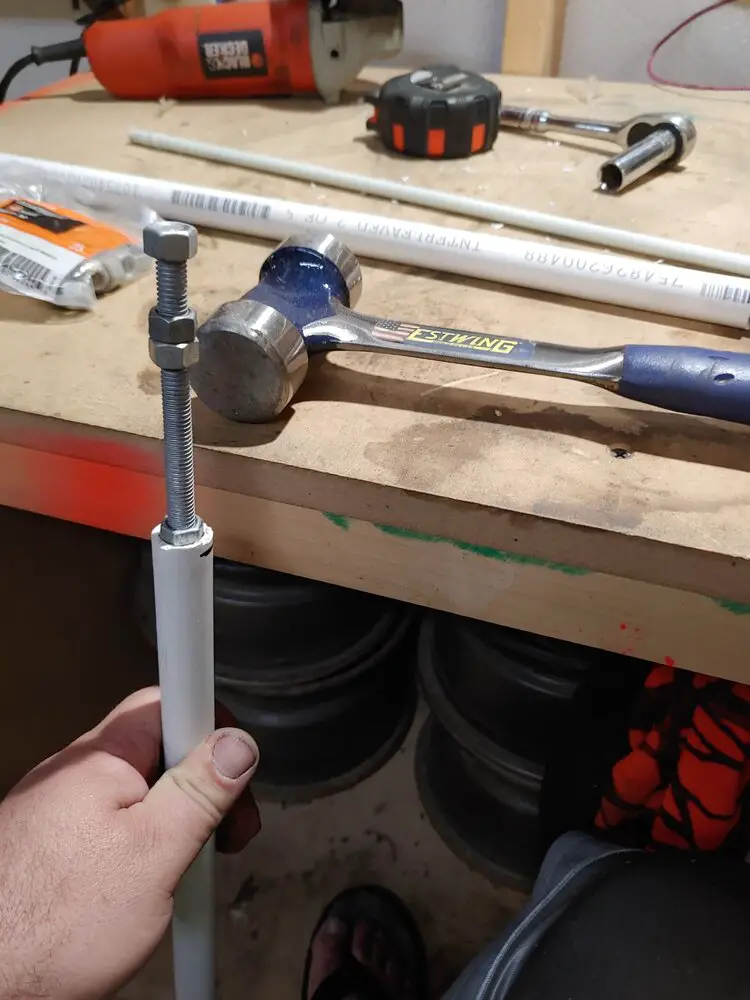

Hammered it home

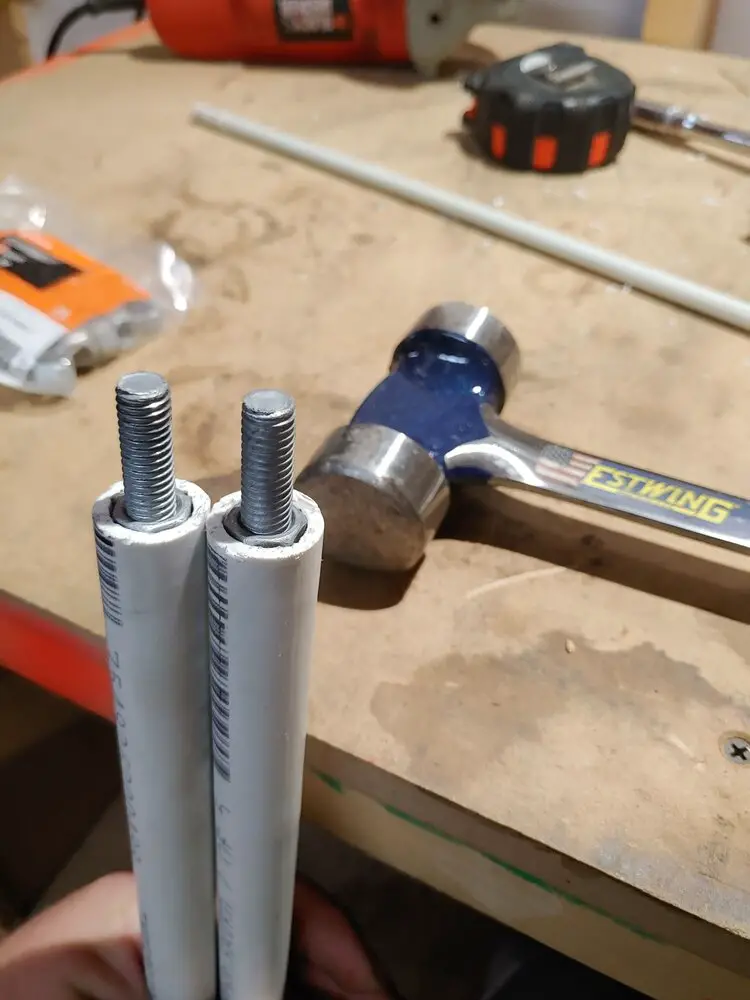

View attachment 230976 View attachment 230977

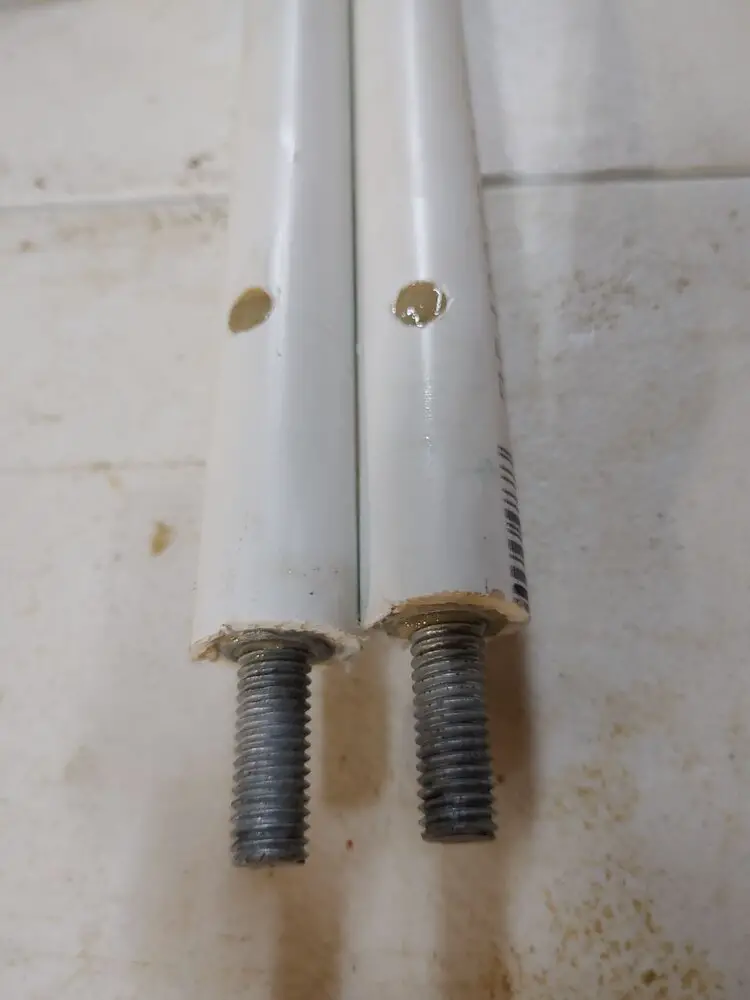

I drilled a hole in each between the nuts and filled the void with the adhesive. Not sure if it was needed but i don't plan on having to rebuild these anytime soon.

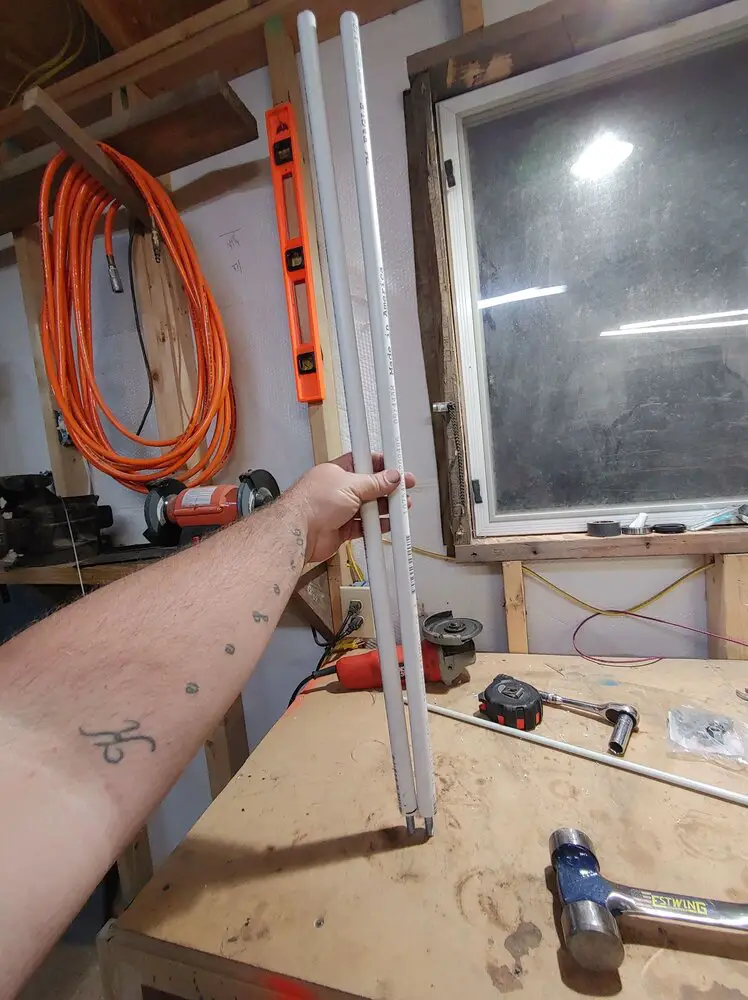

View attachment 230979 View attachment 230980

I cut off the provided plug from the strip and added the waterproof plug, you can just as easily use what's there and cover it with tape, that's up to you.
It takes some time and practice but simply start up a few inches from the bottom to account for the wring to not be in a bind and start wrapping.

Might just be my OCD but i made sure i wrapped the 2nd in the opposite direction so they were a mirror image of each other.

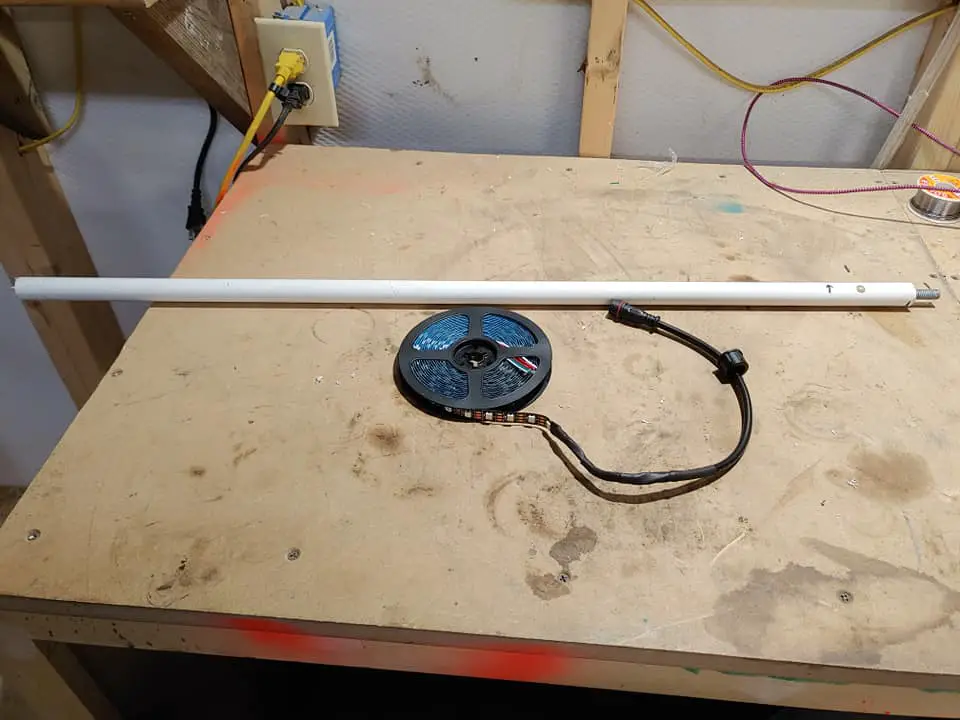

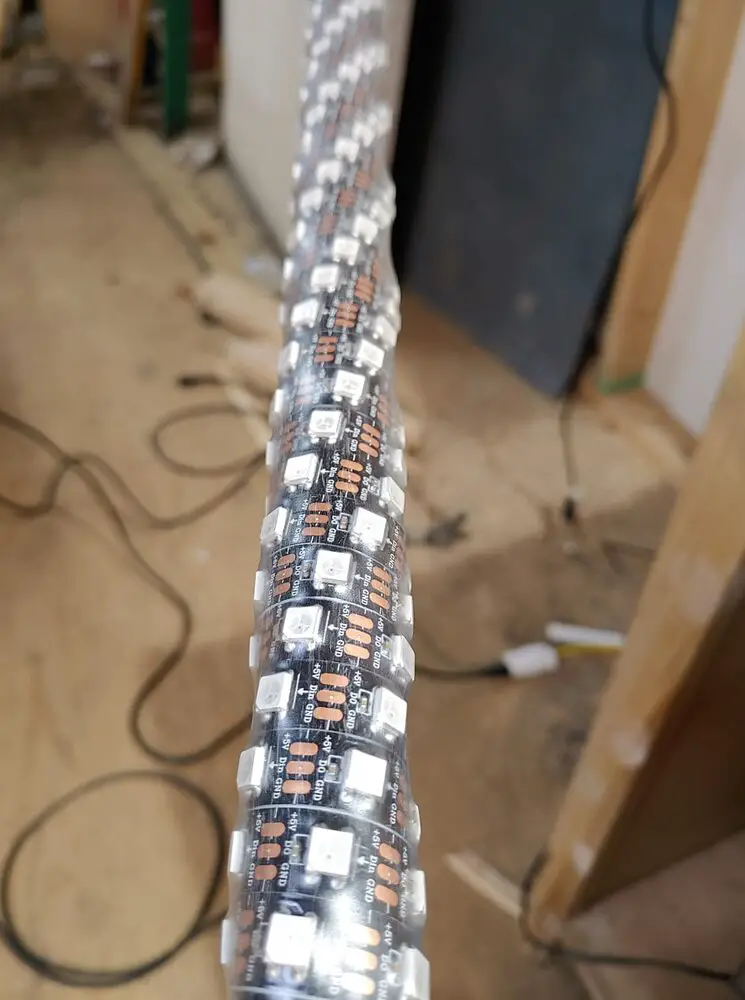

View attachment 230981 View attachment 230982

I prefer to tape the wire down then wrap and add a little tape at the top to hold the strip in place while I put the heat shrink on.

1" heat shrink is tight on the IP30 non waterproof strip so if you get the ip65 waterproof version i'd suggest 1.5" heat shrink or a good 3:1 1.75 to 2"

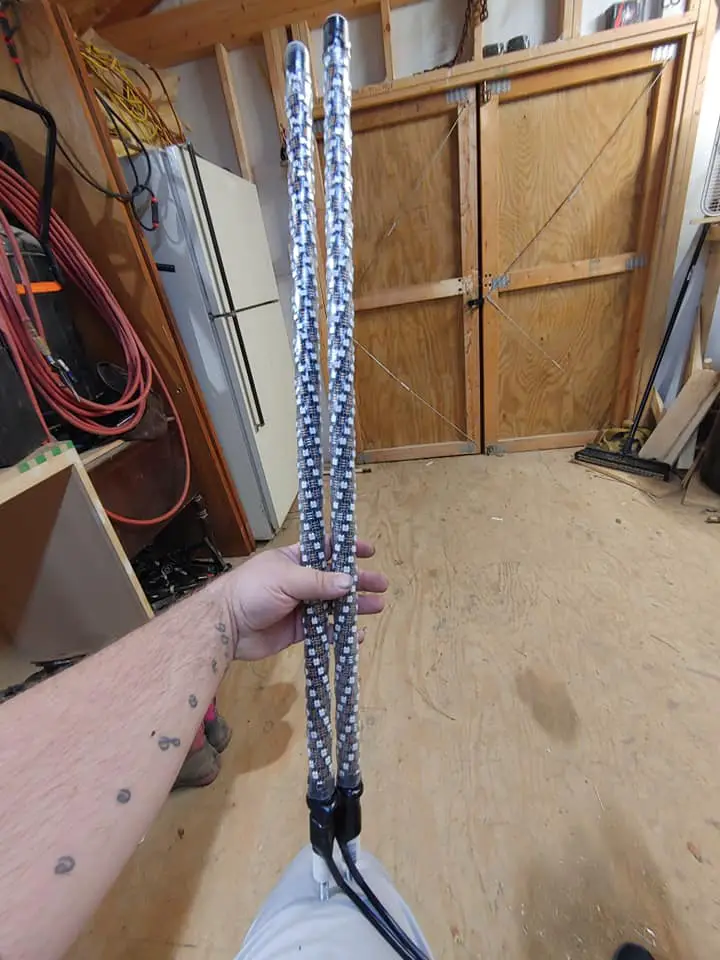

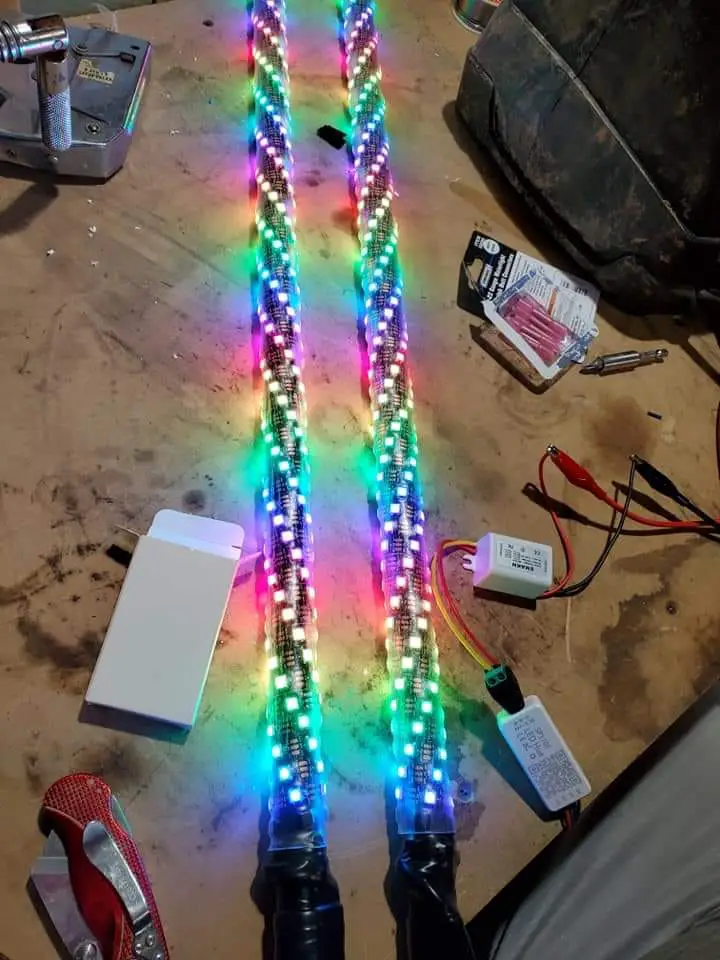

View attachment 230983View attachment 230984

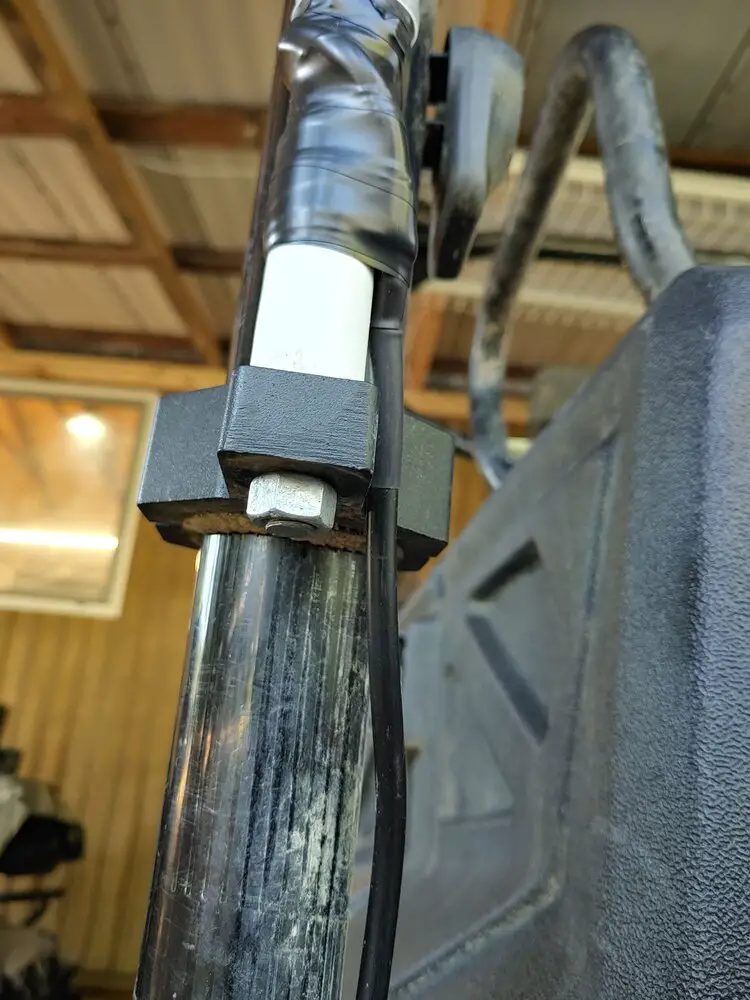

I mounted these directly behind the cage and just below the top line to help protect them from branches

View attachment 230986 View attachment 230987

I hit the bottom with a little black spray paint before the final install.
You can seal the top however you wish, i used the top caps off a few old CB antennas i have used for previous whip versions and some clear silicone.

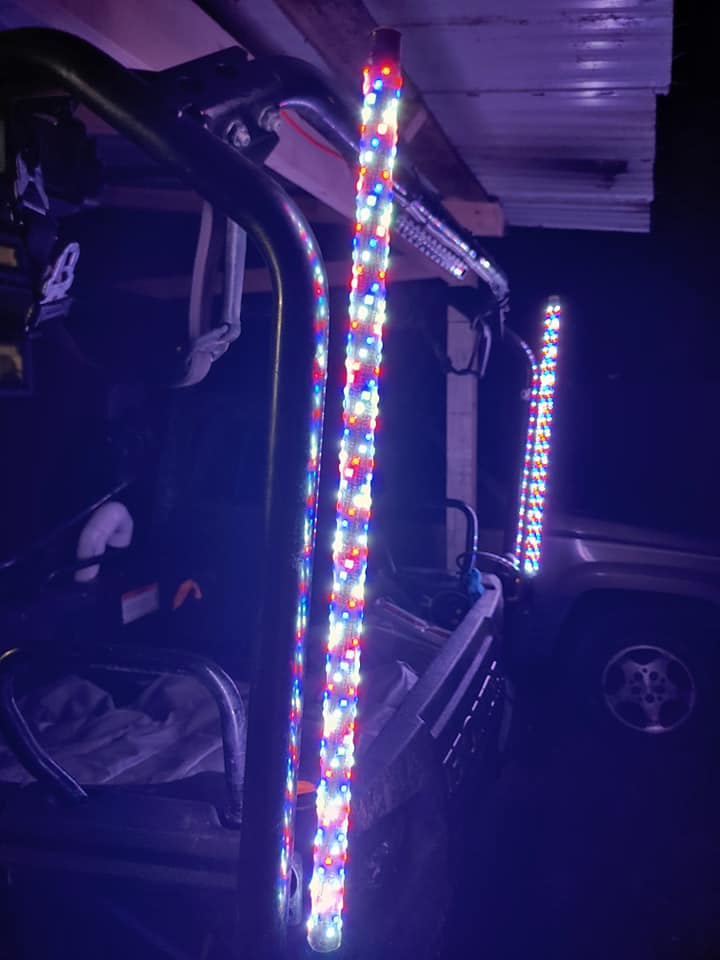

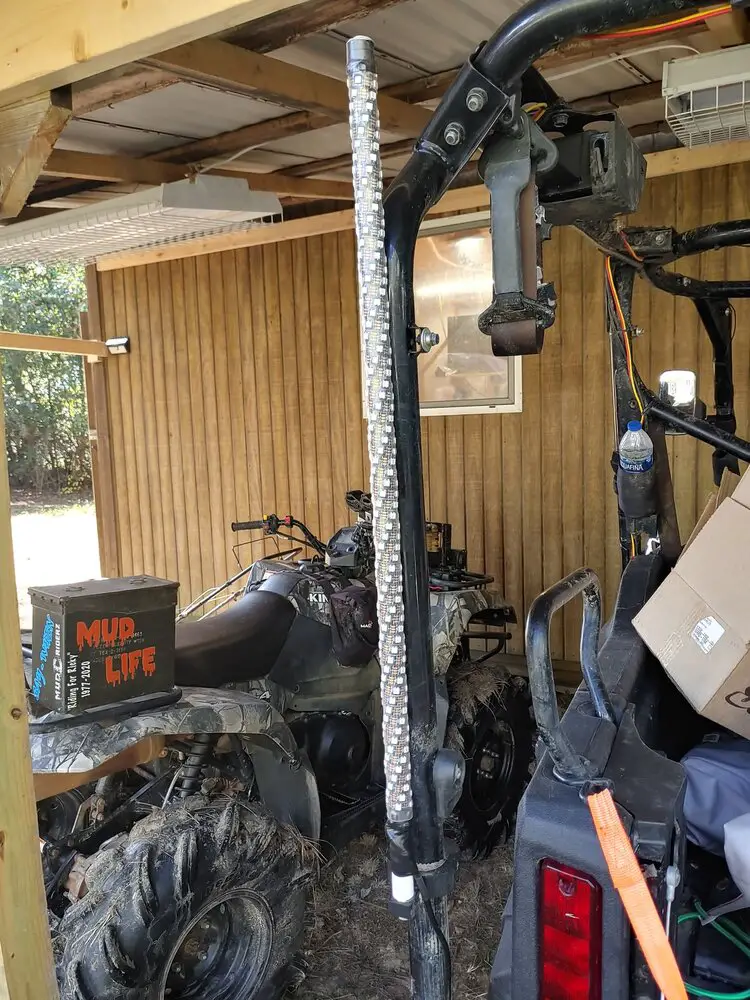

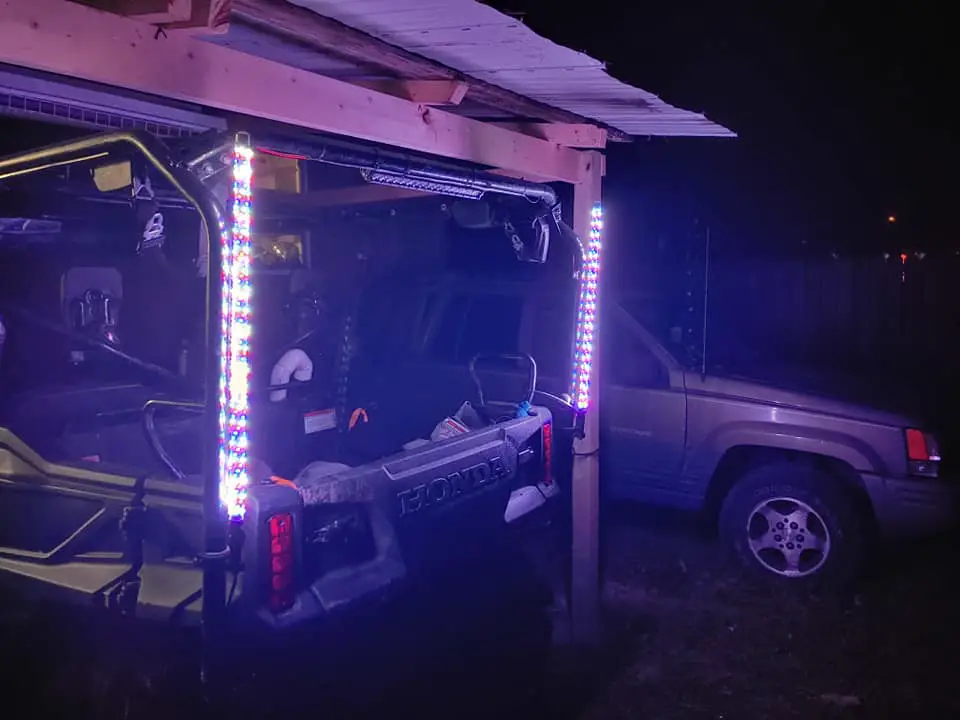

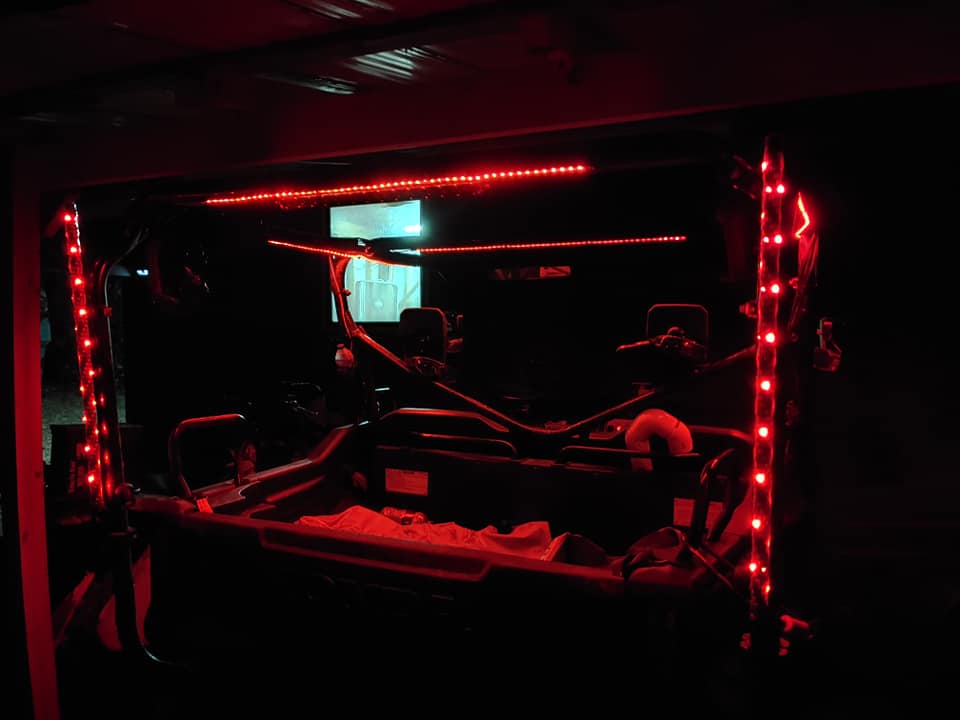

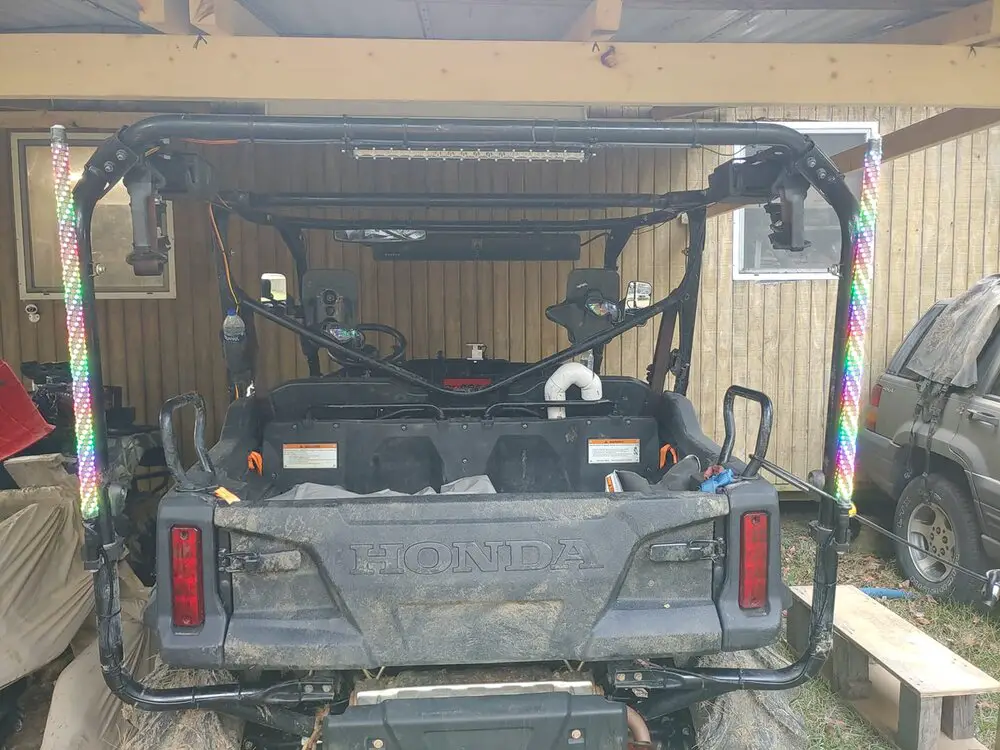

View attachment 230988 View attachment 230978 View attachment 230985 View attachment 230989 View attachment 230990 View attachment 230991

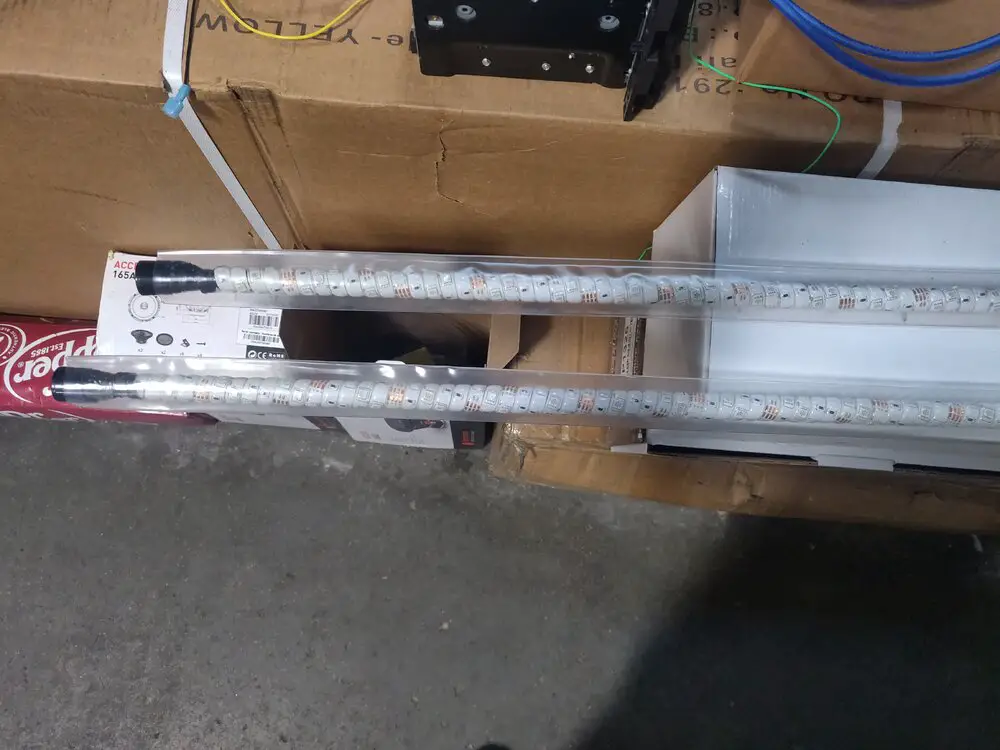

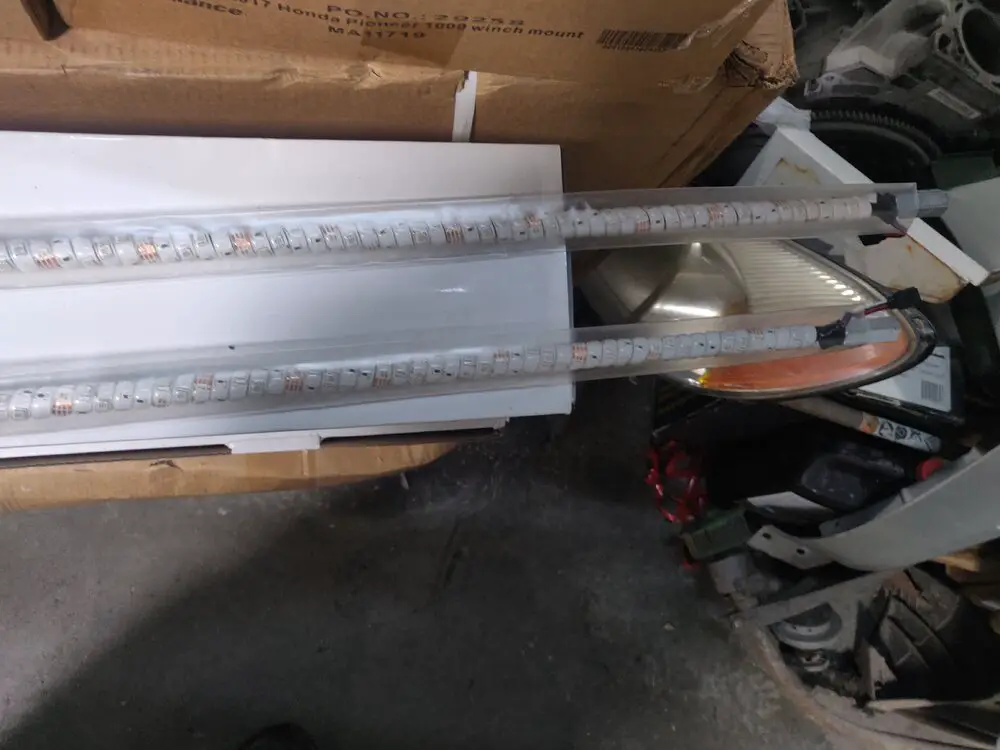

You inspired me to make my own today. Thank you for sharing this!

IMG 20201023 175206 IMG 20201023 175209

advertisement
SuperMidget

SuperMidget

Well-Known Member
Feb 24, 2019
100
362
63
AR
Ownership

  1. Other Brand

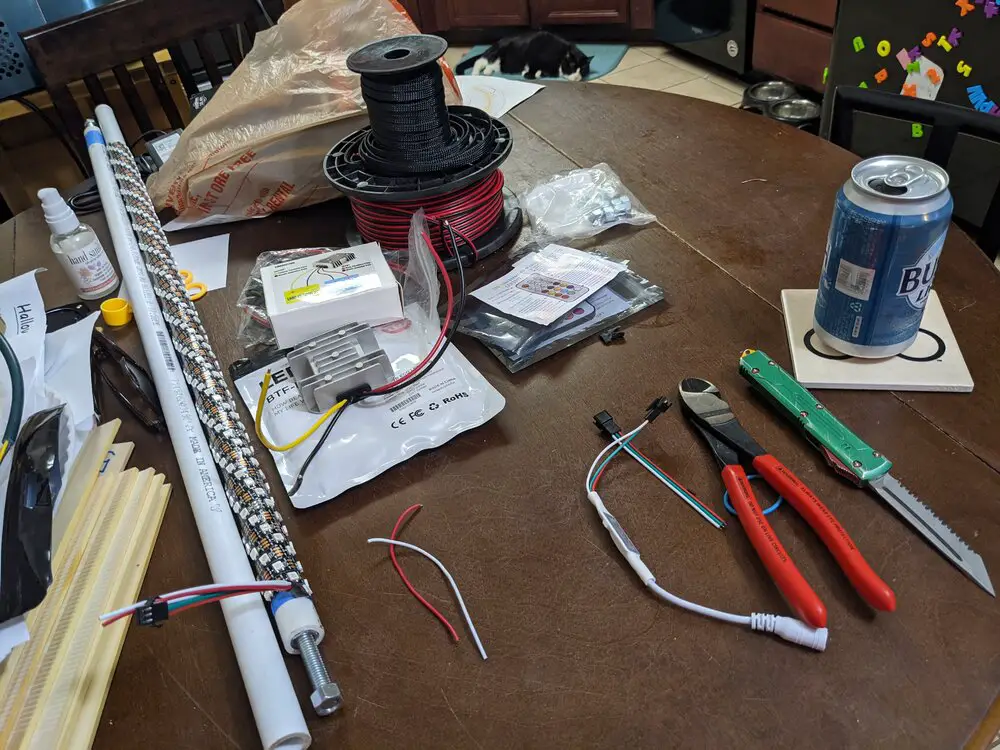

Got everything except my caps and heat shrink today. Getting everything wired up now.
