P700 Rocker switch panel /relay help

ohanacreek

ohanacreek

My EcoBoost has I4WD
Moderator
Lifetime Member
Jul 25, 2013
11,346
32,041
113
Shelby County, Alabama
Ownership

  1. 1000-5
Since I’m using my secondary fuse box for fused power where’s the best place to run the #2 wire off the rocker switch. Thanks again for all your help

A separate fuse from the relay, probably won’t need much for the switch to control the relay maybe a 2amp fuse at most, but if it’s split going to the other switch too then you’ll need to account for what it will draw.

  • Like
Reactions: sharp and Sheepdog
Sheepdog

Sheepdog

Member
Jul 23, 2018
67
70
18
Lyles Tennessee
Ownership

  1. 700-2
A separate fuse from the relay, probably won’t need much for the switch to control the relay maybe a 2amp fuse at most, but if it’s split going to the other switch too then you’ll need to account for what it will draw.
A separate fuse from the relay, probably won’t need much for the switch to control the relay maybe a 2amp fuse at most, but if it’s split going to the other switch too then you’ll need to account for what it will draw.
Will there be a spot on the relay that’s not being used? Or do I double up one of the wires that’s already going to the relay?

  • Like
Reactions: sharp
Sheepdog

Sheepdog

Member
Jul 23, 2018
67
70
18
Lyles Tennessee
Ownership

  1. 700-2
Ok great thank you again for all the help! I just want to make sure I get it right and not burn down my Honda.. lol

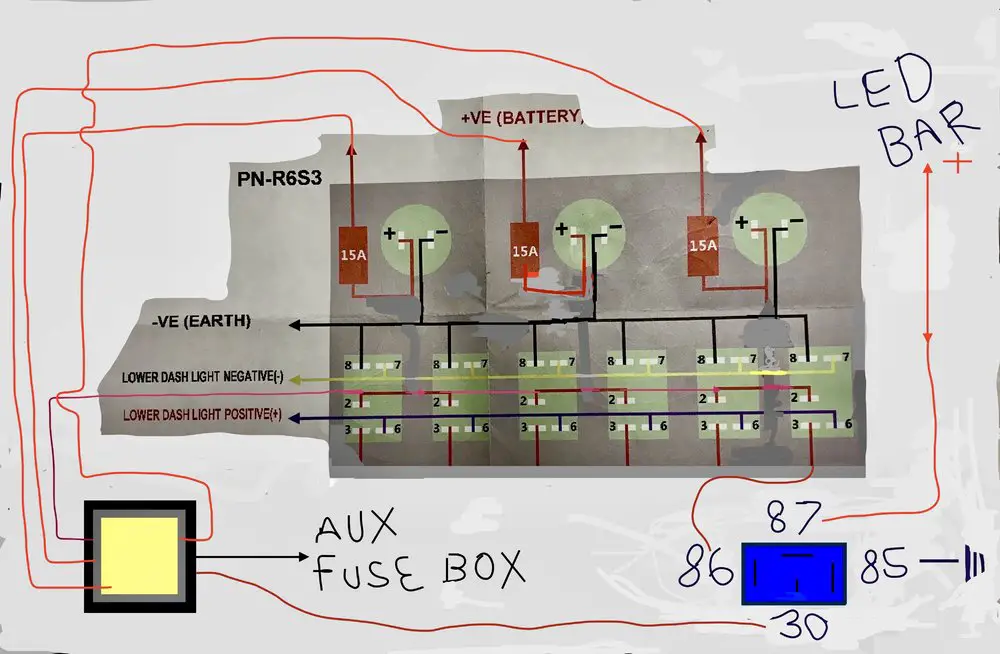

Made up a diagram from our conversation. When u get time can u check it out to make sure it’s correct. Thanks
