P500 What is this windshield clamp called?

[Serge91]

Hey guys, quick question .

i won a 2015 p500 on auction and the windshield appears to be missing the side screw clamps that screw in to keep windshield down.

attached a photo

having a hard time finding the screw-on caps in the parts catalog or what they could be called? If they are even sold separately?

any help Is appreciated



[Admin]



[Smitty335]

Hey guys, quick question .

i won a 2015 p500 on auction and the windshield appears to be missing the side screw clamps that screw in to keep windshield down.

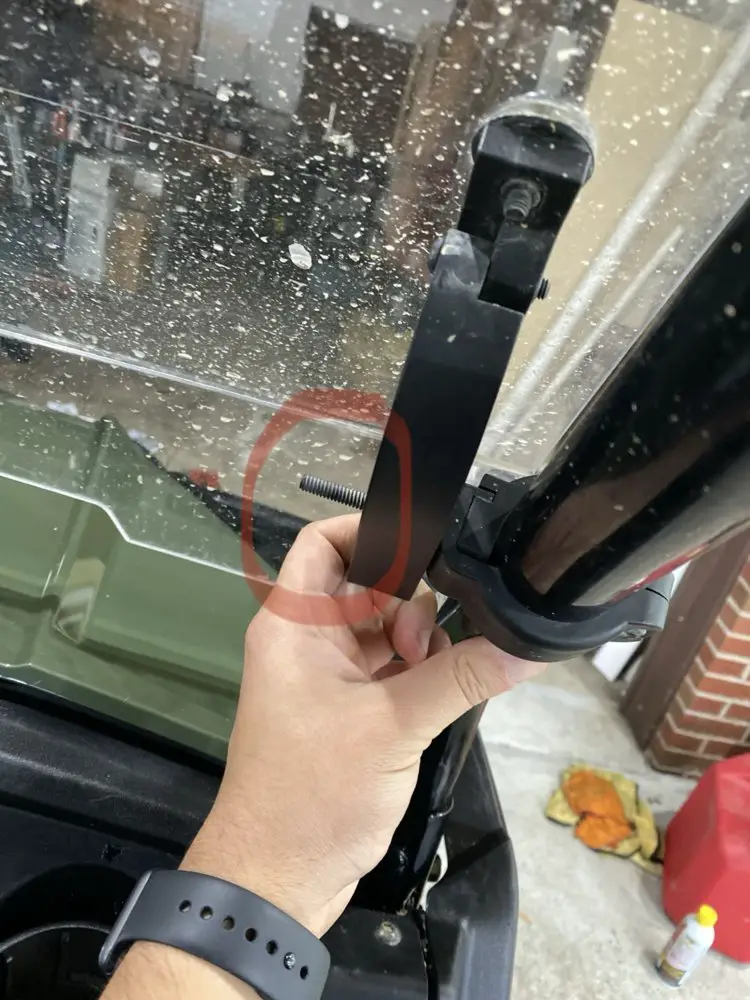

attached a photo

having a hard time finding the screw-on caps in the parts catalog or what they could be called? If they are even sold separately?

any help Is appreciated

View attachment 164000

Need to see the one you have, looks like the seal is missing between windshield edge and hood? Who makes your windshield? And WELCOME!



[Serge91]

Need to see the one you have, looks like the seal is missing between windshield edge and hood? Who makes your windshield? And WELCOME!

Thanks!

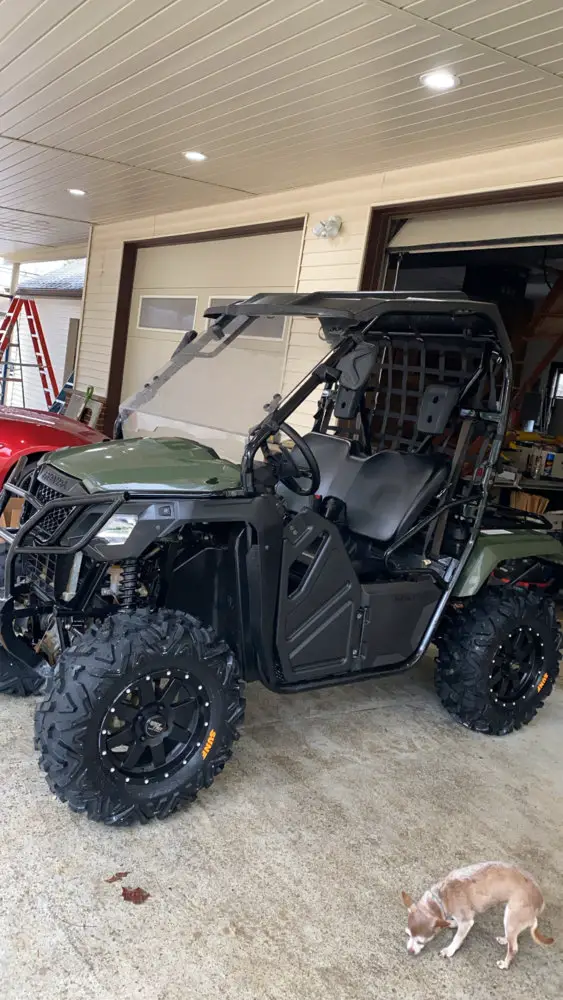

heres a pic of the windshield. i believe its a factory 1 piece. Was not able to find The black seal either.



[Chooglin]

Thanks!

heres a pic of the windshield. i believe its a factory 1 piece. Was not able to find The black seal either.

View attachment 164005

I can't help with the screw clamp but you can order that side seal here. You order it by the foot!

Side bulb Push-On Seal



[lee]

This is what I can find.

Windsheild knob:

Part # 0SR72-HL3-A00R1. knob.

It's item #6 in this link, however the link is for the p700 windshield.
When I look up the p500 windshield the part number is wrong, it repeats the p500 clamp number.
Save up to 30% on 2018 Honda PIONEER 700 DELUXE - SXS700M2D OEM UTV Parts | MotoSport

You can search the part number and find other places that have it avalible.
However most don't have a picture of the actual part, just an image of the part number on the package.

See edit below - red text is not accurate.


Windscreen trim kit:

Part #: 0SR73-HL5-100R2. Windscreen trim kit.

Its the bottom line item in the Link.
No number or image but it includes the top, bottom and side rubber seals (Or so I am led to belive).
Save up to 30% on 2018 Honda PIONEER 500 - SXS500M OEM UTV Parts | MotoSport

Hope that helps.



[lee]

There is a discrepancy in the parts list I found.
It is possible that the knob was changed at some point.

Looking at the photo it is obvious you have a thred3d stud that needs a "nut".
So I looked at the instalation instructions on line.

I don't see this part avalible on line from honda.
But I bet there dumb ass engineer looked on the McMaster Carr web site for a M6 wing nut that could be used in a close clearance situation and selected this:
McMaster-Carr

But, due to my memory being s*** anymore that's just a guess on my part.



[Serge91]

thank you!!

There is a discrepancy in the parts list I found.
It is possible that the knob was changed at some point.

Looking at the photo it is obvious you have a thred3d stud that needs a "nut".
So I looked at the instalation instructions on line.

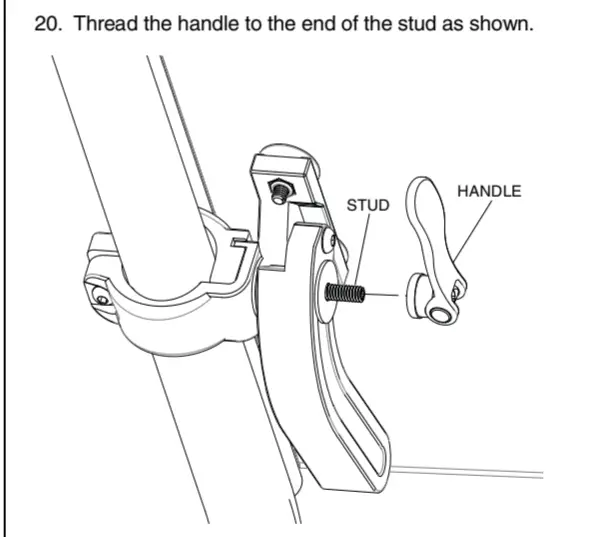

View attachment 164088

I don't see this part avalible on line from honda.
But I bet there dumb ass engineer looked on the McMaster Carr web site for a M6 wing nut that could be used in a close clearance situation and selected this:
McMaster-Carr

But, due to my memory being s*** anymore that's just a guess on my part.



[lee]

It occurs to me that the link may go dead one day, image of the part from McMC:



[monaco]

Mine were missing these as well, also the stud itself. Not having anything to go on, I made my own alternative. Let me know if you want a set.



[Chooglin]

Several knobs on Amazon that you could use, you just need to get the proper threads and you should be good!

https://www.amazon.com/s?k=threaded+knob&ref=is_s&tag=Hsxsweb24&tag=sxsweb24-20
