So I decided to wuss out and go with a simple system. Yeah I know it’s not big enough for a blast cabinet, but I don’t have one and honestly my biggest user is an impact wrench, and ratchet both of which have replaced by yellow battery tools for a few years now.

This will flow more than enough for now..and it’s cheap and flexible enough thatI won’t be mad when I cut parts out if needed in the future.

Don’t care for the push to connect, but it’s working enough imo.

Primefit PCKIT26 Air Piping System, 26-Piece Air Push to Connect Kit with 1/2-Inch (OD) / 3/8" (ID) x 100-Feet TPEE Tubing
https://www.amazon.com/dp/B07F1DXGCL?tag=sxsweb24-20



[oldfortyfive]

Basically the same as rapidair. Should work well.



[john790]

What ever you do iam sure it will be fine.



[Plumber32]

Why not? Ive had that set up with my 2stage compressor in my shop 75’ of it for over 12yrs and no issues.
1/2” schedule 40 of course. Why? Cuz we used it in the building I was at when I was at Roush and had no issues. We also use it in some high pressure situation's in the HVAC trade, deff Cheaper than pex but depending on the application your doing pex is cheaper than copper. Personally I hate working with pex in my trade, pipe cost is average but the tool, clamps and fittings are $$. You can most certainly use the pex for air, most of the fittings are brass, Id stay away from there plastic fittings tho cuz of there 2 pice seems always seem to leak or crack when clamping. You will need spacific fittings from pex to air as well.
If that And the extra money dosnt bother you then go that rout if u like should work. Just use alot of clamps to make it look good and straight, pex likes to sag.
Good Idea to stay away from Blk pipe. Leave that for NG/LP and steamer pipe😉

Use crimp and plastic fittings all the time without failure rated to 200+ psi. I'd definitely use crimp over expansion for this job.



[1HasBeen]

When I was in the OPE business years ago, we ran iron pipe, and it was trouble free. At my recent store/shop, my partner insisted, against my vote, to have Sch 40 PVC installed. We had numerous failures. When we replaced the tired compressor, I saved the receiver and installed it at the end of the run to improve reserve, and act as a hammer arrestor. The failure rate dropped dramatically.

Not a fan of PVC air lines. YMMV.



[Gator]

So I decided to wuss out and go with a simple system. Yeah I know it’s not big enough for a blast cabinet, but I don’t have one and honestly my biggest user is an impact wrench, and ratchet both of which have replaced by yellow battery tools for a few years now.

This will flow more than enough for now..and it’s cheap and flexible enough thatI won’t be mad when I cut parts out if needed in the future.

Don’t care for the push to connect, but it’s working enough imo.

Primefit PCKIT26 Air Piping System, 26-Piece Air Push to Connect Kit with 1/2-Inch (OD) / 3/8" (ID) x 100-Feet TPEE Tubing
https://www.amazon.com/dp/B07F1DXGCL?tag=sxsweb24-20

I installed 3/4" PVC in my shop in 2015. I run my air at 150PSIG. Haven't had any failures so far.

In 2015 PVC was cheaper and this kit wasn't available. Post pictures when you get it installed. (Of the piping not selfies)



[Vikes79]

I installed 3/4" PVC in my shop in 2015. I run my air at 150PSIG. Haven't had any failures so far.

In 2015 PVC was cheaper and this kit wasn't available. Post pictures when you get it installed. (Of the piping not selfies)

I have a pre tank radiator that I’ll be adding as well. Thinking of making it into a “how too” post as well.



[Plumber32]

When I was in the OPE business years ago, we ran iron pipe, and it was trouble free. At my recent store/shop, my partner insisted, against my vote, to have Sch 40 PVC installed. We had numerous failures. When we replaced the tired compressor, I saved the receiver and installed it at the end of the run to improve reserve, and act as a hammer arrestor. The failure rate dropped dramatically.

Not a fan of PVC air lines. YMMV.

Pvc is only good in drain, waste, and vent. Like you said. Terrible for air, and water in my opinion.



[Tramguage1]

I am in a similar situation, I am contemplating relocating my air compressor. My shop is roughly 30x90 and would like to have at least one every 25 foot or so. Want to add a retractable hose reel at 2 locations on the outside of the shop. I have done some research and think the Rapidair type system is what will work best for my application.
But I'm watching this closely



[Vikes79]

I don’t have everything yet but it’s on its way…

Missing the radiator, 1/2’ auto drain filter, and some of the fittings etc.

Here is what I ordered so far..and my ole Sanborn compressor..



[Vikes79]

Go package team at Amazon! 😂



[Coeus]

Installed yet?!?!



[Mopower58]

35 years ago I ran 1/2” iron pipe with 4 quick connect outlets chest high in a 44’ x 28’ shop. Drained the compressor daily. It’s mounted on a slab outside and serviced it yearly. Still running to this day. Time flies when you get older. I edited the age of my shop to 35 years old instead of 25.



[Vikes79]

Installed yet?!?!

Nah fing work keeps getting in the way.

I finally got all the parts to assemble it… hopefully I’ll get it finished tomorrow.



[Coeus]

Nah fing work keeps getting in the way.

I finally got all the parts to assemble it… hopefully I’ll get it finished tomorrow.

We’re waiting



[Vikes79]

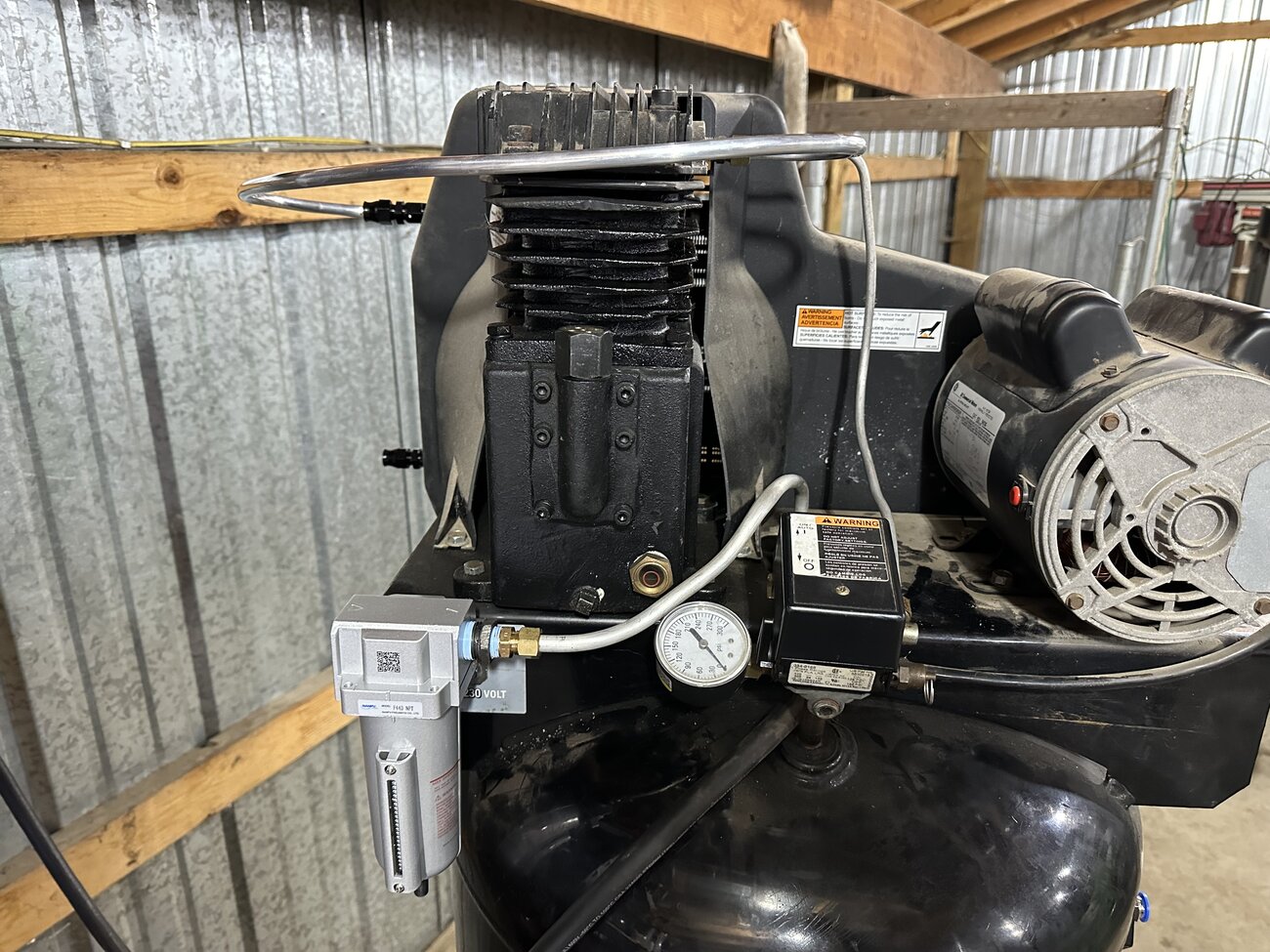

Got the radiator installed today in between errands today. Missing a fitting to connect the automatic separator, but it’s getting a strong temp drop.

I just used self tappers for the separator and handful of zip ties on the radiator to hold it to the guard.

Idea is to have everything drain to the separator.



[john790]

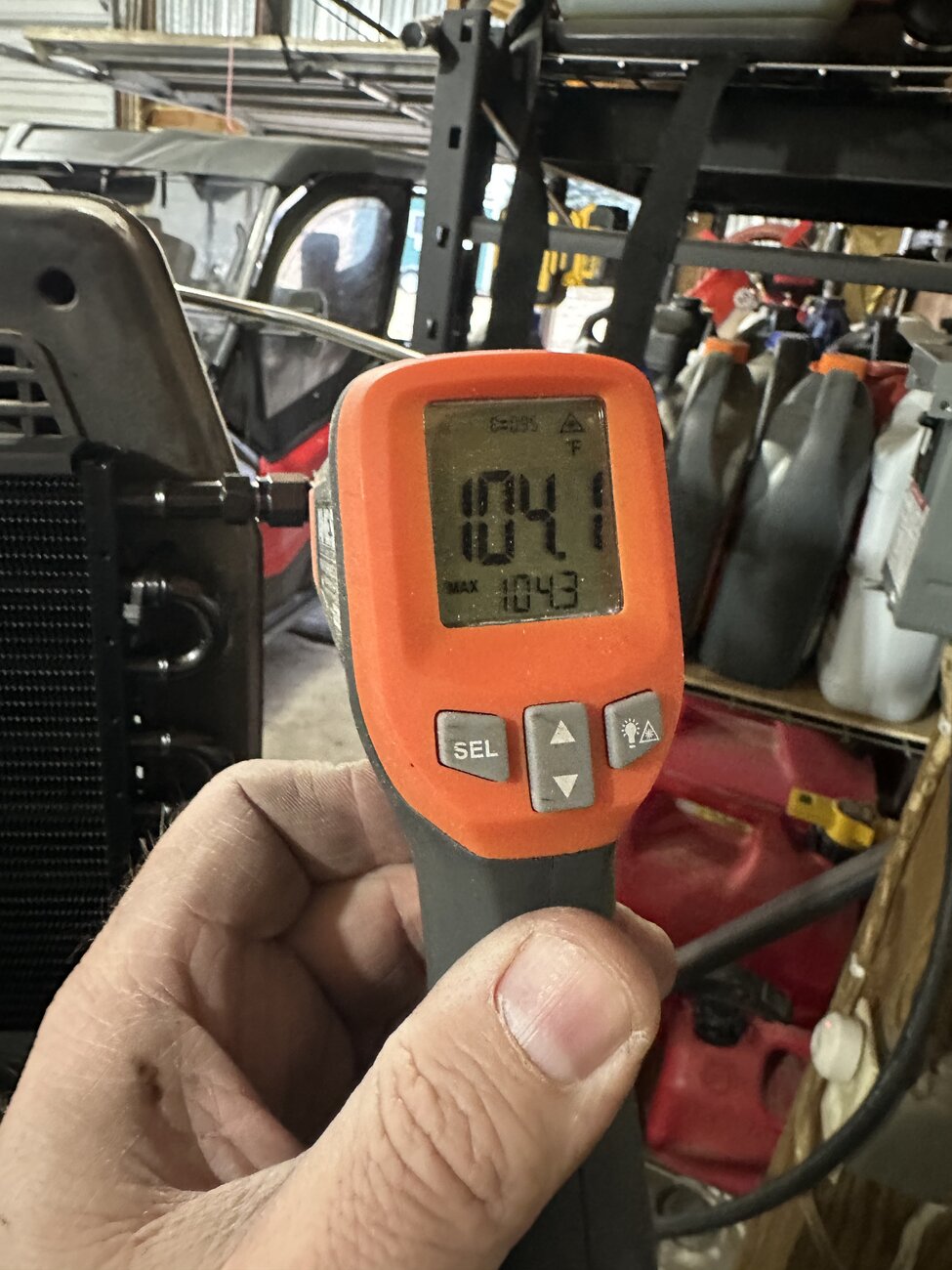

What was the 48 degree shop air temp?.



[NorthernJoe]

Got the radiator installed today in between errands today. Missing a fitting to connect the automatic separator, but it’s getting a strong temp drop.

I just used self tappers for the separator and handful of zip ties on the radiator to hold it to the guard.

Idea is to have everything drain to the separator.




View attachment 420099View attachment 420100View attachment 420101View attachment 420102

I love the idea of the pre tank radiator ! Do you have a part #?



[Vikes79]

What was the 48 degree shop air temp?.

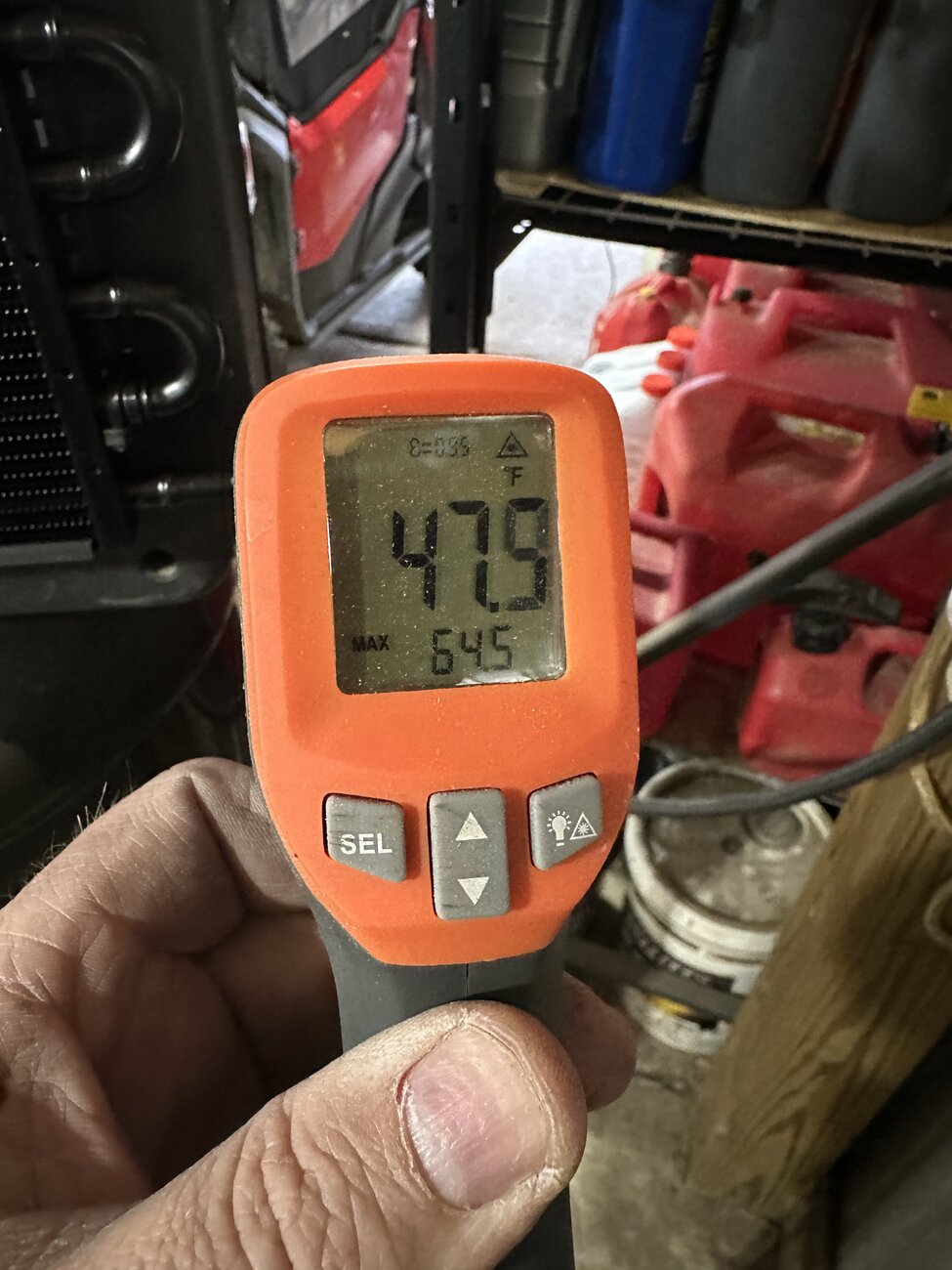

Exit of the cooler. Shop temp was about that temperature. I took the readings at about 5 mins of running.



[Vikes79]

I love the idea of the pre tank radiator ! Do you have a part #?

Yeah I’ll post them this afternoon…I don’t have them off hand at the moment.
