P1000 Starting with electrical.

[TrYaN]

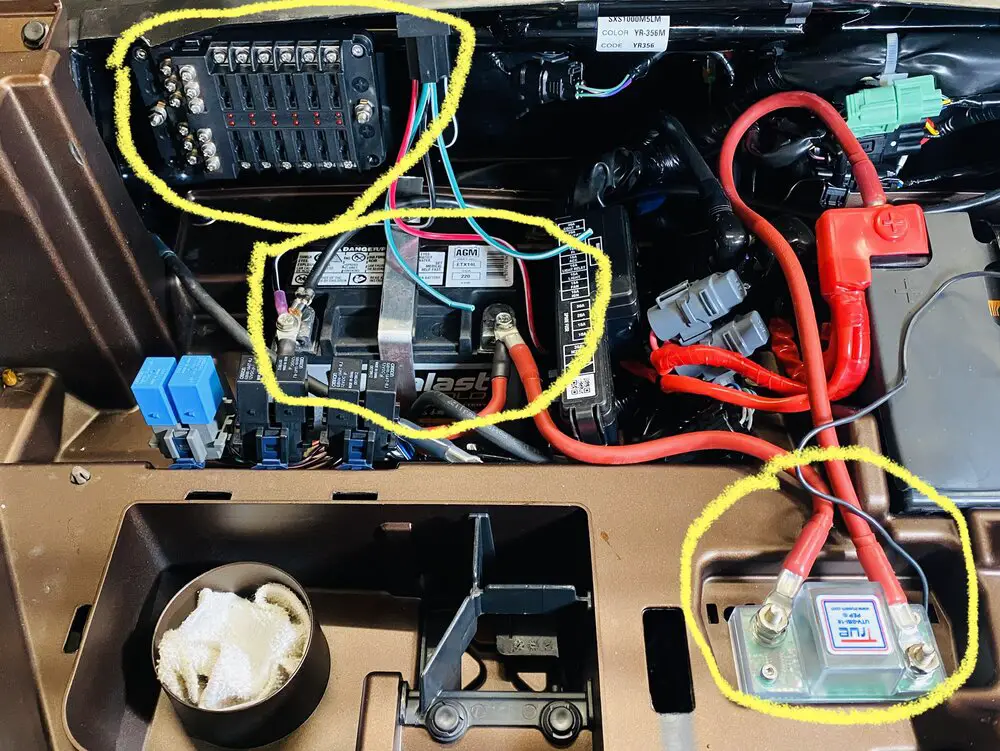

Second battery, isolator, accessory fuse panel, and relay are in. Next will be the switches in the dash. Thanks to everyone on here for the great info.



[Admin]



[aleaddict]

Talk to me about your battery strap... looks stout



[TrYaN]

Talk to me about your battery strap... looks stout

Made it out of some flat bar aluminum from Home Depot. Use left over weather stripping to add some cushion. M8 nutsert on each end.



[JenElio]

Second battery, isolator, accessory fuse panel, and relay are in. Next will be the switches in the dash. Thanks to everyone on here for the great info.

View attachment 281375

Looks good 👍



[BamaDave]

Good work and I’m subscribing for your updates! Can you walk us through your progress? Specifically the two main red leads that come off your primary battery? The grey line coming off the True? The two red lines coming off your secondary battery? The two black lines coming off your secondary battery? And, the two light blue lines coming off your secondary battery?



[BamaDave]

No update??



[Bama-Daniel]

@BAMA Dave - Search forum for Triple B video on Honda Pioneer 1000 dual battery install. 1 red line from primary goes to isolator. Other side goes to 2nd battery. The grey line is a black ground for isolator. Guessing negative wires are going to fuse box and maybe bus bar?



[Smitty335]

Good work and I’m subscribing for your updates! Can you walk us through your progress? Specifically the two main red leads that come off your primary battery? The grey line coming off the True? The two red lines coming off your secondary battery? The two black lines coming off your secondary battery? And, the two light blue lines coming off your secondary battery?

Well the way I did it several years ago was get a fuse box with separate fuses for every accessory , mount it, supply + & - from secondary battery, all my accessories are powered and grounded in the fuse block, makes trouble shooting much easier.



[bumperm]

Good work and I’m subscribing for your updates! Can you walk us through your progress? Specifically the two main red leads that come off your primary battery? The grey line coming off the True? The two red lines coming off your secondary battery? The two black lines coming off your secondary battery? And, the two light blue lines coming off your secondary battery?

The two "light blue" wires are not coming off the second battery, if you look closer. They are green with yellow or white stripe and they come off the relay that's used for getting an ignition switched ground. One of the green stripe wires will be used to switch ground to the dual voltmeter (which comes with the Tru battery isolator kit), the other is a spare.

There are two "heavy" red wires coming off 2nd or aux battery positive terminal. One connects that battery to the Tru "isolator charger", and the other is going to either the winch controller (looks about the right size conductor) or perhaps it's intending to go to the aux fuse block which, in the pic, remains unwired.

I've put all that stuff, and more, in recently, but although I've kept the wiring almost as neat as possible, you can't trace it well from a picture - there's too much of it and I'm still not done.
