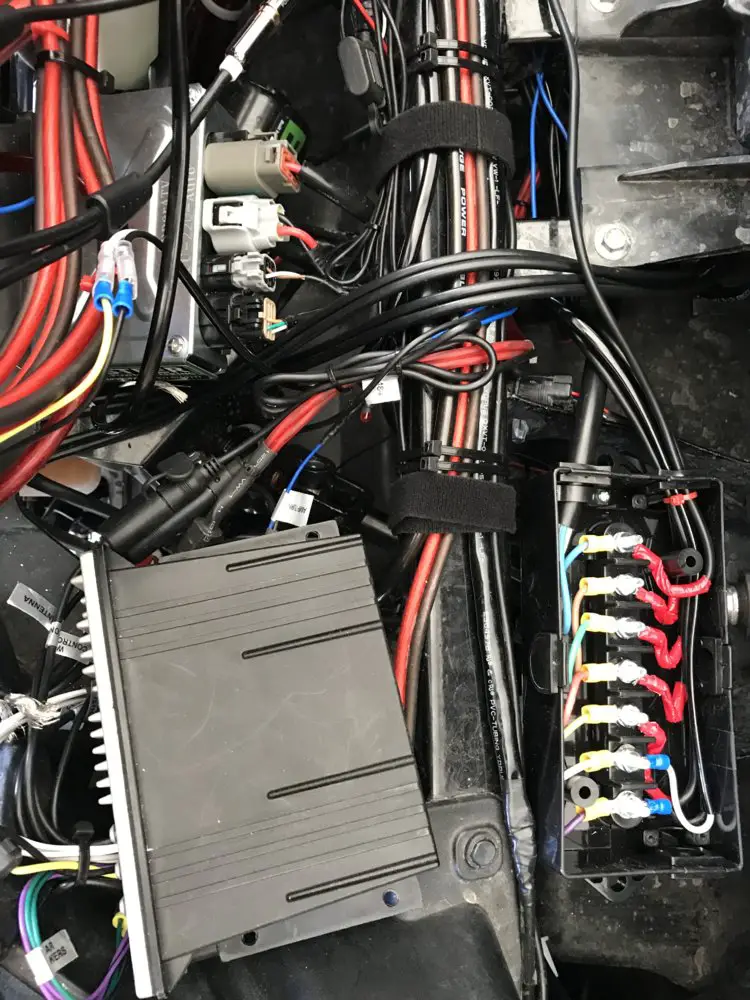

Put almost a full day into finishing up the wiring and am about 90% done. I decided on two junction boxes to support the arm rest command center wiring. I like how it turned out!
View attachment 124257

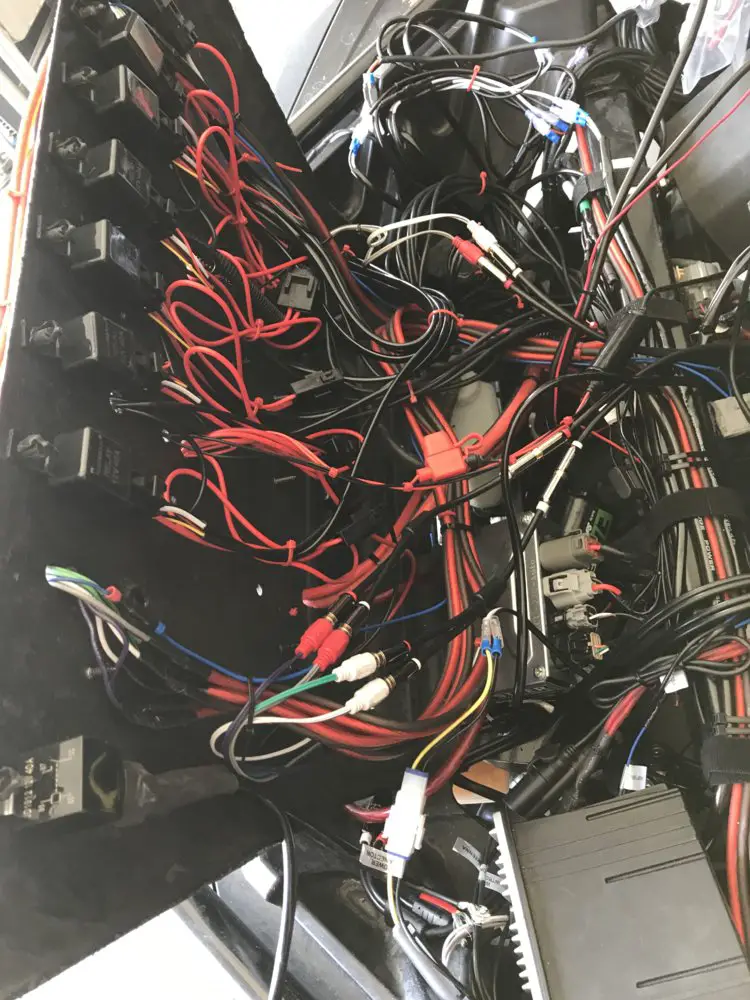

One under the hood
View attachment 124258

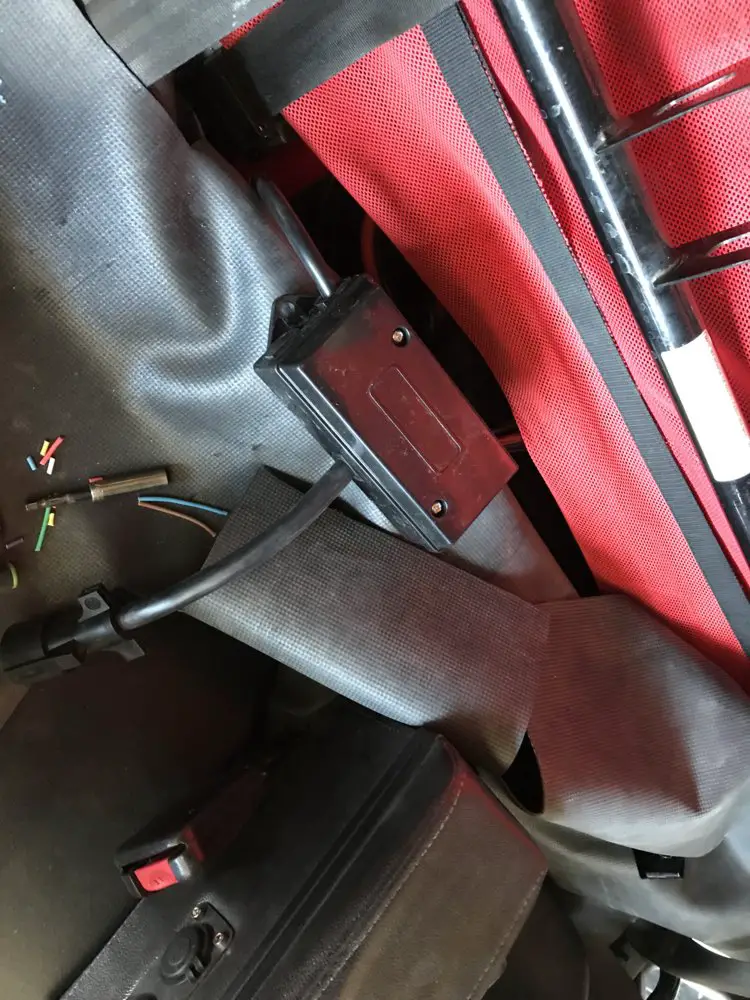

And one behind the seat
View attachment 124259 View attachment 124260

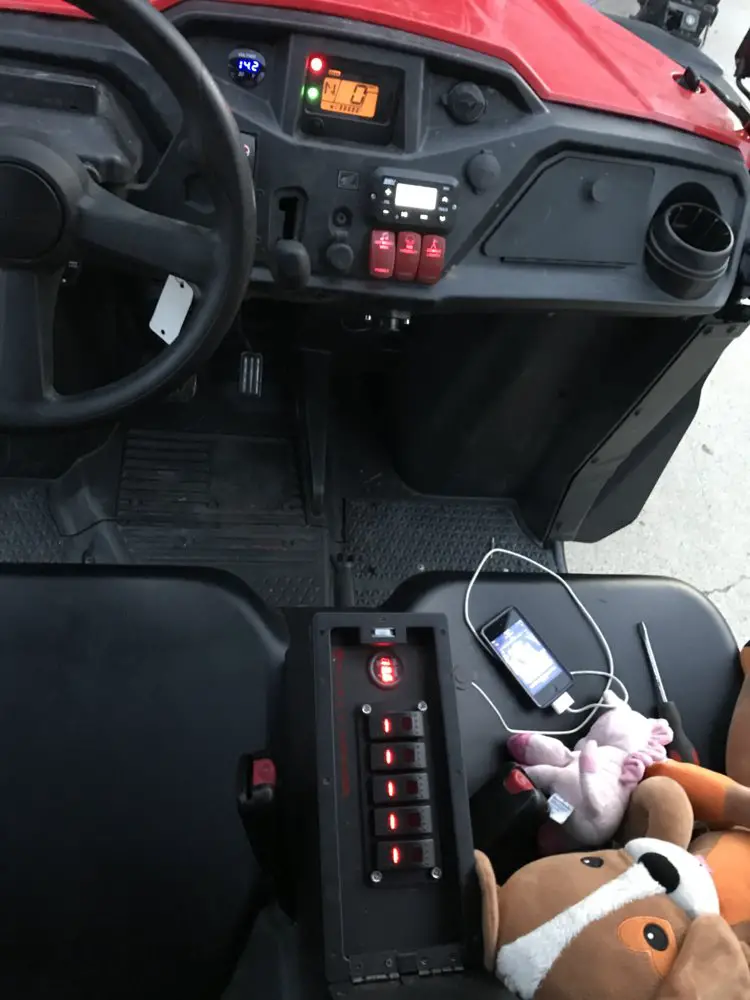

Will have to cut a small hole in my triggershield, but for now I will just fold it down.
View attachment 124261
Stereo Rocks! Still need to make some adjustments and test while riding.

Sound clip or it sounds like a walkie talkie!



[Admin]



[Eltobgi]

Sound clip or it sounds like a walkie talkie!

I’ll see what I can do



[Delton]

Put almost a full day into finishing up the wiring and am about 90% done. I decided on two junction boxes to support the arm rest command center wiring. I like how it turned out!
View attachment 124257
One under the hood
View attachment 124258
And one behind the seat
View attachment 124259 View attachment 124260
Will have to cut a small hole in my triggershield, but for now I will just fold it down.
View attachment 124261
Stereo Rocks! Still need to make some adjustments and test while riding.

Wow bud. Youve got some serious skill man



[Eltobgi]

Wow bud. Youve got some serious skill man

Thanks @Delton! I could get rid of about 3/4 of the wiring without the stereo, lol!

Here’s a pic of the amp and fuse box mounted



[Eltobgi]

Finally mounted winch switch...



[trigger]

Thanks @Delton! I could get rid of about 3/4 of the wiring without the stereo, lol!

Here’s a pic of the amp and fuse box mounted

View attachment 124348

Damn, nice board! Have you left any slack in it to pull it out of the way if needed?



[Eltobgi]

Damn, nice board! Have you left any slack in it to pull it out of the way if needed?

Yes sir. I used double sided Velcro to band it. Enough to tilt it forward and service or clean



[Eltobgi]

So...after playing around with tuning the amps and playing with the EQ I have come to the realization that I need speakers. It sound alright with the amp turned up 1/4 of the way and about half volume on the SSV controller, but any more volume and the speakers distort. I did run it in the ditch wide open and the Stereo Sounded OK but not what I am used to. Couldn’t get myself to record a video, so sorry!

On a positive note she climbs like a goat



[trigger]

So...after playing around with tuning the amps and playing with the EQ I have come to the realization that I need speakers. It sound alright with the amp turned up 1/4 of the way and about half volume on the SSV controller, but any more volume and the speakers distort. I did run it in the ditch wide open and the Stereo Sounded OK but not what I am used to. Couldn’t get myself to record a video, so sorry!

On a positive note she climbs like a goat

Lol, that's what I ended up doing. The cheap sh** was loud and did okay but not what I'm used to either. Don't know which speakers you had distorting but I noticed the Noam's were a bit screechy compared to what's in there now, like they were struggling.



[Eltobgi]

They are 4” BOSS 200 or 300 watt...I can’t remember which but they can’t handle 50 watts, lol. Well I said before it was stage 1 for the stereo! I built a nice foundation to build off just have to figure out which new speakers to get and how to mount them!



[Chooglin]

You're going to be rocking some tunes!!!!



[trigger]

They are 4” BOSS 200 or 300 watt...I can’t remember which but they can’t handle 50 watts, lol. Well I said before it was stage 1 for the stereo! I built a nice foundation to build off just have to figure out which new speakers to get and how to mount them!

Yeah, Boss are crap! They were loud and cheap but that's about it. They were the worst sounding speaker I ever had in this system. No matter how much shielding and isolating I did I had a hell of a time getting the engine noise out of them. Took a ground loop isolator to finally get it out and then you could really hear what they sounded like.



[SouthwestORV]

I am impressed. I am clueless when it comes to electrical, and that looks pretty awesome. I'll bet you had fun doing it.



[Eltobgi]

I am impressed. I am clueless when it comes to electrical, and that looks pretty awesome. I'll bet you had fun doing it.

Wiring it to look like this wasn’t bad! What was bad was detangling the rush jobs through the winter time consuming to say the least!

The way that I wired it it’ll support changing out aux items such as lights for more powerful lighting. It’s a good foundation for what’ll come next



[CumminsPusher]

Nice job my friend! You’re going to have more in the Mini then the Beast. Looks great



[Eltobgi]

Nice job my friend! You’re going to have more in the Mini then the Beast. Looks great

It hasn’t been cheap,lol. So far it’s comparable but I’m not quit where the BEAST is at...yet!

I’m liking this little sucker! Ran it to the next town over in the ditches about 30-35 mph. It was fun. Just need a spot to brace my left foot like the BEAST has,lol. I kept finding my self raising my leg to brace up.



[CumminsPusher]

It hasn’t been cheap,lol. So far it’s comparable but I’m not quit where the BEAST is at...yet!
View attachment 124712 View attachment 124713
I’m liking this little sucker! Ran it to the next town over in the ditches about 30-35 mph. It was fun. Just need a spot to brace my left foot like the BEAST has,lol. I kept finding my self raising my leg to brace up.

I do love that footwell on the 1000 a lot even when passenger.



[Eltobgi]

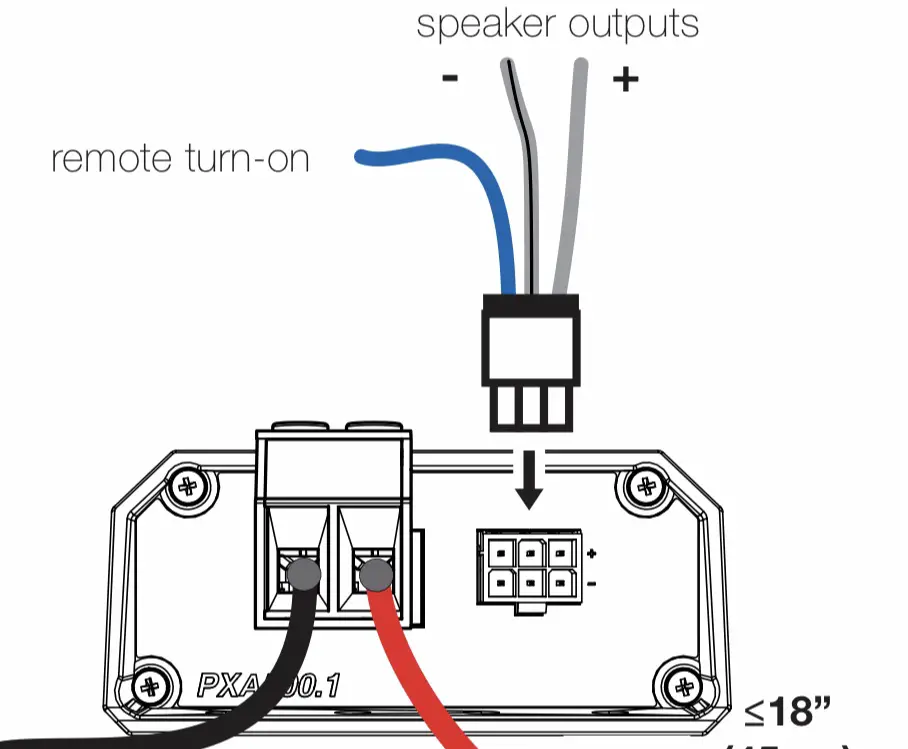

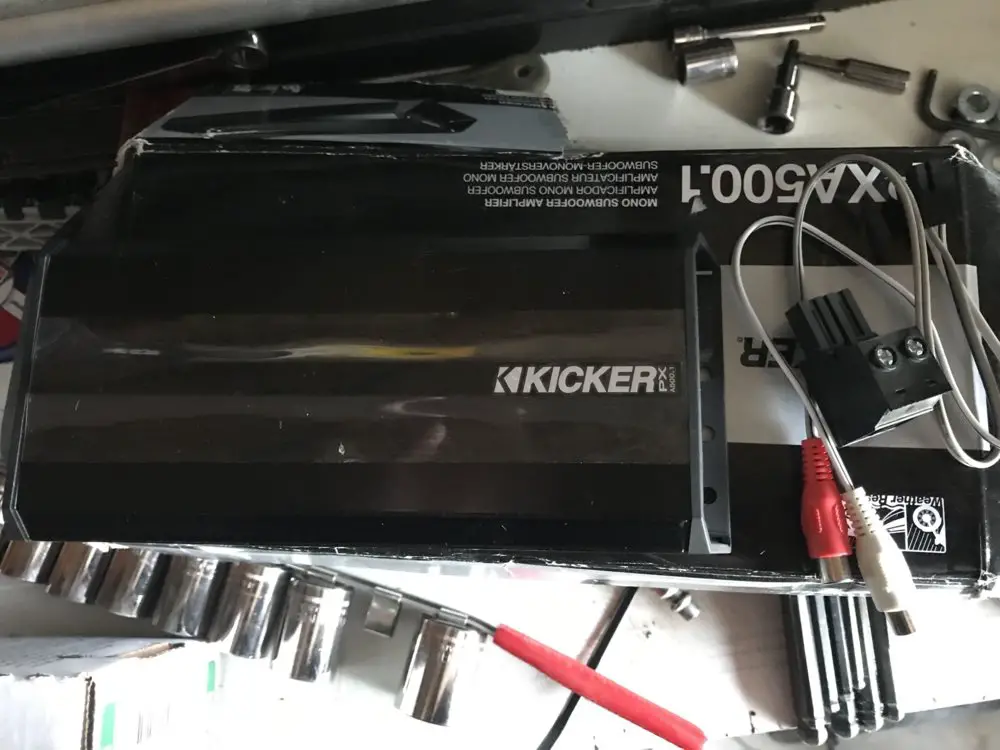

Need Help tracking down this harness...

I thought that I found a good deal only to find out it was short a harness.

I have been looking and can’t find it...even called KICKER but they have not called me back yet

If someone could post a link or provide info that would be great. Thanks



[Neohio]

Need Help tracking down this harness...
View attachment 129275 View attachment 129276 View attachment 129277
I thought that I found a good deal only to find out it was short a harness.

I have been looking and can’t find it...even called KICKER but they have not called me back yet

If someone could post a link or provide info that would be great. Thanks

I have an idea of what it is.
Can you post a straight on picture of the connector on the amp?



[Eltobgi]

I have an idea of what it is.
Can you post a straight on picture of the connector on the amp?
