I ordered the Pioneer 1000 rear bumper from Superatv last week. It came and I installed it today. I was looking for better access to my rear winch but still some rear bumper protection. It installed easy and I like it. For me it could fit 2-3" closer to the roll cage but it'll work. I'll have to come up with a new reverse light mount but ran out of time today


PXL 20230102 230622948


PXL 20230102 230628980



PXL 20230102 231521449

ToddACimer

ToddACimer

Pioneer 1005-2
Lifetime Member
Oct 7, 2016
3,669
15,484
113
Oshkosh, Wi
Ownership

  1. 1000-5
Giving up on broken upper a-arms bolts. 12 mm bolts going on.

Photo below, 12mm upper control arm bolts for Superatv arms. 12mm bolt with new tube and bushings top, 12mm bolt middle, 10mm bolt bottom

PXL 20230717 214431865

ToddACimer

ToddACimer

Pioneer 1005-2
Lifetime Member
Oct 7, 2016
3,669
15,484
113
Oshkosh, Wi
Ownership

  1. 1000-5
Passenger side is going together

The McMastercarr bolts measured out to .470 and were a good fit in the sleeves. I used a 1/2" unibit to drill out the a-arms tabs and got a nice round hole. One thing to note is my front a-arms tab weld washers are counterbored for m10 flange nuts rather than Allen heads so the m12 Allen head fit inside the counter bore. On the nut side it is larger OD than the counter bore. I'm going to look into a washer to fill the gap but I'll probably be ok on the flange with a double nut and red locktite.

Holes drilled and bolt in
PXL 20230718 221607076


Sleeve from @RB3offroad was perfect for my a-arms tabs and matched the OD of the m10 sleeve
PXL 20230718 221702085


Test fit on the flanged m12 deformed thread lock nut
PXL 20230718 221738993

Bolt and nut
PXL 20230718 222157799

advertisement
ToddACimer

ToddACimer

Pioneer 1005-2
Lifetime Member
Oct 7, 2016
3,669
15,484
113
Oshkosh, Wi
Ownership

  1. 1000-5
200 miles on the new bushings and bolts. Front end is a lot tighter and quieter. Bolts are still torqued. I have noticed more squeak from the upper bushings but that's likely because they are pivoting with a little more clamp load. It did get quieter with time. I think this was a worthwhile upgrade.

ToddACimer

ToddACimer

Pioneer 1005-2
Lifetime Member
Oct 7, 2016
3,669
15,484
113
Oshkosh, Wi
Ownership

  1. 1000-5
Cleaned up after Drummond Island. Pretty good size hole in the driver footwell from a log coming in. Steering wheel is a bit off center but she's basically ready to go wheeling

PXL 20230812 212250790
PXL 20230812 212259923


Rear tires are still rubbing a bit on everything.

PXL 20230812 215619152


PXL 20230812 215645091

BrophyCreek

BrophyCreek

Well-Known Member
Lifetime Member
Supporting Member
May 8, 2016
489
2,984
93
New Richmond, WI
Ownership

  1. 1000-5

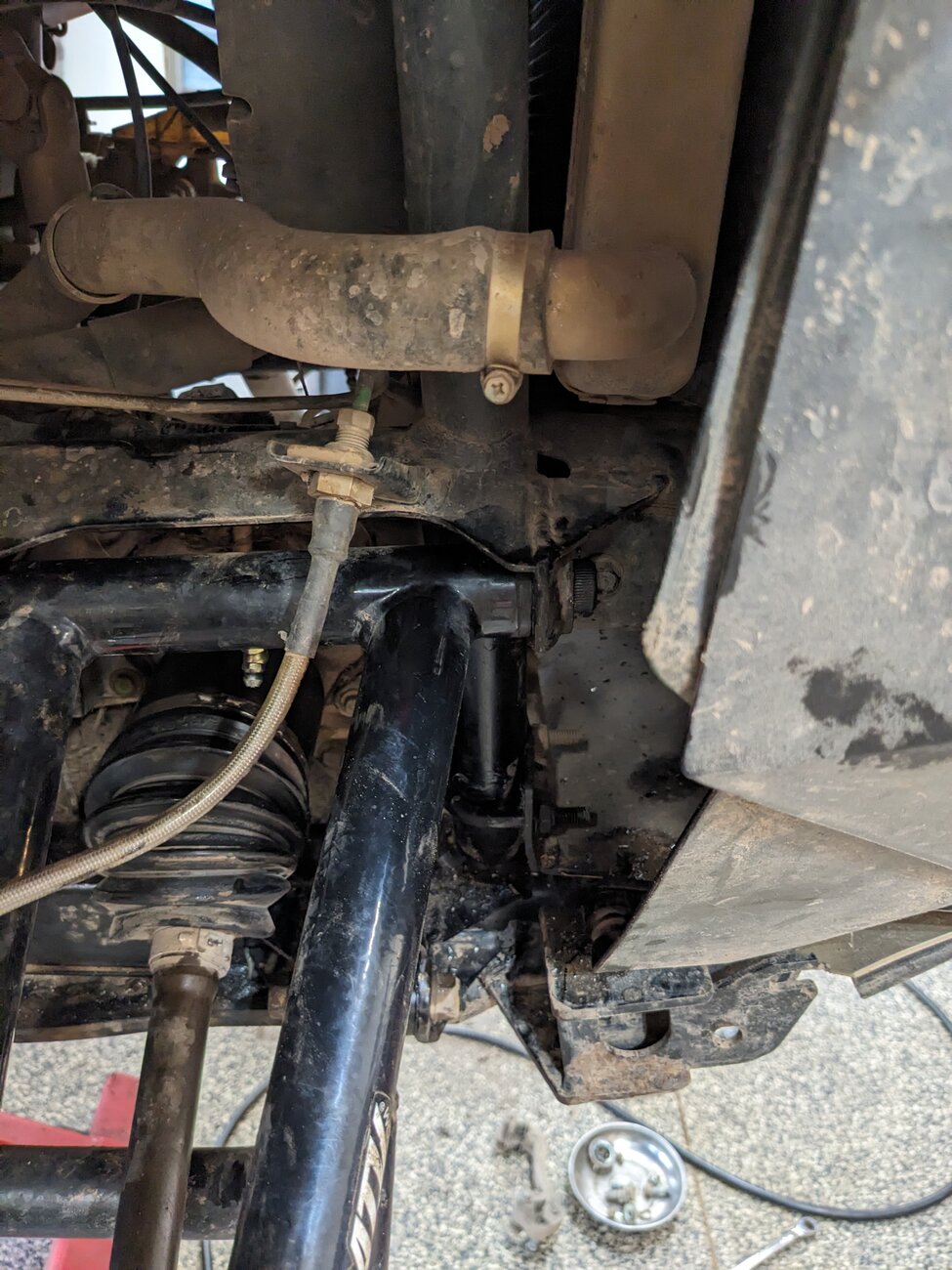

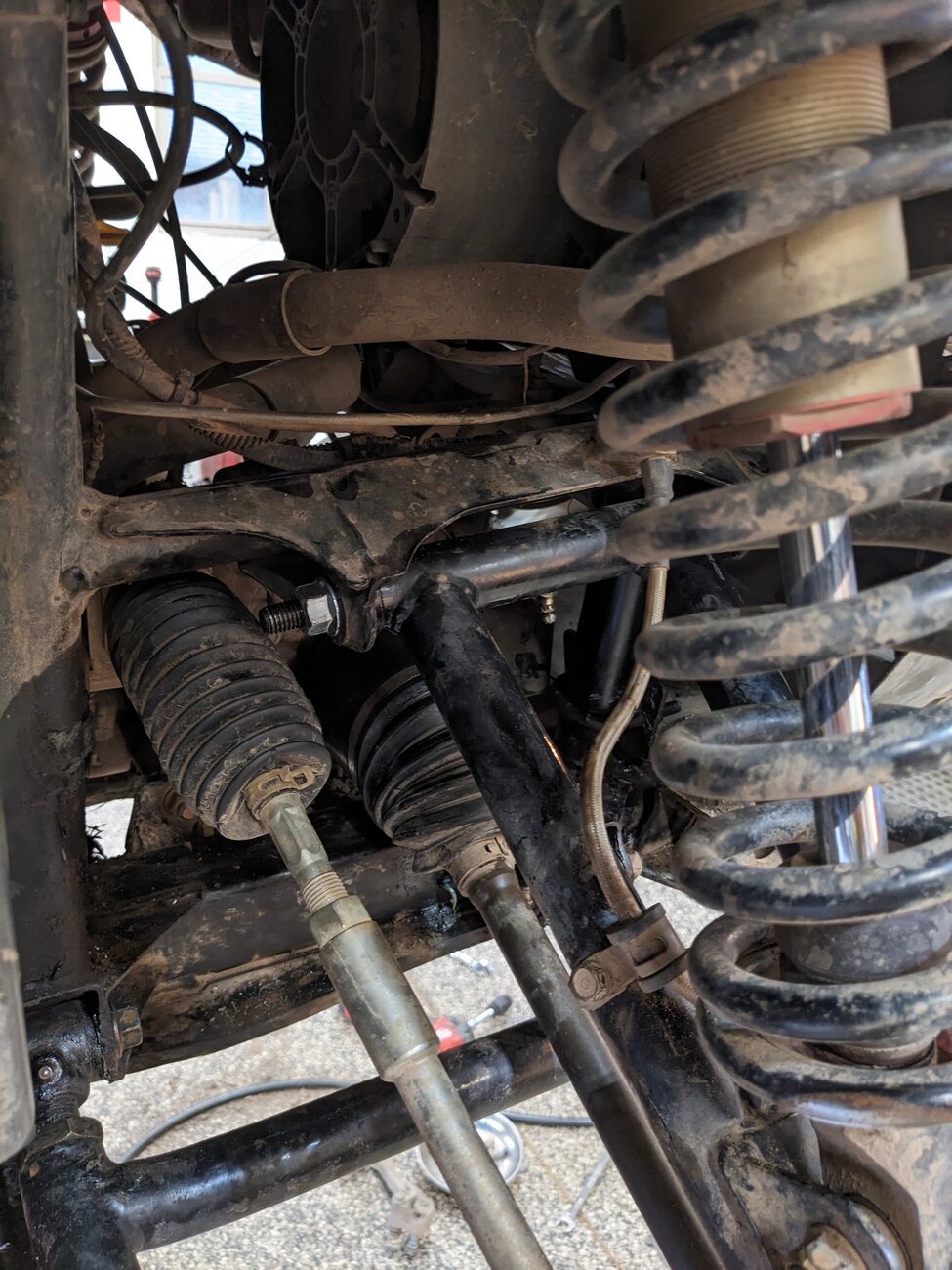

2022 Pioneer tie rods are a confirmed fit and they look good too. The outers match the Talon X and the inners are a beefier middle tube that the original tie rods. The geometry keeps the tie rod from rubbing my tires are full lock and pinching the brake likes with SuperATV arms.

View attachment 330278

View attachment 330277

View attachment 330276

View attachment 330275

View attachment 330274

Tie rods double nutted for her pleasure
View attachment 330279
Hey man, I'm upgrading mine 2016 to 22+ tie rods and have a couple questions.

1. The 16 outer tie rod has a 12mm stud/ On the 22 it only 10? Must be the wrong part? On this post you said the outers matched the talon, so that's not the issue. What was different with the first set you got that were for a talon. ( mentioned a few posts before this one )

2. Do recall seeing these little sleeve/clips? No idea what they would be for. For a second I thought they were to adapt the smaller stud to the steering knuckle, but that doesn't seem right. it should be a full sleeve then. They would fit on the inside, but again, for what purpose?

TIA!

20231007 204945 20231007 204953

ToddACimer

ToddACimer

Pioneer 1005-2
Lifetime Member
Oct 7, 2016
3,669
15,484
113
Oshkosh, Wi
Ownership

  1. 1000-5
Hey man, I'm upgrading mine 2016 to 22+ tie rods and have a couple questions.

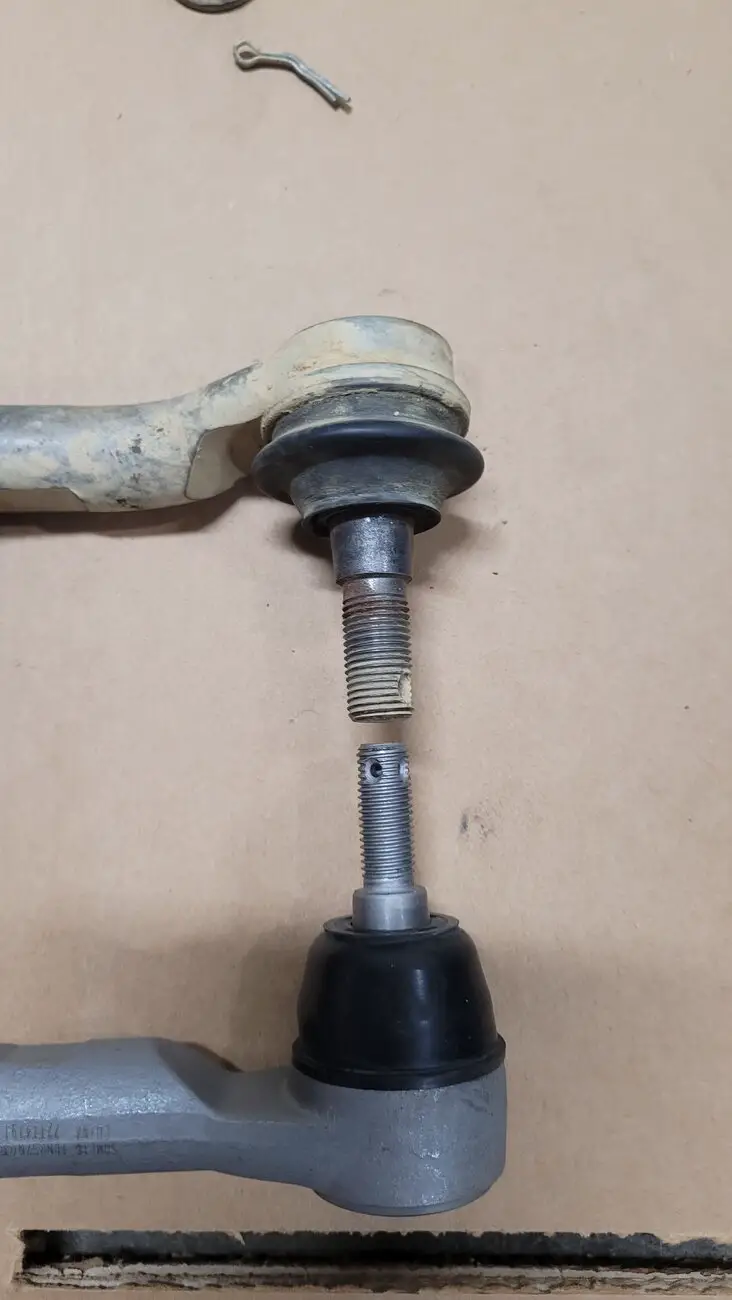

1. The 16 outer tie rod has a 12mm stud/ On the 22 it only 10? Must be the wrong part? On this post you said the outers matched the talon, so that's not the issue. What was different with the first set you got that were for a talon. ( mentioned a few posts before this one )

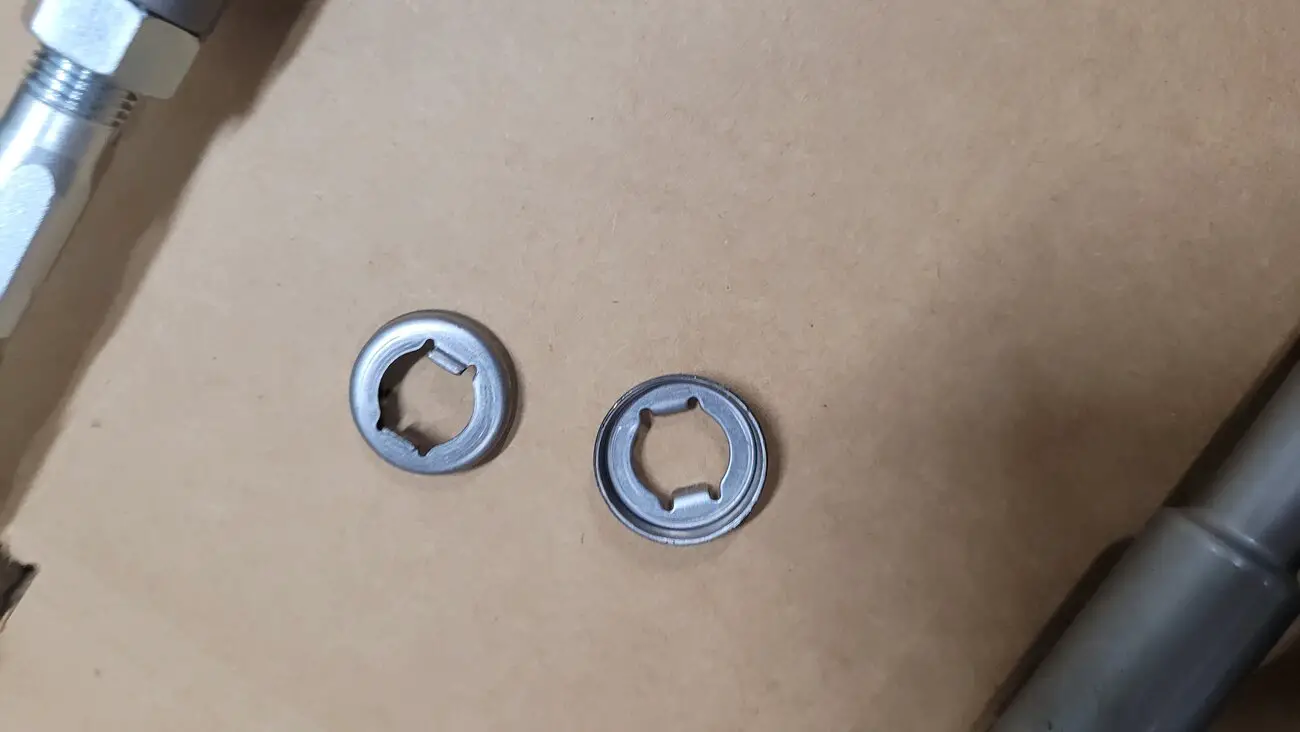

2. Do recall seeing these little sleeve/clips? No idea what they would be for. For a second I thought they were to adapt the smaller stud to the steering knuckle, but that doesn't seem right. it should be a full sleeve then. They would fit on the inside, but again, for what purpose?

TIA!

View attachment 405892 View attachment 405893
Hopefully you can figure it out with the parts guy this week.

WagginTail

WagginTail

Well-Known Member
Lifetime Member
Club Contributor
Oct 13, 2020
1,577
5,827
113
SC
Ownership

  1. 1000-5
200 miles on the new bushings and bolts. Front end is a lot tighter and quieter. Bolts are still torqued. I have noticed more squeak from the upper bushings but that's likely because they are pivoting with a little more clamp load. It did get quieter with time. I think this was a worthwhile upgrade.

Still happy with the bolt upgrade? I'm thinking about getting the kit from RB3. I also need to find some of the weld in washers. Do you recommend adding gussets on the a arm tabs? The issue I'm having is the bolt holes in my front upper a arm mounts are becoming oval shaped. Thanks

ToddACimer

ToddACimer

Pioneer 1005-2
Lifetime Member
Oct 7, 2016
3,669
15,484
113
Oshkosh, Wi
Ownership

  1. 1000-5
I would recommend the bolt upgrade. I also recommend gussets and weld washers. I broke several upper a-arm bolts with the gussets and washers. I was at about 800-1000 miles before the bolts broke. I have over 1000 miles on this setup and it is still together. The whole front end feels a lot tighter with the new bolts torqued. It's a sample size of 1 but it was a beefy upgrade. Once thing to consider is my weld washers are counter bored. The front weld washer now fits the Allen head bolt but my rear doesn't not. I also have my bolts double nutted with flanged nuts and jam nuts

WagginTail

WagginTail

Well-Known Member
Lifetime Member
Club Contributor
Oct 13, 2020
1,577
5,827
113
SC
Ownership

  1. 1000-5
I would recommend the bolt upgrade. I also recommend gussets and weld washers. I broke several upper a-arm bolts with the gussets and washers. I was at about 800-1000 miles before the bolts broke. I have over 1000 miles on this setup and it is still together. The whole front end feels a lot tighter with the new bolts torqued. It's a sample size of 1 but it was a beefy upgrade. Once thing to consider is my weld washers are counter bored. The front weld washer now fits the Allen head bolt but my rear doesn't not. I also have my bolts double nutted with flanged nuts and jam nuts
Thanks. Guess it's not much more work to weld gussets in while I'm doing the washers anyway. What all comes with the RB3 kit? Not much detail on their website. I'm guessing bolts and just the metal bushing/tube?

  • Like
Reactions: JenElio
ToddACimer

ToddACimer

Pioneer 1005-2
Lifetime Member
Oct 7, 2016
3,669
15,484
113
Oshkosh, Wi
Ownership

  1. 1000-5
Thanks. Guess it's not much more work to weld gussets in while I'm doing the washers anyway. What all comes with the RB3 kit? Not much detail on their website. I'm guessing bolts and just the metal bushing/tube?
I picked the bolts I wanted. They just sell the bushings and sleeves
