P1000 2023 P1000 wiper rocker switch wiring.

[CJQuig]

So I have the wiring harness with me and when removing from p1000, I lost a few connections. Any idea what colour wires go to the rocker switch? There are 3 purple/black, one green and one blue



[Admin]



[Hondasxs]

I can get it tomorrow.



Sent from my SM-G996U using Tapatalk



[Remington]

Im not familiar with your wires. But if u can find out the hot and so forth this will get you there. Or u can wait. Just trying to help u along.



[packer58]

@CJQuig, I personally would wait to be on the safe side. I inadvertently smoked the auto return "park" in my wiper motor by "trying" to figure out the wiring. It's not a big deal to me but would be nice ..............



[dweber23tr]

Does this help?

P1000 - Honda OEM wiper wiring diagram

I have purchased the OEM honda washer/wiper setup for my 2023 1000-5 trail. I do not have the OEM fuse box, but rather an aftermarket one. Wondering if the diagram referenced in this post, is still correct? I know the P/N, 0se10-hl4-a01, for the 2022+ wiper is different than previous years...

hondasxs.com



[CJQuig]

I’m waiting, tons on info on the wiper motor to relay, I’ve learned a lot. not much detail on the Honda Fuse Box Wiring Kit, 0SS26-HL4-A00



[NorthernJoe]

I just went out and pulled my switch out, Here is what it looks like

When you turn on the key, there is power at the blue wire and the purple wire. when you turn on the wiper there is power at both purple/ black stipe wires. When you push the washer you get power at the green wire.

Hope this helps



[CJQuig]

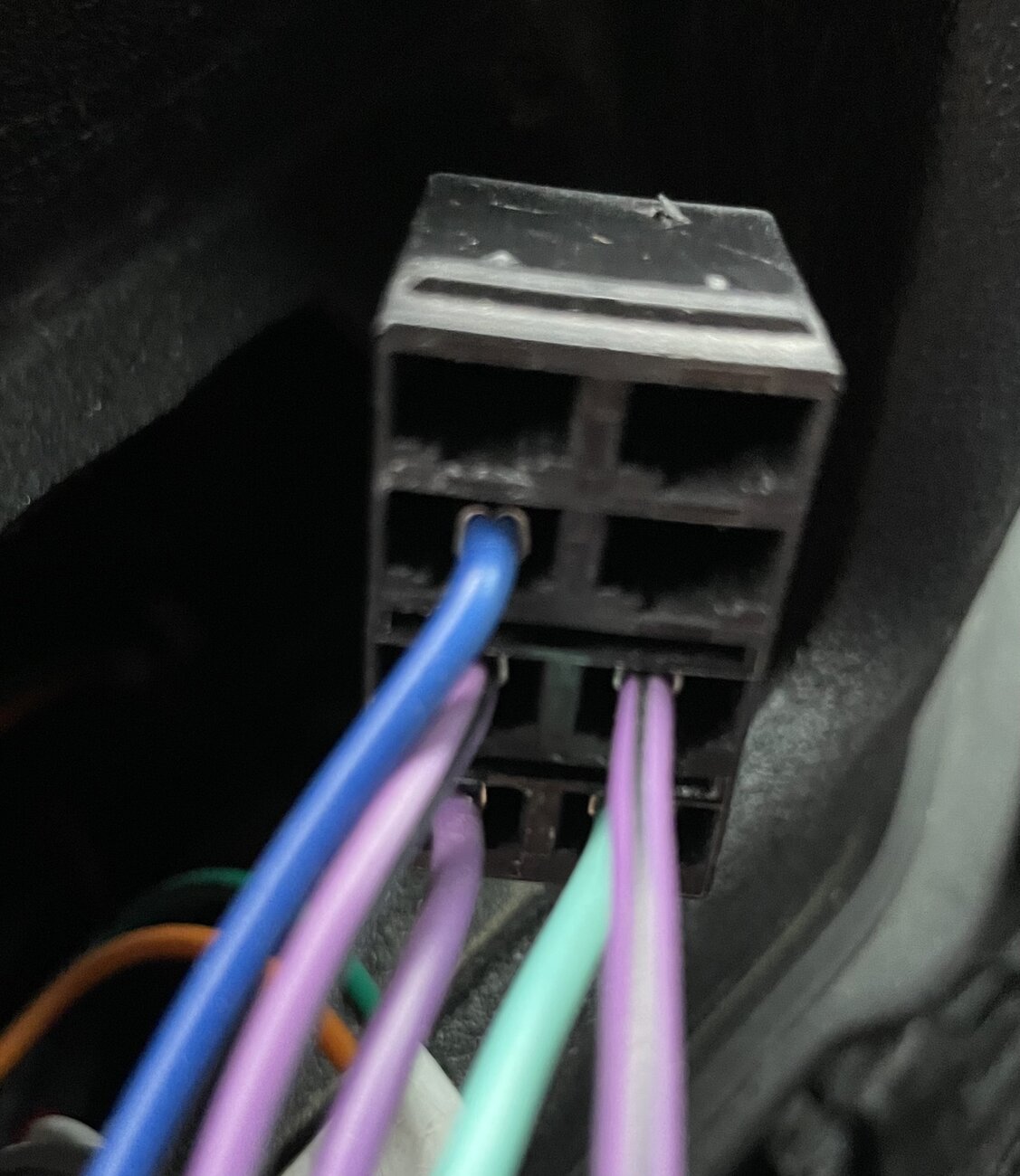

I just went out and pulled my switch out, Here is what it looks like

View attachment 419697
When you turn on the key, there is power at the blue wire and the purple wire. when you turn on the wiper there is power at both purple/ black stipe wires. When you push the washer you get power at the green wire.

Hope this helps

God love ya! I appreciate you doing that, it's very helpful.



[NorthernJoe]

God love ya! I appreciate you doing that, it's very helpful.

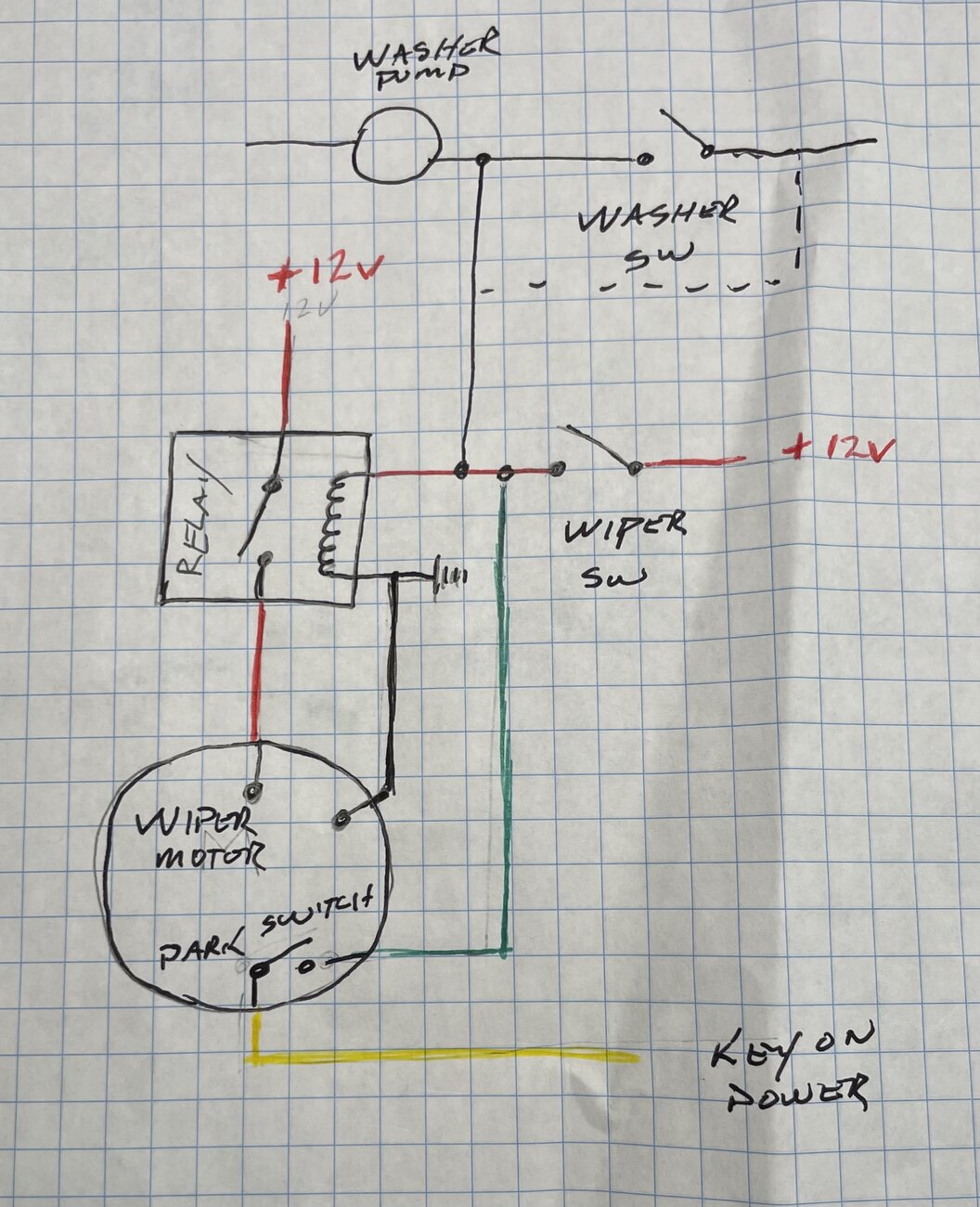

This is what I found at the wiper motor end. disregard the washer circuit as I was just trying to figure that out a little further. I'm trying to figure out how to add an intermitted control the the wiper circuit



[CJQuig]

This is the switch circuit I have from the Club store.



[Remington]

This is what I found at the wiper motor end. disregard the washer circuit as I was just trying to figure that out a little further. I'm trying to figure out how to add an intermitted control the the wiper circuit


View attachment 419699

GD! Looks like one of my generator transfer switch diagrams! Was giving me anxiety there for a min🤯🤣
