I just received a 32" curved LED light bar and looked at installing on the roof above the Honda crossbar...I was thinking of drilling through the crossbar and using a spacer between the Honda roof and the crossbar with the L-brackets (to keep the bolt tight and keep the roof at the original height) I have enough bolts through the roof anyhow so what's another two-lol Anyone else do that? Any concern drilling through the Crossbar?



[Jshell3]

I don't have issues with drilling though a crossbar. The rear lights I mounted, are through the crossbar and are very secure. Do not vibrate at all.

I may move my front lightbar back some, above the crossbar... I was just trying to keep it lower than the rear of the roofline so it wouldn't stick up like a cop car.
Also, my buddy (helping me) said closer to the front to avoid shadows across the hood. He had more experience with lightbars, than myself, so I went with it.

But a crossbar hole isn't any big deal.

Pics, so I can see if I should move mine back a little, please.



[Deleted member 3748]

EMP makes clamps for the P500 1 5/8" bar. I mounted my light bar through my windshield. The only problem is I can't take my windshield off without losing my lights.



[Deleted member 3748]

Oops... forgot the link.

2015 Honda Pioneer 500



[Longbrake500]

I just received a 32" curved LED light bar and looked at installing on the roof above the Honda crossbar...I was thinking of drilling through the crossbar and using a spacer between the Honda roof and the crossbar with the L-brackets (to keep the bolt tight and keep the roof at the original height) I have enough bolts through the roof anyhow so what's another two-lol Anyone else do that? Any concern drilling through the Crossbar?

I have a curved 32" I posted how I installed it not sure you saw but I bought some bar clamps that had an L bracket with them for an light bar but once I removed that they fit perfectly under the Honda roof and I just had to drill through the roof and used the bolt that came with the clamp and the brackets that came with the light. It is on there good I beat on the thing through the trails and no issues.



[Longbrake500]

Here are the clamps that I bought

https://www.amazon.com/ModifyStreet-Aluminum-Diamter-Grille-Mounting/dp/B010MSADJW?tag=sxsweb24-20



[Jshell3]

I have a curved 32" I posted how I installed it not sure you saw but I bought some bar clamps that had an L bracket with them for an light bar but once I removed that they fit perfectly under the Honda roof and I just had to drill through the roof and used the bolt that came with the clamp and the brackets that came with the light. It is on there good I beat on the thing through the trails and no issues.

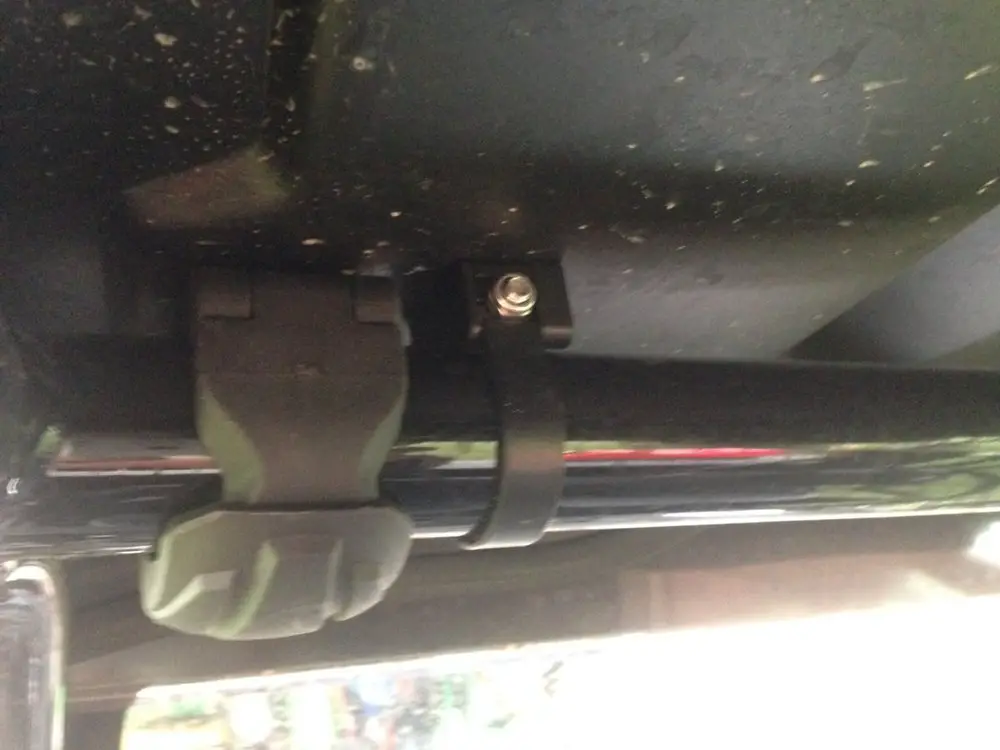

View attachment 23728

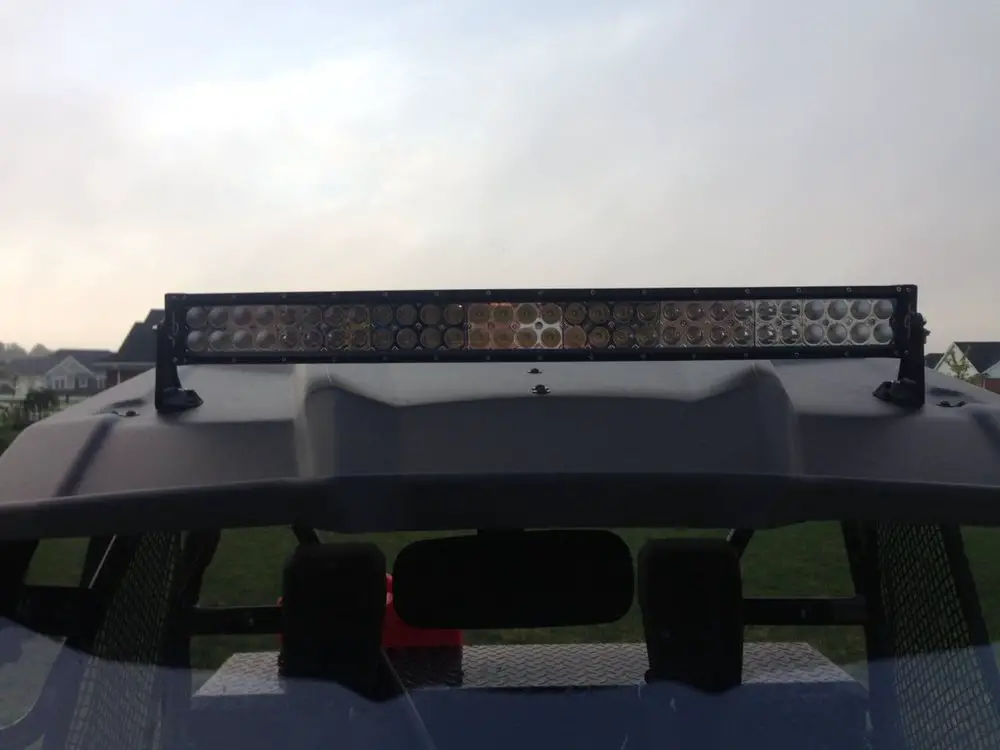

View attachment 23729

Do you know which bar clamp you used? I purchased 2 different ones. One too tight, one too loose...
I needed the one that was "just right"...
Didn't find it, but might go back to the bar if I knew what to buy...



[Jshell3]

Here are the clamps that I bought

https://www.amazon.com/ModifyStreet-Aluminum-Diamter-Grille-Mounting/dp/B010MSADJW?tag=sxsweb24-20

Wow. You knew my question before I asked it. Lol



[Jshell3]

Well...
The 1.5" was too small diameter.
The 1.75" too big around...

The 1.625 must be = 1 5/8"
Or just right...



[Deleted member 3748]

Well...
The 1.5" was too small diameter.
The 1.75" too big around...

The 1.625 must be = 1 5/8"
Or just right...

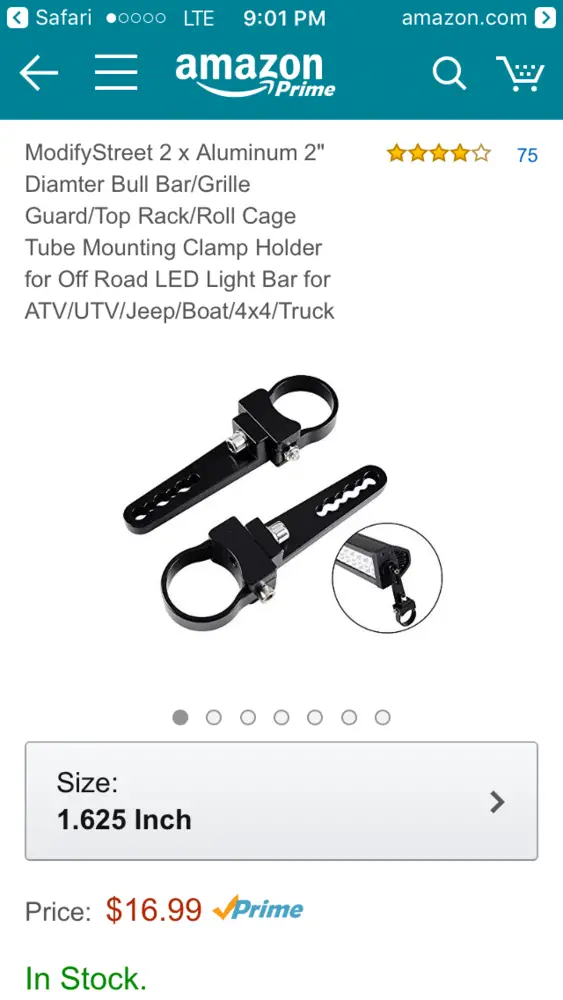

View attachment 23733

1.625 is exactly 1 5/8"



[Longbrake500]

Yeah that one fit perfect.



[Jshell3]

1.625 is exactly 1 5/8"

Yeah that one fit perfect.

Yeah. Even with the google conversions and the internet... I couldn't order the right one. Lol

In fairness, the 1.5" description stated it fit "upto 1.75". Which was a lie.

Then the 1.75" had additional strips to use with the clamps in the event you need to fill in the empty spaces... but too spongy to get a good tight hold. Esp for the leverage needed to secure a light bar.

I never saw a 1.625 offered.
Good find!



[SBuckJ]

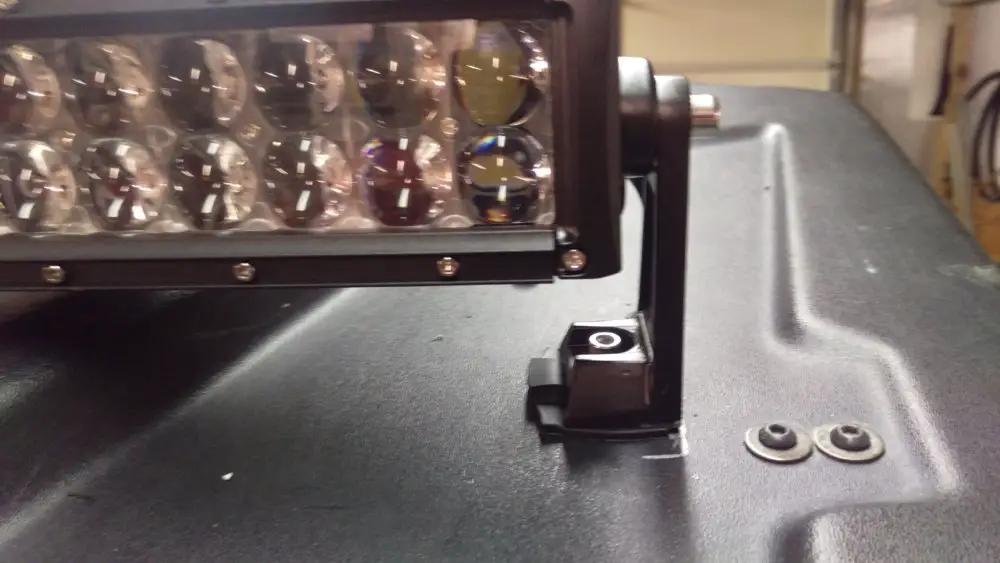

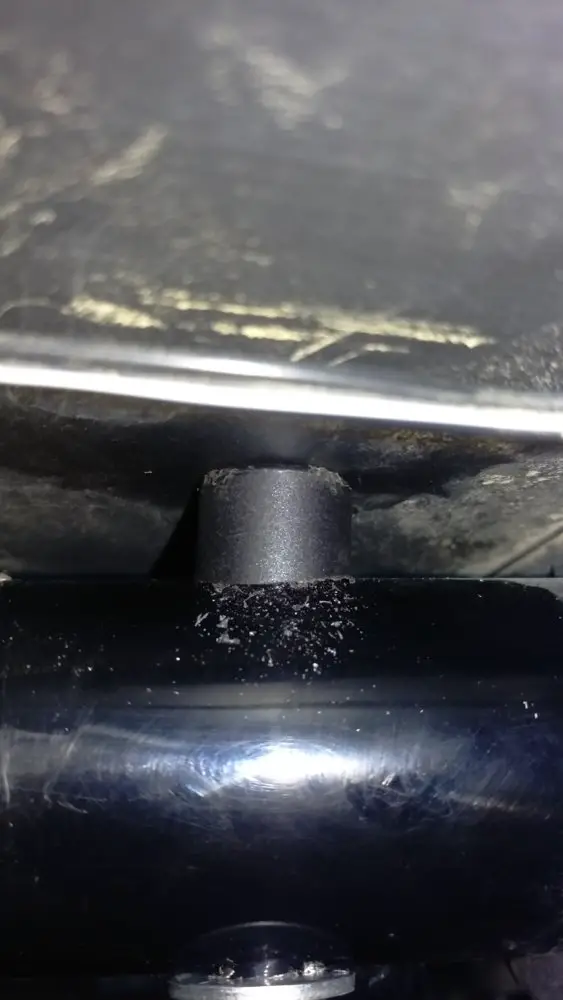

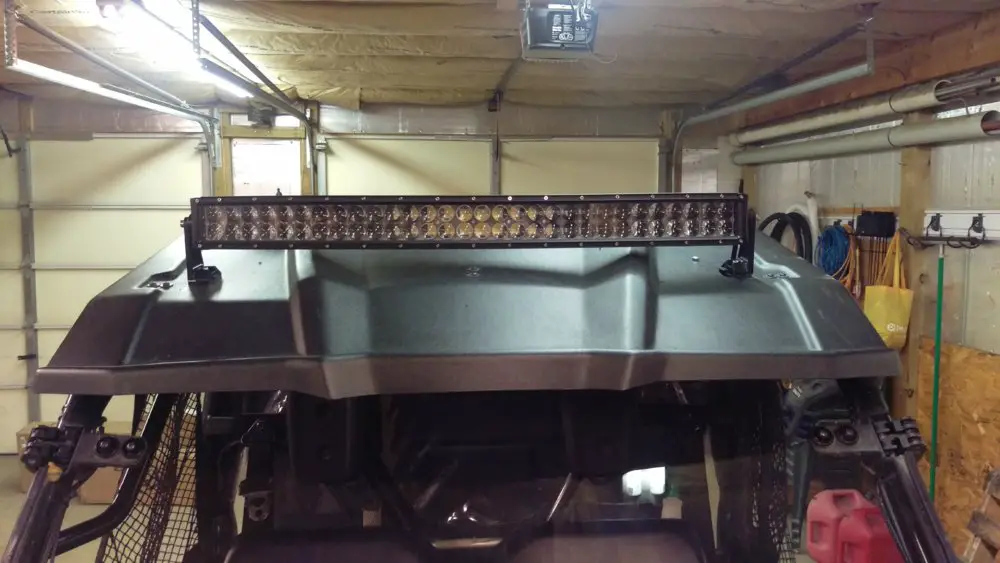

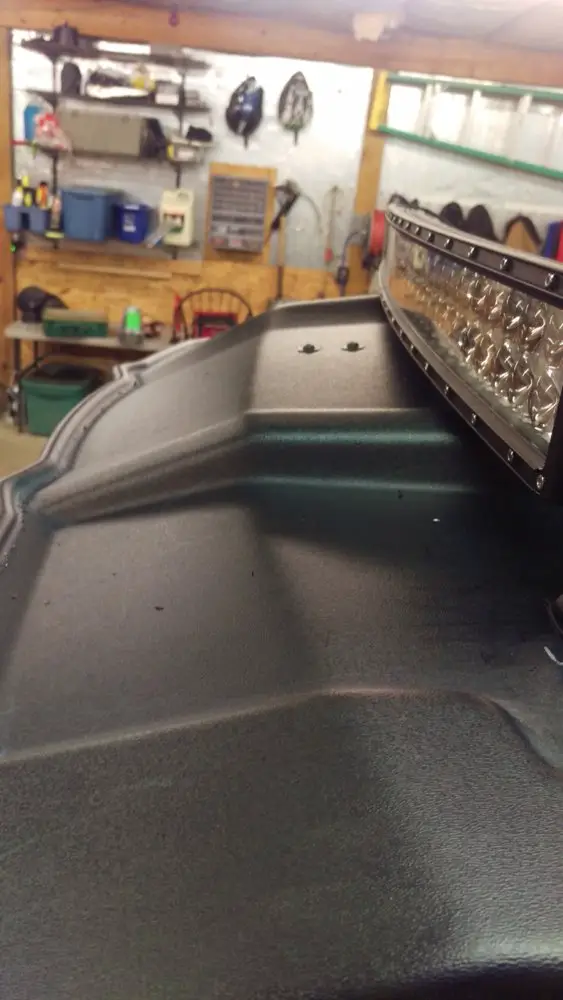

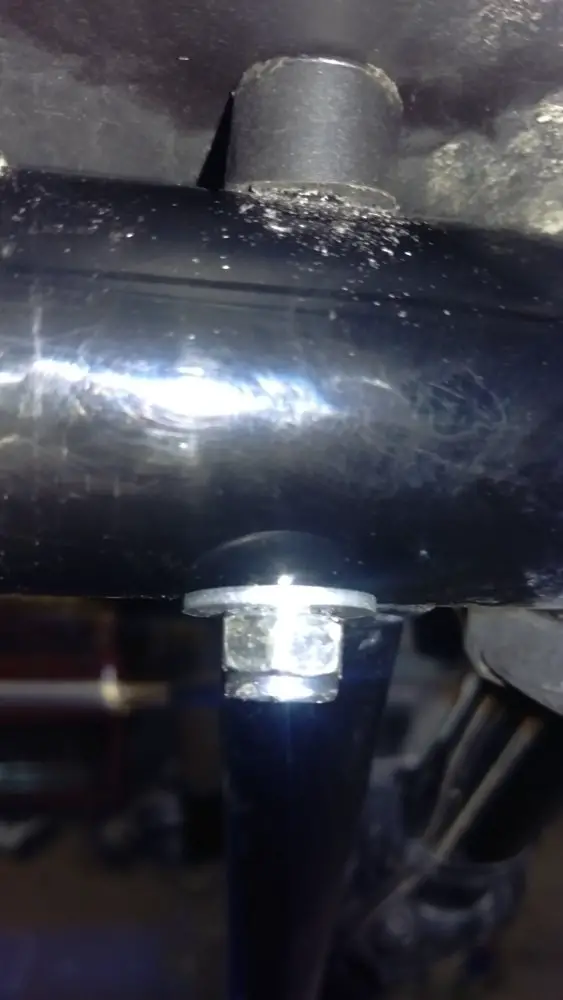

Here ya go Jshell3...I used 3" long bolts with a spacer between the roof and crossbar (about 1'/2") made of hard plastic. Very solid.



[Jshell3]

Here ya go Jshell3...I used 3" long bolts with a spacer between the roof and crossbar (about 1'/2") made of hard plastic. Very solid. View attachment 23784 View attachment 23785 View attachment 23786 View attachment 23787 View attachment 23788

Looks sturdy...
How's the light "throw". Any shadows? (I know what 32" of lightbar does... It's VERY bright).



[Jshell3]

Great pics btw @SBuckJ



[rocmar]

The lightbar is bright. No doubt. Mounted out on the edge causes a slight "shake" at idle, but not at all driving down the road.
The rear lights worked out better than expected. Up high, and not right in your face if you're working off the rear basket.
I figured out that Honda already had outlined knockouts in the dash for the switches... under the hood, look at the backside of the dash. So my new switches in the dash lined up nicely.
That's about it. My lightbar will probably get used more than my headlights, until ppl start complaining that I'm blinding them. Ha!

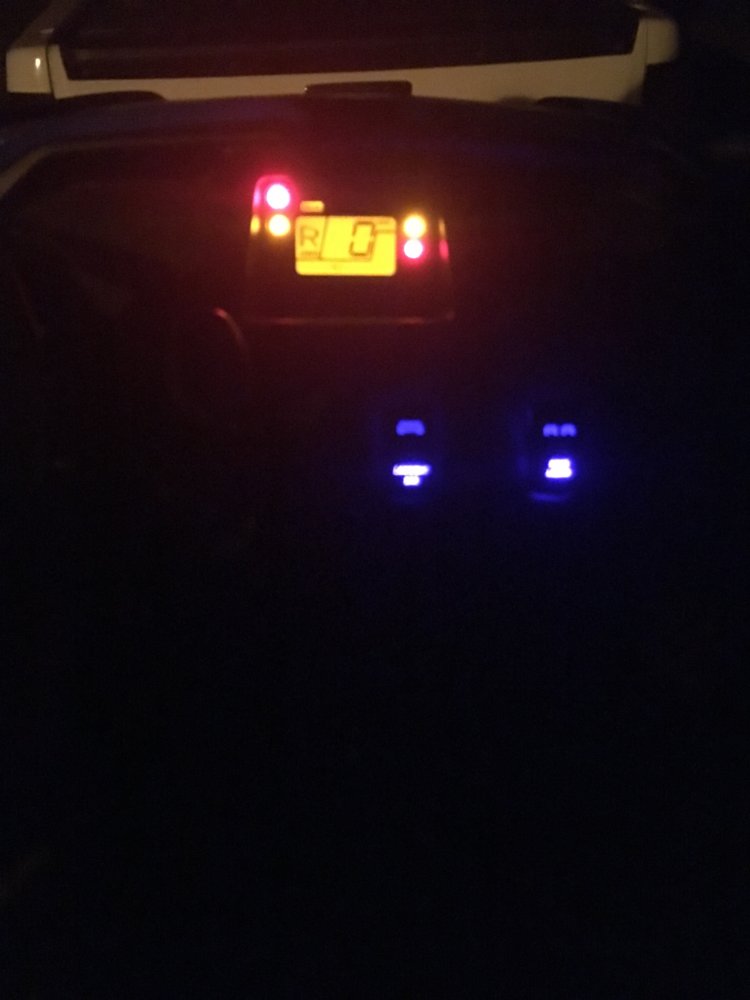

View attachment 23607

Turned out....TITS......dude
