Superatv Front Forward A-Arms done! All the specs.



[my99svt]

View attachment 39897 Superatv Front Forward A-Arms done! All the specs.

That will be handy. Although I just put mine back together and I'll do it later. I just don't have all the proper tools at the house. And they sure didn't make it easy!


Sent from my iPhone using Tapatalk



[Windrock1000]

What about the ball joint nuts, they don't make this easy!


Sent from my iPhone using Tapatalk

You just got to Love it! Talk to her while you are working- it helps



[Windrock1000]

Trail Armor does Not make them. They just emailed me back.



[Eltobgi]

View attachment 39889 View attachment 39890 View attachment 39891 View attachment 39892 View attachment 39893 Some pics for you viewing pleasure



[Eltobgi]

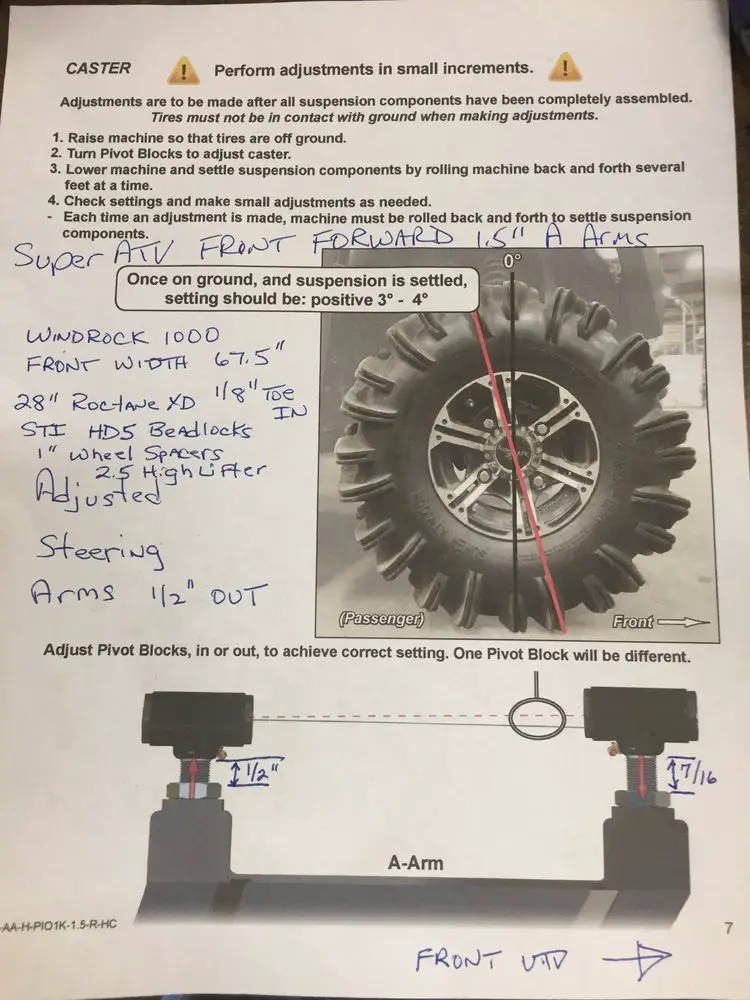

View attachment 39897 Superatv Front Forward A-Arms done! All the specs.

Once again thanks for blazing the trail! She looks damn sexy! Can't wait, but....alas no sign of the man in brown

Quick question*

With a 1/16" difference were both grease zerks facing the same direction?



[Windrock1000]

Once again thanks for blazing the trail! She looks damn sexy! Can't wait, but....alas no sign of the man in brown

Quick question*

With a 1/16" difference were both grease zerks facing the same direction?

Yes there where. Each machine will be slightly different. I set mine at -1 degree camber



[Smitty335]

How the f*** do you get these damn axle nuts off???? I'm about to go bat s*** crazy on it!


Sent from my iPhone using Tapatalk

There probably left hand threads, just kidding. BUT?



[Windrock1000]

Look how far the approach angle changes in the front. Love it



[Windrock1000]

Clearance behind tire.



[GlockMeister]

Trail Armor does Not make them. They just emailed me back.

There was a guy on here that modified the trail armour guards. Took a heat gun and a sawzall. I've looked for it and can't find it. But it is here floating around somewhere.



[Windrock1000]

There probably left hand threads, just kidding. BUT?

I used a 17mm boxed end wrench on the uppers and a 19 mm boxed end wrench on the lowers.

Loosen the nuts first then hit the solid part or the a-arm near the ball joint with a BFH.
After the ball joints have "popped loose" then unthread the loosened nuts. It doesn't take much of a blow to get them loose. You have to remove the brakes caliper from the hub and just let them hang. I didn't concern myself in getting a good torque # on the ball joints. The uppers torque at around 42#s and the lowers around 47#s. I used the "that about enough" method. However the axle nut does torque to 101#s. I took the liberty to remove the brake plastic shields. I think the hold dirt in the rotors.

I worked both lowers before touching the uppers. Leave the shocks attached until you start on the uppers. I used a small strap to support the new lower a-arms arms and shocks while working the uppers. When you are going back together make sure you tighten the ball joints completely and put in new cotter pins in as soon as you can. Work form the inside out if that makes since. Work your brake lines completely before attaching steering tie rods. Do your steering stops when you remove the old upper a-arm. Allow about 2 hours per side. Another 1 hour for fine tuning. Make sure a drive it around a little ever time you lift the tires off the ground to let it settle before adjusting.

PS. Use red locktite on the brake line bolts and blue locktite on the brake caliber hub bolts



[Windrock1000]

There was a guy on here that modified the trail armour guards. Took a heat gun and a sawzall. I've looked for it and can't find it. But it is here floating around somewhere.

I may not put the a-arm guards back on. The a-arms have a lifetime warranty for any reason. I did notice that I bent the drivers side upper factory a-arm slightly. It was out 1/4" where the shock attaches. Nothing that the press can't fix. So the only protection missing is the CV Boots. I'm still looking at them sideways and do like the guards. Still got a few more priorities before I come back to the guards. Got get the bilge fans in and the whips next week before the Windrock Jamboree and the Takeover.



[Windrock1000]

The best thing is no more stupid rupping on the drivers side!



[JTW]

View attachment 39895 View attachment 39894

I really like that!



[Windrock1000]

I really like that!

Thank you. I got them from Kent Hill on Facebook. $25 for two sets



[JTW]

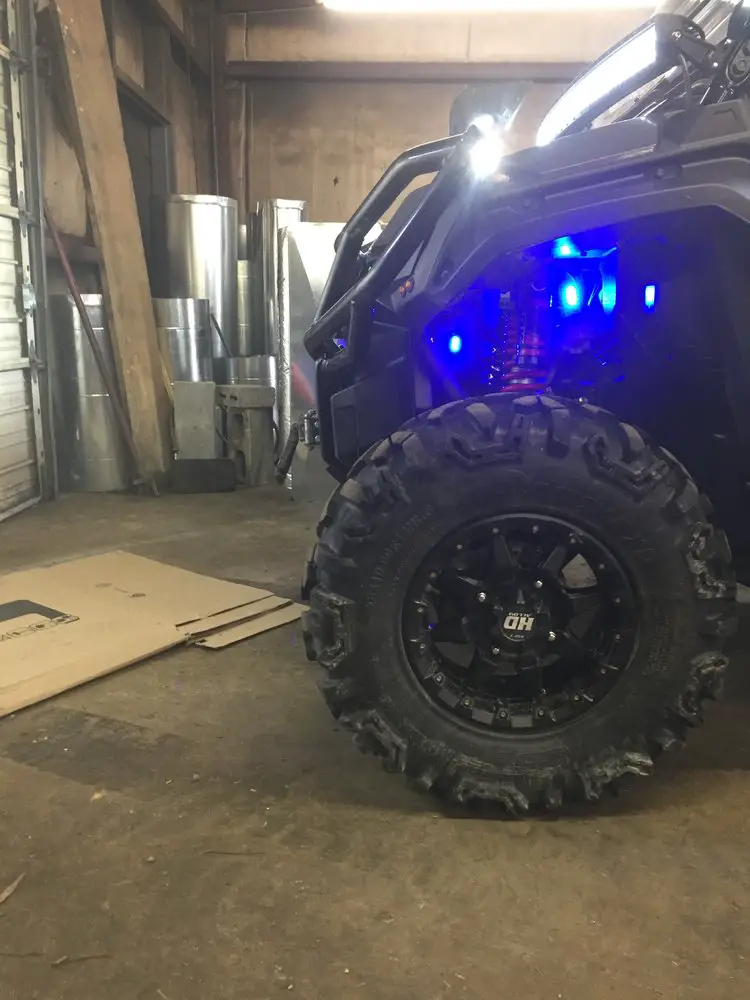

View attachment 39935 Look how far the approach angle changes in the front. Love it

You dirty bastard... you're gunna make me do this before I'm done aren't you!!?



[JTW]

Thank you. I got them from Kent Hill on Facebook. $25 for two sets

I just ordered a metallic silver set from him.. 12 shipped!



[Delton]

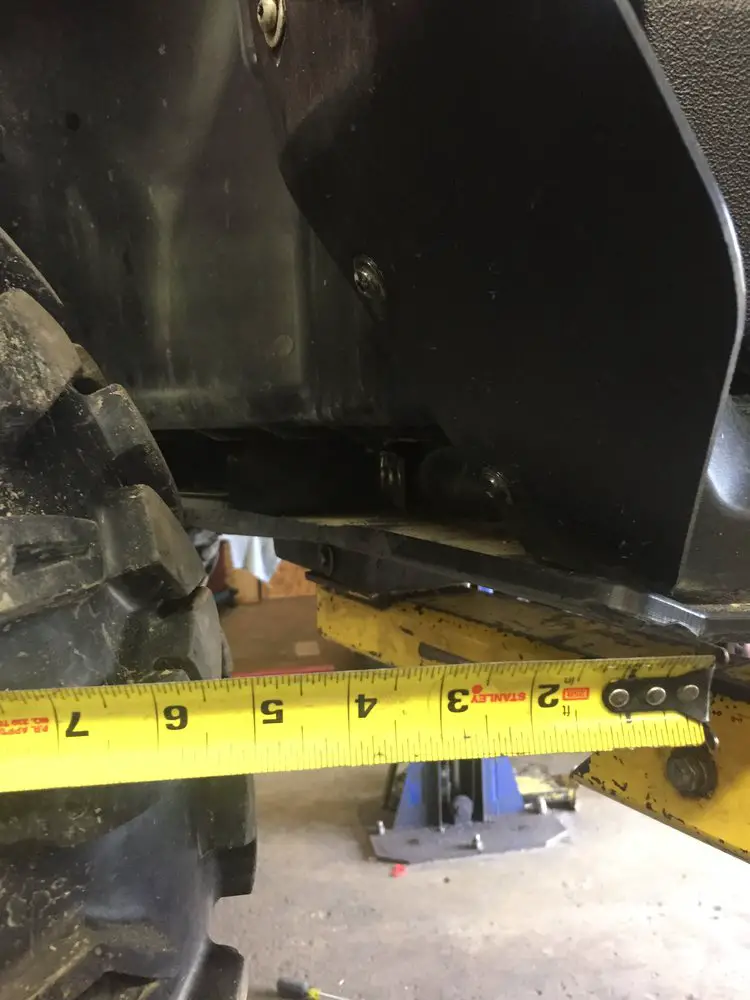

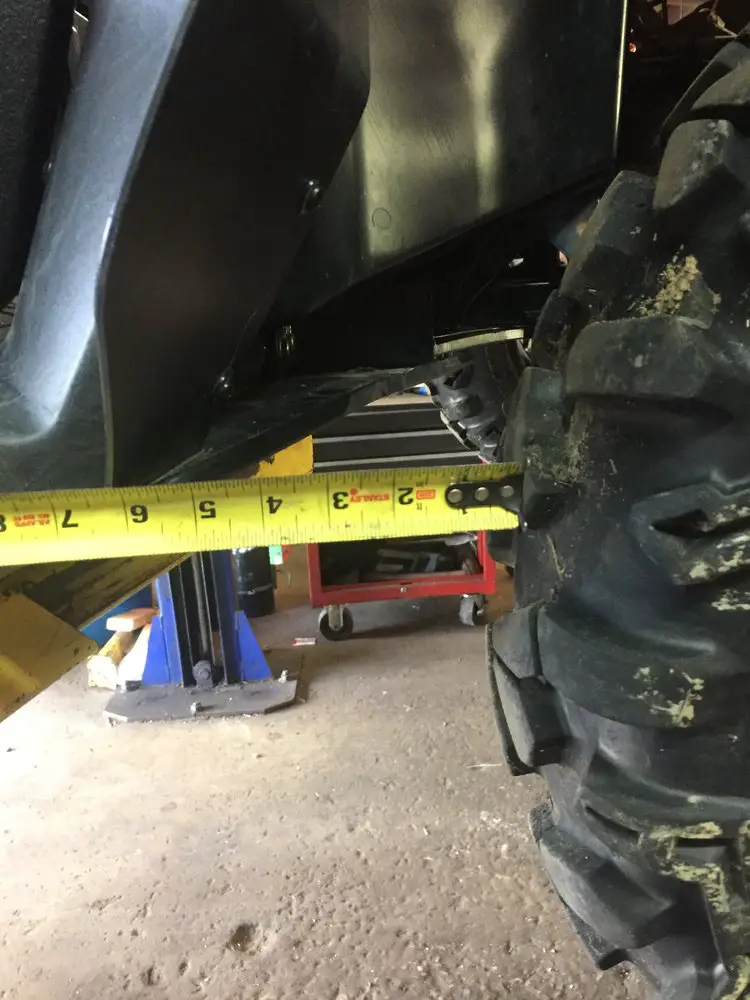

View attachment 39937 View attachment 39936 Clearance behind tire.

Dayum I need these!! Tired of driver's side rubbing!! May even remove mudbusters for takeover. Didn't rub too had til I put them on.
