Vondy’s B-I-L Talon X4 Build (5 seat conversion)

Vondy

Vondy

Well-Known Member
Lifetime Member
Mar 10, 2015
1,381
8,749
113
Houston,OH
Ownership

  1. Talon x4

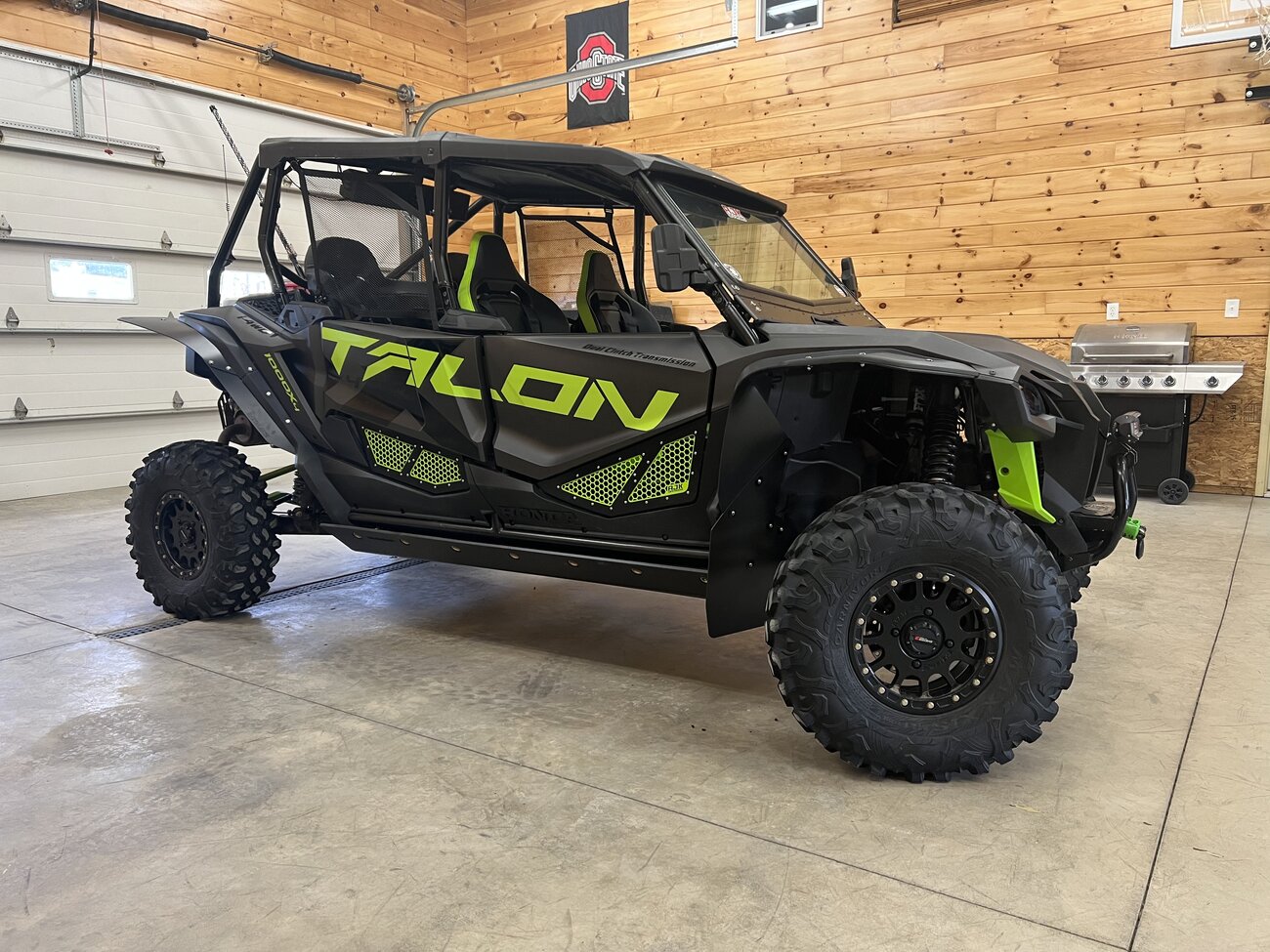

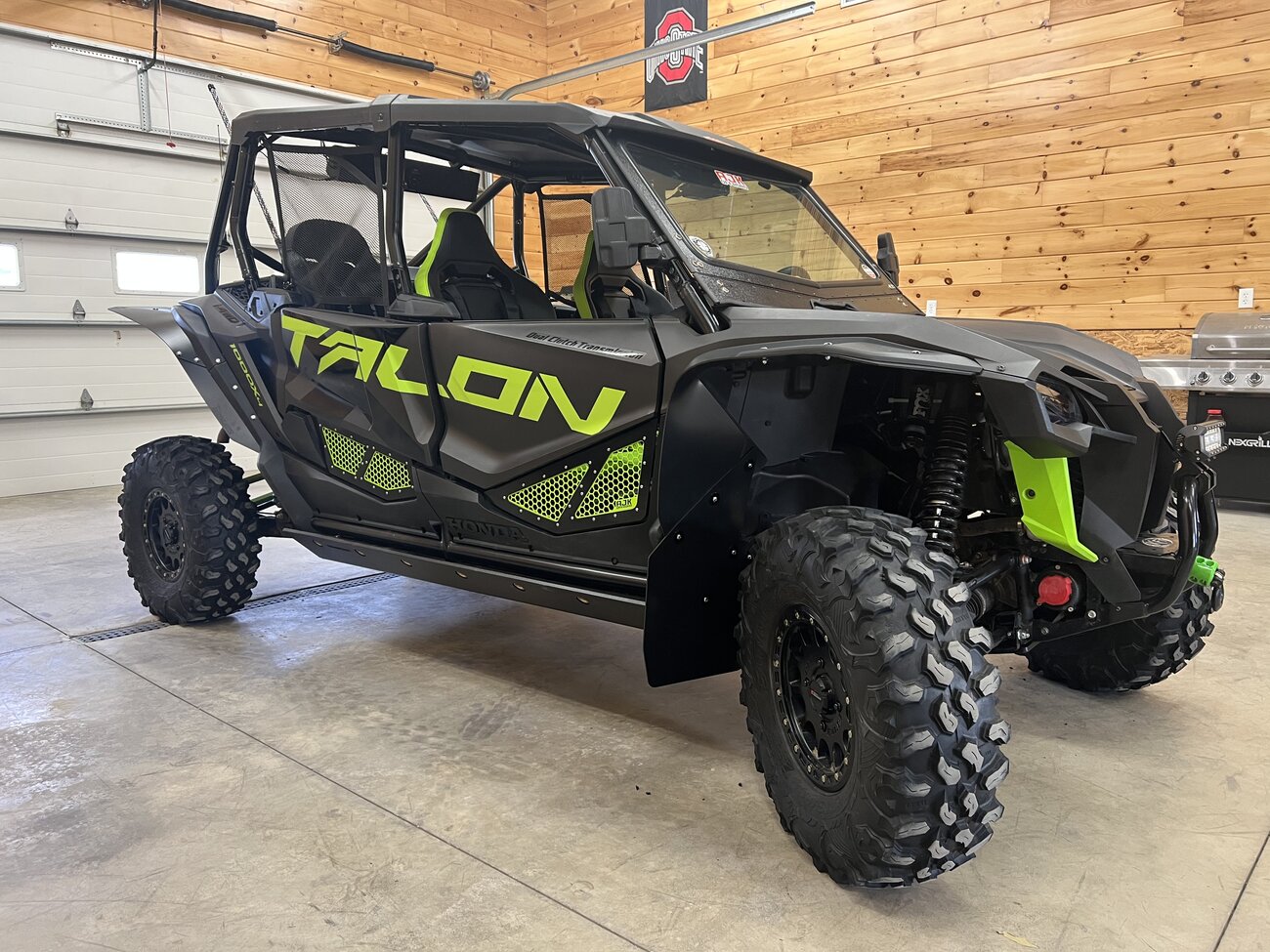

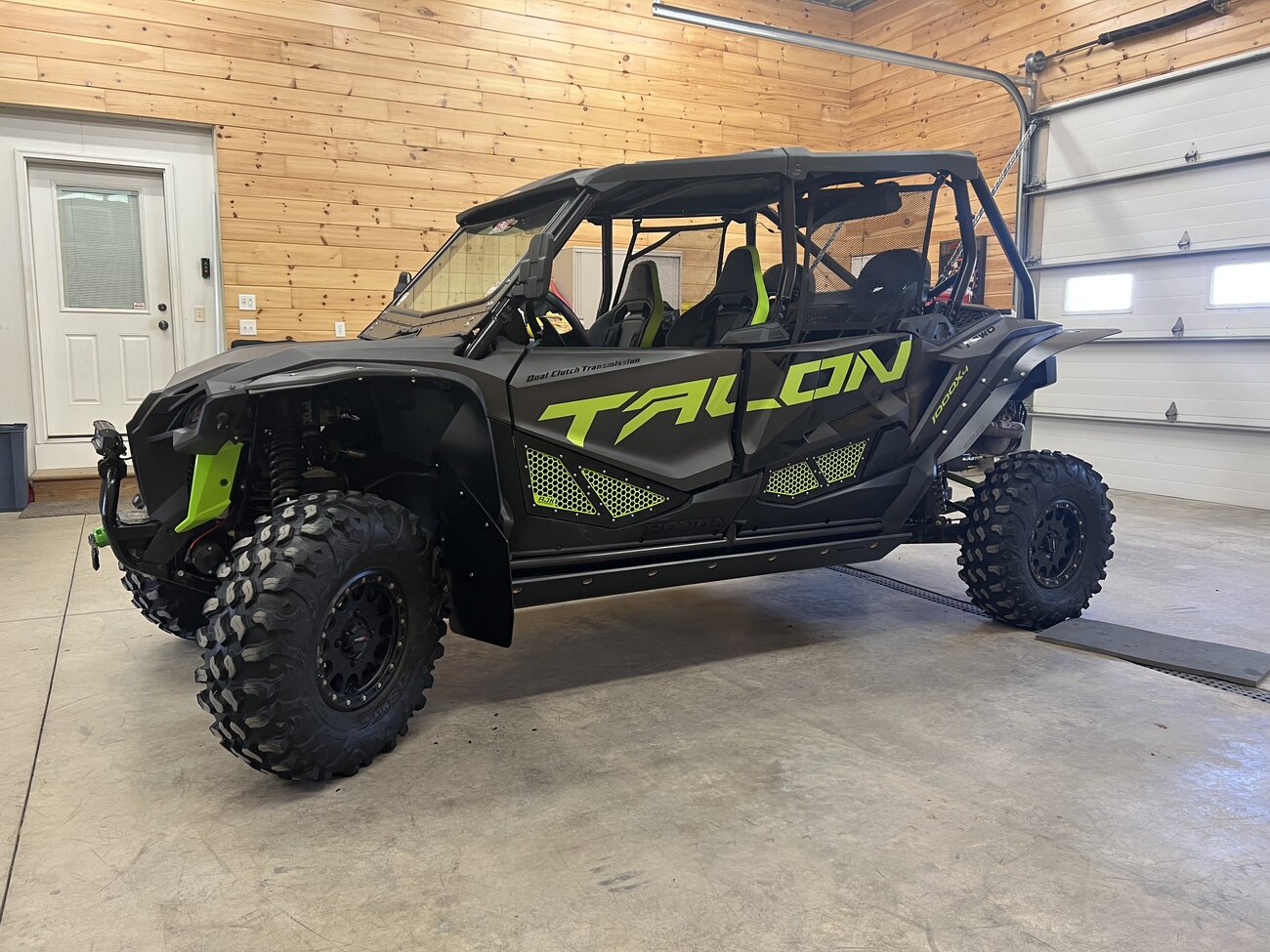

Been working on this for my brother in law. 2021 x4 converted to 5 seater.

Bought used with
- Glass windshield Axiom
- Badlands winch
- Boss sound bar
- Tusk tailgate.
- reciever hitch
- AJK dual battery kit

Plans
- 30” Carnivores on system 3 (moved from Pioneer)
- L&W front high clearance arms
- @AJK Offroad rear high clearance radius rods
-AJK lower doors
-AJK exhaust cover
- AJK packout mount
- AJK foot rest
- SuperATV frame stiffener
- Trail Armor wrap around skid plate
- TYT TH-8600 radio

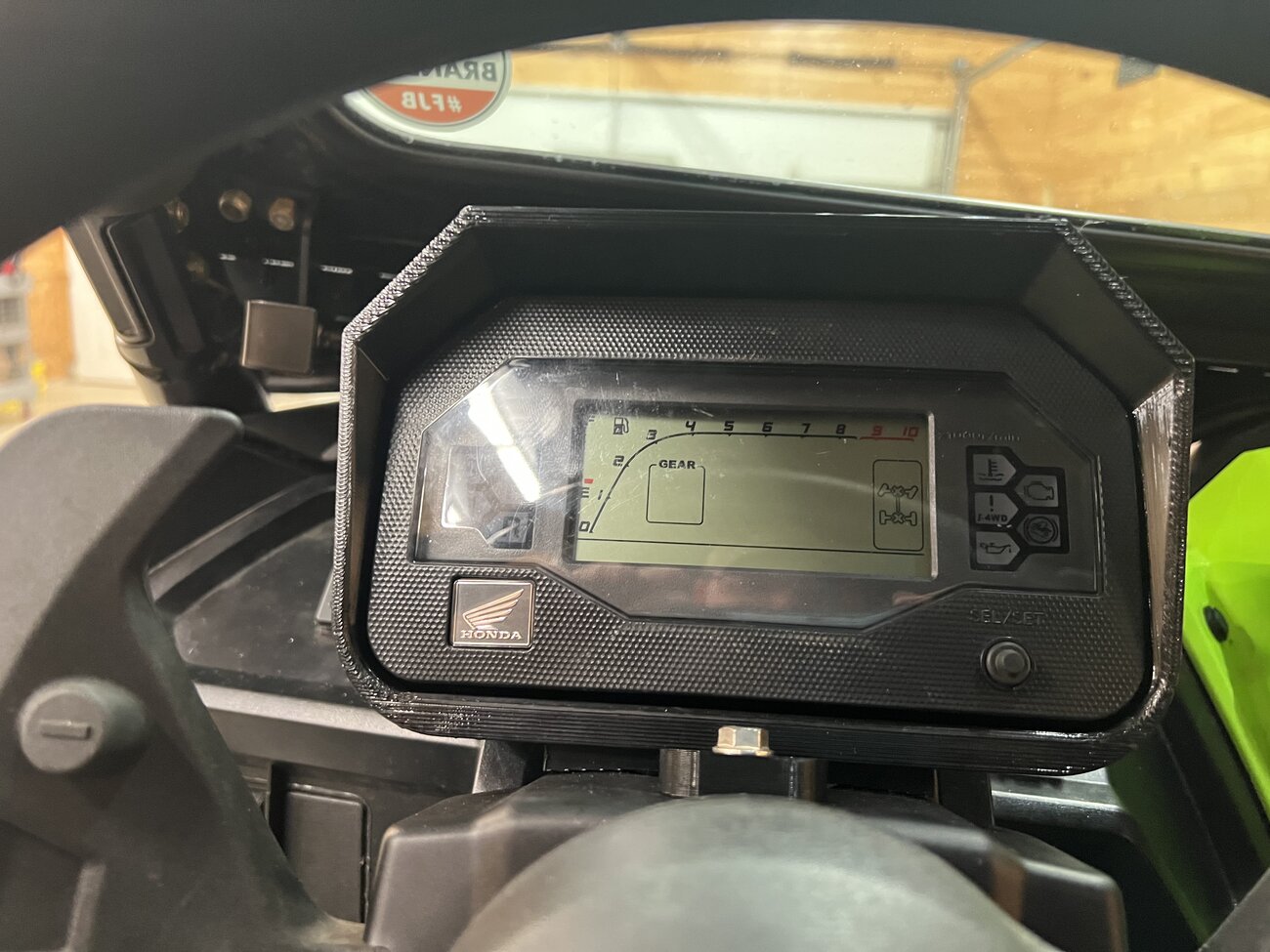

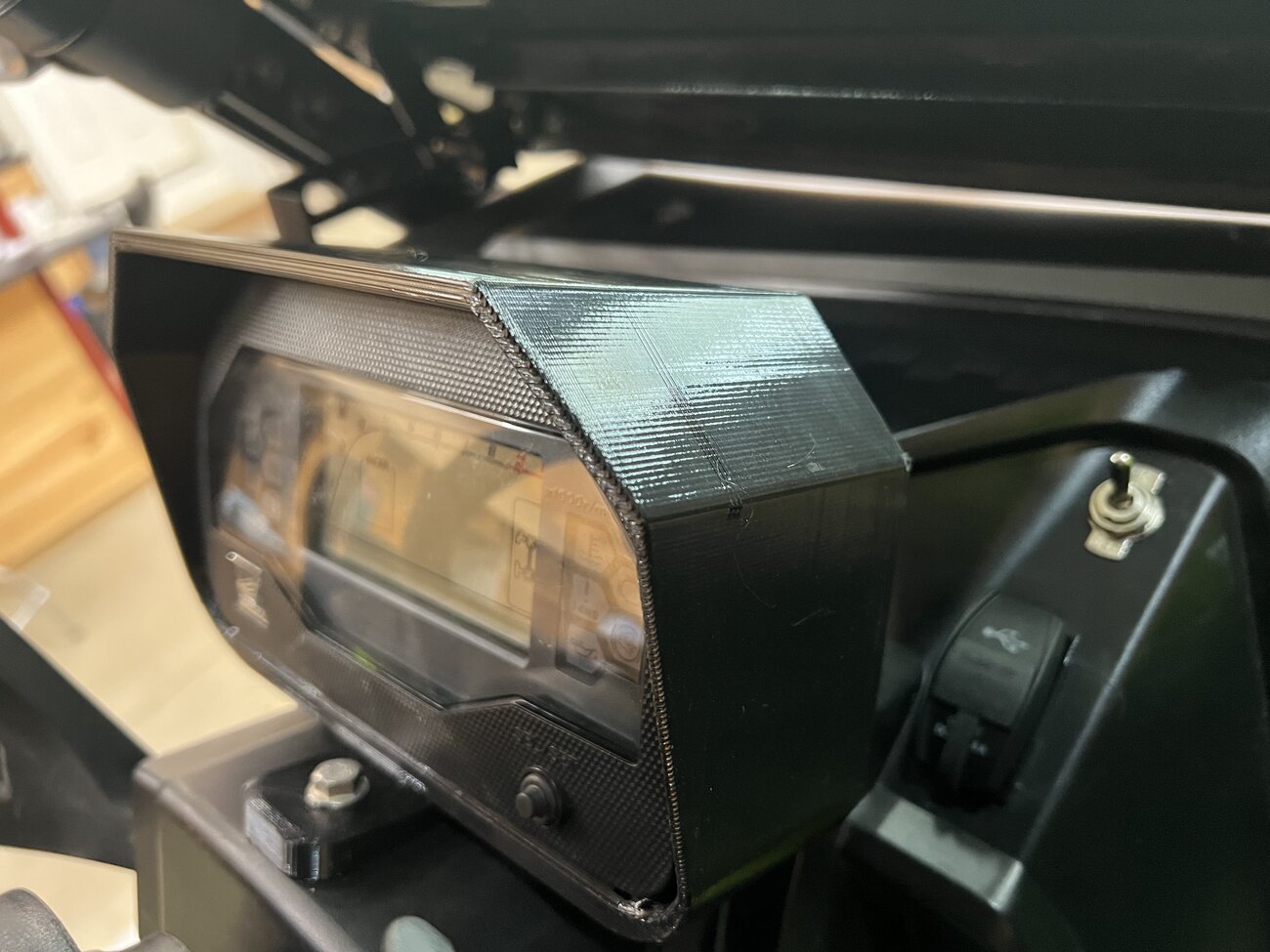

- 3d SXS designs cluster relocate
- 3d SXS designs tablet mount
- Auxbeam 8 gang controller
- Rokblox fender flare wxtensions
- Grandmas Whips
- Hondasxs Add a lightbar
- UTVMA rear bench seat and harnesses
- 50 cal front harnesses
- Wireless backup camera
- Tablet with lifetime maps and Agama controller.


62DC3457 CEAF 491A AAE1 51FCA2B2C8AF

Last edited:
Vondy

Vondy

Well-Known Member
Lifetime Member
Mar 10, 2015
1,381
8,749
113
Houston,OH
Ownership

  1. Talon x4

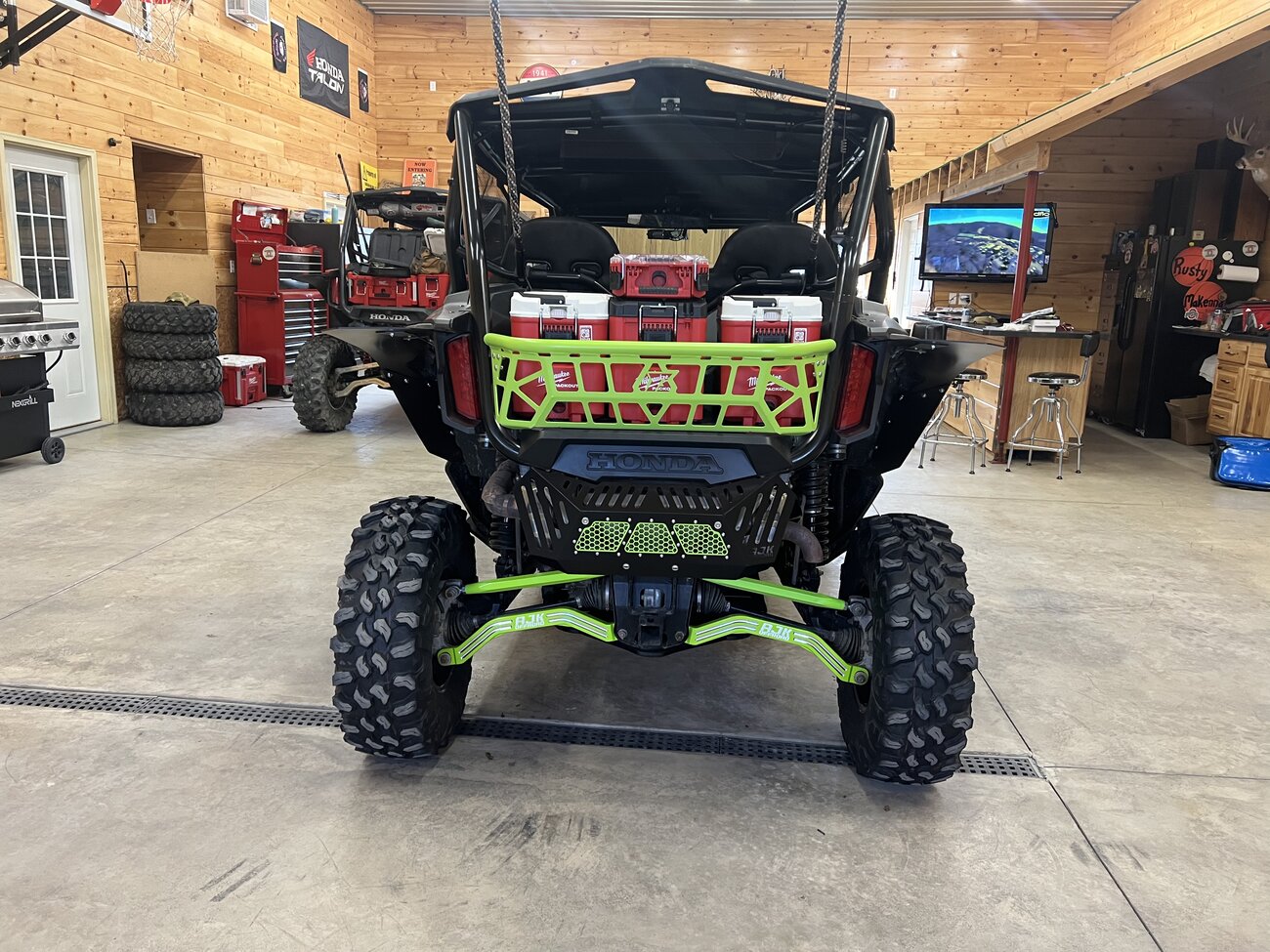

Since they have 3 kids we needed a rear bench. Picked up a UTVMA rear benches with adapter brackets for honda. Brackets were heavy duty but didn’t seem to be bent correctly. With a little work I was able to make them work.
705A3886 8167 425A 8724 96D45F010265
670C51F2 7AD7 4B9D 9D21 77901D3A54F5
51C588D4 3193 4358 8BBB 3DA33AB1E47D
4661A089 F290 4E51 95F9 5404477E2E69
5BF369CE 2558 4741 AAFC F32B1825A157
45F327AD 0F41 4810 AD40 976A55CE3870
35D4101C 459C 4B7D B3E6 D1A5C9B56564
C5E291CC D236 43DA BD70 18FADD781C94
CE95EEE1 68B1 4B3E ADE0 2FD9BACA7D74
B9F98BC6 D193 4539 AB5F 41C30774A72F
8696B7AC 013A 4D94 83E5 DA02B2DBAF8B
C1577B2C C6FB 4251 8F7A 7F53D080F0FA
28BDC404 71ED 497F 931D 8D731D747D09
FB30FE1E 848C 4C87 9B4E AD95FBC02A1B
6B48B75F A18D 415F ACCB FBF1D03E6DE6
68097BB1 28E4 4C90 A770 EC404AFC4EF8
6C17D7BE 5DC9 4C35 8AD4 314BC50B72A6

Vondy

Vondy

Well-Known Member
Lifetime Member
Mar 10, 2015
1,381
8,749
113
Houston,OH
Ownership

  1. Talon x4

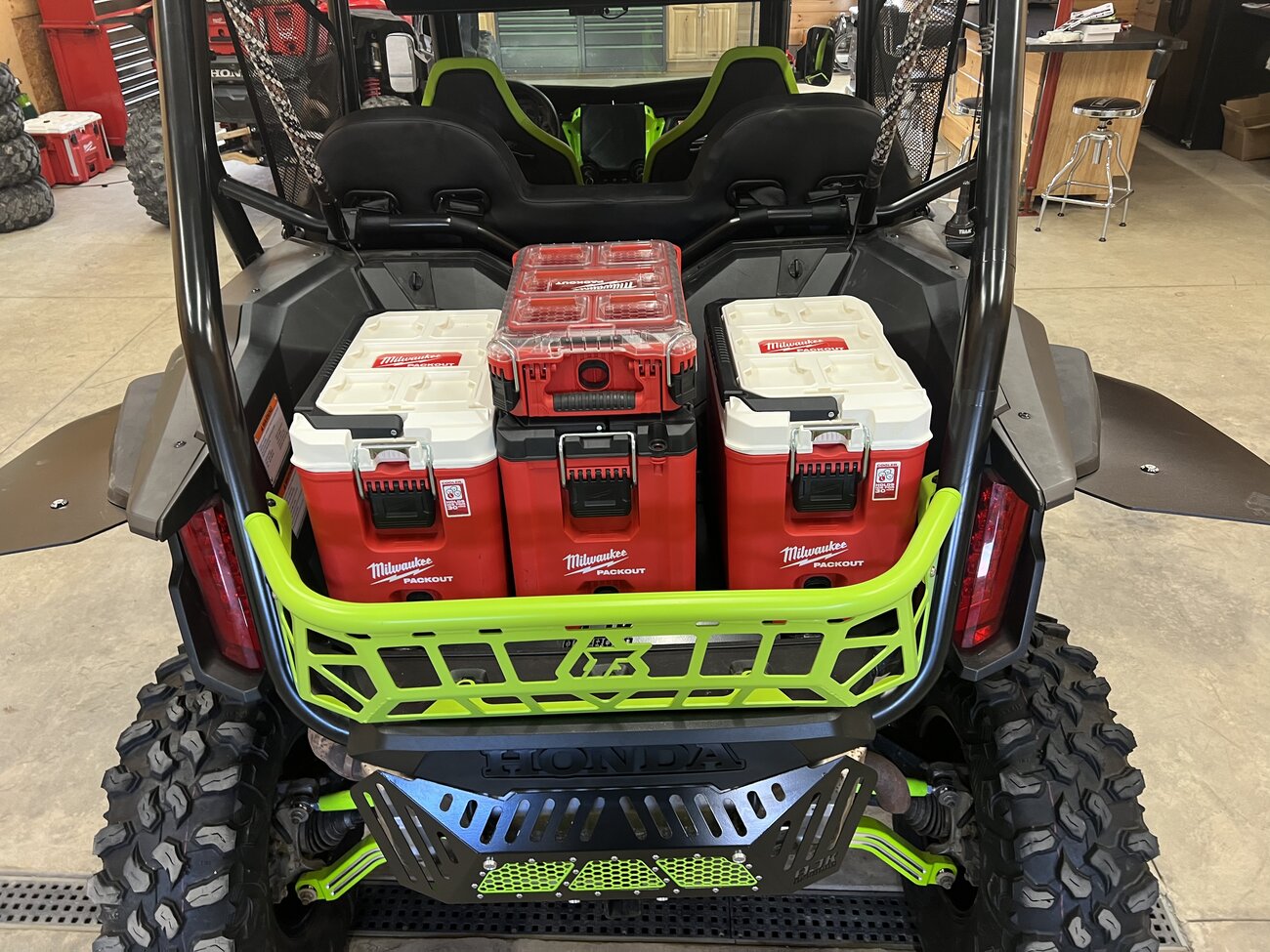

Trail Armor wrap around skid and SuperATV frame stiffener. I really like this skid. Definitely would use on 2 seater. Not sure if I’d go with it or regular skid and nerf bars on 4 seater.

98333B8F 97F9 484E 8435 49C1B18B401B
029C3C2E 0159 4A80 8A24 4BDB45551927
E0F43999 A56B 4E25 8F49 F92FA3651DFB
DB1C1C8A 49DD 4B5D 9C10 1682A42C2274
0D7D98AC 2EF8 4559 8708 CB3790D4AA06

Vondy

Vondy

Well-Known Member
Lifetime Member
Mar 10, 2015
1,381
8,749
113
Houston,OH
Ownership

  1. Talon x4

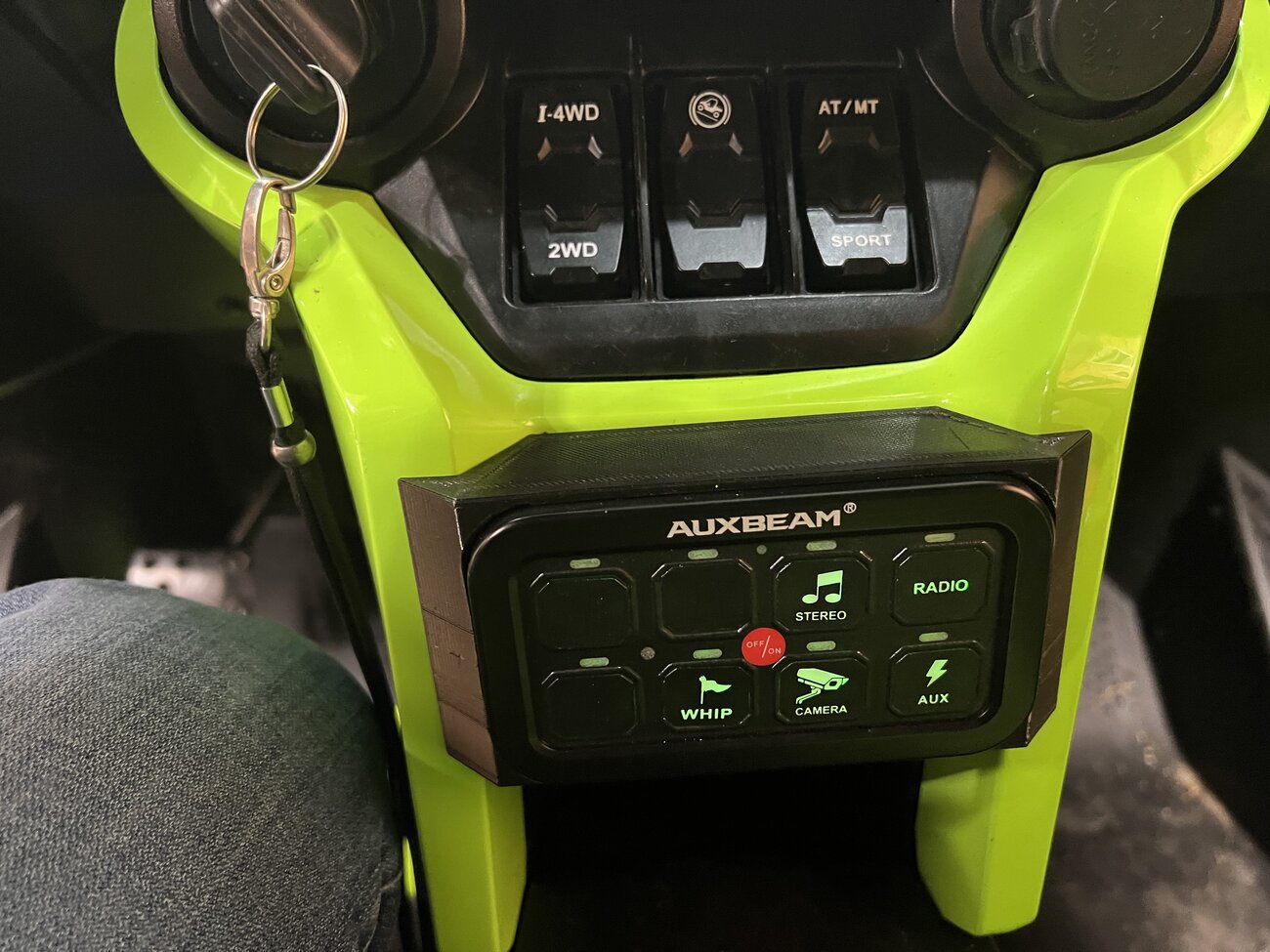

Electrical under hood. Auxbeam is currently trigger to key on. I think I and going to Chang trigger to be on a toggle switch and run to a constant. I don’t think we wait all accessories turning off with ignition every time.
A63763B4 000F 4535 ADE1 B4FAE41B3CE0
8A4739AD DBD9 4A41 8261 AA604712DBC0
D84F4482 796F 451A 8851 3B06B4EF0826
BB12A9B1 01EF 4511 BF7C 2B0E6D20A241

Adam490

Adam490

HFA Grand High Wizard
Lifetime Member
Supporting Member
Apr 7, 2019
7,601
56,037
113
Covington, LA
Ownership

  1. 1000-5

  2. Talon R LV

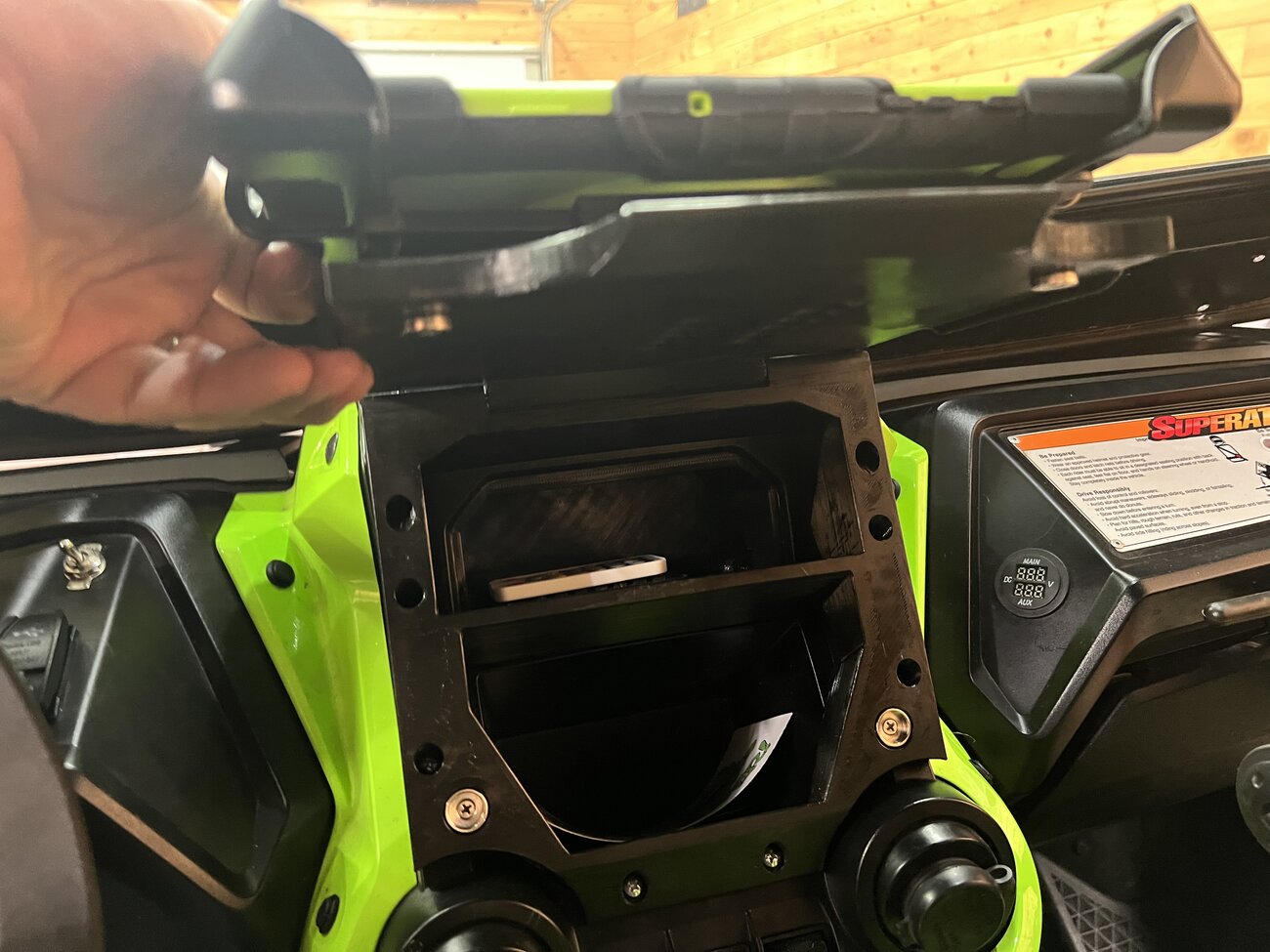

I like the cubby cover/tablet mount. I'm curious to see how well that hinge holds up. That's always been the weak point on anything I've printed.

  • Like
Reactions: JenElio
Vondy

Vondy

Well-Known Member
Lifetime Member
Mar 10, 2015
1,381
8,749
113
Houston,OH
Ownership

  1. Talon x4

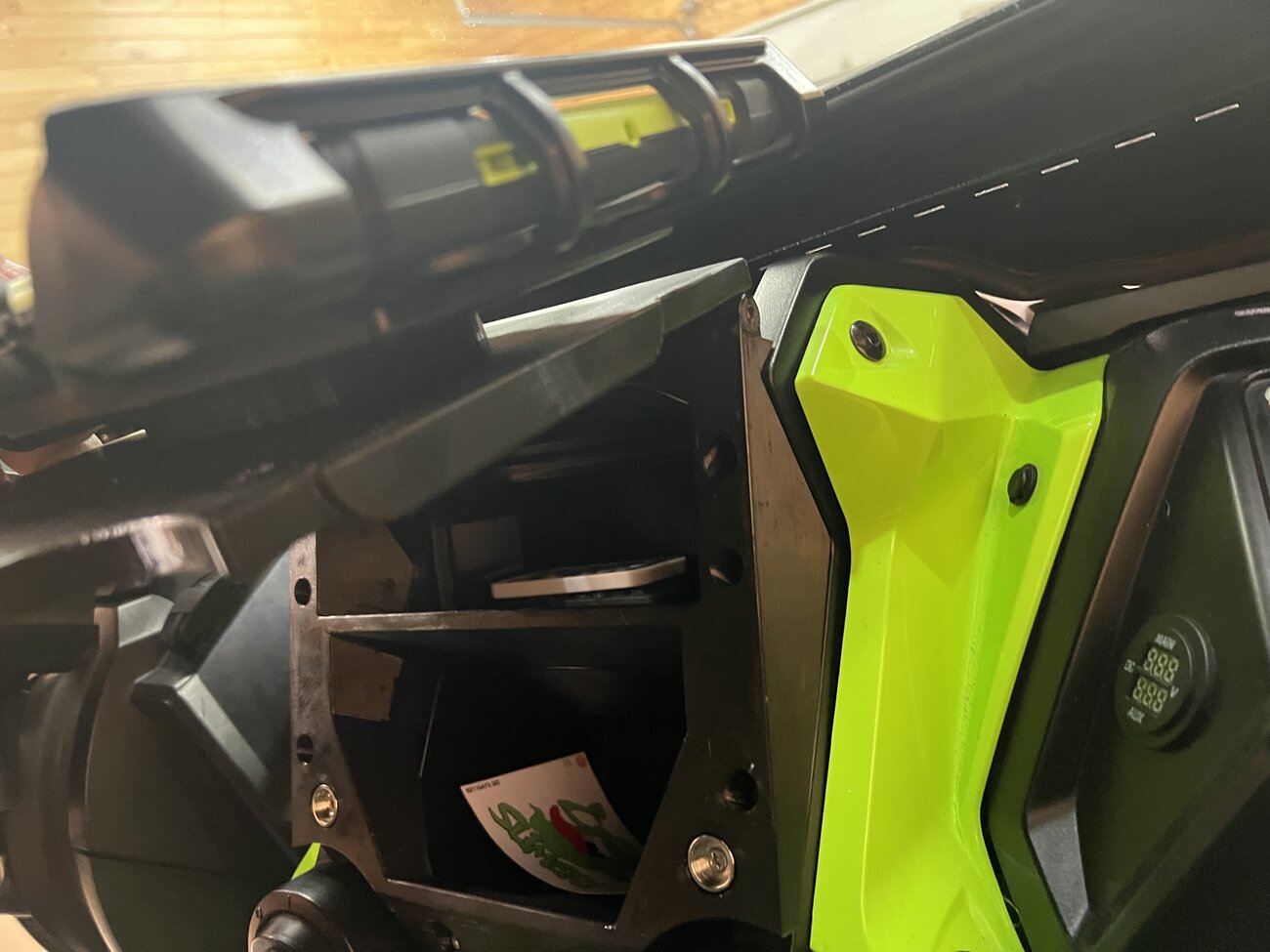

I like the cubby cover/tablet mount. I'm curious to see how well that hinge holds up. That's always been the weak point on anything I've printed.

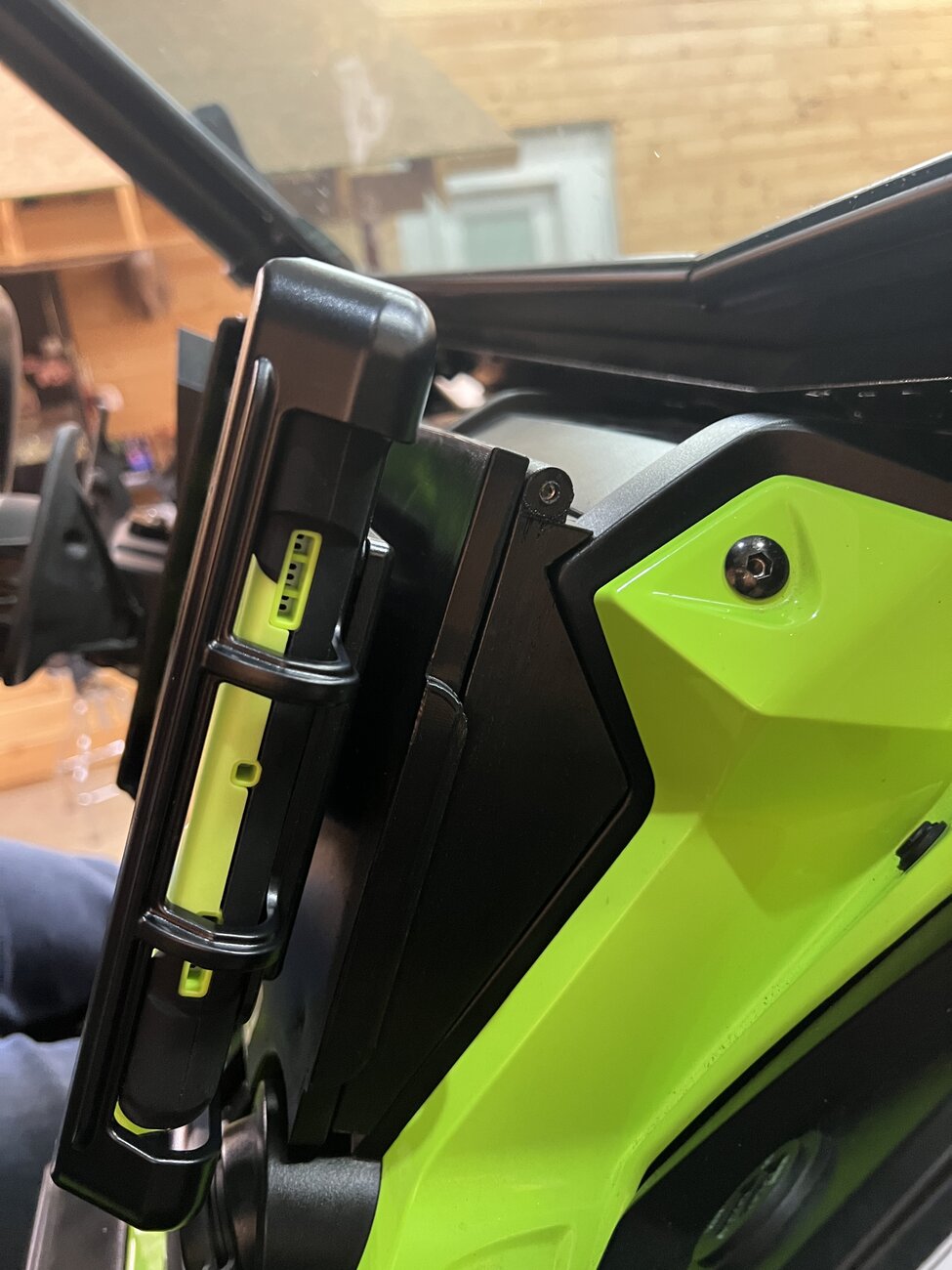

Seems to be sturdy. Has a metal bar that runs all the way thru it with a set screws on each end to keep bar from working its way out. Nice design.
