P1000 The Making Of Pete

PioneerPete submitted a new Garage Item:

The Making of Pete

View attachment 8943 View attachment 8944 View attachment 8945 View attachment 8946 View attachment 8948
Trying to document Pete's transformation. So far he has a hard roof, popout windshield, warn winch, brushguard, rear fender flares, and pyle 500w tube. Almost forgot the control arm guards. Second battery, isolator, pdm, light bar, and cubes to come next weekend. Damyou @JACKAL !! LOL

Read more about this showcase item here...



[Admin]



[Hometeam]

Definitely better at home than on a trail stuck in the mud with no other choice!! Glad it worked out!) I need to get some full skids. Which brand did you get and do you like it?



[Admin]



[pmpislander]

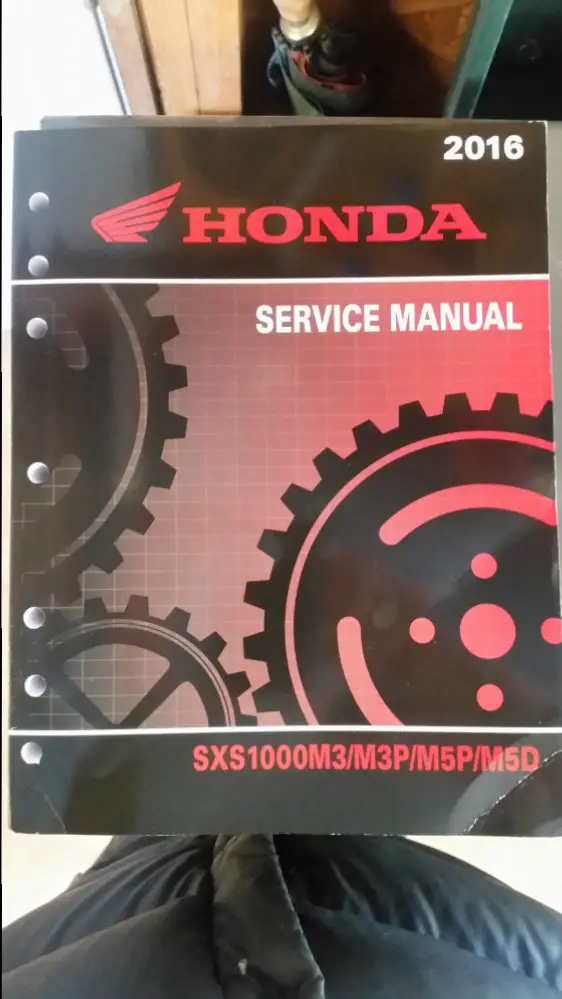

Can't have a p1k without owning one of these too! Thanks for the link @Hondasxs!
View attachment 9340

Where did u get the manual....was it cheaper then going threw Honda?



[PioneerPete]

Definitely better at home than on a trail stuck in the mud with no other choice!! Glad it worked out!) I need to get some full skids. Which brand did you get and do you like it?

I went with the Trail Armor. They were a little pricey, but definitely bomb proof. They fit up well, but not perfect. I would have felt better about it if they were $500 instead of $800.



[PioneerPete]

Where did u get the manual....was it cheaper then going threw Honda?

HondaSxS has it posted as a sticky thread under P1000. It was $105. I was pleasantly surprised by the price. It is the same manual that Honda shops use. It covers EVERYTHING on the machine in detail.
2016 SXS1000M3/M3P/M5P/M5D Service Manual - Helm Incorporated



[PioneerPete]

I didnt realize how time consuming this thing would become. Wiring and electronics are 95% done. Still trying to decide whete to mount the red led strip. Its ~6ft long.
Also still waiting on my usb outlet for the switch panel.
Under the hood is complete, although still debating inline fuses on the pdm lead and isolator leads.

Found a nice out of the way mount for the pdm.
copied @JACKAL on the:
Universal Relay/ fuse auxiliary distribution box jeep, Cooper Bussmann Off Road

Used the net mounts for the rear lights.



[PioneerPete]

Copied @joeymt33 on the dome light. I only did one. Saved the other for later.

Grounded the stereo to the rops.
Need more split loom wire protector.

Used one of the net mounts for stereo ground.



[CPope]

Can you give some details of the light bar and the cube lights? Maybe the brand /model number and where you bought them. I would like to do that same kind of set up.



[PioneerPete]

This is the cube lights on the four corners.

Amazon.com: Nilight 2 X 18W 1260 lm Cree LED Spot Driving Fog Light LED Work Light Bar Mounting Bracket for SUV Boat 4 x 4 Jeep Lamp: Automotive



[PioneerPete]

dome light
Amazon.com: RioRand 2-Piece Waterproof Aluminum High Power 6W 6000K Xenon Slim COB LED DRL Daylight Driving Daytime Running Light for All Vehicles with 12V Power (White): Automotive



[PioneerPete]

34" front bar

Amazon.com: Penton® 180w 34 Inch LED Driving Work Light Bar DC 10-30V Input Flood Spot Combo Beam for 4wd SUV UTE Offroad Truck ATV UTV with Wiring Harness and Mounts: Automotive



[PioneerPete]

Pyle audio

Amazon.com: Pyle Tornado Bluetooth Waterproof ATV Speaker Sound System, For UTV Go Cart All terrain,500 Watt, 6.5-Inch, AUX Input: Car Electronics



[PioneerPete]

rear view

http://www.amazon.com/gp/product/B00DELNHJI?tag=sxsweb24-20



[PioneerPete]

battery powered map lights on the front roll bar.

Amazon.com: Rampage 769801 Roll Bar Mount LED Light: Automotive



[PioneerPete]

roll cage storage.

Amazon.com: Nelson-Rigg UTV-100 Black UTV Roll Cage Cargo Bag: Automotive



[PioneerPete]

still trying to figure out where these go....

Amazon.com: XKTTSUEERCRR Waterproof Red LED 3528 SMD 300LED 5M Flexible Light Strip 12V 2A 24W 60LED/M: Home Improvement

remote to go with these lights

Amazon.com: Lerway Mini LED Controller Dimmer with RF Wireless Remote Control DC 5~24V 12A R106: Musical Instruments



[PioneerPete]

OK, I wasn't happy with my first switch plate that my friend made for me, so I ordered one from a professional. Much better fit, and it's powdercoated metal instead of plastic. The holes are also a much tighter fit, so the switch seals are nice and tight.
Here's a pic of the "rats nest"

And the front view



[PioneerPete]

And a few glamour shots while PioneerPete's all cleaned up



[joeymt33]

That's looking good. I wish my wiring wasn't so much of a rats nest.



[PioneerPete]

That's looking good. I wish my wiring wasn't so much of a rats nest.

Thanks bud. For a rookie, I thought it turned out decent.



[PioneerPete]

Has anyone employed the "bus bolt" method for grounding accessories???lol The bottom lead on the bolt (the 6ga) is grounded to the frame, and then most all accessories (except the winch and pdm itself) are grounded on the bolt.

I should probably go back and heatshrink these leads. At least it would look better.
