I made mine 6 1/4" in the front and 7 1/4" in the back off the seat. Seat angles back a bit so this was done to try to make it level.



[Admin]



[RumpRocket]

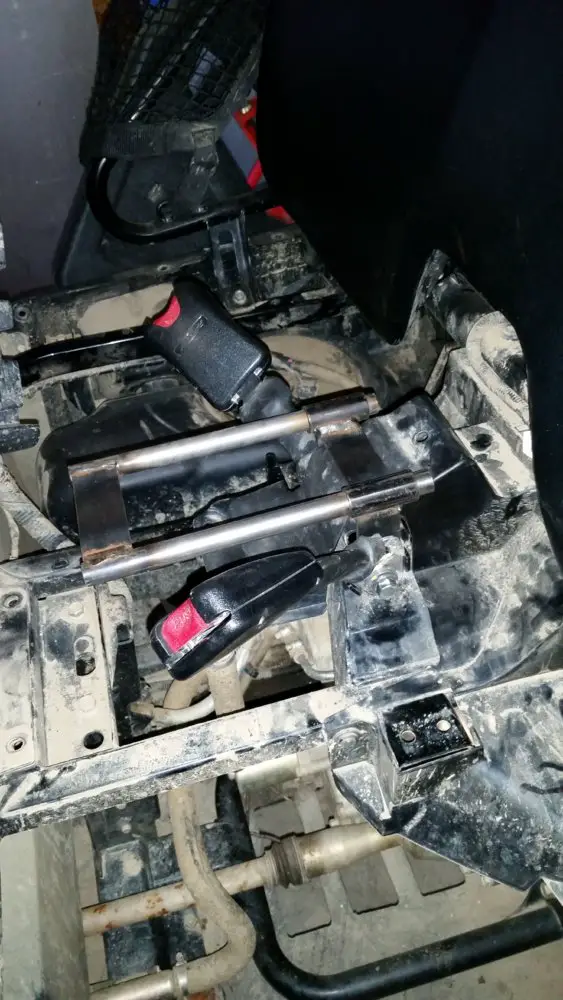

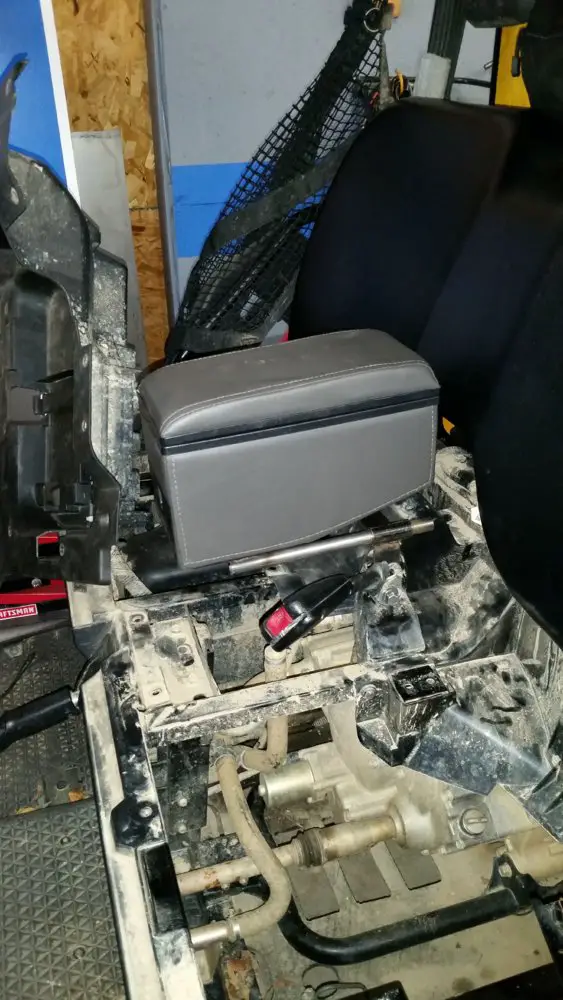

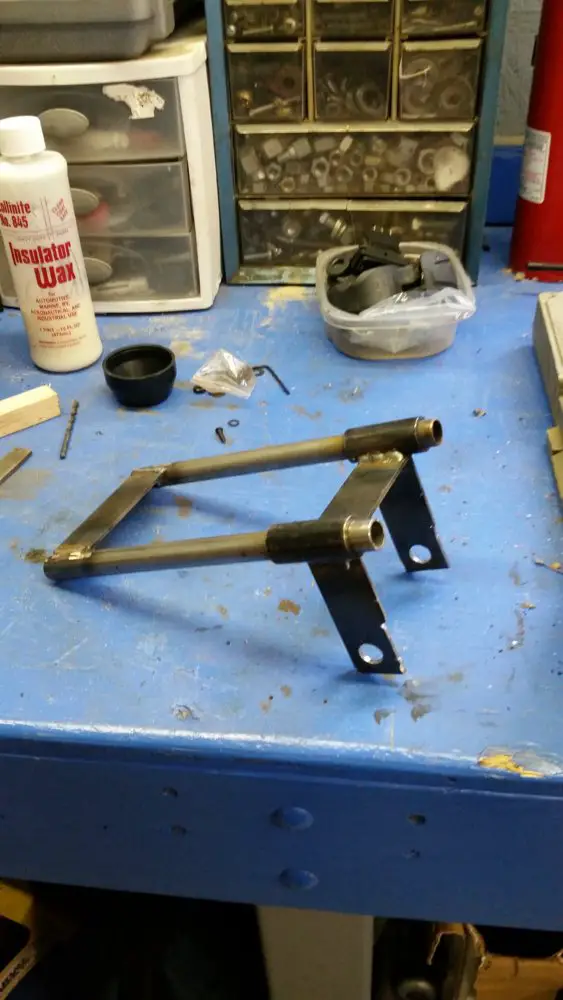

This is what I have done so far (it's almost complete). This is going to be pretty slick , if I do say so myself. I need to drill two more holes to mount the console to the bracket , paint it and put everything back together.
View attachment 117231 View attachment 117232 View attachment 117233

I'm liking this idea.....



[Eltobgi]

Received my armrest today and was really surprised when I opened the lid to see there didn’t appear to be much storage. I’m thinking it may be a good place to mount some switches and a volt meter for the aux battery. I do have to admit I didn’t inspect it thoroughly so I may be wrong about available space. What do you think @Chooglin



[Smitty335]

Received my armrest today and was really surprised when I opened the lid to see there didn’t appear to be much storage. I’m thinking it may be a good place to mount some switches and a volt meter for the aux battery. I do have to admit I didn’t inspect it thoroughly so I may be wrong about available space. What do you think @Chooglin

He don't know Choog! HA!



[Chooglin]

Received my armrest today and was really surprised when I opened the lid to see there didn’t appear to be much storage. I’m thinking it may be a good place to mount some switches and a volt meter for the aux battery. I do have to admit I didn’t inspect it thoroughly so I may be wrong about available space. What do you think @Chooglin

Oh it has very little storage , but there isn't any other console out there (that I could find) that was narrow enough to fit and not interfere with the seat belts. It's the cup holders that take up all the storage space.

I will be removing those cup holders and making up a new tray to go inside the console , then cap off the openings where the cup holder use to be.

Eventually I will most likely just make an entirely new console , but this will work for now. I just needed to buy something to start out with. I really like the Kolpin console but I think it would just be to big.



I think I can also use a larger console with this mounting system I came up with , it mounts the console above the seat belt latches , so that is no longer an issue.



[Eltobgi]

Oh it has very little storage , but there isn't any other console out there (that I could find) that was narrow enough to fit and not interfere with the seat belts. It's the cup holders that take up all the storage space.

I will be removing those cup holders and making up a new tray to go inside the console , then cap off the openings where the cup holder use to be.

Eventually I will most likely just make an entirely new console , but this will work for now. I just needed to buy something to start out with. I really like the Kolpin console but I think it would just be to big.

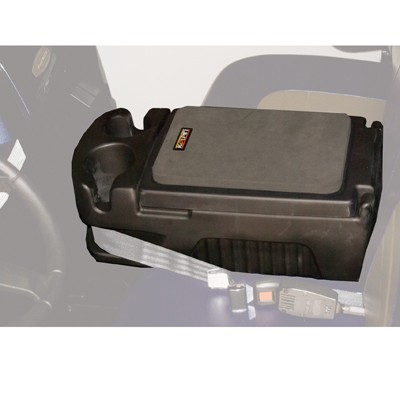

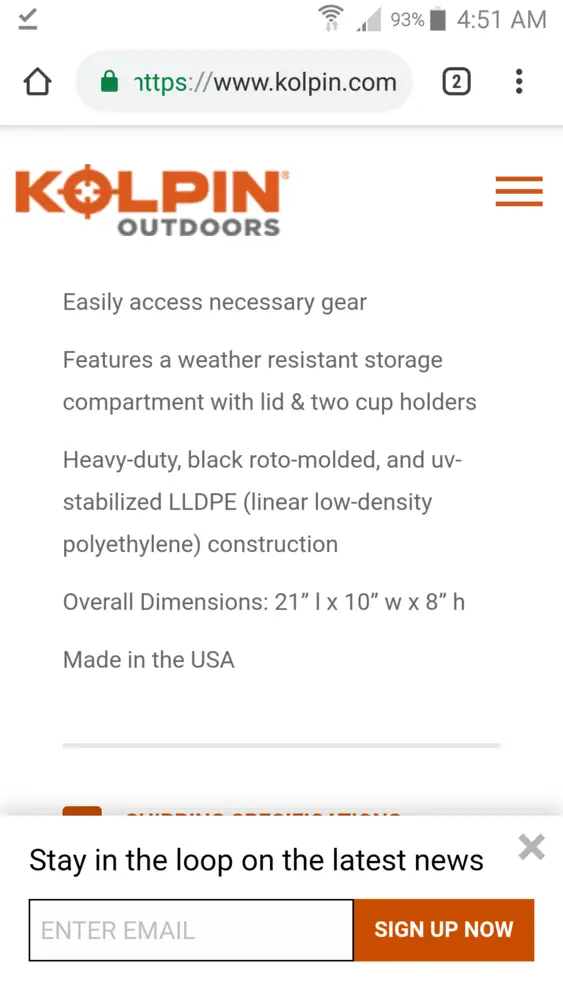

View attachment 117650 View attachment 117651

I think I can also use a larger console with this mounting system I came up with , it mounts the console above the seat belt latches , so that is no longer an issue.

For the price it really isn’t bad! First and foremost it is an armrest! I think I will explore whether or not it could hold switches and forget about using it for any type of storage!
I’ve began completely re wiring the mini Beast and will have to mount more switches before I can complete the job so its either a few options on the dash or the console.

But I’m getting tired of working on her and want to ride now that snow has melted enough to do some hill climbing and tackle some local trails.



[Chooglin]

For the price it really isn’t bad! First and foremost it is an armrest! I think I will explore whether or not it could hold switches and forget about using it for any type of storage!
I’ve began completely re wiring the mini Beast and will have to mount more switches before I can complete the job so its either a few options on the dash or the console.

But I’m getting tired of working on her and want to ride now that snow has melted enough to do some hill climbing and tackle some local trails.

I really like the idea of mounting switches in there. You have to remember though , that means you would have wires running in to the console and when you go to remove the seat bottom , that could be a pain!



[Chooglin]

But I’m getting tired of working on her and want to ride now that snow has melted enough to do some hill climbing and tackle some local trails.

I agree , I have a few things to get done before Takeover , then it's time to enjoy the warmer weather and do some riding



[Chooglin]

Now I am looking at other options instead of mounting a console on the brackets I made...........the possibilities are endless.

I am still looking for the perfect box , but this is the direction I am heading with this.
These also come in different sizes!
https://www.amazon.com/MTM-Survivor-Ring-Seal-Small/dp/B001SH5U0E/ref=mp_s_a_1_16?keywords=weatherproof+storage+box&qid=1553619677&s=gateway&sr=8-16&th=1&psc=1



[Chooglin]

I went ahead and ordered the larger one and best of all , THEY ARE MADE IN THE U.S.A.

https://www.amazon.com/MTM-Survivor-Ring-Seal-Large/dp/B001QDNACU/ref=mp_s_a_1_27?keywords=weatherproof+storage+box&qid=1553619677&s=gateway&sr=8-27&th=1&psc=1

The company that makes them

Sportsmen Utility Dry boxes and ATV dry box by MTM



[trigger]

I went ahead and ordered the larger one and best of all , THEY ARE MADE IN THE U.S.A.

https://www.amazon.com/MTM-Survivor-Ring-Seal-Large/dp/B001QDNACU/ref=mp_s_a_1_27?keywords=weatherproof+storage+box&qid=1553619677&s=gateway&sr=8-27&th=1&psc=1

The company that makes them

Sportsmen Utility Dry boxes and ATV dry box by MTM

Might be too wide Chooglin?



[Chooglin]

Might be too wide Chooglin?

No , the mounting bracket is above the seat belt latches , so width will not be an issue now. My only concern with the width now , it mite jab me in the side. It's only 1 1/4 wider than the console I bought , so it should be good!



[Chooglin]

@trigger I will have this all finished up over the weekend and I will post up some better pics. After everything is put all back together, it will be easier to see how this will work out.



[trigger]

No , the mounting bracket is above the seat belt latches , so width will not be an issue now. My only concern with the width now , it mite jab me in the side. It's only 1 1/4 wider than the console I bought , so it should be good!

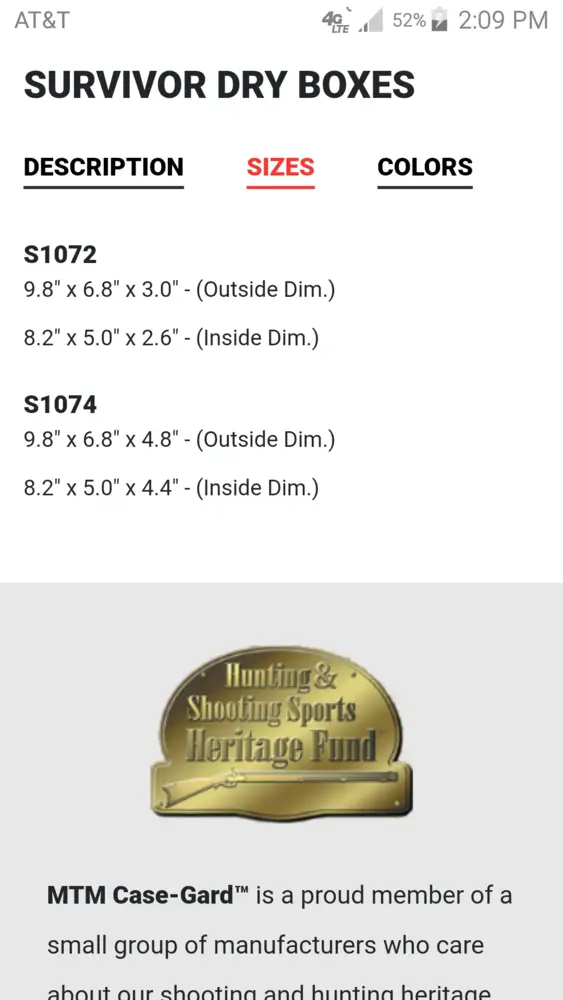

View attachment 117759

That 1 1/4" is what I'm referring to, hope you're right and it works for you though.



[Chooglin]

That 1 1/4" is what I'm referring to, hope you're right and it works for you though.

This prototype work sucks. Last night I put the seats back on to check for fitment and clearance on the mounting bracket and what do you know , it's about 1.00" shorter on the height than what I wanted. I had to start all over again , making a new bracket.

I could have used the first bracket but it wasn't to my liking and if I don't make it right , it will just drive me crazy!



[trigger]

This prototype work sucks. Last night I put the seats back on to check for fitment and clearance on the mounting bracket and what do you know , it's about 1.00" shorter on the height than what I wanted. I had to start all over again , making a new bracket.

I could have used the first bracket but it wasn't to my liking and if I don't make it right , it will just drive me crazy!

I couldn't find anything suitable back when so I understand what you're going through. That's why I just built one out of wood to the dimensions I wanted. Guess I didn't realize how many guys wanted a console, maybe I should make up a few? Takes some time though as I riddled it with staples for the vinyl cover. Upholstery isn't really my strong suit but I made it work.



[Chooglin]

I couldn't find anything suitable back when so I understand what you're going through. That's why I just built one out of wood to the dimensions I wanted. Guess I didn't realize how many guys wanted a console, maybe I should make up a few? Takes some time though as I riddled it with staples for the vinyl cover. Upholstery isn't really my strong suit but I made it work.

Same here , I could build the box for the console but covering it in vynyl would be where I would have a problem!



[papermaker]

I went ahead and ordered the larger one and best of all , THEY ARE MADE IN THE U.S.A.

https://www.amazon.com/MTM-Survivor-Ring-Seal-Large/dp/B001QDNACU/ref=mp_s_a_1_27?keywords=weatherproof+storage+box&qid=1553619677&s=gateway&sr=8-27&th=1&psc=1

The company that makes them

Sportsmen Utility Dry boxes and ATV dry box by MTM

Would this fit in the front under the hood?



[Chooglin]

Would this fit in the front under the hood?

Yes I think it's plenty small enough.......I bought the large one!



[Chooglin]

I've decided to mount one of these on the front of the console bracket. This will be a good place to mount my phone (to play the music).
